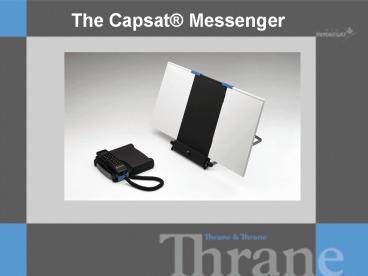

The Capsat Messenger
2
M4 - MMMM?

• Multi
• Media
• Mini
• M

3
Capsat Messenger Services

• 56/64 kbps circuit switched data connection.
• Up to 64 kbps IPDS (Inmarsat Packet Data Service)
• High-Speed fax transmission.
• Broadcast quality voice.
• Mini-M - Voice, Fax and Data.

4

• Data/Specifications

• Easy to carry, set-up and use
• Low weight (4.8 Kg)
• Very robust design
• Supports SIM Card
• Tools in antenna to ease alignment
• Compass and level indicator in the antenna
• Visible and audible indication of signal
  strength in the handset

5
Specifications Cont.

• Handset design as mini-M
• Simplified menu and multi-language support
• Multiple interfaces
• User friendly configuration software, manual,
  and applications included on CD-Rom
• Optional DECT telephone
• Optional antenna for fixed installations

6
Inmarsat ISDN

• ISDN defined as a Basic Rate Interface (BRI) as

• 2B D Two 64Kbps user channels (2B) and a
  signally channel (D) which may offer 9.6Kbps
  packet user data, if vendor supports it.
• Inmarsat ISDN Basic Rate Interface is
• 1B s One 64Kbps user channel (1B) and a
  signally channel only. (No data)

7
Capsat Messenger Applications
Video conference
Audio
WAN/LAN
Live/Pre-edited video
E-Mail
Internet
8

• Battery Packs and Capacity

• Battery packs
• default NiMH battery pack (0 to 55C)
• optional Mini-M NiCd battery pack (-25 to 55C)
• Battery capacity (NiMH)
• 2h M4 voice or 4h mini-M voice
• 45m M4 data/fax or 2h mini-M data/fax
• 70h standby

9

• Charging.

• Charging
• 3h fast charge in 0 to 55C temperatures
• 10h in -25 to 0C temperatures (NiCd only)
• Battery status visible on hand set
• AC adapter capability
• Charging and transmission simultaneously

10

• Capsat Messenger Specifications

Antenna Weight 3.0 kg Closed 437 x 271 x 41
mm Opened 414.5 x 753 x 12 mm
Transceiver Weight 1.8 kg Dim. 43 x 205 x 200
11

• Interfaces

Speaker
NiMH/NiCd battery pack
Handset (100 m cable)
12

• Interfaces cont.

DC input, 9.5 - 18.5 VDC
Fuse reset
Fan
Antenna Cable (up to 70 m)- QLA
Voice/fax- 2W, RJ11
RS-232 - 9 subD, F
Tape input - Phono plug
ISDN/S0 - 8W, RJ45
Headphone output - Jack conn.
USB Slave
13

• Interfaces cont.

Slot for SIM Card
Slot for TT PCMCIA
14
TT-3670A Capsat DECT Tel.

• Extremely small and light DECT system
• Up to six handsets on one base station
• Internal calls between handsets
• Indoor range 50 m, outdoor range 300 m
• Room monitoring

15
Vertical Market Segments

• Government
• News and media
• Oil Mining
• Aid and NGO
• Telemedicine
• International companies within construction,
  finance, industry, insurance, etc.

16
Certified Capsat Messenger Dist.

• New distribution philosophy
• Certified Capsat Messenger distributors
• Strong support of end-users
• Complete solutions
• Experience within IT/HSD/ VSAT

17
TT Support and Participation

• Technical Sales courses
• Sales manual
• Certified Solutions and support
• Brochures/Posters/Stickers
• Promotion Tour
• Increased visits to distributors

18
Capsat Messenger Cert. Solutions

• Digital image transfer - Fujifilm
• Video conferencing - Toko
• Remote Working - Sterling Commerce
• Corporate E-mail - OnAir Mobile
• Web Intranet Access
• Etc.,

Thrane Thrane Certified Solution
19

• Capsat Messenger Concept

M4 LES
TT SBS
(IPDS)
ISDN
PSTN
Internet
WAN
20

• Capsat Messenger
