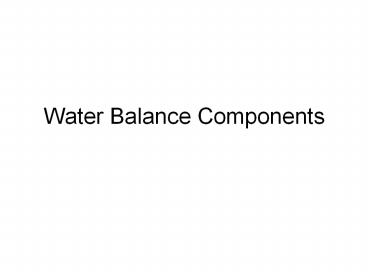

Water Balance Components

1
Water Balance Components
2
http//www.srs.fs.usda.gov/gallery/images/5_rain_g
3
DBHydro

• State Plane Coordinates
• High Accuracy Reference Network (HARN)
• Refinement of NAD83

4
DBHydroRainfall Stations

• Approximately 600 stations

5
Spatial Distribution of Average Rainfall
http//sflwww.er.usgs.gov/sfrsf/rooms/hydrology/co
mpete/obspatialmapx.jpg
6
Voronoi/Thiessen Polygons
7
Evaporation Pan
www.photolib.noaa.gov/ historic/nws/wea01170.htm
8
Pan Evaporation

• Pan Coefficients 0.58 0.78 (get hotter than
  lake)
• Transpiration
• Potential Evapotranspiration (water may not be in
  soil)
• Thornwaite Equation

9
Watersheds
http//www.bsatroop257.org/Documents/Summer20Camp
/Topographic20map20of20Bartle.jpg
10
Watersheds
http//www.bsatroop257.org/Documents/Summer20Camp
/Topographic20map20of20Bartle.jpg
11
Stage
12
Stage Recorder
http//gallatin.humboldt.edu/brad/nws/assets/drum
13
Stream Gauging

• Measure velocity at 2/10 and 8/10 depth
• Q vA
• Rating curve
• Q vs. Stage

http//www.co.jefferson.wa.us/naturalresources/Ima
ges/StreamGauging.jpg
14
River Hydrograph
http//cires.colorado.edu/lewis/epob4030/Figures/U
seandProtectionofWaters/figures/ColoradoRiverHydro
15
http//www.nws.noaa.gov/om/hod/SHManual/SHMan040_r
ating.htm
16
Recurrence Interval

• T n1 /m
• T recurrence interval
• n number of data
• m rank (highest to lowest)
• P 1/T
• http//serc.carleton.edu/quantskills/methods/quant
  lit/RInt.html

17
Well Hydrograph
http//wy.water.usgs.gov/news/archives/090100b.htm
18
http//www.prescottcreeks.org/programs/watson20wo
ods/Inv20and20Mon/monitoring20well.htm
http//www.water.az.gov/dwr/Content/Find_by_Progra
m/Hydrology/WQARF/content/Reports/Well_Images/MWwi
19
(No Transcript)
20
Textbook Errata

• http//members.cox.net/ground-water/errata.pdf
