Title: Berkeley NEST Wireless OEP 901 Progress and Plans

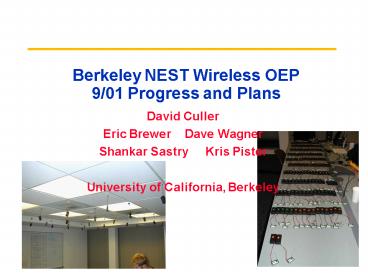

1
Berkeley NEST Wireless OEP9/01 Progress and
Plans
  • David Culler
  • Eric Brewer Dave Wagner
  • Shankar Sastry Kris Pister
  • University of California, Berkeley

2
Outline
  • OEP v1 requirements
  • OEP v1 hardware design
  • Key OEP Software Developments
  • experience at scale
  • network programming
  • robust bcast/multicast action
  • large-scale simulator
  • Working across abstractions
  • signal strength info
  • time synchronization support
  • power-efficient wake up
  • Plans

3
Design Requirements
  • Deliver complete kits in Jan 02
  • More storage,
  • More storage,
  • More ...
  • More communication bandwidth
  • More capability available to sensor boards
  • stable voltage reference
  • retain cubic inch form factor and AA/year power
    budget
  • allow opportunities for new approaches
  • time synchronization
  • other algorithms

4
Major features
  • 16x program memory size (128 KB)
  • 8x data memory size (4 KB)
  • 16x secondary storage (512 KB)
  • 5x radio bandwidth (50 Kb/s)
  • 6 ADC channels available
  • Same processor performance
  • Allows for external SRAM expansion
  • Provides sub microsecond RF synchronization
    primitive
  • Provides unique serial IDs
  • On-board DC booster
  • Remains Compatible with Rene Hardware and current
    tool chain

5
In a nutshell
  • Atmel ATMEGA103
  • 4 Mhz 8-bit CPU
  • 128KB Instruction Memory
  • 4KB RAM
  • 4 Mbit flash (AT45DB041B)
  • SPI interface
  • 1-4 uj/bit r/w
  • RFM TR1000 radio
  • 50 kb/s
  • Network programming
  • Same 51-pin connector
  • Analog compare interrupts
  • Same tool chain

Cost-effective power source
2xAA form factor
6
Microcontroller
  • Conducted extensive comparison of alternatives
  • narrowed list based on availability and design
    size
  • Deep study of prime candidates
  • ATmega 163 same pinout as 8535, 2x mem, reprog
  • ARM Thumb greater perf, poor integration, slow
    radio
  • TI MSP340 Low power, HW , 2-buffered SPI tx,
    no gcc
  • ATMEGA 103 storage!, integration, compatibility
  • Selected Atmel ATMEGA103
  • 4 Mhz 8-bit CPU
  • 128KB Instruction Memory (16x increase from Rene)
  • 4KB RAM (8x increase from Rene)
  • Compatible with Rene CPU and tools
  • able to support high bandwidth radio techniques
  • Re-programmable over Radio or Connector

7
Radio
  • Retained RFM TR1000 916 Mhz radio
  • Developed circuit able to operate in OOK (10
    kb/s) to ASK (115 kb/s) mode
  • smaller prate resistor, race-conditional
    work-around
  • pwidth res. tied to vcc to push to maximum sample
    rate
  • decrease baseband capacitor to increase RF
    sensitivity
  • Design SPI-based circuit to drive radio at full
    speed
  • current bit-level edge detect on 10 kb/s preamble
  • analog comparator to find high speed edge
  • SPI synch. serializer to drive/receive bits
  • resynch on every byte
  • full speed on TI MSP, 50 kb/s on ATMEGA
  • Improved Digitally controlled TX strength DS1804
  • 1 ft to 300 ft transmission range, 100 steps
  • Input timing capture /- .5 us on RX pin.
  • Receive signal strength detector
  • software integration

8
Network Programming and Storage
  • ATMEGA103 in-circuit, but external reprog.
  • retain secondary co-processor
  • AT90LS2343 only small device with internal clock
    and in-circuit programming
  • 4 Mbit flash (AT45DB041B)
  • Store code images, Sensor Readings and
    Calibration tables
  • 16x increase in prog. mem too large for EEPROM
    solution
  • forced to use FLASH option
  • SPI Protocol instead of I2C!
  • radio is using HW SPI support
  • Novel multiplexing of 6 I/O pins on 2343 to drive
    7 signals to interface to Flash SPI and 103
  • relies on remembering a previous control bit

9
Power
  • Developed Energy-harvesting design with solar
    cells, superCaps, and DC booster
  • Built components for Intel power regulator board
  • Studied wake-up transients
  • Incorporated On-board Voltage Regulation
    (Maxim1678)
  • Boost Converter provides stable 3V supply
  • Stabilizes RF performance
  • Allows variety of power sources
  • Can run on batteries down to 1.1 V
  • Incorporated power supply sensor
  • Can measure battery health
  • used to adjust wake-up threshold for unregulated
    design
  • added line to disable vcc to pot
  • reduce standby current

10
Timing, Identity, and Output
  • Retain Dual Oscillator Design
  • High Accuracy 32.768 crystal for real-time
    measurement and synchronization
  • 4 MHz oscillator
  • developed design with resonator
  • required software recalibration
  • Electronic 64-bit serial number (DS2401)
  • one-wire protocol
  • 3 LEDs

11
Expansion Capabilities
  • Backwards compatible to existing sensor boards
  • eliminated i2c-2 (was for EEPROM, which is now
    ext. SPI)
  • eliminated UART2
  • added two analog compare lines
  • added five interrupt lines (were unknown)
  • added two PWM lines
  • 6 ADC channels
  • 10 bits/sample
  • 10K samples/second
  • I2C Expansion Bus (i2c-1)
  • SPI Expansion Bus
  • 8 Digital I/O or Power Control Lines (was 4)
  • Can connect external SRAM for CPU data memory (up
    to 64KB)
  • lose most sensor capability
  • address lines share with lowest priority devices
    (LEDS, Flash ctrl)
  • still allows radio, flash, and programming

12
Sensor Board
  • Light
  • Temperature
  • 2D Accelerometer
  • Acoustic threshold detector

13
Why not ARM Thumb ?
  • CPU switch requires establishing a new tool chain
    (compiler, linker, programmer) that would be
    untested
  • Peripheral support around Atmel AT91 does not
    allow for high bit rate RF communication
  • Power consumption of high clock rates is still
    prohibitively high
  • Very interesting to pursue in integrated core
    design
  • see SYCHIP (arm thumb gps)

14
Why Not Faster/Different Radio?
  • RFM TR1000 is the lowest power RF Transceiver on
    the market
  • High speed radios usually come with digital
    protocol logic forcing users into set
    communication regimes
  • Raw interface to the RF transmission allows for
    exploration of new communication paradigms
    (Proximity Mode and Sleep)

15
Key TinyOS developments
  • Initial visualization
  • Network programming
  • RF Localization support
  • Robust command broadcast
  • Aggregation
  • Query by schema
  • Calibration
  • Breaking boundaries
  • power efficient wake up
  • robust sample-based proximity

16
Testing at Scale
  • In collaboration with Intel produced 1,000
    compressed node
  • size of quarter, stack 4 high with battery
  • used ATMEGA 163 (2x rene)
  • Stressed software components, manufacturing,
    testing
  • Goal was live demonstration of network discovery
    in realistic setting
  • many people in a large space

17
Network programming
  • Suite of handlers to support NP
  • start new program upload
  • write fragment i to 2nd store (EEPROM) incl.
    checksum
  • read fragment map i
  • initiate reload
  • including verification
  • Boot loader on little guy
  • transfers complete, check-summed fragment set to
    main controller
  • reset
  • Demonstrated up 113 nodes in single cell mode
  • Multihop version preliminary operation
  • disseminate fragments
  • aggregate verifications
  • Integrated into generic_comm

18
Ad Hoc MCAST Radio Cells
19
ad hoc MCAST
20
Multihop Network Topology
21
Robust network command mcast
  • Higher-level middleware component
  • rooted at any node
  • novel primitives
  • squelch retransmission
  • amorphous mcast
  • many applications
  • discovery, act, acquire data
  • Huge potential redundancy at scale
  • traditional elect and maintain cluster heads
  • alternative probabilistic forwarding
  • Many factors influence propagation dynamics
  • early retransmit have many children
  • fast, turbulent wavefront
  • later collisions reduce redundancy

if (new mcast) then take action retransmit
modified request
22
Example
23
Surge II viz sensor field network
24
Aggregation
  • process data across set of nodes within the
    network
  • vector logical, sum, ave, median, percentile, ...
  • Dynamic physical structure
  • View as time series aggregation rooted at a node
  • Each level pushes request deeper then streams
    partial results
  • Often can allow child to push result to multiple
    parents

25
Query by schema
  • Nodes contain schema of what data they contain
  • id, hw config, version, temp, light, ...
  • Can request the schema
  • Can request elements of schema
  • Requests may be one time, periodic, on threshold,
    ...

26
TOSSIM
  • Discrete event simulation for large sensor
    networks
  • Provides implementation of hardware abstractions
  • Individual rf modulation events, sensor events,
    clock events
  • existing applications work
  • Exploits TinyOS event driven structure
  • host emulation down to HW abstraction
  • redefine TOS macros and scheduler
  • Allows debugging of distributed algorithms
  • Proper execution verified up to 1000 motes
  • Currently Static error-free connection topology

27
TOSSIM Performance
  • Executing for 10 seconds of virtual time

28
Power Efficient Wake up
  • minimize listening in communicating event to many
    nodes
  • via messages
  • must transmit for 1.e x sleep interval
  • may have to wait (actively) for n neighbors
  • receiver must lock onto message, may get many
  • for all nodes awake after lt 2 rounds
  • listen 1 sec with 8 sec asleep, 16 sec announce
  • via sampling base-band tone
  • detect any send
  • does not matter that rx 0
  • short listen
  • 200 us listen with 4 sec sleep, 10 sec announce
  • density independent

29
Sample-based Proximity Count
  • minimize listening in communicating small amount
    of data to many nodes
  • extend tone approach with sampling
  • sequence of events, each node transmits with
    known probability
  • infer count based on frequency of null events
  • density independent

30
Challenge Application Series
  • Sensing and Updates of the Environment in
    Response to Events and Queries.
  • monitor the environment of a building and use
    this to instigate control actions such as
    lighting, HVAC, air-conditioning, alarms, locks,
    isolation, etc.
  • monitor and protect space from environmental
    attack
  • Distributed Map Building
  • classic art gallery problem is provably hard
  • many agents with simple proximity sensors to
    detect obstacles
  • exchange info gt dense collaborative map building
  • Pursuit Evasion Games
  • combination of map building and intent
    determination by both teams using networks of
    motes with possible information attacks and
    mis-information from the two teams

31
Component Challenge localization
  • given
  • graph of localized measurements Cij
  • and locations of certain marker nodes Pi
    xi,yi,zi
  • to within some tolerance
  • compute locations of remaining nodes using the
    communication available among the nodes
  • gt distributed constraint solving
  • goodness metrics
  • location estimation error
  • size and shape of marker set
  • complexity (time, proc, communication, energy)
  • robustness
  • rate of convergence
  • variations
  • small subset of more powerful nodes with more comm

32
RF localization support
  • RFM baseband output provided to ADC
  • Signal strength component collects samples
  • computes average over well-define preamble
  • traditional solution would build HW integration
    circuit
  • Provided to application components as part of
    packet envelope
  • accessible to packet handler
  • Signal strength control to change cell size
  • Preliminary studies of range of localization
    algorithms

33
Closing the loop more
  • detect and track plume
  • moving node
  • moving light/hot region
  • network actively adapts to expend energy sensing
    in region surrounding plume
  • actively adapts to convey packets through rest of
    network
  • time synchronization
  • correlate multiple readings
  • orchestrate multihop transfer schedule

34
Component challenge time synch
  • Synchronize local clocks to specified tolerance
  • Need means of verifying success
  • use high precision clocks at edges and fast
    network between
  • Novel system support
  • to communicate over the radio, transmitter and
    receive are synchronized to fraction of a bit
  • - .5 us
  • can timestamp particular bit in message to this
    accuracy
  • gt message carries info on time and place of
    origin

35
Conclusions
  • HW platform development on schedule
  • SW platform exercised in many distinct dimensions
  • Demonstrates possibility of working across
    traditional layers in distributed system
  • Novel algorithmic basis
  • Formulating well-define subproblems for
    determination of best of breed algorithms
Write a Comment
User Comments (0)
About PowerShow.com
