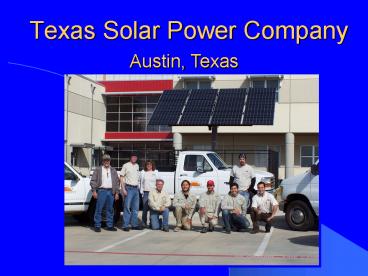

Texas Solar Power Company

1
Texas Solar Power Company
Austin, Texas
2
Solar Power 101

• Why use Solar
• How electricity is generated
• How energy is used
• Types of solar systems
• What it costs
• Q A

3
Why Solar?

• You care about the future
• Sources of fossil fuel are finite
• Decreasing CO2 leads to climate stabablization
• You want to grow your own energy
• and.

4
Solar Energy is the most abundant renewable
energy in the world.
Photo Light Voltaic Electricity
5
Thomas Edison to Henry Ford, 1931
Id put my money on the sun and solar energy.
What a source of power! I hope we dont have to
wait until oil and coal run out before we tackle
that.
6
Some Interesting Stats

• Average residential system taking 1
  car off the road (reduction of greenhouse
  gas emissions)

• The earth receives more energy from the sun in
  just one hour than the world uses in a whole
  year.

7
Solar Systems work well

• No moving parts
• No emissions
• No water required

• (except, perhaps,
• periodic cleaning)
• Grid-tie systems
• are easily managed
• putting power
• directly on the grid.

Some assembly required! Batteries not
included.
8
Austin is a great place for Solar!
9
What are Solar Cells?

• Thin wafers of silicon
• Similar to computer chips
• Much bigger
• Much cheaper!
• Silicon is abundant (sand)
• Non-toxic, safe

10
PHYSICS
How to Make Electricity

• Silicone absorbs white sunlight
• Causes electrons in atoms to collide with
  each other
• Activity creates and - charges
• Charges collect on to and - solders that lead
  to conducts

11
What are Solar Modules?

• Modules or panels are made up of multiple cells.
• Two kinds of PV modules
• Monocrystalline whole wafers
• Polycrystalline composite wafers

12
What are Solar Arrays?

• PV or Solar Arrays are made of a series of
  connected modules.

13
3 Basic Systems

• Grid-tie
• Grid-tie / battery backup
• Stand alone or off-grid

14
Grid - Tie

• Net Metering monitors the flow of power both TO
  and FROM the utility grid
• Grid-Tie feeds power into the main load center
• Grid-Tie systems allow customers to continue to
  receive power from the grid, while pushing any
  excess power from the PV system to the grid

15
Net Metering

• Electric meter can run both forwards and
  backwards
• Required of all electricity providers
• If you come out ahead, the energy company is not
  required to pay you at certain rate
• Austin Energy pays wholesale rate

16
Stand Alone or Off - Grid

• Designed to meet all power needs
• Necessary when location is not served by power
  company
• Design constraints
• Surge Amps
• Battery bank amp hour capacity
• Days of back-up storage (poor sunlight)
• Square footage for components
• We use a lot of electricity!

17
Grid Tie, Battery Back-Up

• In case of grid failure, system provides
  uninterrupted power to specified loads
• Battery bank is designed to meet users load
  objective in terms of
• Amps
• Run Time

18
Grid Tie, Battery Back-Up

• Additional components used by this system
• Grid-tie Battery back-up Inverter
• Charge Controllers
• Batteries
• Inverters have both outputs and inputs
• OUTPUTS are from Batteries or PV array
• INPUTS are from the load center (grid)
• Charge batteries
• Monitor voltage

19
Example of a residential systems battery bank
with 14 hours of reserve power.
20
Majority of Installations Grid-Tie
21
Ideal Location for a Solar Install

• South facing roof
• Tilted to locations latitude.
• Austin 30.27
• to a 7 / 12 pitch
• Shade-free area, every day of the year

22
Ideal Location for a Solar Install

• We can provide the tilt

23
Components of a Solar Installation

• PV Modules produces Direct Current (DC)
• We use Alternating Current (AC)
• Power must be converted from DC to AC with an
  Inverter

24
A Grid Tie System
25
System Specs

• 1 kW 100 Sq. Ft
• 3 - 7 lbs per Sq. Ft.
• Need minimum load center 125A (for a 3kW PV
  System)
• 4 x 3 space for electrical equipment

26
Example of typical US household power use
Where Does all the Power Go?
27
How Much Power Can You Produce?

• Austin Energy offers a fabulous rebate program
  3.75 per watt
• AE caps _at_ 50K
• A 14 kilowatt system maxes out their per-year
  allotment for a residential installation
• One rebate per year, per system.
• The following calculations are based on a 3kW
  system

28
How Much Power Can You Produce?

• 3,000 Watts 3kW
• System will produce 3000 watts per hour
• Austin averages 5.4 good sun hours per day (3000
  x 5.4 hours 16,200 watt hours per day)
• 16,200 x 30.5 days/mo. 494 kW/mo.

29
How Much Power Can You Produce?

• One more factor.
• The DC power produced from the system must be
  converted to AC power
• This process looses power, so derating factor
  of .77 must be calculated
• 494,000 W/mo. x .77 380kWh/mo.
• On average, this is 380 kWh per month

30
How Much Will That Cost?
31
Whats the Payback?
NOTE Solar locks in operational costs and
hedges against rising energy costs. As the price
of energy goes up, savings increase
exponentially.
32
(No Transcript)
33
(No Transcript)
34
Take Home

• Accumulated Savings after 25 years 18,650
• Payback Period 8
• Average Rate of Return 8

Caveats

• Assumption is made that utility rates will
  increase 5 each year.
• Cash Flow based on comparing the solar investment
  to a similar 25 year bond assuming a 15 capital
  gain obligation
• Final Cost based on Total Cost less Austin Energy
  Rebate and Federal Incentive

35
Many variations
36
Many variations
37
Many variations
38
Many variations
39
Many variations
40
Many variations
41
Many variations
42
Many variations
43
Many variations
44
Many variations
45
Solar Hot Wateraka Solar Thermal

• Proven technology
• GREAT use of suns power more efficient than
  PV
• Can provide 85-90 home hot water needs
• Self-automated. Low-to-no maintenance

46
How it Works

• Turns on/off daily
• H2O heated by sun stored in tank
• Back-up used when no sun
• Hot water 24/7

47
SHW System Specs

• 64 square feet
• Weight 200 pounds
• Minimum 15 degree tilt
• South, SE, or SW orientation
• Ideally, shade-free
