Overview of Infinova US Operations

1

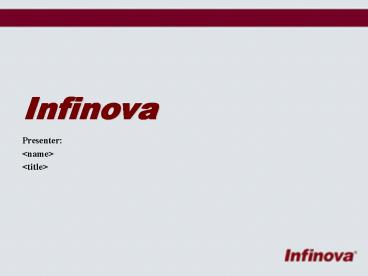

Presenter ltnamegt lttitlegt
Infinova
2
Infinova Infinite Innovation
Innovation
Information
Integration
3
Table of Contents
Company Introduction Project References Main
Products
4
Company Introduction
Serving the Security Industry with Technology and
Dedication

• Company Profile
• Company Honor
• Company Philosophies
• Competitive Advantages
• Major Markets Served

5
Company Profile

• Established 1994
• Located in Central New Jersey, USA
• Dual Manufacturing facilities with 70,000sf
• Offices Worldwide
• gt 350 Employees


6
Company Honor
Infinova proudly accepts the prestigious Frost
Sullivan 2007 Product Innovation Leadership of
the Year Award for IP Video.
7
Company Philosophies

• Infinova is a Technology Company that strives to
  be a Leading Supplier of CCTV and Fiber Optic
  Equipment and
• Leverage its experience in Legacy Co, Analog
  Based CCTV Products
• Adapting to the requirements of Converging
  Security and IP Based Ethernet Networks
• Offer IP Video and Integration Management
  Software
• Customize projects for end users requesting
  special modifications
• Assist with High Level Engineering Design and
  Product Training
• Provide Superior Project Management and Field
  Technical Support

8
Competitive Advantages

• Infinova is an industry leader not only in
  technology and product development, but in
  customer service
• One source solution for a full range of CCTV
  surveillance
• systems, fiber optic communications and
  security integration
• management software
• Requests for customization, both for hardware
  and software,
• are welcome - something most suppliers are not
  geared for
• Degreed Tech Engineers who have the in-depth
  knowledge
• to provide design assistance including Auto
  CAD drawings, product
• training and support during and after
  installations
• Infinova guarantees 100 satisfaction

9
Major Markets Served
Airports, Seaports, Sports Venues, Intelligent
Traffic Systems (ITS), Correctional Facilities,
Casinos, Corporate Offices, Healthcare
Facilities, Shopping Malls, Military
Installations, Mining Operations, Chemical
Plants, Government Facilities, Utilities, College
Campuses, Pharmaceutical Firms, Broadcasting
Operations, Municipalities.
10
Project References

11
Port of Miami

• The Port of Miami, Florida, USA
• This is the first major port security upgrade
  under the Department of Homeland Security.
• Phase 1, six (6) Ethernet enabled Matrix
  Switchers, gt500 Cameras all on Fiber Optic
  Networks
• Matrix Switchers interface with alarm inputs
  from Lenel Access Controls


12
Los Angeles Metropolitan Tansportation Authority
(MTA)

• Installed with over 650 up-the-coax PTZ Dome,
  800 vandal resistant color fixed domes and 1,528
  single-camera vandal resistant color fixed domes.
  We are installed across the four major transit
  systems, including light rail and subway,
  operated by the MTA using fiber optic equipment
  and data converter/distributors.

13
The Three Gorges Dam in the Peoples Republic of
China

• Hundreds of cameras controlled by Ethernet
  enabled Matrix Switchers
• All cameras are operated on Infinova Fiber Optic
  equipment


14
The Shanghai Subway System in the Peoples
Republic of China

• A rapidly growing network of facilities
  requiring video surveillance and flexibility
• All cameras are operated on Infinova Fiber Optic
  equipment


15
Kuwait Airport

• Fixed and PTZ Cameras
• Four (4) Ethernet enabled Matrix Switchers
• 4 channel Video over IP Servers connected to
  Switchers upgrade to existing Analog system
• Cameras on fiber optic equipment


16
Schools Universities

• PTZ Domes, IP PTZ, DVR, Decoders, Fiber
  Optics

• Sarasota County Schools, Sarasota, Florida
• Manatee County Schools, Bradenton, Florida
• Long Beach Unified School District, Long Beach,
  California
• Miami Dade , Miami , FL

17
And Hundreds of Others, Including

18
Main Products

• New Products
• PTZ Dome Camera
• TCP/IP Networkable Video Matrix Switchers
• Video over IP (VIP)
• CCTV Keyboards
• CCTV Accessories
• Video Management Software
• Fixed Cameras, Minidome Cameras and Lenses
• IP Fixed Cameras and IP Minidome Cameras
• Integrated PTZ Network Cameras
• Monitors
• Digital Video Recorders
• Fiber Optic Communications

19
New Products
20
New Products

• N3100 Universal Security Platform
• Video, audio, data, Ethernet, alarm, intercom
• Flexible fiber network topology
• 2.5Gb fiber optic backbone between USP units,
  40Gb internal bandwidth
• Integration with existing Infinova analog and IP
  video systems
• Direct input/output for fiber video, Ethernet IP
  cameras coax analog camera
• Utilize your existing analog system investment
  and seamlessly integrate with new IP based video
  surveillance products.

21
New Products

• V6201-M Series Mega Pixel IP Cameras
• 1/3" Micron progressive scanning 5.0 Mega
• Pixel CMOS sensor
• Easy day/night switch function
• MPEG-4/MJPEG dual video encoding
• Dual encoding stream
• High resolution image signal output
• 1.3M (1280960) _at_ MPEG-4/ MJPEG
• High frame rate transmission 20 fps
  _at_1280960, 25 fps _at_1280720
• Bi-directional audio
• SD card storage
• 2 alarm inputs, 1 relay output
• Compatible with TCP/IP, HTTP, ICMP, PPPoE,
  DHCP, UDP, DNS,
• DDNS, SMTP, RTP, RTSP, SNMP, ARP and other
  protocols
• PoE power supply

22
New Products

• V1631 Series Explosion-proof PTZ Camera System
• 316 stainless steel construction
• Strong corrosion-resistant capabilities
• Suitable for indoor/outdoor flammable and
  explosive hazardous areas
• Compatible with PTZ control on 3 RS485 protocols
  (Autosensing) PELCO-P, PELCO-D, INFINOVA
• OSD menu programming, able to set address, baud
  rate
• and camera parameters
• 128 presets
• 4 patterns
• 360 continuous pan/tilt rotation
• 0.1 25/sec pan/tilt variable-speed operation
• IP66 environmental protection
• 110240VAC universal power
• Compliance
• IECEx, ExdIICT6, Certificate No. IECEx CQM
  08.0013
• CNEx, ExdIICT6, Certificate No. CNEx08.1115X

23
New Products

• V1421 Series Explosion-proof Camera Housing
• 316 stainless steel construction
• The front end window utilizes steel glass
• Strong corrosion-resistant capabilities
• IP66 environmental protection
• Suitable for indoor/outdoor flammable and
  explosive hazardous areas
• Use with fixed mount or adjustable mount
• Compliance
• IECEx, ExdIICT6, Certificate No. IECEx CQM
  08.0013
• CNEx, ExdIICT6, Certificate No. CNEx08.1115X

24
Fixed Cameras, Minidome Cameras and Lenses

• Color and day/night cameras
• Fixed and vari-focal, vandal resistant, and
• waterproof, IP66 rated minidome cameras
• Standard and high resolution
• Excellent light sensitivity (low lux)
• Infrared LED cameras
• Vari-focal and IR vari-focal and motorized zoom
  lenses

25
Fixed Cameras

• V5101  Series Color Camera
• Resolution/Sensitivity
• 480 TVL, 0.3 lux
• 520 TVL, 0.5 lux
• V5102 Series Day/Night Camera
• Resolution/Sensitivity
• 480 TVL, 0.7 lux color, 0.02 lux B/W
• 520 TVL, 0.5 lux color, 0.01 lux B/W
• 12VDC/24VAC or 110230 VAC power

26
Fixed Cameras

• V5101-A5/V5102-A5 Series
• High Resolution Color, Day/Night Camera
•
• 1/3" high resolution SONY EX-view CCD sensor
• Resolution 560 TVL
•  S/N ratio gt54 dB
• High anti-blooming
• AES, AGC, MWB/ATW, BLC, F.L.
• Back focus adjustment, easily and accurately
  aim at the object
• Supports both Video-Drive and DC-Drive lens

27
Minidome Cameras

• V5411 Series Indoor Color Minidome
• Resolution/Sensitivity
• 480 TVL at 0.3 lux or 520 TVL at 0.5 lux
• Surface Mount, 2-Axis adjustment
• V5412 Series Indoor Day/Night Minidome
• Resolution/Sensitivity
• 520 TVL at 0.5 lux color / 0.01 lux B/W
• Surface Mount, 2-Axis adjustment
• 12VDC/24VAC power

28
Minidome Cameras

• V5621-A3/V5622-A3 Series Indoor Color, Day/Night
  Minidome
• Resolution/Sensitivity
• 520 TVL at 0.5 lux, 520 TVL at 0.5 lux color /
  0.01 lux B/W
• Recessed, Surface or Pendant Mount, Vandal
  Resistant,
• 3-Axis adjustment
• V5641-A3 /V5642-A3 Series Outdoor Color,
  Day/Night Minidome
• Resolution/Sensitivity
• 520 TVL at 0.5 lux, 520 TVL at 0.5 lux color /
  0.01 lux B/W
• Surface or Pendant Mount, Vandal Resistant,
  3-Axis adjustment
• IP66 environmental protection
• 12VDC/24VAC power

29
Minidome Cameras

• V5621-A5/V5641-A5 Series
• Indoor/Outdoor High Resolution Color Minidome
•
• 1/3" high resolution SONY EX-view CCD sensor
• Resolution 560 TVL
•  S/N ratio gt54 dB
• High anti-blooming
• AES, AGC, MWB/ATW, BLC, F.L.
• Back focus adjustment, easily and accurately
  aim at the object
• Supports both Video-Drive and DC-Drive lens
• Recessed, Surface or Pendant Mount (V5621-A5),
• Surface or Pendant Mount (V5641-A5), Vandal
  Resistant,
• 3-Axis adjustment

Surface Mount
Pendant Mount
Recessed Mount
30
Super WDR Cameras

• PIXIM DPS (Digital Pixel System) technology
• Wide dynamic range 102 dB 120 dB
• Natural color rendering
• Resolution520 TVL
• Programmable OSD menu
• Privacy mask
• Motion detection
• Digital slow shutter
• 4X digital zoom
• Image mirror

V5103
V5413
31
IP Fixed Cameras and IP Minidome Cameras
32
IP Fixed Cameras

• V6101-L/V6102-L Series Color, Day/Night IP
  Cameras
• MPEG-4 Encoding with D1 _at_ 30/25 fps
• Built-in Web Server
• Multiple IP Streams and Multicast support
• Password Protection
• 1 Alarm Input, 1 Relay Output
• 15VDC/24VAC/PoE power supply

33
IP Fixed Cameras

• V6101-M/V6102-M Series Color, Day/Night IP
  Cameras
• MPEG-4/MJPEG dual video encoding
• Dual Encoding Stream
•  Up to 30/25 fps at full D1 resolution
• Bi-directional audio
• 2 Alarm inputs, 1 output
• Motion detection
• SD card storage
• Compatible with TCP/IP, HTTP, ICMP, PPPoE, DHCP,
  UDP, DNS, DDNS, SMTP, RTP, RTSP, SNMP, ARP
  protocols
• Upgrade online
• Web Server live access and parameter
  configuration
• Compatible with Infinovas V2216 series digital
  video surveillance software easily incorporated
  with the video surveillance software of other
  brands
• PoE power supply

34
IP Minidome Cameras

• V6621-L/V6622-L Series Indoor Color, Day/Night IP
  Minidome
• MPEG-4 Encoding with D1 _at_ 30/25 fps
• Multiple IP Streams and Multicast support
• D1/2CIF/CIF/QCIF image resolution
• TCP/IP, HTTP, UDP, ARP, ICMP, SNMP protocols
• Recessed, Surface or Pendant Mount, Vandal
  Resistant,
• 3-Axis adjustment
• V6641-L/V6642-L Series Outdoor Color, Day/Night
  IP Minidome
• MPEG-4 Encoding with D1 _at_ 30/25 fps
• Multiple IP Streams and Multicast support
• D1/2CIF/CIF/QCIF image resolution
• TCP/IP, HTTP, UDP, ARP, ICMP, SNMP protocols
• Surface or Pendant Mount, Vandal Resistant,
• 3-Axis adjustment
• IP66 environmental protection

Recessed Mount
Surface Mount
Pendant Mount
35
IP Minidome Cameras

• V6621-M/V6622-M Series Indoor Color, Day/Night IP
  Minidome
• MPEG-4/MJPEG dual video encoding
• Dual encoding stream
• Bi-directional audio
• SD card storage
• 1 alarm input and 1 relay output
• Compatible with TCP/IP, HTTP, ICMP, PPPoE, DHCP,
  UDP, DNS, DDNS, SMTP, RTP, RTSP, SNMP, ARP
  protocols
• Recessed, Surface or Pendant Mount, Vandal
  Resistant,
• 3-Axis adjustment
• V6641-M/V6642-M Series Outdoor Color, Day/Night
  IP Minidome
• MPEG-4/MJPEG dual video encoding
• Dual encoding stream
• Bi-directional audio
• SD card storage
• 1 alarm input and 1 relay output
• Compatible with TCP/IP, HTTP, ICMP, PPPoE, DHCP,
• UDP, DNS, DDNS, SMTP, RTP, RTSP, SNMP, ARP
  protocols
• Surface or Pendant Mount, Vandal Resistant,
  3-Axis adjustment

Recessed Mount
Surface Mount
Pendant Mount
36
Integrated PTZ Network Cameras
37
Integrated PTZ Network Camera

• V1492N-L Series
• Compatible with PTZ control on 3 RS485
  protocols (Autosensing) PELCO-P, PELCO-D,
  INFINOVA
• OSD menu programming, able to set address, baud
  rate and camera parameters
• 18X, 26X and 36X optic zoom available
• 360continuous pan rotation
• -90 40 tilt range (look straight down)
• 0.1 50/sec. pan variable-speed operation
• 0.1 25/sec. tilt variable-speed operation
• MPEG-4 coding method, real time transmission
  video image
• View and control cameras via Web Server or
  V2216 software by multiple users
• Privacy mask
• Password protection
• Upgrade online

38
Integrated PTZ Network Camera

• V1492N-M Series
• MPEG-4/MJPEG dual video encoding
•   Dual encoding stream
• Bi-directional audio
•    Motion detection
•    2 alarm inputs and 2 relay outputs
• Compatible with TCP/IP, HTTP, ICMP, PPPoE,
  DHCP, UDP, DNS, DDNS, SMTP, RTP, RTSP, SNMP, ARP
  protocols
• Web Server live access and parameter
  configuration
• Upgrade online
• Compatible with Infinovas V2216 series
  digital video surveillance software easily
  incorporated with the video surveillance software
  of other brands
• IP66 environmental protection

39
PTZ Dome Cameras
40
High Speed Indoor/Outdoor PTZ Dome Cameras

• V1700A Standard PTZ Dome Cameras
• Sony Hitachi cameras
• Advanced 1/4 DSP CCD camera
• gt480 Lines of Resolution
• Up to 128 presets with 16 characters each
• Up to 24 advanced spherical privacy zones
• 16 video blanking sectors
• 4 programmable patterns
• 4 alarm inputs with programmable output
• Automatic home position
• Image stabilization on 35X model
• Wide dynamic range on 23X, 35X and 36X models
• Protocols include Infinova RS-485, Pelco-D/ P
  and Up the Coax
• Exceeds IP 66 and NEMA 4X specifications for
  outdoor model
• Vandal Resistant available
• Various mounts available

Indoor Recessed Mount
Outdoor Bracket Mount
41
Integrated Network PTZ Dome Cameras

• V1700N-L IP PTZ Dome Cameras
• Sony Hitachi cameras
• Advanced 1/4" DSP CCD camera
• 18X12, 22X12, 23X12, 26X12, 35X12 and 36 X12
  zoom available
• Built-in video over IP server, no additional
  equipment required
• MPEG-4 video compression for optimum picture
  quality and transmission speed
• View and control cameras from anywhere using a
  standard web browser
• Offer network service QoS
• Auto Iris (AI), Auto Focus (AF), Back Light
  Compensation (BLC)
• Proportional high-speed pan/tilt and automatic
  flip
• Up to 128 presets with 16 characters each
• Wide dynamic range on 23X, 35X and 36X models
• Vandal-resistant option available
  (polycarbonate)
• Exceeds IP66 and NEMA 4X Specifications
• Easy to install with quick and simple electrical
  connections

42
Integrated Network PTZ Dome Cameras

• V1700N-M Integrated Network PTZ Dome
• Multiple SONY, HITACHI CCD modules for option
• 18X12, 22X12, 23X12, 26X12, 35X12 and 36 X12 zoom
  available
• Dual video compression schemes and dual code
  stream
• Password protection preventing unauthorized user
  changing menu
• parameters
• Two privacy mask modes to screen out the
  undesirable area
• Automatic home position to perform preset command
  after receiving no command for a period of time
• Powerful alarm function including associating
  with relay, preset, pattern and autopan
• Bi-directional audio Motion detection
• Compatible with TCP/IP, ICMP, PPPoE, DHCP, SMTP,
  RTSP, SNMP, ARP protocols
• Exceeds IP66 Specifications with reliable
  dust-proof and water-proof ability
• Built-in heater and air circulating system,
  outdoor domes with anti-icer
• Various indoor/outdoor mounting securing wide
  adaptability

43
High Speed, Pressurized, Outdoor PTZ Dome Cameras
with Multi-protocol Capabilities

• V1750 Pressurized PTZ Outdoor Domes
• Advanced SONY 1/4" CCD zoom camera
• 18 x12, 26 x12 and 36 x12 zoom available
• Internal multi-protocol receiver/driver ensures
  great capabilities with multiple control
  protocols
• High-precision 316 stainless housing to provide
  nitrogen pressurized environment inside the dome
• Built-in sensor to real time display internal
  pressure and temperature and monitor dome status,
  ensuring high reliability
• Exceeds IP67 Specifications, dustproof
  waterproof, anti-ice, built-in heater and air
  circulating system

44
Mini PTZ Dome

• V1731 Mini Domes
• Internal Sony CCD, for clear imaging and natural
  color
• High-precision drive motor for smooth and quick
  movement
• 10X optical zoom, 12X digital zoom
• Infinova, Pelco-P/D protocol self-adaptable
• Dome address and baud rate setup via software or
  DIP switch
• Preset speed at 350/s for real-time, prompt
  surveillance
• 360 continuous pan travel, auto flip vertically
• 255 presets(maximum), 4 patterns, 4 autopans, 6
  tours
• Remote updating
• Bracket, ceiling and surface mounting available

45
Monitors
46
Color CRT Monitors

• V1321T-14, 14 inch NTSC/PAL up to 430TVL
• - 1 S-video input/output, OSD
• - 1 BNC input/output, 1 RCA audio input/output
• V1322T-21, 21 inch NTSC/PAL up to 500TVL
• - 1 S-video input/output, OSD
• - 2 BNC input/output, 3 RCA audio input/output
• V1324T-17, 17 inch NTSC/PAL Over/Under Scan up
  to 800TVL
• - 1 S-video input/output, OSD
• - 2 BNC input/output, 3 RCA audio input/output

47
Flat Panel Color LCD Monitors

• V1362T-15E, 15 inch Active Matrix TFT
• LCD Monitor, NTSC/PAL up to 500TVL
• - Supports DVI, S-Video signals
• - XGA signals up to 1024x768 resolution
• V1362T-17E / V1362T-17, 17 inch Active Matrix
  TFT
• LCD Monitor, NTSC/PAL up to 500TVL
• - Supports DVI, S-Video signals
• - XGA signals up to 1280x1024 resolution
• V1362T-19E /V1362T-19, 19 inch Active Matrix TFT

• LCD Monitor, NTSC/PAL up to 500TVL
• - Supports DVI, S-Video signals
• - XGA signals up to 1280x1024 resolution

48
TCP/IP Networkable Video Matrix Switchers
49
Small Matrix Switchers

• V2011 series Video Matrix Switchers
• Up to 32 video inputs, 8 video outputs
• TCP/IP networkable up to 64 nodes
• compatible with other switchers
• RS-232 and Ethernet communication
• Control of fixed or variable speed pan/tilt and
  dome cameras operating on Manchester, or RS-485
  PTZ protocols
• 64 tours, 64 salvos, 35 event timers
• Alarm transferred via Ethernet to remote Ethernet
  Matrix or computer
• 5 alarm display modes, 3 clearance methods
• 3 flexible RS-232 ports, expandable to 12 (using
  V2405-4)
• 16 programmable alarm inputs and 2 relay outputs

•  4 Manchester control code outputs
• 1 RS-485 control code output

50
Small Matrix Switchers

• V2015 series Video Matrix Switchers
•  Up to 80 video inputs, 16 video outputs
• TCP/IP networkable up to 64 nodes
• compatible with other switchers
• RS-232 and Ethernet communication
• Control of fixed or variable speed pan/tilt and
  dome cameras
• 64 tours, 64 salvos, 35 event timers
• 5 flexible RS-232 ports, expandable to 20 using
  V2405-4
• 1 Ethernet port, controllable by multiple
  Ethernet keyboards
• Alarm transferred via Ethernet to remote
  Ethernet Matrix or computer
• 16 programmable alarm inputs and 2 relay outputs
•   4 sets of Manchester outputs, 1 RS-485 output
  and 1 high speed DATALINE output
• 5 alarm display modes and 3 clearance methods
•   Cascading via Ethernet up to 4 levels
•   User priority and password management

51
Large Matrix Switchers

• V2020
• Up to 240 video inputs by 16 video outputs
• TCP/IP networkable up to 64 nodes
• compatible with other switchers
• Scalable high density architecture
• for easy expansion
• Windows-based multimedia management software
• Control of fixed or variable speed pan/tilt and
  dome cameras
• Available Internal video loss detection and
  video looping
• 8 flexible RS-232 ports, expandable to 32 using
  V2405-4
• 1 Ethernet port
• 64 tours, 64 salvos, 35 event timers
• Automatic alarm call-up, up to 240 alarm inputs
• 5 alarm display modes, 3 clearance methods
• Internal system partition management

52
Large Matrix Switchers

• V2040
•   Up to 1024 video inputs, 128 video outputs
•   TCP/IP networkable up to 64 nodes
• compatible with other switchers
•   External CPU with optional Hot Switch
•   Scalable high density architecture for easy
  expansion
•   Windows-based multimedia management software
•   Control of fixed or variable speed pan/tilt and
  dome cameras
• Available Internal video loss detection and
  video looping
• 10 flexible RS-232 ports, expandable to 40 using
  V2405-4
• 1 Ethernet port
•   64 tours, 35 event timers and 64 salvos
• Alarm transferred via Ethernet to remote
  Ethernet Matrix or computer
•   Automatic alarm call-up, up to 1,024 alarm
  inputs
•   5 alarm display modes and 3 clearance methods
• Internal system partition management

53
Video over IP (VIP)
54
Video over IP (VIP)

• V2503-M Video Server
• MPEG-4 video encoding
• PAL/NTSC self adaptive
• Transmission of video and
• control codes via IP network
• Simultaneously transmit video to multiple
  receivers
• Manual IP address configuration
• Dynamic I-P frame rate and dynamic quality and
  compression rate adjustment
• Two alarm inputs and two relay outputs
• Supports multiple accesses via Web Server or
  V2216 software
• Password protection, avoiding unauthorized
  access or operation
• Snapshot and motion detection
• Remote software update QoS service type
  selection

55
Video over IP (VIP)

• V2509-M Video Server
• TI DaVinci digital processing technology
• Embedded Linux operation system
• MPEG-4 / M-JPEG dual encoding
• Two-way audio communication
• Motion detection
• Multiple network protocols
• SD card for local storage
• Two alarm inputs and one relay output are
  provided
• Web Server for video viewing and parameter
  configuration
• System update via network
• Multi-level user password protection for network
  security
• Compatible with Infinova V2216 VMS integrative
  to other system
• PoE power supply

56
Video over IP (VIP)

• V2504-M2 Video Decoder
• Digital Signal Processing Technology
• MPEG-4 video decoding
• Support individual decoding for two videos at
  D1/2CIF/CIF
• Two analog video outputs
• Independent output configuration
• PAL/NTSC self adaptive
• Ethernet TCP/IP protocol supported
• Support SNMP, with network management function
• System software and DSP decoding program update
  via network
• Power-off protection, auto restoration upon
  power-on

57
Video over IP (VIP)

• V2504-R2 Video Decoder
• Digital Signal Processing Technology (DSP)
• MPEG-4 video decoding
• Separate decoding for two channels,
• supporting D1 / 2CIF / CIF
• PAL/NTSC format self-adaptive
• 2 video outputs for each blade and up to 34
  outputs for each chassis (single power)
• Individual configuration for each video channel
• Ethernet TCP/IP, UDP protocols supported
• Supports SNMP, with network management function
• Updates system software and DSP decoding
  software via network
• Power-off protection, auto restoration upon
  power-on

58
CCTV Keyboards
59
CCTV Keyboards

• V2117 System Keyboard
• Controls Infinova PTZ domes, DVRs and Matrix
  Switchers
• Direct control over site receivers or PTZ Domes
• Video input/output switching ability
• Variable-speed 3-D joystick for controlling
  motorized pan/tilts and lens
• Full system programming
• Convenient monitor arming/disarming and alarm
  acknowledgement
• Multi-function joystick
• Camera lockout capability
• Manchester RS-422/485 PTZ Data Port
• RS-232 and Ethernet/LAN communication

60
CCTV Keyboards

• V2111 Dome / DVR Controller
• DVR control through RS-485 interface
• Built-in RS-485 generator provides multiple baud
  rates and protocols for selection
• Control of fixed or variable speed pan/tilt and
  dome cameras operating on Manchester or RS-485
  PTZ protocols
• 3-D joystick, variable speed
• LCD display indicating camera number, controller
  status and digital inputs
• Control of presets and patterns

61
CCTV Keyboards

• V2110 Operator Keyboard
• Variable speed joystick
• LED displays to display monitor and camera IDs
• Pan/Tilt/Dome/Zoom/Iris/Focus/Lens Control
• Preset call tour control
• Monitor tour programming
• Alarm acknowledgement
• Auxiliary ON/OFF control
• Monitor arming and disarming functions
• V2109 Dome Controller
• Direct control over dome cameras and receivers
• Multiple baud rates and protocols
• Control of presets, patterns, autopan
• Control of iris, zoom and focus
• 3-D variable speed joystick and  LCD display

62
CCTV Accessories
63
CCTV Accessories

• V2422 Alarm Follower
• Designed for Automation of Alarm
• Related Devices
• V2431 Alarm Interface Device
• Handles up to 64 alarms
• Units can be cascaded together on one
• RS-232 port to provide alarms
• 1 relay output available to activate DVRs or
• other devices

64
CCTV Accessories

• V2413 Multi-protocol Data Merger/Code Distributor

• Provides one Manchester/Biphase code input, one
  high speed data line (HSDL) in/out, and two
  RS-485 data inputs
• Provides 16 Manchester/Biphase or RS-485 code
  outputs to control 16 cameras
• Provides multi-protocol third party inputs with
  priority level settings and multiple protocols
  input on RS-485
• Communicates with Infinova matrix video
  switchers via HSDL, Manchester, or RS-485
• Communicates with Infinova keyboards via
  Manchester Code, or third-party equipment via
  RS-485

65
CCTV Accessories

• V2414 Up-The-Coax Code Converter
• Provides one Manchester code input, one DATA
  LINE IN/OUT and one RS-485 code
• Provides 16 control signal outputs to control 16
  up-the-coax protocol Infinova PTZ Domes
• Multiple protocols and baud rate optional for
  RS-485 input
• Communicates with Infinova series matrix
  switchers via Manchester code, HSDL or RS-485
• Communicates with 3rd Party DVRs via RS-485
• Compatible with Infinova matrix video switching
  systems

66
CCTV Accessories

• V2410 RS-485 Code Distributor
• One RS-485 code input, 16 RS-485 code outputs
• Code and power indicators
• Compatible with Infinova V2011 and V2015 Matrix
  Switching Systems
• V2411 Code Generator/Distributor
• Interfaces with Infinova matrix switchers V2015,

• V2020 and V2040 via high-speed data line
  (HSDL)
• Generates up to 16 RS-485 or 4 RS-422 Outputs
  from one HSDL input
• DIP switch selectable 3rd party dome protocols
• Status indicating LEDs for power and data
  connections
• Selectable camera groups, baud rate and
  protocols via DIP switch

67
Video Management Software
68
Video Management Software w/V2501 Video Server

• V2210 GUI Software
• PC client based software that communicates via
• Ethernet with Infinova Matrix Switchers
• Complete system control using menus and icons
• On-screen simulated keyboard Pan/tilt, lens and

• auxiliary switch control
• Alarm link (flashing icon, voice prompt or auto
  call
• associated electronic maps and videos)
• Electronic maps and graphics
• Supports live on-screen video display on PC

69
Video Management and Networking Software

• V2215 GUI Software
• PC Client based software that communicates
• with VIP encoders via LAN/WAN Networks
• V2215B16 Network Video Recording Basic
• Pack capabilities with modules for 16 cameras
• V2215BP-XX Network Video Recording Basic
• Plus capabilities with modules for 9, 16 and
  25 cameras
• V2215P-XX Network Video Recording Pro Pack
  capabilities with modules for 16, 36 cameras and
  packages for sets of 64 increments
• V2215E Network Video Recording Enterprise
  capabilities with unlimited number of cameras
• On-screen simulated keyboard view and PTZ
  Control
• Supports live on-screen display of up to 16
  video images on Display with multiple server
  combinations
• Complete system control using menus and icons
• Electronic maps and graphics

70
Network Video Management Software

• V2216 Network Video Management Software
• Three editions Basic, Professional and
  Enterprise
• Modular design CMS, SMT, NVR, LMC
• Up to 9999 video inputs
• Up to 64 priority levels
• PTZ control
• MPEG-4, H.264 encoding, G.711 audio encoding
• Decoder mode
• Up to 100 NVRs and 100 SMTs are supported
• Single NVR supports recording of up to 128
  videos
• Single SMT supports transmission of up to 1000
  CIF videos or 300 D1 videos
• Digital matrix, configuration of Tour, Salvo and
  event timer
• Compatible with all Infinova IP devices
• Front video device management

71
Digital Video Recorders

• V3010 DVS/DVR
• Up to 16 channels, can be used stand-alone or
  as
  a server in a network
• H.264 video and G.722 audio compression
• Up to 4CIF resolution
• 30 frames per second all channels (480 fps on 16
  channel)
• Built-in DVD optional
• 8H/D with up to 8.0TB internal storage
• Remote client and web browser access

72
Fiber Optic Communications
73
Benefits of Fiber Optics

• Immunity to Electrical Interference
• Immunity to Ground Loops
• Longer Transmission Distance
• Secure Communications
• Causes No Sparks
• Water and Corrosion Resistance
• Greater Bandwidth Capacity
• Lighter Weight Smaller Diameter

74
Infinova Key Advantages

• Industrys highest optical budget for longer
  runs
• Industrys widest optical dynamic rangegreater
  installation flexibility
• without over-driving (saturating) receivers
  without attenuators
• Industrys highest racking densitytypically two
  to three times as many
• channels per rack space compared to
  competitors
• Re-configurable between stand-alone and rack
  mountunits used for
• small system or pilot project need not be
  discarded when scaling up
• SMT-based, compact modules/cards
• 18-slot subrack w/ 250W switching power supply
• Hot-swappable card units
• Integrated auto-reset chemical fuses
• No user optical adjustments
• FM and Digital transmission systems

75
Security Surveillance
76
N3610
N3613
fiber
N3610
fiber
N3610
fiber
Superior Package. Only 1 enclosure at the
receiving end for 3 video channels.
77
FM Video with PTZ data Manchester, Biphase,
RS-232, RS-422, RS-485
V
PTZ
V
D
N3631T
N3631R
fiber
D
78
Real Time Multiplexed Video
79
Intelligent Transportation Systems (ITS)
80
Digital Video with multi protocol PTZ data
Manchester, Biphase, RS-232, RS-422, RS-485, 2
and 4 Wire
V
PTZ
V
D
N3731T
N3731R
fiber
D
81
Intelligent Transportation System Digital
Laser-Based
82
Multiplexed Digital 4 Video with Audio and Data
N3755
4V
PTZ
4V
PTZ
fiber
PTZ
PTZ Controller
PTZ
Audio/Data Channels
Audio/Data Channels
83
Multiplexed Digital 8 Video with Audio and Data
N3759
PTZ
8V
PTZ
8V
fiber
PTZ
PTZ Controller
PTZ
Audio/Data Channels
Audio/Data Channels
84
Thanks!
