The Landscape of Axb Solvers

1

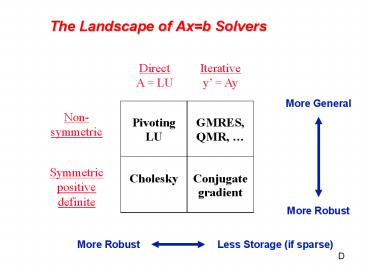

The Landscape of Axb Solvers
More Robust
Less Storage (if sparse)
D
2
Conjugate gradient iteration
x0 0, r0 b, p0 r0 for k 1, 2,
3, . . . ak (rTk-1rk-1) / (pTk-1Apk-1)
step length xk xk-1 ak pk-1
approx solution rk rk-1 ak
Apk-1 residual ßk
(rTk rk) / (rTk-1rk-1) improvement pk
rk ßk pk-1
search direction

• One matrix-vector multiplication per iteration
• Two vector dot products per iteration
• Four n-vectors of working storage

3
Conjugate gradient Krylov subspaces

• Eigenvalues Au ?u ?1, ?2 ,
  . . ., ?n
• Cayley-Hamilton theorem
• (A ?1I)(A ?2I) (A ?nI) 0
• Therefore S ciAi 0 for some ci
• so A-1 S (ci/c0) Ai1
• Krylov subspace
• Therefore if Ax b, then x A-1 b and
• x ? span (b, Ab, A2b, . . ., An-1b) Kn (A, b)

0 ? i ? n
1 ? i ? n
4
Conjugate gradient Orthogonal sequences

• Krylov subspace Ki (A, b) span (b, Ab, A2b, .
  . ., Ai-1b)
• Conjugate gradient algorithm for i 1, 2, 3,
  . . . find xi ? Ki (A, b) such that ri
  (Axi b) ? Ki (A, b)
• Notice ri ? Ki1 (A, b), so ri ? rj for all
  j lt i
• Similarly, the directions are
  A-orthogonal (xi xi-1 )TA (xj xj-1 ) 0
• The magic Short recurrences. . . A is symmetric
  gt can get next residual and direction from
  the previous one, without saving them all.

5
Conjugate gradient Convergence

• In exact arithmetic, CG converges in n steps
  (completely unrealistic!!)
• Accuracy after k steps of CG is related to
• consider polynomials of degree k that are equal
  to 1 at 0.
• how small can such a polynomial be at all the
  eigenvalues of A?
• Thus, eigenvalues close together are good.
• Condition number ?(A) A2 A-12
  ?max(A) / ?min(A)
• Residual is reduced by a constant factor by
  O(?1/2(A)) iterations of CG.

6
(Matlab demo)

• CG on grid5(15) and bcsstk08
• n steps of CG on bcsstk08

7
Conjugate gradient Parallel implementation

• Lay out matrix and vectors by rows
• Hard part is matrix-vector product
  y Ax
• Algorithm
• Each processor j
• Broadcast x(j)
• Compute y(j) A(j,)x
• May send more of x than needed
• Partition / reorder matrix to reduce communication

8
(Matlab demo)

• 2-way partition of eppstein mesh
• 8-way dice of eppstein mesh

9
Preconditioners

• Suppose you had a matrix B such that
• condition number ?(B-1A) is small
• By z is easy to solve
• Then you could solve (B-1A)x B-1b instead of Ax
  b
• B A is great for (1), not for (2)
• B I is great for (2), not for (1)
• Domain-specific approximations sometimes work
• B diagonal of A sometimes works
• Or, bring back the direct methods technology. . .

10
(Matlab demo)

• bcsstk08 with diagonal precond

11
Incomplete Cholesky factorization (IC, ILU)

• Compute factors of A by Gaussian elimination,
  but ignore fill
• Preconditioner B RTR ? A, not formed explicitly
• Compute B-1z by triangular solves (in time
  nnz(A))
• Total storage is O(nnz(A)), static data structure
• Either symmetric (IC) or nonsymmetric (ILU)

12
(Matlab demo)

• bcsstk08 with ic precond

13
Incomplete Cholesky and ILU Variants

• Allow one or more levels of fill
• unpredictable storage requirements
• Allow fill whose magnitude exceeds a drop
  tolerance
• may get better approximate factors than levels of
  fill
• unpredictable storage requirements
• choice of tolerance is ad hoc
• Partial pivoting (for nonsymmetric A)
• Modified ILU (MIC) Add dropped fill to
  diagonal of U or R
• A and RTR have same row sums
• good in some PDE contexts

14
Incomplete Cholesky and ILU Issues

• Choice of parameters
• good smooth transition from iterative to direct
  methods
• bad very ad hoc, problem-dependent
• tradeoff time per iteration (more fill gt more
  time) vs of iterations (more
  fill gt fewer iters)
• Effectiveness
• condition number usually improves (only) by
  constant factor (except MIC for some problems
  from PDEs)
• still, often good when tuned for a particular
  class of problems
• Parallelism
• Triangular solves are not very parallel
• Reordering for parallel triangular solve by graph
  coloring

15
(Matlab demo)

• 2-coloring of grid5(15)

16
Sparse approximate inverses

• Compute B-1 ? A explicitly
• Minimize B-1A I F (in parallel, by
  columns)
• Variants factored form of B-1, more fill, . .
• Good very parallel
• Bad effectiveness varies widely

17
Support graph preconditioners example
Vaidya
G(A)
G(B)

• A is symmetric positive definite with negative
  off-diagonal nzs
• B is a maximum-weight spanning tree for A (with
  diagonal modified to preserve row sums)
• factor B in O(n) space and O(n) time
• applying the preconditioner costs O(n) time per
  iteration

18
Support graph preconditioners example
G(A)
G(B)

• support each edge of A by a path in B
• dilation(A edge) length of supporting path in B

• congestion(B edge) of supported A edges
• p max congestion, q max dilation
• condition number ?(B-1A) bounded by pq (at most
  O(n2))

19
Support graph preconditioners example
G(A)
G(B)

• can improve congestion and dilation by adding a
  few strategically chosen edges to B
• cost of factorsolve is O(n1.75), or O(n1.2) if A
  is planar
• in recent experiments Chen Toledo, often
  better than drop-tolerance MIC for 2D problems,
  but not for 3D.

20
Domain decomposition (introduction)
A

• Partition the problem (e.g. the mesh) into
  subdomains
• Use solvers for the subdomains B-1 and C-1 to
  precondition an iterative solver on the
  interface
• Interface system is the Schur complement
  S G ET B-1E FT C-1F
• Parallelizes naturally by subdomains

21
(Matlab demo)

• grid and matrix structure for overlapping 2-way
  partition of eppstein

22
Multigrid (introduction)

• For a PDE on a fine mesh, precondition using a
  solution on a coarser mesh
• Use idea recursively on hierarchy of meshes
• Solves the model problem (Poissons eqn) in
  linear time!
• Often useful when hierarchy of meshes can be
  built
• Hard to parallelize coarse meshes well
• This is just the intuition lots of theory and
  technology

23
Other Krylov subspace methods

• Nonsymmetric linear systems
• GMRES for i 1, 2, 3, . . . find xi ? Ki
  (A, b) such that ri (Axi b) ? Ki (A,
  b)But, no short recurrence gt save old vectors
  gt lots more space
• BiCGStab, QMR, etc.Two spaces Ki (A, b) and Ki
  (AT, b) w/ mutually orthogonal basesShort
  recurrences gt O(n) space, but less robust
• Convergence and preconditioning more delicate
  than CG
• Active area of current research
• Eigenvalues Lanczos (symmetric), Arnoldi
  (nonsymmetric)

24
The Landscape of Sparse Axb Solvers
25
Complexity of direct methods
Time and space to solve any problem on any
well-shaped finite element mesh
26
Complexity of linear solvers
Time to solve model problem (Poissons equation)
on regular mesh
