SURVEILLANCE MONITORING VEHICLE SMV

1

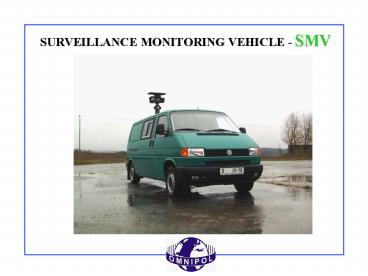

SURVEILLANCE MONITORING VEHICLE - SMV
2
SURVEILLANCE MONITORING VEHICLE - SMV
3
SURVEILLANCE MONITORING VEHICLE - SMV
MAIN ADVANTAGES OF THE SYSTEM

• - high performance value especially for the
  border guard
• - ratio performance/price not reached in the
  world up till now
• consistent modular design concept, with enables
  easy changes of customers
• configuration
• - possibility of installation into different
  vehicles with minimum adaptations
• - easy operation by one operator
• - advanced PC support of operators activity
• implementation of electronic maps into the SW
• implementation of airborne photos of the
• terrain into the SW
• possibility of data transmission to the base
• small dimensions and low weight of the system

4
SURVEILLANCE MONITORING VEHICLE - SMV
BLOCK SCHEME
5
SURVEILLANCE MONITORING VEHICLE - SMV
SENSOR HEAD AND POSITION MANIPULATOR
COMPOSITION POSSIBILITIES Laser range
finder Manipulator of sensor head Day colour
TV camera with zoom IR camera Position
manipulator PIR sensors
6
SURVEILLANCE MONITORING VEHICLE - SMV
INTEGRATED WORKPLACE OF THE OPERATOR
Main subsystems Video-monitor speakers Main
switch colour LCD TFT display mouse console of
the operator recorder radio-station command unit
7
SURVEILLANCE MONITORING VEHICLE - SMV
SW FUNCTIONS
Main - observation of requested territory in
automatic or manual mode - switching between
sensors (day TV or IR cameras) - remote control
of sensors from operators workplace - automatic
generation of panoramic image of requested
territory - possibility of recording of chosen
stationary image - tracking mode with
possibility of adjusting of tracking
regime Supporting - display of actual territory
electronic map - display of own position and its
co-ordinates - display of measured object
position and its co-ordinates - video-alarm in
the observed scene - automatic indication of
objects moving in the vicinity of SMV - optional
extension by transmission of stationary images
8
SURVEILLANCE MONITORING VEHICLE - SMV
Dialog SW panel
observation mode
9
SURVEILLANCE MONITORING VEHICLE - SMV
Dialog SW panel - working with map mode
Function switch
My Post Function
Scale switch
PIR sensors indicators
Own position
10
SURVEILLANCE AND MONITORING SYSTEM - SMS
11
SURVEILLANCE AND MONITORING SYSTEM - SMS
Characteristics
This lightweight system is designed for the
terrain observation, especially of persons and
objects under day and night conditions using TV
and IR (infra-red) camera systems installed on an
elevating platform. The main mission of the SMS
is the detection, recognition and identification
of persons and vehicles, taking their photos,
determining their position, electronic processing
and storage of photos and measured data.
Simplicity and low weight of the system determine
its integration into various types of
masts/tripods or as a stationary version on the
roof of the buildings. The system modularity
enables to set up an optimum combination of
cameras for police and security corps,
particularly in airports and ports. The system
software provides the operator with an integrated
presentation of a wide range of data and digital
imagery enabling him to fully control the system
easily from his workplace.
12
SURVEILLANCE AND MONITORING SYSTEM - SMS
MAIN ADVANTAGES OF THE SYSTEM

• Modular technology
• Compact design and low weight
• Long range and outstanding surveillance and
• monitoring resolution
• Friendly and simple control of the system
• Wide operational capabilities
• Very low power consumption
• High reliability
• Customised technical performance

13
SURVEILLANCE AND MONITORING SYSTEM - SMS
ELECTROOPTICAL HEAD - VERSION OF POSSIBLE DESIGN
14
SURVEILLANCE AND MONITORING SYSTEM - SMS
SMS Operators console version of designe
Military version for reconnaissance groups
Stationary version for police and/or security
forces
15
SURVEILLANCE AND MONITORING SYSTEM - SMS
BASIC CONFIGURATION OF MILITARY VERSION (ON
TRIPOD)
Electro-optical head Thermal Vision Camera
Module Laser Rangefinder Day Light CCD TV
Camera LLL TV Camera (as option) GPS System
(as option) DMC (digital magnetic compass - as
option) Two axis intelligent pantilt head
Rugged notebook, joystick and tracker ball
Cabling Heavy tripod Battery pack SW
16
SURVEILLANCE AND MONITORING SYSTEM - SMS
BASIC CONFIGURATION OF STATIONARY VERSION (ON
MAST)
Electro-optical head Thermal Vision Camera
Module Laser Rangefinder (as option) Day
Light CCD TV Camera LLL TV Camera GPS
System (as option) DMC (digital magnetic
compass - as option) Two axis intelligent
pantilt head Main computer with SW Video
recorder Computer Monitor Video Monitor
External video Monitors (as option) Active
speakers UPS Cabling Battery pack
17
SURVEILLANCE AND MONITORING SYSTEM - SMS
Technical Parameters
Traverse range n x 360 Elevation range /-
40 Position reading accuracy 0,1 mrad Rotation
speed of the sensor head 0.03 to 60/s Target
(person) detection range by day colour TV CCD
camera up to 6 km Target (person) detection
range by the infra-red camera up to 8 km Crew
one operator
