OptIPuter System Software

1

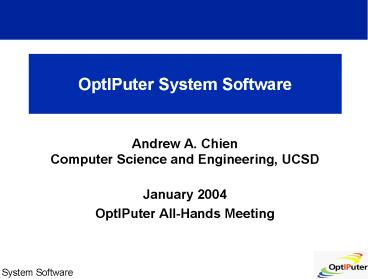

OptIPuter System Software

• Andrew A. ChienComputer Science and Engineering,
  UCSD
• January 2004
• OptIPuter All-Hands Meeting

2
System Software/Middleware Progress

• Significant Progress in Key Areas
• A unified Vision of Application Interface to the
  OptIPuter Middleware
• Distributed Virtual Computer
• Promise of Simpler Application Models, New
  Capabilities
• Innovation in protocols to exploit High Speed
  Optical Networks
• SRBUDP, XCP, GTP, SABUL/UDT
• High Performance for a wide range of network
  structures
• Real-time and Optical Networking
• Foundation for new Applications in this space
• Developing Cross-team Ties and Synergies
• Applications Teams (BIRN Tomas Molina SIO?)
  Designate POCs for Middleware Team (Chien)
• Application Performance Modeling
• Data Access Characterization and Filesystem
• Information about how Middleware will be
  presented, made available
• What middleware service capabilities are planned
• Optical Signaling and Network Management
• Optical Configuration Services (defined within
  Y2)
• Infrastructure (they will designate for access)

3
Year 2 Focused Research Questions

• F1 How to we control lambdas and how do
  protocols influence their utility?
• F2 How is a LambdaGrid different from a Grid in
  terms of middleware?
• F3 How can lambdas enhance collaboration?
• F4 How are applications quantitatively helped by
  LambdaGrids?
• Explain how Y2 Activities Align
• Review Research Development/Implementation
  Timeline
• Infrastructure What Resources Exist today, Later
  this year?
• Image-based definition of whats on the
  infrastructure

4
Draft Year 2 Objectives

• UCSD Distributed Virtual Computer
  Interface/Service for Applications (F2)
• DVC resource description
• Tools which allocate resources and configure
  optical networks
• Interface to selected other OptIPUter
  capabilities
• UCI Real-time (F1, F2)
• Integrate the TMO middleware subsystem into
  OptIPuter middleware (DVC)
• Begin design of the TMO programming framework for
  the OptIPuter
• UCSD/UIC/SIO Storage
• Complete OptIPuter storage benchmarks based on
  BIRN SIO applications
• Base and scalable versions
• Analytical and Simulation Evaluation of Benefits
  of Erasure Coding Approach
• Identify Promising parts of design space, how
  much can it help
• UCI/UCSD Security (F2)
• Definition of DVCs security Models
• Protocols which build from traditional Grid
  Security Infrastructures
• TAMU Performance Modeling
• Measuring the performance of visualization
  applications
• Characterize computation, communication, and
  storage access
• UIC/USC-ISI/UCSD High Speed Protocols (F2, F1)

5
Middleware Integration and Presentation

• Current practice C and C APIs
• E.g. Globus 2.4, MPI, sockets, etc.
• Applications Community Embracing Grid Services
• Optical Provisioning / Lightpath Setup Embracing
  Grid Services
• Need to use C/C whatever exists to make rapid
  progress
• Longer term interfaces based on Grid Services
  Interface Description, Binding, Calling
  Mechanisms (not necessarily full OGSA
  implementations)
• Presentation of many Lambda Grid Middleware
  Services thru Grid Services
• DVC Services, Lightpath Services
• Performance Services
• Real-time Configuration and Management Services
• Performance Critical and Non-client Server
  Activities May Need Other Interfaces
• High Performance Data Transport
• Streaming Communication
• LambdaRAM
• Optical Multicast

6
Thinking about OptIPuter Testbeds

• What are the goals for the infrastructure?
• Run Application, Visualization, Collaboration,
  Data Mining Experiments
• Run System Software / Middleware Experiments
• Demonstrations
• Who needs to specify what goes into the testbed?
• Applications, Visualization,
• System Software / Middleware
• Infrastructure Team?
• Who is going to build/configure them? Do we need
  a lead or primary testbed to drive integration?
• Infrastructure Team?
• System Software/Middleware Team?
• Other projects gt 1 FTE minimum to coordinate,
  and committed for each of the resource
  participants
• Who is going to use it?
• Everyone
• Leverage the Technical Infrastructure of other
  Projects (NMI, Teragrid, etc.)

7
A Model for Using an Experimental Infrastructure

• OptIPuter owned resources can be allocated and
  configured at the lowest level
• Machine image OS, Middleware, OptIPuter System
  Software, Application Software
• Model
• Build Experiment Image on your systems
• Allocate OptIPuter resources
• Image the systems (Rocks support)
• Run Experiment
• Release the resources
• Reimage back into a base configuration (Rocks
  support)
• Experiments across applications, system software,
  protocols, etc. involve pairwise integration and
  development of shared images
• System Software, System Software and
  Applications, other combinations
• Concerns about hardware differences and the
  ability to experiment with a single image

8
OptIPuter Software Architecture for Distributed
Virtual Computers v1.1
OptIPuter Applications
Visualization
DVC 1
DVC 2
DVC 3
Layer 5 SABUL, RBUDP, Fast, GTP
Real-Time Objects
Security Models
Data Services DWTP
Higher Level Grid Services
Grid and Web Middleware (Globus/OGSA/WebServices
/J2EE)
Layer 4 XCP
Node Operating Systems
l-configuration, Net Management
Physical Resources
9
Distributed Virtual Computers

• Nut Taesombut and Andrew Chien
• University of California, San Diego

10
DVC Examples
SDSC
UCI or UIC
SIO/NCMIR
UCSD CSE

• Collaborative Visualization Cluster
• Grid Resources Photonic Multicast or LambdaRAM
  (Leigh)
• Virtual Cluster (Hide Complexity of Grid
  Resource Flexibility)
• Shared Single Domain (Spans Multiple)
• Private Connections Simple Network Naming
• Direct Access to Everything (Storage, Displays,
  etc.)
• Real-Time Virtual Cluster for Distributed
  Collaborative Visualization
• Grid Resources Real-Time (TMO)

11
Distributed Virtual Computer (DVC)

• What is DVC?
• Simple computing environment for applications
  (physically secure, local LAN/SAN)
• Derived from rich Grid or resources and on-demand
  Optical networks
• Formed on-demand
• DVC Principles
• Separate Environment Configuration/Management
  from Application programming
• Shared DVC configuration across a range of
  applications with similar security,
  fault-tolerance, and performance requirements
• Applications simplified by simple execution
  environments
• Key DVC abstractions
• Single Namespace, Security Domain, Simple
  Communication Primitives and Resource Management

12
DVC Core Services

• 1.0 Design of DVC Configuration Descriptions
• What resources
• What optical network configuration
• What special properties (high BW, real-time,
  secure, etc.)
• 1.0 Implementation of DVC Executor and Runtime
• Planner That Identifies Resources
• Selects from Virtual Grid Resources
• Negotiates with Resource Managers and Brokers
• Executor and Monitor for DVC
• Acquires and Configures (configures optical
  network)
• Monitors for Failures and Performance
• Adapts and Reconfigures
• Configuration and Management Services
• Abstractions for Communication, Security,
  Real-time

13
Year 2 Work on DVCs

• Design and Implementation of a DVC system
  prototype
• DVC abstractions and core services
• DVC Application Interfaces (DVC API or Service
  Interface)
• Resource Allocation Interfaces and Support
• Synergy of DVCs with Optiputer System Software
  Technologies
• Encapsulate Novel communication capabilities
• LambdaRAM, Optical Multicast
• Real-time DVC
• Understand synergy with TMO real-time middleware
• Optical network provisioning and management
• Future Work
• Encapsulate High-speed Transport Protocols
• RBUDP, SABUL/UDT, XCP, GTP
• Presenting Performance guarantees / quality of
  service
• Integrating Storage and Data Abstractions
• Novel Filesystems and Data Services

14
OptIPuter Component Technologies
15
Support for Real-Time Computing
OptIPuter System Software

• Kane Kim
• Professor, EECS, UCICo-Director, Networked
  Systems Center, UCI
• September 2003b

16
Attractive Characteristics of OptIPuter

• Lambdas will be abundantly available
• A good number of them can be used in a dedicated
  mode for a major application.
• High-precision control of Network Communication
  Latency may be possible.
• gt An exciting prospect for real-time
  (RT) distributed computing technologists !

17
Some New-Generation RT Applications Benefiting
from Networks with Well Controlled Latency

• Multi-party multi-media based conferencing /
  collaboration
• Including on-line game playing
• Distributed orchestra ?
• Earthquake monitoring crisis management
• Bioscience applications
• Missile defense

18
Vision -- RT Tightly Coupled Wide-Area
Distributed Computing

• Goals
• High-precision timings of critical actions
• Tight bounds on response times
• Ease of programming
• High-level prog
• Top-down design
• Ease of timing analysis

• Real-Time Object (TMO) network

Dynamically formed Meta Computer
19
Year 1 Results

• Designed a Time-Triggered Message-Triggered
  Object (TMO) support middleware subsystem model
  that can be easily implemented on both Windows
  and Linux platforms.

• Developed a global time based coordination
  approach for use in fair and efficient
  distributed on-line game systems and
• a feasibility demo based on LANs and the TMO
  support middleware
• a step toward realizing an expanded demo in the
  OptIPuter environment.
• a paper will be presented at the IDPT 2003
  conference, December 2003.

? ?
Compo-nents of a C object
TT Method 1
AAC
TT Method 2
AAC
??
Deadlines
Service Method 1
Service Method 2
??

• No thread, No priority
• High-level programming style

20
Storage Research Activities

• CSAG OptIPuter Team

21
Goals on Storage Research

• Develop New Techniques for High Performance File
  System which Exploits Optical Networks
• Meets Performance Needs of Applications
• Use Benchmarking Tools to Guide Development of
  Optiputer Data Storage System
• Approach
• Analyze Current Application Usage
• Study SIO and BIRN Data Visualization Programs
• Extrapolate to Large-scale Distributed Deployment
• Design Optiputer Storage Benchmarks
• What are the Access Patterns
• What are the Critical Performance Concerns
• What Does the Optiputer Environment Enable
• Design New Techniques for OptIPuter Storage
  System
• Novel Coding and Speculation

22
Storage Progress Understanding Collaborative Viz
Architecture
23
Storage Progress (cont)

• High Performance File System Survey
• Study existing parallel/distributed file systems
• GPFS, Lustre, PVFS, Galley, DASSF, Vesta, Armada,
  FAB, MPIO, Frangipani, Zebra, etc.
• No existing system meets needs of OptIPuter
  environment!
• Approach Coding for Performance Robustness
• Novel data coding (distribution and replication)
  for file segments
• Erasure codes enable reconstruction with K of N
  parts
• Benefits
• Redundancy and Parallelism to Decrease access
  time (unloaded) or to reduce impact of late
  arrivers for segment (loaded, failure)
• Challenges
• Cost of coding, parallelism, and reconstruction
• Example
• Reed-Solomon, Turbo, Viterbi, Tornado, LT,
  LuigiRizzo, Online, etc.
• Best performance 138MBps encoding and 154MBps
  decoding (LuigiRizzo)

24
Performance Modeling
25
Prophesy Application Performance Modeling

• Performance modeling of applications on OptIPuter

• Goal Cross platform comparison (vs. traditional
  grid parallel)
• Progress since Sept. 2003
• Completed work with isocoupling (IPDPS 2004)
• Reuse of coupling values
• Better understanding of relationship between
  kernels in an application
• Now focused on visualization applications

Source Taylor, TAMU
26
High Speed Protocols
27
High Performance Transport Problem

• OptIPuter is Bridging the Gap Between High Speed
  Link Technologies and Growing Demands of Advanced
  Applications
• Transport Protocols Are the Weak Link
• TCP Has Well-Documented Problems That Militate
  Against its Achieving High Speeds
• Slow Start Probing Algorithm
• Congestion Avoidance Algorithm
• Flow Control Algorithm
• Operating System Considerations
• Friendliness and Fairness Among Multiple
  Connections
• These Problems Are the Foci of Much Ongoing Work
• OptIPuter is Pursuing Four Complementary Avenues
  of Investigation
• RBUDP Addresses Problems of Bulk Data Transfer
• SABUL Addresses Problems of High Speed Reliable
  Communication
• GTP Addresses Problems of Multiparty
  Communication
• XCP Addresses Problems of General Purpose,
  Reliable Communication

28
OptIPuter Transport Protocol Roles
E2e Path
Allocated Lambda
Routed
Managed Group
Enhanced Routers
Standard Routers
Unicast
RBUDP
GTP
SABUL
XCP
29
Year 2 EVL OptIPuter Networking ResearchChaoyue
Xiong, Eric He, Jason Leigh

• Continuing protocol development to create a
  streaming version of Reliable Blast UDP for
  Quanta.
• Experimentation with Photonic Multicast

30
Streaming Reliable Blast UDP for the Quanta
Networking Toolkit

• Motivation
• Many high speed transport protocols work best for
  large payloads (e.g. hundreds of megabytes to
  gigabytes.)
• SRBUDP is designed for gigabit streaming
  applications (like graphics) where payloads are
  small but potentially un-ending.
• Methodology
• Early loss recovery to guarantee data integrity
  and to reduce latency
• Rate control to ensure balance between sender and
  receiver
• Prediction of the cause of loss (ie caused by
  network or caused by receiver) to choose best
  strategy to resolve loss
• Status
• NS2 simulation just completed.
• Results are promising but must be validated over
  real network.
• For details contact Chaoyue Xiong
  (cxiong_at_evl.uic.edu)
• Next 6 month goal
• Develop working prototype to test over high speed
  links with a real streaming graphics application-
  ie TeraVision
• TeraVision is a hardware system for capturing
  high resolution graphics and streaming it over
  the network.

31
Photonic Multicasting

• Motivation
• For collaborative work involving
  ultra-high-resolution displays it is necessary to
  multicast gigabits of graphics to all
  collaborating sites.
• Methodology
• New Glimmerglass Reflexion switch provides 14
  photonic multicasting- ie take an input signal
  and optically split it into 4. (no routers
  involved).
• Send packets via UDP or multicast to switch and
  have multiple receivers receive the same packet.
  (Turns out UDP does not work- must use multicast
  protocol because UDP uses ARP to map to 1 MAC
  address).
• Good theoretical stuff in papers- but never
  actually attempted in practice.
• Status
• Demonstrated working prototype at SC2003, able to
  stream a single TeraVision graphics stream to
  multiple local area endpoints connected to the GG
  using this capability
• Photonic Data Controller developed to be able to
  control both the GG and Calient switches
  (including GGs photonic multicast capability).
• For details contact Eric He (eric_at_evl.uic.edu)
• Next 6 month Goal
• Understand issues involved in achieving wide area
  photonic multicasting.

32
Group Transport Protocol (GTP)

• Ryan Wu and Andrew A. Chien
• Computer Science and Engineering
• University of California, San Diego
• OptIPuter All Hands Meeting, January 2004

33
Group Transport Protocol (GTP)

• Objective Develop High Performance Multipoint
  Transport Protocols
• In OptIPuter Network Environment (No/Little
  Internal Network Contention)
• Why Grouping?
• Intragroup Management of Congestion Over Multiple
  Flows
• Support Data Fetching from Multiple Senders
  Concurrently
• Multi-Flow Scheduling Makes a Clean Transition
  when Flows Join or Leave
• Achieves Fairness Among Flows

(a) Shared IP connection senders connect with
receiver via shared links and intermediate nodes.
(b) Dedicated lambda connection dedicated
capacity between sender/receiver pair.
34
Group Transport Protocol (GTP)

• Features of GTP
• - Receiver based reliable response-request
  transmission model
• - Fast start, to deliver bandwidth quickly to
  the application
• - Receiver/sender capability estimation and
  quick rate adaptation to changes
• - Multi-flow scheduling at receiver, achieving
  Max-min fairness among flows

GTP Framework (Receiver)
35
Group Transport Protocol (GTP)

• Simulation results
• Smooth bandwidth transfers between senders
• GTP matches other UDP rate-based transport
  protocols (e.g. RBUDP, SABUL) for single flows
• GTP outperforms for converging flows (from
  multiple senders to one receiver) higher
  throughput and lower loss

Comparison between TCP and GTP (ideal case
produced by ns-2) Two Senders and One Receiver,
Flow 2 Starts at Time6s
36
Group Transport Protocol (GTP)

• DummyNet experiments show clean transitions
• Smooth bandwidth handoffs
• Very high network utilizations
• TeraGrid experiments show promising performance

See CCGrid2004 Paper for details
37
XCP/OptIPuter Project Status

• Aaron Falk
• USC Information Sciences Institute
• January 12, 2004

38
XCP Accomplishments

• Built a simple, high-performance testbed for XCP
  performance testing
• The challenge has been developing a configuration
  where an end-system and PC router could fill a
  Gigabit Ethernet link with a 100 ms RTT with a
  single TCP or XCP flow. The current
  configuration uses dual-PCI bus (for the routers)
  and 2.8GHz processors.
• The sending rate for both TCP and XCP maxes out
  at around 180Mbps with 100 CPU utilization on
  the sender. We believe this is caused by the CPU
  cycles needed to traverse the TCP mbuf chain.
• Generating results
• Early results indicate the start-up behavior of
  our XCP implementation matches simulation
  performance (at a macro level), meaning it
  performs better than TCP
• An abstract has been accepted for presentation at
  PFLDnet2004 (Protocols for Fast, Long-Distance
  Networks).
• Implementing XCP
• We have developed BSD kernel code implementing
  XCP for an XCP sender, receiver and router.
  Currently we are working on debugging. (Kernel
  level debugging is particularly laborious.)

39
High Performance Network and Data Services for
Data Mining, Data Integration, and Data
Exploration

• Robert L Grossman, Yunhong Gu, Xinwei Hong,
  David HanleyNational Center for Data
  MiningUniversity of Illinois at Chicago

40
Summary of Work June, 2003 December, 2003
41
SABUL/UDT Protocol Overview

• Uses both Rate Control (RC) and (window based)
  Flow Control (FC)
• Constant RC interval to remove RTT bias
• Employs bandwidth estimation
• Selective acknowledgement (ACK)
• Reduces control traffic results in faster
  recovery
• Uses packet delay as well as packet loss to
  indicate congestion
• Slow start controlled by FC
• Can be layered over optical paths or used by
  applications in routed networks

42
SABUL/UDT is Fast
Chicago-Amsterdam with 110 RTT

• More than 950Mb/s on 1Gb/s link
• 6.8Gb/s on 10Gb/s link with multiple connections
  (11/03)
• 5.4Gb/s on Itanium system with 10G NIC (11/03)
• Overall 11.8 Gb/s on routed and 10G lambdas
  (11/03 at SC03)

43
SABUL/UDT is basis for a Variety of Data
Services More to Come
