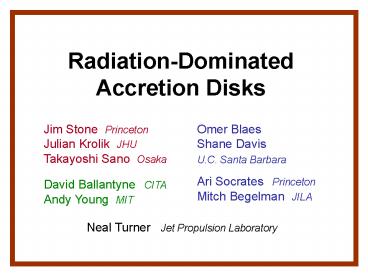

Radiation-Dominated Accretion Disks

• Omer Blaes Shane Davis
• U.C. Santa Barbara

Jim Stone Princeton Julian Krolik JHU
Takayoshi Sano Osaka
Ari Socrates Princeton Mitch Begelman JILA
David Ballantyne CITA Andy Young MIT
Neal Turner Jet Propulsion Laboratory
2
(No Transcript)
3
To Make Accreting Gas Shine

• Remove angular momentum
• Dissipate orbital kinetic energy
• Radiate photons

4
Circinus X-1, artists impression
5
Shakura-Sunyaev Picture Assumptions

• Hydrostatic equilibrium
• Stress aP
• Vertical thermal balance viscous
  heating diffusion cooling dissipation
  density
• Inflow equilibrium

6
Innermost 300 RSchw
7

• Innermost 300 RSchw
• Radiation Pressure gt Gas Pressure

8

• Innermost 300 RSchw
• Radiation Pressure gt Gas Pressure
• Flat, thickness 2RSchw

9

• Innermost 300 RSchw
• Radiation Pressure gt Gas Pressure
• Flat, thickness 2RSchw
• Uniform Density and Dissipation

10
Instabilities of Shakura-Sunyaev model

• Convective
• Thermal
• Viscous

11
Overview

• Shakura-Sunyaev Picture
• Radiation-MHD Equations
• Heating
• Cooling
• X-Ray Reflection
• Summary

12
Equations of Radiation MHD
13
3. Heating
14
Balbus Hawley 1991
15
To Black Hole
10
100 RS
Density Fluctuations r / ltrgt
1
1/10
16
Flow is heated by

• Microscopic viscosity
• Magnetic dissipation
• Radiation damping

17
Diffusion length
18
Diffusion length
MRI wavelength
19
Agol Krolik 1998
Radiation Damping
1. Magnetic fields squeeze gas
20
Agol Krolik 1998
Radiation Damping
2. Gas radiates
21
Magnetic Field Evolution
Height z / RS
Horizontally-averaged magnetic pressure
6
0
-6
0
100
Time / orbits
22
Gas and Radiation Pressures
Radiation
Magnetic
Accretion Stress
Gas
23
Stability Against Convection
Radiation
Gas
24
Compare Shakura-Sunyaev Model
Same surface mass density and flux
RMHD Calculation
a-model
25
4. Cooling
26
Radiation escapes by

• Vertical Diffusion
• Convection
• Photon Bubble Instability

Arons 1992 Gammie 1998
27
Gravity
Strong Magnetic Field
Radiation Flux
28
Gravity
Strong Magnetic Field
Extra Flux
Radiation Flux
29
Gravity
Strong Magnetic Field
Time 1
Radiation Flux
30
Gravity
Strong Magnetic Field
Time 2
Radiation Flux
31
Gravity
Strong Magnetic Field
Radiation Flux
32
Lengths and Speeds
Radiation sound speed
Isothermal gas sound speed
Radiation scale height
Gas scale height
33
Blaes Socrates 2003
Domain Top
Center
2562
1282
Bottom
642
322
34
Analytic Prediction
kz
kx
Growth Rate / W
-2.7
2.1
-0.3
35
Numerical Results, 1282 Zones
kz
kx
Growth Rate / W
-2.7
2.1
-0.3
36
1.6W
1.8
2.0
2.2
642
37
Growth on Inclined Fields
180
5.0
qB
2.5
90
0.0
0
0
90
180
qk
38
Begelman 2001
39
(No Transcript)
40
(No Transcript)
41
Vertical Diffusion
Photon Bubbles
Convection
z
x
-8.2
log10 r g cm-3
-10.1
-12.0
Arrows B 6200 Gauss
42
Vertical Diffusion
Convection
Photon Bubbles
43
Photon Bubbles with MRI
z
R
-9.0
log10 r g cm-3
-10.0
-11.0
Arrows B 1500 Gauss
44
Photon Bubbles with MRI
z
R
log10 r g cm-3
45
Photon Bubbles with MRI
z
R
-7.2
log10 r g cm-3
-9.1
-11.0
46
5. X-Ray Reflection
47
Effects on X-Ray Reflection Spectrum
Ballantyne et al. 2004
Synthetic Spectrum
Best-Fit Uniform Slab Model
Residuals
48
Effects on X-Ray Reflection Variability
Ballantyne et al. 2005
49
Assumptions tested

• Hydrostatic equilibrium
• Stress aP
• Vertical thermal balance viscous
  heating diffusion cooling dissipation
  density
• Inflow equilibrium

?
?
50
Summary

• Radiation-dominated disks are heated by magnetic
  dissipation and photon damping.
• Heating in low-density surface layers leads to
  convective stability and quick thermal evolution.
• Short-wavelength photon bubbles grow faster than
  W if magnetic pressure gt gas pressure.
• The bubbles become propagating shocks, and
  radiation escapes through the gaps between.

51
Energy Flow
PHOTON BUBBLES
