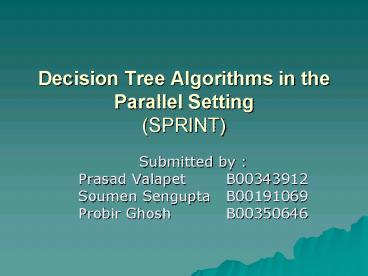

Decision Tree Algorithms in the Parallel Setting SPRINT

1
Decision Tree Algorithms in the Parallel Setting
(SPRINT)

• Submitted by
• Prasad Valapet B00343912
• Soumen Sengupta B00191069
• Probir Ghosh B00350646

2
Agenda

• Introduction
• Problem Defined
• Objective
• Decision Tree Overview
• Data Structures
• Serial SPRINT
• Calculating Gini Index
• Parallelizing SPRINT
• Synchronous Tree Construction Approach
• Performance Evaluation
• Conclusion
• References

3
Classification
Categorical attribute
Continuous attribute

• Classification is a data mining technique that is
  used to build a model to represent the records
  with a particular class in a training set.
• Training Examples
• Categorical Attributes
• Continuous Attributes
• Class Attribute

Class Label
4
Problem Defined

• Decision Tree Algorithms like the ID3 and C4.5
  assume that the training examples will fit into
  memory
• For large datasets decision tree construction can
  be inefficient if they have to be swapped in and
  out of memory
• Sampling of data is used so that they can fit
  into memory

5
Problem Defined (contd.)

• Other approaches partition the data into subsets
  ( that fit into memory) then a decision tree
  is constructed by combining classifiers from each
  subsets
• An accurate decision tree classifier can be
  obtained if the total training set is used

6
Objective

• To implement a decision tree based classification
  algorithm (SPRINT) that addresses the scalability
  efficiency issues in dealing with large
  datasets
• To investigate the speed up, sizeup and scaleup
  characteristics of SPRINT

7
Decision Tree An operation overview
Feature Extraction

• Select splitting Criteria( Information gain, Gain
  ratio, Gini Index, Chi Square test)
• Apply recursive partitioning until all the
  examples( training data) are classified or
  attributes are exhausted
• Pruning the tree
• Test the tree

Build phase
Train the model
Handle over fitting of data
Prune Phase
Test the model
Age
gt28
lt28
Occupation
Salary
Private
Public
lt50k
gt50K
8
Data Structures

• Attribute Lists
• - Attribute value
• - Class Label
• - Record id.
• Attribute lists are created for each Attribute
• The entries in a attribute list are called
  attribute records

9
Histograms

• Two class histograms are used to store the class
  distribution for continuous attributes.
• Cbelow contains the class distribution of the
  records that have already been processed
• Cabove contains the class distribution of the
  records that have not been processed

Class Histograms at Cursor position 2 shown
10
Count Matrix

• The count matrix stores the class distribution of
  each value of a categorical attribute.

Count matrix For Occupation
11
SPRINT( serial algorithm)

• Partition (Data S)
• if (all points in S are of the same
  class) then
• return
• for each attribute A do
• evaluate splits on attribute A
• Use best split point found to partition
  S into
• S1 and S2
• Partition(S1)
• Partition (S2)


12
Evaluating split point for all attributes

• Gini Index k
• Gini(S) 1 S pj2
• i1
• where k is the total number of classes
• pj is the relative frequency of class i
• S is the size of the training set
• For a pure data sample S containing a single
  class distribution, Gini (S) 0

13
Evaluating splitting points for all attributes
(contd.)

• Ginisplit n1/S Gini (S1) n2/n Gini (S2)
• Where n1 is the number of records in subset S1
• n2 the number of records in subset S2
• n the total number of records
• The attribute with the minimum Gini index is
  chosen to split the node.

14

• Uses attribute lists as the data structure
• The attribute list for continuous attributes are
  sorted
• The attribute lists are split among nodes.
• The tree is grown in a Breadth first manner
• The record ids of the splitting attribute are
  hashed with the tree node as the id.
• Remaining attributes can then be split by looking
  up the hash table

15
Partitioning of Records
Attribute List for Node 0
Age
Attribute List for Node 1
Attribute List for Node 2
lt29.5
gt29.5
1
2
16
Decision Tree Algorithms in the Parallel Setting

• Parallelizing the Construction of Decision tree
• Data are read from the text file serially.
• Attribute list are created in parallel.
• Count matrix for categorical attributes and split
  points for continuous attributes are calculated.
• Gini index for continuous and categorical
  attributes are found in parallel.
• Depending on the gini index each node for
  decision tree is identified and the tree is
  constructed in parallel.

17
Decision Tree Algorithms in the Parallel Setting

• Data are read from the text file serially
• We read the data into the structure.
• Attribute list are created in parallel
• Data is scattered using MPI_Scatter to all the
  processors.
• SndCnt index / size.

18
Decision Tree Algorithms in the Parallel Setting

• Count Matrix for categorical attributes and
  Split points for continuous attributes are found
  in parallel
• For Categorical Attributes
• Structure is used to store the count Matrix
• For each attributes, at each processor the count
  matrix is calculated locally.
• The count matrix is reduced using MPI_Reduce at
  root processor to get the total count matrix for
  categorical attributes.

19
Decision Tree Algorithms in the Parallel Setting
P0
Manager
Clerk
P1
Manager
Clerk
P2
Manager
Clerk
Count Matrix at Each Processor
20
Decision Tree Algorithms in the Parallel Setting
P0
Manager
Count Matrix at Root Processor
Clerk
Manager
MPI_Reduce
P1
Clerk
P2
Count Matrix at Each Processor
21
Decision Tree Algorithms in the Parallel Setting

• For Continuous Attributes
• A Structure is used to store the cabove and
  cbelow value.
• At each split point cabove and cbelow are
  calculated and its values are passed on to the
  next processor.

22
Decision Tree Algorithms in the Parallel Setting
Position 0
P0
P0
Position 1
P0
P 1
Position 2
P 1
P 2
Position 3
23
Decision Tree Algorithms in the Parallel Setting

• Gini index for continuous attributes

• At each split point the gini index is
  calculated.
• If there are more than one split point at a
  processor the minimum among them is found and
  sent to the next processor.
• At last, the root processor receives the minimum
  gini index of the continuous attributes.

P0
P0
P1
24
Decision Tree Algorithms in the Parallel Setting

• Gini index for categorical attributes

Gini 1

• The Gini index is calculated at processor 0 for
  the count matrix.
• The minimum among them is the gini index for that
  attribute.

P0
Gini 2
Count Matrix for Categorical attributes
Then minimum gini index is found among the
attributes.
25
Synchronous Tree Construction Approach
Doesnt Require any data movement. Class
Distribution Information at the local processor
collected for each attribute Global Reduction
used to exchange class distribution
26
Performance Evaluation

• Accuracy of the Decision tree classifier
• of examples classified correctly / Total
  of examples.
• Speedup
• - speedup vs of processors for a fixed
  problem size
• Scaleup
• - Response time vs of processors for a
  fixed
• problem size
• Sizeup
• - Response time vs Problem Size for a fixed
• configuration of processors

27
Conclusion

• The design of SPRINT allows it to be easily
  parallelized.
• SPRINT removes all memory restrictions and is
  computationally efficient
• handles large datasets very well.

28
References

• John Shafer, Rakesh Agrawal, Manish Mehta
  SPRINTA Scalable Parallel Classifier for Data
• Mining,India, September 1996, 22nd
  Proceedings of International Conference Very
  Large Databases, VLDB
• http//www.dsi.unive.it/dm/shafer96spr
  int.pdf
• Rick Kufrin Decision trees on Parallel
  Processors, National Center for Supercomputing
  Applications, Third Workshop on Parallel
  Processing for Artificial Intelligence (PPAI-95),
  Montreal, Canada, August 1995
• http//mycroft.ncsa.uiuc.edu/www-0/paper
  s/ppai-95.ps.z
• Manish Mehta, Rakesh Agrawal, Jorma Rissanen
  SLIQ A fast Scalable Classifier Data Mining,
  1996, IBM Almaden Research Center.
• http//citeseer.nj.nec.com/cache/papers/cs/4347/
  httpzSzzSzwww.almaden.ibm.comzSzuzSzragrawalzSzpa
  perszSzedbt96_sliq.pdf/mehta96sliq.pdf
• High Performance Data Mining Talk,Domenico
  Talia ,Euro-Par 2002 ,Parallel
• Processing,8th International Euro-Par
  Conference Paderborn, Germany,
• August 2002 Proceedings 45 pages
• .

29
References Contd.

• Srivastava E. Han V. Kumar V. Singh Information
  Dynamic load balancing of
• unstructured computations in decision tree
  Classifiers
• http//gunther.smeal.psu.edu/papers/E-Comme
  rce/544/httpzSzzSzwww-
• users.cs.umn.eduzSzkumarzSzpaperszSzclassp
  ar-ipps.pdf/dynamic-load-
• balancing-of.pdf
• Mahesh V Joshi, George Karypis, Vipin Kumar
  ScalParc A new Scalable and
• efficient Parallel Classification Algorithm
  for Mining large Datasets,
• http//ipdps.eece.unm.edu/1998/papers/292.p
  df
• Srivastava E. Han V. Kumar V. Singh An
  efficient scalable parallel classifier for data
• mining http//citeseer.nj.nec
  .com/cache/papers/cs/930/ftpzSzzSzftp.cs.umn.eduz
  SzdeptzSzuserszSzkumarzSzclass-paper.pdf/an-effici
  ent-scalable-parallel.pdf
• Quinlan, J. R., C4.5 Programs for Machine
  Learning, Morgan Kaufmann, San Mateo, CA, 1992.

30

• Thank You
