Title: Classes

1

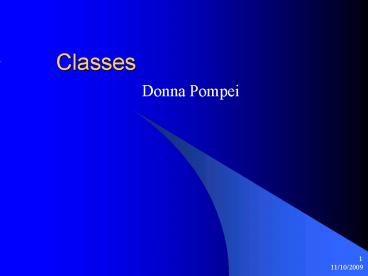

Classes

Donna Pompei

2
Introduction

Structs
Abstract Data Types and Object-Oriented Design
Classes
Specification and Implementation Files
Client Program
Object-Oriented Design Using Nouns and Verbs
Improvements to the Time Class
UML Diagram of the Time Class

3
Structs

Two common aggregate (or composite) data
structures in the C language are arrays and
structs.
An array is designed to contain a collection of
items that all have the same type.
A struct can contain elements that all have the
same type but typically will contain elements of
dissimilar types.

When might we use a struct?
Consider a Time object.
A Time object may consist of the hour, minute and
second.
In conversation, we speak of the current time but
in reality we are referring to the current hour,
minute and second.
Arrays and structs have their origin in the C
language.

struct Time
int hour
int minute
int second

The keyword struct indicates the data type is a
struct (or structure).
Time is the new type name that we are creating
(similar to an int or float except that Time is a
user-define type).
The elements or data members of type Time are
contained with braces.
The semi-colon at the end of the declaration is
critical. Your program will produce compiler
error messages without it.
Each data member within the struct Time is
preceded by its own type in this case all have
type int.

A data member type could be an array, e.g. an
array of int, or another struct.
However, a data member cannot be a struct with
the same type name as the name of the struct in
which it exists.
struct myStruct
int i
myStruct ms // Illegal
anotherStruct as // Legal as long as
// anotherStruct has
// been defined elsewhere

Though a struct cannot contain a data member with
the same name as the struct name, it can contain
a pointer to an element of that struct's name.
struct node
int i
node nodePtr

Structs do not reserve any space in memory.
They are nothing more than a user-defined data
type.
Memory is reserved when a program declares an
object of the user-defined data type.

To declare an instance (or object) of type Time
you would code
struct Time
int hour
int minute
int second
int main()
Time t // Declare an instance t of type Time
return 0

The declaration of instance t causes enough
contiguous memory to be reserved to store three
integer values hour, minute and second.
hour minute second
t

To access each of the data members, either for
storing or retrieving values, we use the dot (.)
operator.
The syntax used precedes the dot operator with
the name of the object and follows the dot
operator with the member name.
To access Time t's data member hour, code
t.hour.
To store 93045 in the instance t and print the
stored value, code the following

struct Time
int hour
int minute
int second
int main()
Time t // Declare an instance t of type Time
t.hour 9 // Set t's data member hour to 9
t.minute 30 // Set t's data member minute to
30
t.second 45 // Set t's data member second to
45
cout ltlt "The time is " ltlt t.hour ltlt ''
ltlt ((t.minute lt 10 ? "0" "")) ltlt t.minute ltlt
''
ltlt ((t.second lt 10 ? "0" "")) ltlt t.second ltlt
endl
return 0

C-style structs are a good way to organize
related data but they have several inherent
problems.
It is possible to have uninitialized data or
garbage in the data members.
Invalid values can be stored directly into the
data members.
In the prior example, it would be possible to
store 80 into t.minute though 80 is obviously an
invalid minute.

Each data member must be printed separately.
There is no provision to print the object as a
unit.
It would be much easier to code
cout ltlt "The time is " ltlt t ltlt endl

Structures cannot be compared as a unit.
Consider two instances of Time, t1 and t2. To
determine if t1 was less than t2
if (t1.hour lt t2.hour)
cout ltlt "t1 is less than t2" ltlt endl
else if (t1.hour t2.hour t1.minute lt
t2.minute)
cout ltlt "t1 is less than t2" ltlt endl
else if (t1.hour t2.hour t1.minute
t2.minute
t1.second lt t2.second)
cout ltlt "t1 is less than t2" ltlt endl
else
cout ltlt "t1 is not less than t2" ltlt endl

Wouldn't it be so much easier and understandable
to code
if (t1 lt t2)
cout ltlt "t1 is less than t2" ltlt endl
else
cout ltlt "t1 is not less than t2" ltlt endl

To print or compare objects rather than
individual data members is a simple and easy
process but we need to expand on the idea of
structs in order to accomplish this.
We need to introduce the concept of classes,
which is a natural extension of structs.
But first, we need to understand abstract data
types and object-oriented design and programming.

19
Abstract Data Types and Object-Oriented Design

Object-orientation is a natural way of looking at
our world.
It also allows for an easy transition to
facilitate writing programs.

As you drive through your city, you see objects
all around you--cars, buildings, traffic lights,
people, babies, etc.
You categorize and identify them by their
attributes and behaviors.
If I asked you, "What has four legs, fur, a tail
and barks?" you would most likely answer, "A
dog."
Attributes four legs, fur, a tail
Behavior barks

Objects may also communicate between each other.
A person object may communicate to a dog object
by giving it a command such as "Fetch."
A car responds to the changing colors of a
traffic light.
In object-oriented terminology, this is referred
to as messaging.

In this world, there are many dogs, e.g. Lassie,
Benji, Rin Tin Tin, but they all exhibit the same
attributes and behaviors that put them into the
category of dog.
However, each of those dogs is a unique instance
of the category of dog.
In object-oriented terminology, we refer to
Lassie as an object (or instance) of the class
dog, Benji as an object (or instance) of the
class dog, etc.

A primary goal of object-oriented design (OOD) is
to identify classes using attributes and
behaviors.
A class, also known as an abstract data type
(ADT), is an abstract description of a
user-defined data type.
It is a description of the attributes (data
members) of the data type and the operations
(member functions) that can be performed on those
data members.

After the classes are identified and defined, the
next step is to look for class relationships
where classes may be related to each other
through composition or inheritance.

Composition is referred to as the "has-a"
relationship.
Given two classes, car and radio.
Each class has its own respective attributes and
behaviors.
Using the "has-a" test, a "car has a radio".
Cannot say that "radio has a car" because that
doesn't make sense.
But "car has a radio" implies that radio is an
attribute of the class car.

Inheritance is referred to as the "is-a"
relationship.
A convertible is-a car.
Convertible inherits all the attributes
(manufacturer name, model, etc.) and behaviors
(stop, start, turn left, turn right, etc.).
Convertible also has additional attributes and/or
behaviors that a car does not have (for example,
a convertible has a top that goes up and down).
The is-a test also tells us the parent (car) and
the child (convertible) in the inheritance
relationship.

An extension of inheritance is multiple
inheritance.
In multiple inheritance relationships, a child
class has two or more parents.
For example, a class called married couple has
two parent classes, man and woman.

OOD encapsulates data (attributes) and functions
(behaviors) into objects the data and the
objects are closely tied together.
A complex number has two attributes the real
value and the imaginary value.
Behaviors involving complex numbers might be
addition (adding real to real and imaginary to
imaginary), subtraction, multiplication,
comparison (equal, less than, greater than),
display and setting the values of the real and
imaginary parts.

In contrast, a fraction has two attributes the
numerator and the denominator.
Similar to a complex number, we can also add
fractions but fraction addition involves
converting two fractions so they have a common
denominator, adding the numerators and then
reducing the fraction.

Given two complex numbers, c1 and c2, perform
addition by coding c1 c2.
Addition for two fractions, f1 and f2, would be
coded the same way, i.e. f1 f2, but the
addition process would be different than that for
complex numbers.
For display purposes, a complex number might be
printed in the format 3 4i whereas a fraction
would be displayed as 3/4.
The data (attributes) and functions (behaviors)
are encapsulated within the object. The behavior
(or function) that is invoked depends on what the
object is.

Classes provide the capability of information
hiding to hide the unnecessary details of a class
implementation from those who have no need or
desire to see them.
The implementation details are hidden from the
client programmer within the class.

"Methods" is an object-oriented term that is used
in lieu of the word "functions."
A method prototype (similar to a function
prototype) provides
The name of the method.
Its return type.
Function parameters (if any)
Pre- and post-condition comments.
This is referred to as the class interface.

The information contained in the class interface
should be all that is necessary for a client
programmer or another class object to invoke the
methods contained within the class.
A good analogy for information hiding is that it
is possible to drive a car as long as the driver
is familiar with the car's interface (key or
ignition system, steering wheel, automatic
transmission lever, accelerator pedal and brake
pedal).
The driver does not need to know the details of
how the electrical, engine and transmission
systems work in order to drive the car.

34
Classes

Using the struct Time, it is possible to store
invalid values in the data members hour, minute
and second.
We will now create a class for the abstract data
type Time.
Use public and private member access specifiers
to guarantee that the data members hour, minute
and second will never contain invalid values.

Our class interface (also known as the
specification file) for Time will look like the
following slide

// Fig. 3.1 - time.h Specification file for the
Time class
pragma once
class Time
public
Time()
// Post-condition 0 will be stored in hour,
minute,
// and second
void setHour(int h)
// Pre-condition h must be in the range 0 - 23
// Post-condition h will be stored in hour if
valid
// otherwise 0 will be stored in hour
void setMinute(int m)
// Pre-condition m must be in the range 0 - 59
// Post-condition m will be stored in minute if
valid
// otherwise 0 will be stored in minute
void setSecond(int s)
// Pre-condition s must be in the range 0 - 59

The specification (header) file time.h contains
the pragma once directive.
This directive informs the compiler to process
the header file only once even if it is included
in more than one file within a project.
Omitting this directive can result in a compiler
error if a class definition is included more than
once.
You should code pragma once at the top of each
of your specification (header) files.

A Time object has attributes (or data members)
hour, minute and second.
From a behavior standpoint, we would also like to
be able to store values into hour, minute and
second (among other behaviors such as value
retrieval).
We encapsulate within the Time class the data
members hour, minute and second along with the
member functions to store legitimate values into
those data members.

Using the Time struct, if we had a Time object
t, we could store an invalid value into any of
the data members by coding
t.hour 50 // Illegal hour

One of the primary objectives of object-oriented
programming is to insure that all class data
members are in a safe state at all times.
Accomplished by using the member access
specifiers public and private.
Make the data members private by placing the word
private followed by a colon () before them.
Once a data member (or member function) is
declared private, the only items that can access
it directly are member functions of that class or
friend functions of that class.
Public members can be accessed by the client
program, the class itself and other classes.

So then how can we store a value into Time's hour
if it is declared to be private?
We call a public member function that must
validate the value prior to storing it into the
private data member.
It is the responsibility of all member functions
of a class to guarantee that no invalid value
will ever be stored in the class's data members.

Too many times, a programmer creates a class and
then either
makes the data members public or
does not put error checking code into any of the
functions that can store values in the data
members.
One of the primary objectives of object-oriented
programming is to guarantee that all data members
are kept in a safe state at all times.
This fact cannot be emphasized enough.

A good programming practice is to place all
public members first in the class definition,
followed by the private members.
When a programmer is looking at the
specification, the only thing he/she has access
to is the public members.
For ease of readability, there is no point of
putting the private members first because the
programmer will not have access to them.

Another good programming practice is to make all
data members private.
Most functions will be public but a few utility
functions (functions used by the class but not by
the client program) will be private.

A few rules to consider regarding member access
specifiers
If a member access specifier is not declared
immediately after the first brace of the class,
all member functions and data members are
considered private until the ending brace or a
member access specifier is encountered.
Member functions and data members will have the
access of the member specifier immediately
preceding it.
It is possible to have multiple declarations of
public and private within a class but a good
programming practice is to declare each specifier
only once, with public preceding private.

Mutator methods change the values stored in the
data members.
The public functions that store (or set values)
into the private data members are mutator
methods.
It is the responsibility of those functions to
guarantee that the data members will always
remain in a safe state.

An accessor method accesses the values contained
in the data members but does not change them.
The display method is an accessor method.
If the word const appears at the end of a class
member method, it indicates that the method is
not allowed to change the values in the data
members of the class object that called the
function.

The following function prototype is a very
special one, known as a constructor .
Time()
It does not have a return type.
Its name is the same name of the class.
Its purpose is to initialize the values of the
data members to a safe state.

As a programmer, you typically do not call the
constructor explicitly it is invoked implicitly
when an object of the class is declared.
int main()
Time lunchTime
return 0
The statement, Time lunchTime
Invokes the constructor Time()
Statically reserves space in memory for the
lunchTime object.

The constructor Time() is called the default
constructor because it does not require any
arguments.
If you do not code a default constructor
The compiler will automatically provide one
It will not guarantee proper initialization of
the class's data members.
You should always code your own constructor to
insure that the data members are initialized to a
safe state.

It is also possible to code other constructors,
either in lieu of the default constructor or in
addition to the default constructor.
These constructors (which have arguments) are
known as conversion constructors.
If a conversion constructor is coded but no
default constructor is present, the compiler will
not automatically provide a default constructor.

An example of a conversion constructor prototype
might be
Time(int h, int m, int s)
// Pre-condition Arguments must be in the
// following range
// h (hour) 0-23
// m (minute) 0 - 59
// s (second) 0 - 59
// Post-condition If an argument is out of
range,
// the respective data member will be set to 0

53
Specification and Implementation Files

The time.h file in the previous section is
referred to as a specification file.
The specification file contains the class
declaration which is the only thing a client
programmer needs to utilize the class.
However, code must be provided for the method
prototypes contained in the class declaration and
that is done within the implementation file.

Typically, each class contained in its own
specification file will have a matching
implementation file.
Standards dictate that if a class is called Time,
its specification file will be time.h and its
implementation file will be time.cpp.
For the time.h specification file in the previous
section, we might code the following
implementation file

// Fig. 3.2 - time.cpp Implementation file for
the Time class
include "stdafx.h"
include "time.h"
include ltiostreamgt
using namespace std
TimeTime()
// Post-condition 0 will be stored in hour,
minute,
// and second
hour 0
minute 0
second 0
void TimesetHour(int h)
// Pre-condition h must be in the range 0 - 23
// Post-condition h will be stored in hour if
valid

void TimesetMinute(int m)
// Pre-condition m must be in the range 0 - 59
// Post-condition m will be stored in minute if
valid
// otherwise 0 will be stored in minute
if (m lt 0 m gt 59)
minute 0
cerr ltlt "Minute is not valid--will be set to 0"
ltlt endl
else
minute m
void TimesetSecond(int s)
// Pre-condition s must be in the range 0 - 59
// Post-condition s will be stored in second if
valid
// otherwise 0 will be stored in second
if (s lt 0 s gt 59)

The include "stdafx.h" directive directs the
compiler to include the contents of the file
stdafx.h (a file generated by Visual Studio .NET)
into the compilation process.
The file stdafx.h is an include file for standard
system include files and for project-specific
include files that are used frequently but are
changed infrequently.
Without the preprocessor directive to include
time.h, the compiler would generate error
messages that the function definitions in
time.cpp are missing their function prototypes.
The header file iostream is included (line 6)
because the method display outputs the values
contained in the data members.

The full implementation of member functions in
the implementation file typically includes the
following items
The member function's return type.
The class name (so that the method can be
associated with the class within which it
resides).
The scope resolution operator (two consecutive
colons).
The member function name.
The parameters contained between two parentheses.
A block that delimits the statements of the
member function.

The syntax used to define a function within the
implementation file is
return-type class-namemember-function-name(param
eter list)
declarations
statements

Though hour, minute and second are declared
private within the class declaration, all member
functions of the Time class have access to the
data members and can store and retrieve values
from them.
The private protection extends only to any code
beyond the class itself.
A client program that uses the class would not be
able to store values directly into the data
members.
It would need to invoke the public member
functions to store any values.

The compiler distinguishes between const and
non-constant functions.
If you declare in the function prototype that the
function is constant and you code the function
definition in the implementation file without the
word const, the compiler will indicate that the
non-constant function definition does not have a
non-constant function prototype.
When coding class functions that are accessor
functions, you should always use the word const
following the parameter list.

62
Client Program

Client programs are those programs that invoke
the methods contained within the class(es).
Typically, client programs are the programs that
contain the main() function.

An important item to note here is that when
designing and writing the code for a class, the
code should be written so that any client program
can use the class.
A key to object-oriented programming is
reusability.
Class code ideally should be able to be used by
any number of client programs.
A sample client program that uses the Time class
might look like the following slide

include "stdafx.h"
include "time.h"
include ltiostreamgt
using namespace std
int main()
Time lunchTime // Object lunchTime with hour,
// minute and second set to 0
Time dinnerTime // Object dinnerTime with
hour,
// minute and second set to 0
cout ltlt "Lunch time is " // Display lunch time
lunchTime.display()
cout ltlt endl
cout ltlt "Dinner time is " // Display dinner
time
dinnerTime.display()
cout ltlt endl
lunchTime.setHour(12) // Set lunchTime hour to
12

The following would be displayed in the console
window when the client program is executed
Lunch time is 00000
Dinner time is 00000
Lunch time is 121530
Second is not valid--will be set to 0
Dinner time is 182000
Press any key to continue . . .

When lunchTime is declared, sufficient contiguous
space is reserved in memory to store three
integer values hour, minute and second.
Similarly, when dinnerTime is declared, space is
also reserved for dinnerTime's hour, minute and
second.
At the time of declaration of lunchTime and
dinnerTime, the constructor for each object is
called to initialize the integer values contained
in memory.

After lunchTime and dinnerTime are declared and
initialized, the two objects are considered to be
in a "safe state," i.e. they do not contain
garbage or any illegitimate values.
After declaration, the objects stored in memory
will look like the following slide

hour minute second
lunchTime
hour minute second
dinnerTime

0
0
0
0
0
0
69

When calling the function setHour, the statement
on line 16 is
lunchTime.setHour(12)
Though it looks like the function setHour is only
being called with one argument, the value 12, in
reality the function is being called with two
arguments lunchTime and the value 12.
The object that precedes the dot operator is
called the implicit argument.
Any arguments that are between the parentheses
are called the explicit argument(s).

hour minute second
lunchTime
hour minute second
dinnerTime

12
15
30
0
0
0
71

The program attempts to assign the value of 80 to
dinnerTime's data member second.
The setSecond function displays an error message
that the 80 is an invalid value for second and
stores the value of 0 into the data member
second.
It would be nice if the set function could
reprompt the user for the correct value but many
times, client programs do not directly interface
to a user they may be working with file
input/output for example.
An error message is displayed and a predetermined
default value is assigned.

hour minute second
lunchTime
hour minute second
dinnerTime

12
15
30
18
20
0
73
Object-Oriented Design Using Nouns and Verbs

Suppose you were given the following problem
specification
Military time consists of hour, minute and
second based on a 24-hour clock. Your abstract
data type time should be able to independently
set the hour, minute and second as well as
display the time in military format hhmmss.

Programmers use the noun-verb classification to
help them identify class names, data members and
member functions (or methods).
When reading the problem specification, circle
the nouns and underline the verbs.

Using the above example, we have
Nouns Verbs
time consists (has-a)
clock set
hour display
minute
second

Nouns will either indicate your class names, data
member names or be disregarded.
Verbs will indicate your functions.
As we look at the nouns, time appears to be more
significant than the other nouns.
Consider it as a potential class name.
Hour, minute and second are not significant
enough to warrant their own classes.
Because of the has-a relationship which
indicates composition, we can say that the class
Time has data members hour, minute and second.
Clock is also a noun but can be disregarded.

The verb consists translates into the has-a
relationship.
The verb set is used in the context set hour, set
minute and set second.
The verb (sometimes used in conjunction with a
noun) provides a good name for our class
functions, in this case setHour, setMinute and
setSecond.
Our final verb, display is sufficient enough for
its own function name or could be combined with
the word time to get displayTime.

78
Improvements to the Time Class

Our Time class has the ability to independently
set the data members but a client program cannot
retrieve the values contained in hour, minute and
second.
Perhaps I wish to write a client program that
will create two objects, lunch time and dinner
time and also determine the time difference
between the two times.
As the Time class exists now, I would be unable
to do that.

Basic components of a class are
constructor(s)
set (mutator) functions
get (accessor) functions
any other functions the class might need.
By modifying the Time class to the following
slides, we make our class more versatile.

// Fig. 3.4 - time.h Specification file for the
Time class
pragma once
class Time
public
Time()
// Post-condition 0 will be stored in hour,
minute,
// and second
void setHour(int h)
// Pre-condition h must be in the range 0 - 23
// Post-condition h will be stored in hour if
valid
// otherwise 0 will be stored in hour
void setMinute(int m)
// Pre-condition m must be in the range 0 - 59
// Post-condition m will be stored in minute if
valid
// otherwise 0 will be stored in minute
void setSecond(int s)
// Pre-condition s must be in the range 0 - 59

// Fig. 3.5 - time.cpp Implementation file for
the Time class
//
include "stdafx.h"
include "time.h"
include ltiostreamgt
using namespace std
TimeTime()
// Post-condition 0 will be stored in hour,
minute,
// and second
hour 0
minute 0
second 0
void TimesetHour(int h)
// Pre-condition h must be in the range 0 - 23
// Post-condition h will be stored in hour if
valid

int TimegetHour() const
// Pre-condition None
// Post-condition hour will be returned
return hour
int TimegetMinute() const
// Pre-condition None
// Post-condition minute will be returned
return minute
int TimegetSecond() const
// Pre-condition None
// Post-condition second will be returned
return second

83
UML Diagram of the Time Class

A class, its data members and member functions
can be diagrammed using the Unified Modeling
Language (UML) notation.

The class diagram consists of three parts
The top section is the class name.
The middle section contains the class's data
members.
The bottom section contains the member functions.
If a class member is preceded by the symbol , it
means that the class member is public.
A minus symbol (-) indicates the class member is
private.

85
Time
- hour int - minute int - second int
Time() setHour(int h) void setMinute(int
m) void setSecond(int s) void getHour()
const int getMinute() const int
getSecond() const int display() const void

Write a Comment

User Comments (0)
