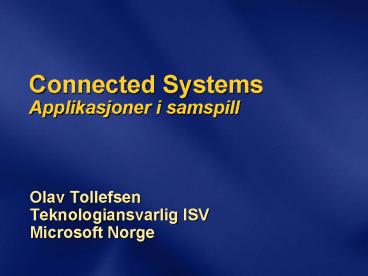

Connected SystemsApplikasjoner i samspill

• Olav Tollefsen
• Teknologiansvarlig ISV
• Microsoft Norge

2
En historie fra virkeligheten
3
Mapaid V1
4
Resultat

• Ressurskrevende 11 salgsinnsats
• Interesse i markedet, men kun en håndfull nye
  kunder pr. uke
• Vanskelig å nå forskjellige målgrupper
• Hvordan skal web siten skreddersys for
  forskjellige behov?

5
Mapaid V2
6
Teknisk implementasjon hos en ny partner
7
hvor.no
8
Resultat

• Konsentrert 11 salg til et utvalg av partnere
• Eksplosjon i utberedelse (40.000 bilder pr. dag)
• Minimal eller ingen teknisk jobb for å få opp nye
  partnere
• Flyfoto blir tilgjengelig i nye sammenhenger
  (legger opp til innovasjon i partner-leddet)
• Meget stabilt (kjører på .NET Framework 2.0 Beta
  2)

9
Outline

• Enterprise realities
• Connected Systems
• Service Orientation
• Design Roadmap
• Technology Roadmap
• Futures and guidance

10
Enterprise realities

• Enterprises are living entities, constantly
  evolving
• Must adapt to market conditions
• Mergers and acquisitions change makeup
• Dispersed geographically
• Different stakeholders
• Budgets priorities fluctuate
• Impact of politics is real

11
Technology realities

• Technology landscape is constantly evolving
• New development platforms released frequently
• New tools and products constantly emerging
• New hardware and devices hitting the scene
• New design paradigms change the way we think

12
The great enterprise challenge

• Enterprises expect technology to enhance
  information flow across processes, people
  infrastructure
• Aligning business with technology is the key to
  success
• How do you align business with technology when
  both are constantly changing?
• With a Connected System designed to evolve
  gracefully

13
Microsofts Connected Systems strategy

• Microsoft offers a complete Connected Systems
  solution
• Connects people with computing infrastructure
• Evolves distributed applications to reflect the
  real world
• Spans boundaries without a single owner of system
• Leverages existing investments, while planning
  for future
• A Connected System is designed around the tenets
  of Service Orientation
• Its a system designed to evolve, adapt, and last
• SO enables long-term integration and reuse

14
Service Orientation

• A service is an application you interact with by
  exchanging messages over specific protocols
• Boundaries are explicit.
• Services are autonomous
• Share schema and contract, not implementation
• Policy-based compatibility

15
Increasing abstractions, increases reuse

• Scope of reuse increases with each abstraction
  layer

Abstraction
Services
protocols
Components
platform
Objects
application
Procedures
call stack
16
Granularity of services

• Services can be modeled at different levels of
  granularity
• Data services (lower-level data services)
• Business services (orchestrations, workflow)
• Data services
• You need fine grained control over data and flow
• You dont need conversational state or
  compensating transactions atomic transactions
  suffice
• Business services
• You need to implement a business process that
  involves multiple services, steps, or
  long-running transactions

17
Implementing Service Orientation

• SO is a paradigm for designing connected systems
• It provides guidelines for architecture and
  modeling
• Its not tied to any particular technology
• Reach is limited by the implementation
  technologies
• What technologies are used to traverse
  boundaries?
• Does everyone support them?
• Web services is the best implementation choice
  today
• WS-I Basic Profile 1.0 defines interoperable
  foundation
• WS- specs define additional layers in a standard
  way

18
Connected Systems design roadmap

• Connected Systems are composed of various layers
• Layers connected through Service Orientation
• Minimal assumptions, focus on integration
• Connected Systems layers
• Data
• Services
• Processes
• Consumers
• Various concerns cross-cut layers

19
Connected Systems design roadmap (cont)
Data
Services
Processes
Consumers
Data access library
Service
1
Data access library
2
Service
Data access library
3
1
Data access library
Service
2
Data access library
Security
Management
Deployment
Cross-cutting concerns
20
Connected Systems technology roadmap
Data
Services
Processes
Consumers
SQL Server 2000 and ADO.NET COM and ES (across
machines) .NET Remoting(between libraries) MSMQ
IIS 6.0 ASMX WSE 2.0
BizTalkServer 2004 Host IntegrationServer 2004
Winforms Office System 2003 SharePoint ASP.NET
HTTP
HTTP
HTTP
Data access library
Service
DCOM
MSMQ
1
Data access library
2
Service
Data access library
3
1
Data access library
Service
2
Data access library
MSI ZeroTouch, ClickOnce SMS 2003
Logs Counters WMI, ETW MOM 2005
Active Directory Integrated Security WS-Security
Security
Management
Deployment
Cross-cutting concerns
21
Design for Integration
Smart Clients, SharePoint, and Office System 2003
BizTalk Server 2004
ASMX
ASMX
WSE2
adapter
adapter
adapter
Existing Investments
New Investments
Oracle
SAP
ASMX
ASMX
PeopleSoft, Siebel, etc.
ASMX WSE2
IBM
22
Platform fundamentals
File system SQL Server Active Directory ADAM

• Where should I store my information?
• Where should my code run?
• How should my code communicate?

Your executable NT Service COM ASP.NET
DCOM MSMQ .NET Remoting ASMX WSE 2.0
Most technology decisions hinge on these questions
23
Where should I store my information?

• Use SQL Server 2000 today for business
  information
• Start planning for SQL Server 2005 (Yukon)
• Use Active Directory for user and role management
• Use ADO.NET for general data access
• Offers both connected and disconnected modes
• Use transactions to simplify concurrency
• Use COM and Enterprise Services when you need
  transactions across different resource managers
• Future use System.Transactions for lightweight tx

24
Where should my code run?

• There are three commonly used hosts today
• Windows (NT) Service (build your own .exe)
• COM - Enterprise Services (dllhost.exe)
• IIS 6 (ASP.NET Worker Process w3wp.exe)
• Each provides advantages over writing own process
• Activation / start-up, process creation
• Process identity control
• Thread allocation
• Failure recovery / recycling and debugging

25
How should my code communicate?

• .NET offers 3 commonly used communication
  protocols
• HTTP (with ASP.NET or System.Net.Http)
• LPC/DCOM (with EnterpriseServices or COM interop)
• MSMQ (with System.Messaging or Queued components)
• Each has its place, typically chosen implicitly
  with host
• HTTP for broad reach (usually with Web Services)
• LPC/DCOM for high-speed, secure intra-domain
  comm.
• MSMQ for disconnected communication

26
What to choose?

• Across the service boundary
• Use HTTP and XML (ASMX web services) hosted in
  IIS
• Within the service boundary
• Enterprise Services with DCOM for efficient,
  secure cross-machine communication
• MSMQ (or BizTalk MessageBox) for loosely coupled
  sender/receivers
• .NET Remoting for same-process inter-appdomain
  calls only (especially moving forward)

27
Business fundamentals

• How should I manage business processes?
• How can I leverage existing investments?
• How will people interact with my system?

Smart Clients (Winforms) Smart Documents (Office
System 2003) SharePoint ASP.NET
BizTalk Server 2004 Host InformationServer 2004
28
How should I manage business processes?

• Use BizTalk Server 2004 to model business
  processes
• Models processes across heterogeneous
  applications
• Manages flow and orchestrates multiple services
• Processes can be exposed as coarser-grained
  services
• Use BizTalk adapters to connect to existing
  investments
• Use Host Integration Server 2004 for IBM
  integration
• Connects Windows to mainframe host applications

29
How should people interact with my system?

• Use Winforms to build Smart Clients today
• Gives you the best of both rich and thin clients
• Use Office System 2003 to build Smart Documents
  today
• Integrates nicely with information worker
  scenarios
• Use Windows SharePoint Services and Portal Server

• To build Web portals today
• Can also use ASP.NET to build Web forms
• Future ASP.NET 2.0 WebParts

30
Connected Systems cross-cutting concerns

• Various issues impact Connected Systems
  architecture
• Security
• Management
• Deployment
• Future migration
• Greatly impact design and implementation

31
Security

• Security is an important factor in system design
• Must be addressed up front in design process
• Writing secure code takes discipline
• Good integration with OS security is critical

Trust domains Principle of least
privilege Integrated security Active
Directory Web security WS-Security
32
Management

• Manageability is an important factor system
  design
• Post-development costs are non-trivial for
  enterprises
• Design for operations requires attention to both
  instrumentation and control of running apps
• Determine what data needs to be captured and
  reported
• Determine the best implementation technique

Event Logs Performance Counters WMI
Providers Event Tracing (ETW) MOM 2005 System
Center 2005
33
Deployment

• Deployment is a distinct (and significant) area
• The more nodes involved, the harder deployment
  gets
• Versioning complicates matters
• Variety of implementation techniques available

Microsoft Installer (MSI) Zero-Touch
(1.1) ClickOnce (2.0) SMS 2003 System Center 2005
34
Futures

• Migration is an important consideration when
  making technology investments today
• Well highlight some of the most important
  migration considerations and compelling new
  features
• Along with guidance on how to best align today

.NET 2.0 (Whidbey) SQL Server 2005 Indigo
35
Indigo

• Indigo is the kernel of Microsofts
  next-generation connected systems platform
• Unifies all previously distributed technologies

Indigo
ASMX
WSE2
ES
Remoting
System.Messaging
36
Guidance

• Microsofts Patterns and Practices (PAG) provides
  valuable guidance for connected systems
  development
• Download the guidance or order convenient books
• Numerous Application Blocks for use in your
  designs
• PAG delivers patterns and practices that are
• Proven based on field and partner experience
• Authoritative best advice available
• Accurate technically validated and tested
• Actionable provide the steps to success
• Relevant address real world scenarios

37
Review

• Aligning enterprise realities with a shifting
  technology landscape is the great challenge
• Moving towards Connected Systems offers a
  solution
• Based on the tenets of Service Orientation
• Microsoft offers a complete Connected Systems
  platform
• Integrated, easy-to-use products and technologies

• Microsoft is continuing to invest in future
  technologies
• Microsoft provides clear patterns and practices
  to help you get started on the right track

38
Resources

• In-depth Connected Systems training
• .NET Campsight, Server Edition - Pluralsight, LLC
  http//pluralsight.com/campsight/
• Microsoft Architecture Overview
• http//msdn.microsoft.com/architecture/enterprise/
  default.aspx?pull/library/en-us/dnea/html/eaarcho
  ver.asp
• Service Orientation and Its Role in Your
  Connected Systems Strategy
• http//msdn.microsoft.com/architecture/soa/default
  .aspx?pull/library/en-us/dnbda/html/srorientwp.as
  p
• An Introduction to the Web Services Architecture
  and Its Specifications
• http//msdn.microsoft.com/library/default.asp?url
  /library/en-us/dnwebsrv/html/introwsa.asp

39
(No Transcript)
