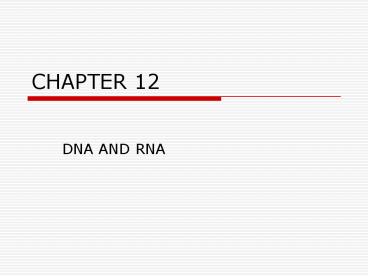

DNA AND RNA

1
CHAPTER 12

• DNA AND RNA

2
CHAPTER 12

• Sutton and Boveri
• Formulated the chromosome theory of heredity in
  1903
• Fredrick Griffith
• Helped determine that genes are composed of DNA
• Experimented with Streptococcus pneumoniae
  (bacteria) in mice

3
CHAPTER 12

• Two strains used
• S because it looked smooth and caused pneumonia
• R because it looked rough and did not cause
  pneumonia
• Griffith injected mice with heat-killed S strains
  and they did not get pneumonia
• Griffith injected a mixture of heat-killed S and
  healthy R and the mice got pneumonia

4
CHAPTER 12

• Griffiths experiment

5
CHAPTER 12

• Griffith reasoned that a material must have been
  transferred from the heat-killed S strain to the
  R strain
• 1944 Avery discovered that it was DNA

6
CHAPTER 12

• Chase and Hershey
• Found that DNA was without a doubt the substance
  that was the hereditary material
• Used bacteria and viruses called bacteriophages

7
CHAPTER 12

• Watson and Crick
• Found the components of the nucleotides
• And that sugar and phosphate formed the sides
  of the helix
• Franklin
• Photographed DNA using X rays and found that DNA
  was spiral shaped

8
CHAPTER 12

• DOUBLE HELIX twisted ladder
• Sides of ladder
• Alternating sugar and phosphates
• Rungs of ladder
• Chargaffs rules
• Pairs of bases
• ( A T or G C)
• Adenine
• Thymine
• Cytosine
• Guanine
• Held together by hydrogen bonds

9
CHAPTER 12

• Chargaff
• Found that the four bases always paired in a
  certain way
• Adenine always pairs with thymine
• Guanine always pairs with cytosine
• Two classes of nitrogen bases
• Pyrimidines cytosine and thymine
• Purines adenine and guanine

10
CHAPTER 12

• DNA structure
• Made up of smaller units called nucleotides
• Nucleotide
• One phosphate
• One sugar (deoxyribose)
• One nitrogen base

11
(No Transcript)
12
CHAPTER 12

• DNA REPLICATION
• DEF making another copy of DNA
• Done during synthesis of interphase
• Done in order to insure all cells in body have
  same information

13
CHAPTER 12

• DNA replication
• Makes a copy of itself during mitosis and meiosis
• ANIMATION LINK

14
CHAPTER 12

• STEPS IN DNA REPLICATION
• Double helix is opened by a specific enzyme by
  breaking open hydrogen bonds between bases
• Free nucleotides are base paired according to A-T
  and G-C by enzyme called DNA polymerase pairs up
  bases

15
CHAPTER 12

• Another enzyme causes the hydrogen bonds to form
  new rungs again and another enzyme causes
  sugar-phosphate bonds form to create new side
• Resulting in two new identical DNA molecules
  each have one original side and one new side

16
CHAPTER 12
17
CHAPTER 12

• CHROMOSOMES AND DNA
• Chromosomes made of protein and DNA
• One type of protein histone
• DNA wraps around histones twice
• Nucleosome one histone and its DNA

18
CHAPTER 12

• Histones are important in keeping the DNA in
  order as it tightens and becomes a chromosome
  before mitosis

19
CHAPTER 12.1

• Protein synthesis
• Process by which an organisms genotype is
  translated into its phenotype
• Involves two types of nucleic acids
• DNA
• RNA
• The order of the bases in DNA specifies order of
  bases in mRNA ? the order of amino acids (brought
  in by tRNA) ? makes the specific protein

20
CHAPTER 12

• PROTEINS ARE IMPORTANT
• Structure, repair, and growth
• As enzymes control metabolism
• Hormones steroids control growth and
  development
• RNA ribonucleic acid
• mRNA messenger RNA takes information for
  protein to be made from DNA to the ribosome

21
CHAPTER 12

• tRNA carries amino acids to ribosomes, lines
  them up in the correct order according to mRNA
• rRNA makes up the structure of the ribosome
• Monomers (RNA nucleotides) of RNA are composed of
  phosphate, ribose (sugar) and a base (adenine,
  guanine, cytosine and uracil)

22
CHAPTER 12

• DNA
• Double stranded
• Deoxyribose sugar
• Thymine pairs with adenine
• Located in the nucleus only

• RNA
• Single stranded
• Ribose sugar
• Uracil pairs with adenine
• Located all over the cell

23
CHAPTER 12

• Genes are made up of DNA
• The sequence of DNA bases in a gene determine the
  order of the amino acids making up a protein
• Every protein made in your body has a gene that
  codes for it.

24
CHAPTER 12

• TWO STEPS TO PROTEIN SYNTHESIS
• TRANSCRIPTION
• TRANSLATION

25
CHAPTER 12

• TRANSCRIPTION
• A copy of DNA is made by RNA polymerase
• Takes place in the nucleus
• A molecule of mRNA is formed that is
  complementary to the DNA
• transcribe means to copy (nucleic acid to
  nucleic acid)

26
CHAPTER 12

• TRANSCRIPTION
• Portion of the DNA that has the code for the
  needed protein opens up
• RNA polymerase separates the two strands of a DNA
  double helix
• RNA nucleotides are lined up across from the
  exposed bases on the sense strand according to
  Chargaffs rules by RNA polymerase

• DNA side used sense strand
• Other side nonsense strand

27
CHAPTER 12

• BASE PAIRS
• NONSENSE DNA - SENSE DNA mRNA G C G
• C G C
• A T A
• T A U
• 3 BASES OF DNA CODE
• 3 BASES OF mRNA triplet codon
• 3 BASES OF tRNA anticodon

28
CHAPTER 12

• Each triplet codon codes for one amino acid
• There are 64 possible codons
• Only 20 amino acids, therefore some amino acids
  may be coded for more than one triplet codon
• Initiator codon AUG ? codes for the amino acid
  methionine

29
CHAPTER 12

• Terminator codons UGA, UAG, UAA
• These are STOP codons and they signal the end of
  a protein

LET'S REVIEW!
30
CHAPTER 12

• The genetic instructions for a polypeptide chain
  are written in the DNA as a series of
  3-nucleotide words
• Codons
• U (uracil) replaces T in RNA

31
CHAPTER 12

• mRNA from nucleus is read along its codons by
  tRNAs anticodons at the ribosome
• tRNA anticodon (nucleotide triplet)
  amino acid

32
CHAPTER 12

• TRANSLATION
• DEF taking the message of mRNA and filling in
  the amino acids to make the protein
• Occurs at the ribosomes in the cytoplasm
• Once DNA makes the strand of mRNA, it leaves the
  nucleus and goes to the ribosome
• translate means to change languages (nucleic
  acid to protein)

33
CHAPTER 12
34
CHAPTER 12

• The tRNA base pairs with the bases on the mRNA
  strand, bringing in the correct amino acids
• Peptide bonds form between the amino acids
  making a polypeptide which is a small protein (or
  part of a large protein)

35
CHAPTER 12
36
CHAPTER 12.1
37
CHAPTER 12

• BASE PAIRS
• NONSENSE DNA - SENSE DNA mRNA -tRNA
• G C G C
• C G C G
• A T A U
• T A U A
• Therefore DNA has controlled the production of
  the protein by bases paired with mRNA, which base
  paired with tRNA, nearly duplicated itself

38
CHAPTER 12

• Exons and introns go to end of notes
• Much of the mRNA that is transcribed in the
  nucleus does not actually get translated
• Some mRNA gets clipped out, enzymes do this
  called processing, maturing, or editing
• The part taken out introns (interferring)
• The part that actually codes for the needed
  protein and goes to the ribosome to be translated
  is called the exon (that which is expressed)

39
CHAPTER 12
40
CHAPTER 12
http//omega.dawsoncollege.qc.ca/ray/protein/panim
.htm
41
CHAPTER 12

• Animation
• Another animation

42
CHAPTER 12

• PROKARYOTIC CELLS
• No nucleus
• mRNA travels right to the ribosome to begin
  translation

• EUKARYOTIC CELLS
• mRNA has to go through another step called RNA
  splicing
• Introns (noncoding segments of mRNA) are removed
• Exons (coding regions) are spliced together
• Then mRNA leaves the nucleus and goes to the
  ribosome

43
CHAPTER 12

• GENE MUTATIONS
• POINT MUTATIONS
• BECAUSE THEY OCCUR AT A SINGLE POINT IN THE DNA
  SEQUENCE
• DNA ? TAC GCA TGG AAT
• RNA ? AUG CGU ACC UUA
• AA ? MET-ART-THR-LEU
• BUT WHAT IF THERE IS A LETTER CHANGE?
• DNA ? TAC GTA TGG AAT
• WHAT IS THE CHANGE?
• RNA ? AUG CAU ACC UUA
• AA ? MET HIS- THR-LEU

44
CHAPTER 12

• FRAMESHIFT
• IF A NUCLEOTIDE IS DELETED OR INSERTED, BASES ARE
  STILL READ IN GROUPS OF THREE SO.
• DNA ? TAC GCA TGG AAT
• RNA ? AUG CGU ACC UUA
• AA ? MET- ARG- THR-LEU
• IF THERE IS AN INSERTION OF ONLY ONE NUCLEOTIDE
• DNA ? TAT CGC ATG GAA T
• RNA ? AUA GCG UAC CUU A
• AA ? ILE ALA- TYR-LEU

45
CHAPTER 12

• GENE REGULATION AND THE PROCESSING OF mRNA
• Genes can be turned off or on
• Activated or deactivated
• Activated means the gene is expressed or the
  protein is made
• Deactivated means the gene is not expressed or no
  protein is made

46
CHAPTER 12

• LAC OPERON
• DEF the set of DNA used to make lactase
• Consists of
• Three genes that code for lactase
• Promoter area in front of genes that says RNA
  polymerase start here
• Operator between promoter and genes where
  repressor sits when gene does not work

47
CHAPTER 12

• Repressor protein that when attached to
  operator stops production of gene
• If lactose is present in the bacteria it can act
  as the inducer (the inducer removes the
  repressor)
• Without the repressor sitting on the operator
• Lactase is made, lactase is the enzyme that
  breaks down lactose
• When the level of lactose in the cell gets low
  the repressor attaches to the operator

48
CHAPTER 12.2

• JACOB AND MONOD
• Model of how bacterial cells (prokaryotes)
  control gene expression
• OPERON ?

49
CHAPTER 12.2

• PROKARYOTIC CELLS
• Genes turn on and off in response to changes in
  the environment
• Example gene for lactase can be turned off by a
  molecule called a repressor

• EUKARYOTIC CELLS
• Only certain genes actually function
• Can control gene expression by controlling RNA
  splicing which results in one gene producing
  various proteins

50
CHAPTER 12

• DEVELOPMENT AND DIFFERENTIATION
• CELLS BECOME SPECIALIZED IN STRUCTURE AND
  FUNCTION
• HOX GENES
• SERIES OF GENES THAT CONTROL DIFFERENTIATION OF
  CELLS AND TISSUES
• MUTATION IN ONE OF THESE GENES CAN COMPLETELY
  CHANGE THE ORGANS THAT DEVELOP IN SPECIFIC PARTS
  OF THE BODY

51
CHAPTER 12

• GENE CALLED PAX 6
• CONTROLS EYE GROWTH IN MICE
• COPY OF THIS GENE WAS INSERTED INTO THE GENES
  THAT CONTROL THE GROWTH OF A FRUIT FLYS KNEE
  THE RESULTING FRUIT FLY GREW AN EYE ON ITS LEG!

52
CHAPTER 14.3

• HUMAN DNA ANALYSIS
• TESTING FOR ALLELES
• DNA FINGERPRINTING
• ANALYSIS OF SECTIONS OF DNA
• SMALL SAMPLE IS CUT WITH A RESTRICTION ENZYME
  RESULTING IN FRAGMENTS OF VARYING LENGTH
• GEL ELECTROPHORESIS TO SEPARATE STRANDS BY LENGTH

53
CHAPTER 14.3

• HUMAN GENOME PROJECT
• ANALYZE THE HUMAN DNA SEQUENCE
• GENE THERAPY
• AN ABSENT OR FAULTY GENE IS REPLACED BY A NORMAL
  WORKING GENE
