Title: Physics 111: Lecture 6 Todays Agenda


1

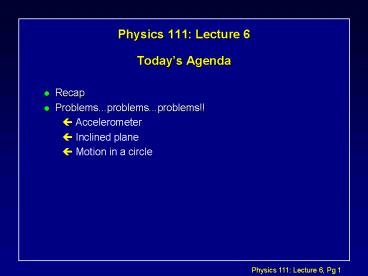

Physics 111 Lecture 6Todays Agenda
  • Recap
  • Problems...problems...problems!!
  • Accelerometer
  • Inclined plane
  • Motion in a circle

2
Review
  • Discussion of dynamics.
  • Review Newtons 3 Laws
  • The Free Body Diagram
  • The tools we have for making solving problems
  • Ropes Pulleys (tension)
  • Hookes Law (springs)

3
Review Pegs Pulleys
  • Used to change the direction of forces
  • An ideal massless pulley or ideal smooth peg will
    change the direction of an applied force without
    altering the magnitude The tension is the same
    on both sides!

massless rope
F1 -T i
F1 F2
ideal peg or pulley
F2 T j
4
Review Springs
  • Hookes Law The force exerted by a spring is
    proportional to the distance the spring is
    stretched or compressed from its relaxed
    position.
  • FX -kx Where x is the displacement
    from the equilibrium and k is the constant of
    proportionality.

relaxed position
FX 0
x
5
Lecture 6, Act 1Springs
  • A spring with spring constant 40 N/m has a
    relaxed length of 1 m. When the spring is
    stretched so that it is 1.5 m long, what force is
    exerted on a block attached to the end of the
    spring?

x 0
x 0
x 1
x 1.5
k
k
(a) -20 N (b) 60 N
(c) -60 N
6
Lecture 6, Act 1Solution
  • Recall Hookes law
  • FX -kx Where x is the displacement from
    equilibrium.

FX - (40) ( .5) FX - 20 N
(a) -20 N (b) 60 N
(c) -60 N
7
Problem Accelerometer
  • A weight of mass m is hung from the ceiling of a
    car with a massless string. The car travels on a
    horizontal road, and has an acceleration a in the
    x direction. The string makes an angle ? with
    respect to the vertical (y) axis. Solve for ? in
    terms of a and g.

a
?
i
8
Accelerometer...
  • Draw a free body diagram for the mass
  • What are all of the forces acting?

i
9
Accelerometer...
  • Using components (recommended)
  • i FX TX T sin ? ma
  • j FY TY - mg
  • T cos ??- mg 0

TX
?
TY
T
?
m
ma
mg
10
Accelerometer...
  • Using components
  • i T sin ? ma
  • j T cos ??- mg 0
  • Eliminate T

TX
TY
T
?
m
ma
T sin ??? ma
T cos ??? mg
mg
11
Accelerometer...
  • Alternative solution using vectors (elegant but
    not as systematic)
  • Find the total vector force FNET

T (string tension)
T
?
mg
?
m
FTOT
mg (gravitational force)
12
Accelerometer...
  • Alternative solution using vectors (elegant but
    not as systematic)
  • Find the total vector force FNET
  • Recall that FNET ma
  • So

T (string tension)
?
T
mg
?
m
ma
mg (gravitational force)
13
Accelerometer...
Cart w/ accelerometer
  • Lets put in some numbers
  • Say the car goes from 0 to 60 mph in 10 seconds
  • 60 mph 60 x 0.45 m/s 27 m/s.
  • Acceleration a ?v/?t 2.7 m/s2.
  • So a/g 2.7 / 9.8 0.28 .
  • ? arctan (a/g) 15.6 deg

a
?
14
Problem Inclined plane
  • A block of mass m slides down a frictionless ramp
    that makes angle ? with respect to the
    horizontal. What is its acceleration a ?

m
a
?
15
Inclined plane...
  • Define convenient axes parallel and perpendicular
    to plane
  • Acceleration a is in x direction only.

m
a
?
16
Inclined plane...
Incline
  • Consider x and y components separately
  • i mg sin ? ma. a g sin ?
  • j N - mg cos ? 0. N mg cos ?

ma
mg sin ?
N
?
mg cos ?
mg
17
Inclined plane...
  • Alternative solution using vectors

m
N
?
mg
a g sin ???i N mg cos ???j
18
Angles of an Inclined plane
The triangles are similar, so the angles are the
same!
N
?
mg
19
Lecture 6, Act 2Forces and Motion
  • A block of mass M 5.1 kg is supported on a
    frictionless ramp by a spring having constant k
    125 N/m. When the ramp is horizontal the
    equilibrium position of the mass is at x 0.
    When the angle of the ramp is changed to 30o what
    is the new equilibrium position of the block
    x1?(a) x1 20cm (b) x1 25cm
    (c) x1 30cm

x1 ?
k
M
q 30o
20
Lecture 6, Act 2Solution
x1
k
M
q
21
Lecture 6, Act 2Solution
  • Since the total force in the x-direction must be
    0

x1
Fx,s -kx1
k
M
Fx,g Mg sinq
q
22
Problem Two Blocks
  • Two blocks of masses m1 and m2 are placed in
    contact on a horizontal frictionless surface. If
    a force of magnitude F is applied to the box of
    mass m1, what is the force on the block of mass
    m2?

F
m1
m2
23
Problem Two Blocks
  • Realize that F (m1 m2) a
  • Draw FBD of block m2 and apply FNET ma

F / (m1 m2) a
F2,1
F2,1 m2 a
m2
24
Problem Tension and Angles
  • A box is suspended from the ceiling by two ropes
    making an angle ? with the horizontal. What is
    the tension in each rope?

?
?
m
25
Problem Tension and Angles
T1
  • Draw a FBD

T2
T2sin ?
T1sin ?
?
?
T1cos ?
T2cos ?
mg
  • Since the box isnt going anywhere, Fx,NET 0
    and Fy,NET 0

Fy,NET T1sin ? T2sin ? - mg 0
26
Problem Motion in a Circle
Tetherball
  • A boy ties a rock of mass m to the end of a
    string and twirls it in the vertical plane. The
    distance from his hand to the rock is R. The
    speed of the rock at the top of its trajectory is
    v.
  • What is the tension T in the string at the top of
    the rocks trajectory?

v
T
R
27
Motion in a Circle...
  • Draw a Free Body Diagram (pick y-direction to be
    down)
  • We will use FNET ma (surprise)
  • First find FNET in y direction
  • FNET mg T

y
mg
T
28
Motion in a Circle...
  • FNET mg T
  • Acceleration in y direction
  • ma mv2 / R
  • mg T mv2 / R
  • T mv2 / R - mg

v
y
mg
T
F ma
R
29
Motion in a Circle...
Bucket
  • What is the minimum speed of the mass at the top
    of the trajectory such that the string does not
    go limp?
  • i.e. find v such that T 0.
  • mv2 / R mg T
  • v2 / R g
  • Notice that this doesnot depend on m.

v
mg
T 0
R
30
Lecture 6, Act 3Motion in a Circle
Track w/ bump
  • A skier of mass m goes over a mogul having a
    radius of curvature R. How fast can she go
    without leaving the ground?

(a) (b)
(c)
31
Lecture 6, Act 3Solution
  • mv2 / R mg - N
  • For N 0

v
N
mg
R
32
Recap of Todays lecture
  • Example Problems
  • Accelerometer
  • Inclined plane (Text example 6-1)
  • Motion in a circle (Text 5-2, 9-1)
  • Look at textbook problems Chapter 4 47
    Chapter 5 51, 95
