Preference Analysis

1

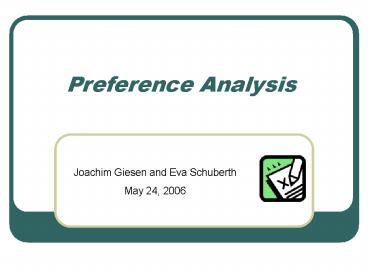

Preference Analysis
Joachim Giesen and Eva Schuberth May 24, 2006
2
Outline

• Motivation
• Approximate sorting
• Lower bound
• Upper bound
• Aggregation
• Algorithm
• Experimental results
• Conclusion

3
Motivation

• Find preference structure of consumer w.r.t. a
  set of products
• Common assign value function to products
• Value function determines a ranking of products
• Elicitation pairwise comparisons
• Problem deriving metric value function from
  non-metric information
• ? We restrict ourselves to finding ranking

4
Motivation
? Find for every respondent a ranking individually

• Efficiency measure number of comparisons

• Comparison based sorting algorithm
• Lower Bound comparisons
• As set of products can be large this is too much

5
Motivation

• Possible solutions
• Approximation
• Aggregation
• Modeling and distribution assumptions

6
Approximation(joint work with J. Giesen and M.
Stojakovic)

• Lower bound (proof)
• Algorithm

7
Approximation

• Consumers true ranking of n products
  corresponds toIdentity increasing permutation
  id on 1, .., n
• WantedApproximation of ranking corresponds
  to s.t. small

8
Metric on Sn

• Needed metric on
• Meaningful in the market research context
• Spearmans footrule metric D

• Note

9
We show

• To approximate ranking within expected distance
• at least comparisons necessary

comparisons always sufficient
10
Lower bound

• randomized approximate sorting algorithm

A

• ,

If for every input permutation the expected
distance of the output to id is at most r, then A
performs at leastcomparisons in the worst
case.
11
Lower bound Proof
Follows Yaos Minimax Principle
12
Lower bound Lemma

• For rgt0
• ball centered at with radius r

r
id
Lemma
13
Lower bound Proof of Lemma

• uniquely determined by the sequence

• For sequence of non-negative integers at
  most 2n permutations satisfy

14
Lower bound deterministic case
Now to show
For fixed, the number of input permutations
which have output at distance more than 2r to id
is more than
15
Lower bound deterministic case
k comparisons ? 2k classes of same outcome
16
Lower bound deterministic case
k comparisons ? 2k classes of same outcome
17
Lower bound deterministic case
For in the same class
For in the same class
18
Lower bound deterministic case
For in the same class
19
Lower bound deterministic case
At most 2k input permutations have same output
20
Lower bound deterministic case
At most input permutations
with output in
21
Lower bound deterministic case
At least input
permutations
with output outside
22
Upper Bound

• Algorithm (suggested by Chazelle) approximates
• any ranking within distance
• with less than comparisons.

23
Algorithm

• Partitioning of elements into equal sized bins
• Elements within bin smaller than any element in
  subsequent bin.
• No ordering of elements within a bin
• Output permutation consistent with sequence of
  bins

24
Algorithm
Round
0
1
2
25
Analysis of algorithm

• m rounds ? 2m bins
• Output ranking consistent with ordering of bins

26
Algorithm Theorem
Any ranking consistent with bins computed in
rounds, i.e. with less than comparisons has
distance at most
27
Approximation Summary

• For sufficiently large error less comparisons
  than for exact sortingerror
  , const
  comparisonserror
  comparisons
• For real applications still too much
• Individual elicitation of value function not
  possible
• ? Second approach Aggregation

28
Aggregation(joint work with J. Giesen and D.
Mitsche)

• Motivation
• We think that population splits into preference/
  customer types
• Respondents answer according to their type (but
  deviation possible)
• Instead of
• Individual preference analysis or
• aggregation over the population
• ? aggregate within customer types

29
Aggregation

• Idea
• Ask only a constant number of questions (pairwise
  comparisons)
• Ask many respondents
• Cluster the respondents according to answers into
  types
• Aggregate information within a cluster to get
  type rankings

Philosophy First segment then aggregate
30
Algorithm

• The algorithm works in 3 phases
• Estimate the number k of customer types
• Segment the respondents into the k customer types
• Compute a ranking for each customer type

31
Algorithm
Every respondent performs pairwise
comparisons. Basic data structure matrix A
aij Entry aij in -1,1,0, refers to respondent
i and the j-th product pair (x,y)
if respondent i prefers y over x
if respondent i prefers x over y
if respondent i has not compared x and y
32
Algorithm

• Define B AAT
• Then Bij number of product pairs on which
  respondent i and j agree minus number of pairs on
  which they disagree (not counting 0s).

33
Algorithm phase 1

• Phase 1 Estimation of number k of customer types
• Use matrix B
• Analyze spectrum of B
• We expect k largest eigenvalues of B to be
  substantially larger than the other eigenvalues
• ? Search for gap in the eigenvalues

34
Algorithm phase 2

• Phase 2 Cluster respondents into customer types
• Use again matrix B
• Compute projector P onto the space spanned by the
  eigenvectors to the k largest eigenvalues of B
• Every respondent corresponds to a column of P
• Cluster columns of P

35
Algorithm phase 2

• Intuition for using projector example on graphs

36
Algorithm phase 2
Ad
37
Algorithm phase 2
P
38
Algorithm phase 2
P
39
Algorithm phase 2
Embedding of the columns of P
40
Algorithm phase 3

• Phase 3 Compute the ranking for each type
• For each type t compute characteristic vector
  ct
• For each type t compute ATctif entry for
  product pair (x,y) is

if respondent i belongs to that type
otherwise
positive x preferred over y by t
negative y preferred over x by t
zero type t is indifferent
41
Experimental study

• On real world data
• 21 data sets from Sawtooth Software, Inc.
  (Conjoint data sets)
• Questions
• Do real populations decompose into different
  customer types
• Comparison of our algorithm to Sawtooths
  algorithm

42
Conjoint structures

• Attributes Sets A1, .. An, Aimi
• An element of Ai is called level of the i-th
  attribute
• A product is an element of A1x x An

• Example Car
• Number of seats 5, 7
• Cargo area small, medium, large
• Horsepower 240hp, 185hp
• Price 29000, 33000, 37000

In practical conjoint studies
43
Quality measures

• Difficulty we do not know the real type rankings
• We cannot directly measure quality of result
• Other quality measures
• Number of inverted pairs average
  number of inversions in the partial rankings of
  respondents in type i with respect to the j-th
  type ranking
• Deviation probability
• Hit Rate (Leave one out experiments)

44
respondents 270Size of study 8 x 3 x 4
96 questions 20
Study 1
Largest eigenvalues of matrix B
45
respondents 270Size of study 8 x 3 x 4
96 questions 20
Study 1

• two types
• Size of clusters 179 91

Number of inversions and deviation probability
46
respondents 270Size of study 8 x 3 x 4
96 questions 20
Study 1

• Hitrates
• Sawtooth ?
• Our algorithm 69

47
respondents 539Size of study 4 x 3 x 3
x 5 180 questions 30
Study 2
Largest eigenvalues of matrix B
48
respondents 539Size of study 4 x 3 x 3
x 5 180 questions 30
Study 2

• four types
• Size of clusters 81 119 130 209

Number of inversions and deviation probability
49
respondents 539Size of study 4 x 3 x 3
x 5 180 questions 30
Study 2

• Hitrates
• Sawtooth 87
• Our algorithm 65

50
respondents 1184Size of study 9 x 6 x
5 270 questions 48
Study 3
Size of clusters 6 3 1164 8 3
Size of clusters 3 1175 6
1-p 12
Largest eigenvalues of matrix B
51
respondents 1184Size of study 9 x 6 x
5 270 questions 48
Study 3

• Hitrates
• Sawtooth 78
• Our algorithm 62

52
respondents 300Size of study 6 x 4 x 6
x 3 x 2 3456 questions 40
Study 4
Largest eigenvalues of matrix B
53
respondents 300Size of study 6 x 4 x 6
x 3 x 2 3456 questions 40
Study 4

• Hitrates
• Sawtooth 85
• Our algorithm 51

54
Aggregation - Conclusion

• Segmentation seems to work well in practice.
• Hitrates not goodReason information too sparse
• ? Additional assumptions necessary
• Exploit conjoint structure
• Make distribution assumptions

55

• Thank you!

56
Yaos Minimax Principle

• finite set of input instances
• finite set of deterministic algorithms
• C(i,a) cost of algorithm a on input i, where i
  and a

For all distributions p over and q over
