Queues

1

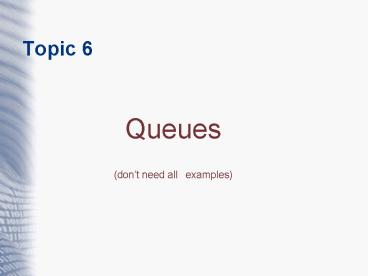

Topic 6

• Queues
• (dont need all examples)

2
Chapter Objectives

• examine queue processing
• define a queue abstract data type
• demonstrate how a queue can be used to solve
  problems
• examine various queue implementations
• compare queue implementations

3
Queues

• queue a collection whose elements are added at
  one end (the rear or tail of the queue) and
  removed from the other end (the front or head of
  the queue)
• a queue is a FIFO (first in, first out) data
  structure
• examples any waiting line is a queue
• the check out line at a grocery store
• the cars at a stop light
• an assembly line

4
Conceptual View of a Queue
5
Computer System Examples

• printer queue
• keyboard input buffer
• GUI event queue

6
Queue Operations

• enqueue add an element to the tail of a queue
• dequeue remove an element from the head of a
  queue
• peek examine the element at the head of the
  queue
• it is not legal to access the elements in the
  middle of the queue

7
Operations on a Queue

• see QueueADT.java

8
The QueueADT Interface in UML
9
Interface to a Queue in Java

• See QueueADT.java

10
Using Queues

• queues are useful for any kind of problem
  involving FIFO data
• example simulation problems
• exampleencoding messages
• example ticket counter simulation
• example radix sort?

11
Example Coded Messages

• a Ceasar cipher encodes a message by shifting
  each letter in a message by a constant amount k
• if k is 5, a becomes f, b becomes g, etc
• this code is fairly easy to break!
• an improvement change how much a letter is
  shifted depending on where the letter is in the
  message

12
Coded Messages (contd)

• a repeating key is a series of integers that
  determine how much each character is shifted
• for example, consider the repeating key
• 3 1 7 4 2 5
• the first character in the message is shifted 3,
  the next 1, the next 7, and so on
• when the key is exhausted, start over at the
  beginning of the key

13
An Encoded Message Using a Repeating Key
14
Coded Messages (contd)

• use a queue to store the values of the key
• dequeue a key value when needed
• after using it, enqueue it back onto the end of
  the queue
• so, the queue represents the constantly cycling
  values in the key
• see codes.java

15
UML Description of Codes Program
16
Ticket Counter Simulation

• simulate the waiting line at a movie theatre
• determine how many cashiers are needed to keep
  the customer wait time under 7 minutes
• assume
• customers arrive on average every 15 seconds
• processing a request takes two minutes once a
  customer reaches a cashier
• see customer.java
• see TicketCounter.java

17
UML Description of TicketCounter Program
18
Results of Ticket Counter Simulation
19
Radix Sort

• a radix sort uses queues to order a set of values
• a queue is created for each possible value in the
  sort key
• example if the sort key was a lowercase
  alphabetic string, there would be 26 queues
• example if the sort key was a decimal integer,
  there would be 10 queues corresponding to the
  digits 0 through 9

20
Radix Sort (contd)

• each pass through the sort examines a particular
  position in the sort value
• the element is put on the queue corresponding to
  that position's value
• processing starts with the least significant
  position (1s) to the most significant position
• the following example uses integers with only the
  digits 0 through 5

21
A Radix Sort of Ten Three-digit Numbers
22
Implementation of Radix Sort

• we maintain an array of 10 queues, one for each
  digit (0-9)
• see RadixSort.java

23
UML description of RadixSort program
24
Queue Implementation using a Linked List

• internally, the queue is represented as a linked
  list of nodes, with
• each node containing a data element
• two references
• a pointer to the beginning of the list
• a pointer to the end of the list
• a count of the number of nodes in the queue

25
Linked Implementation of a Queue
26
Queue After Adding Element E
27
Queue After a dequeue Operation
28
Java Implementation

• we will implement a general queue of Objects
• the queue is represented as a linked list of
  nodes
• we will again use the LinearNode class
• front is a reference to the head of the queue
  (beginning of the list)
• rear is a reference to the tail of the queue (end
  of the list)
• the integer count is the number of nodes in the
  queue

29
The enqueue Operation
//------------------------------------------------
----------------- // Adds the specified element
to the rear of the queue. //----------------------
------------------------------------------- public
void enqueue (Object element) LinearNode
temp new LinearNode (element) if
(isEmpty()) front node else
rear.setNext (node) rear node
count
30
The dequeue Operation
//------------------------------------------------
----------------- // Removes the element at the
front of the queue and returns a // reference to
it. Throws an EmptyCollectionException if the //
queue is empty. //--------------------------------
--------------------------------- public Object
dequeue () throws EmptyCollectionException
if (isEmpty()) throw new EmptyCollectionExce
ption ("queue") Object result
front.getElement() front front.getNext()
count-- if (isEmpty()) rear null
return result
31
Queue Implementation using an Array

• First Approach
• use an array in which index 0 represents one end
  of the queue
• integer value rear represents the next open slot
  in the array (and also the number of elements
  currently in the queue)
• Discussion What is the challenge with this
  approach?

32
An Array Implementation of a Queue
33
Queue After Adding Element E
34
Queue After Removing First Element
35
The enqueue Operation
//------------------------------------------------
----------------- // Adds the specified element
to the rear of the queue, expanding // the
capacity of the queue array if necessary. //------
--------------------------------------------------
--------- public void enqueue (Object element)
if (size() queue.length)
expandCapacity() queuerear element
rear
36
The dequeue Operation
//------------------------------------------------
----------------- // Removes the element at the
front of the queue and returns a // reference to
it. Throws an EmptyCollectionException if the //
queue is empty. //--------------------------------
--------------------------------- public Object
dequeue () throws EmptyCollectionException
if (isEmpty()) throw new EmptyCollectionExce
ption ("queue") Object result queue0
// shift the elements for (int scan0 scan lt
rear scan) queuescan
queuescan1 rear-- queuerear
null return result
37
Second Approach Queue as a Circular Array

• if we don't fix one end of the queue at index 0,
  we won't have to shift the elements!
• circular array is an array that conceptually
  loops around on itself
• the last index is thought to precede index 0
• need to keep track of where the front and rear of
  the queue are at any given time

38
Circular Array Implementation of a Queue
39
A Queue Straddling the End of a Circular Array
40
Changes in a Queue
41
Circular Array (contd)

• when an element is enqueued, the value of rear is
  incremented
• but it must take into account the need to loop
  back to 0
• rear (rear1) queue.length
• Can this array implementation also reach
  capacity?

42
Analysis of Queue Operations

• the linked implementation of a queue does not
  suffer from the need to operate on both ends of
  the queue
• enqueue operation
• O(1) for all implementations
• dequeue operation
• O(1) for linked implementation
• O(1) for circular array implementation
• O(n) for noncircular array implementation
