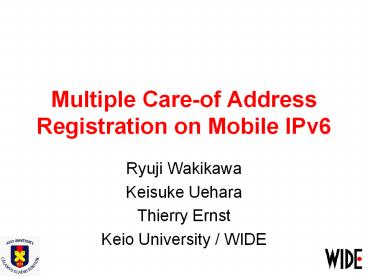

Multiple Care-of Address Registration on Mobile
IPv6

• Ryuji Wakikawa
• Keisuke Uehara
• Thierry Ernst
• Keio University / WIDE

2
Motivation

• MN utilizes all the active interfaces
  simultaneously by dividing flows to each
  interfaces
• MN should register all the active CoAs to HA and
  CNs, otherwise packets are dropped if MN uses an
  unregistered CoA
• A lot of advantages in terms of QoS, Multihoming,
  Redundancy, Fault Tolerance, Fast Vertical
  Hand-off
• Upper layers are unaware of multiple CoAs because
  all the CoAs are bounded to the same HoA
• Session continuance is guaranteed
• Any Policy Management to utilize all the
  registered CoAs should be accepted
• This draft does not propose any new policy
  management, but multiple CoA registrations only!!!

3
Overview

• Interface Identification Number (IFID)
• This randomly generated number is used to
  distinguish each interface on MN
• Interface Priority (IFPRI)
• Priority value is used to select the primary CoA
• Care-of Address Information sub-option
• The sub-option used in BU to notify IFID and
  IFPRI to either HA or CNs

VoIP, DVTS
CoA1 IFID1
CN
MN
CoA2 IFID2
Binding Cache HoA IFID1 CoA1 HoA IFID2-CoA2
smtp, pop
4
CoA Registration

• MN needs to send a different BU per each CoA
• HA updates a BC entry which matches HoA and IFID
  if a CoA sub-option is available
• MN can manage each CoA independently
• If a CoA is changed, MN just updates the changed
  CoA

2. Binding Acknowledgement
Internet
HA
Binding Cache HoA IFID1 CoA1 HoA IFID2-CoA2
1. Binding Update
MN/MR
HoA
BU (M)
CoA Info
IPsec
IP header
CoA1 IFID1 CoA2 IFID2
5
Return Routability

• CN calculates Care-of Keygen Token with IFID and
  IFPRI

Binding Cache HoA IFID1 CoA1 HoA IFID2-CoA2
CN
Internet
1 CoT and CoTI with IFID IFPRI
HA
Binding Cache HoA IFID1 CoA1 HoA IFID2-CoA2
MN
2. Binding Update with IFIDIFPRI
CoA1 IFID1 CoA2 IFID2
6
Binding Management

• Registration
• BU with CoA sub-option
• a receiver updates only the corresponding
  binding cache entry
• BU without CoA sub-option
• a receiver registers to a single binding as in
  current MIPv6 draft
• De-registration
• BU with CoA sub-option
• a receiver deletes only the corresponding binding
• BU without CoA sub-option
• a receiver deletes all the registered bindings
• Returning Home
• When one of interfaces is attached to the home
  link, MN must delete all the bindings from CN and
  HA

7
How to select Binding?

• Any policy management and notification should be
  supported
• Priority Based Binding Selection
• HA and CN can select the best binding by each
  priority value
• Policy Based Binding Selection
• MN can notify own policy to HA and CN to select
  the most ideal binding
• The policy can be notified and managed by either
  MIP signaling, applications, policy management
  daemon, static configuration
• IFID can be used as an ID of each policy entry
  like SPI of IPsec
