Title: Spectrometer Performance


1

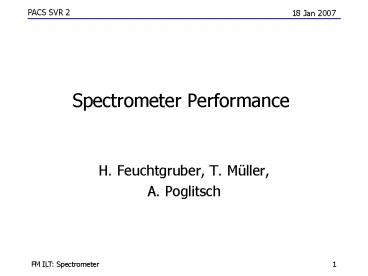

Spectrometer Performance
  • H. Feuchtgruber, T. Müller,
  • A. Poglitsch

2
Overview
!! Mostly draft results, no final reports yet !!
  • Thermal behaviour
  • Spectral coverage
  • Wavelength calibration
  • Spectral resolution and
  • instrumental profile
  • Sensitivity NEP
  • Relative spectral response
  • Leakage and Ghosts
  • Photoconductor Arrays

3
Boundary Conditions
  • Limited Time
  • Apply best guess values for detector biases and
    heater
  • Measurements have been carried out in few flux
    regimes
  • with mostly smallest capacitor.
  • Optics misaligment and the significant amount of
    time
  • spent to investigate it
  • Blue and Red spectrometer had to be operated
    separately

4
Thermal Behaviour (1)
  • Results from CUS Observation
  • SPEC_thermal_OBS
  • Test of all spectroscopy
  • components within one single
  • measurement
  • Illustrate the temperature
  • behaviour of PACS during typical
  • spectrometer and photometer
  • operations
  • Determine FPU temperature upper
  • limits during heat dissipation
  • Measure temperature transients in
  • the individual sub-units
  • Assess overall thermal
  • conductances and heat fluxes
  • Verify proper thermal strapping to
  • cryostat thermal reservoirs
  • Identify possible problem areas

5
Thermal Behaviour (2)
  • Results from CUS Observation
  • SPEC_thermal_OBS
  • Test of all spectroscopy
  • components within one single
  • measurement
  • Illustrate the temperature
  • behaviour of PACS during typical
  • spectrometer and photometer
  • operations
  • Determine FPU temperature upper
  • limits during heat dissipation
  • Measure temperature transients in
  • the individual sub-units
  • Assess overall thermal
  • conductances and heat fluxes
  • Verify proper thermal strapping to
  • cryostat thermal reservoirs
  • Identify possible problem areas

6
Spectral coverage
  • Available grating range 44.62 degrees
  • working range 43.1 degrees (low grating
    output)
  • order measured specification
  • 45000 1050000
  • n3 73.2µm 34.8 µm 72µm - 56µm
  • n2 109.8µm 52.2µm 105µm -
    72µm
  • n1 219.6µm 104.3µm 210µm - 105µm
  • Nominal 72-56µm band can be measured in grating
    order 2 and 3

7
Wavelength Calibration (1)
  • Sources and available measurements
  • - FIR-Methanol-Laser provided by LENS
  • Tested spectral lines 70.512, 77.406,
    96.522, 118.834 µm
  • - OGSE vapor cell
  • Tested spectral range scans 58-60µm and
    132-145µm

?? ???? gLHe117.175 n1,2,3 pix1..16
??0-gratpos/dgrat with dgrat23301steps/? So
far just ?0 (FM) ?0 (CQM) 3.78? (no
detailed analysis and no module
dependence yet !)
8
Wavelength Calibration (2)
Laser setup in front of cryostat
Laser 70.512 µm Grating order 3 Filter A
Pixel11,7
9
Wavelength Calibration (3)
Laser 70.512 µm Grating order 3 Filter A
Pixel11,7
Measured Gaussfit
Signals beyond cut level in white
10
Wavelength Calibration (3)
Red spectrometer, grating order 1,single
pixel Vapor cell p 8.5 mbar
Measured Model
Measured Model
Blue spectrometer, Grating order 3, single
pixel Vapor cell p 20-28mbar
11
Spectral Resolution Instrumental Profile
  • 3 laser lines confirm
  • predictions from design
  • on central pixels
  • Instrumental profile is
  • gaussian at least down
  • to a residue at 3 level

12
Sensitivity System NEP Map
  • Staring measurement at fixed grating position and
    given OGSE BB input flux has been analyzed (no
    dark current and straylight considerations yet
    !)
  • CRE setting Nominal bias, smallest capacitor, 64
    readouts per ramp

??88µm TBB30K Ppix3.96e-14W
??194µm TBB22.5K Ppix1.15e-14W
blue
red
13
Relative Spectral Response
  • Draft analysis
  • of different
  • spectral scans
  • on OGSE BB at
  • 30K.
  • Single pixel only
  • Probably
  • saturation
  • effects for red
  • detector at 30K
  • Leakage effects
  • seen at
  • longwave band
  • edges

57µm
105µm
72µm
BB_at_12K Cint140fF
n2
n2
BB_at_30K Cint230fF
n1
leakage
n3
Not yet measured with n1
14
Leakage and Ghosts (1)
15
Leakage and Ghosts (2)
16
l-l Plot of Ghost Responses in 1st Order
0 t h o r d e r
Ghost 1st order 3pass
From SVR 1
Ghost 1st order 2pass
Normal Signal
Ghost 2nd order 2pass
Leak 2nd order
17
l-l Plot of Ghosts, 1st Order, with Baffles
From SVR 1
Ghost 1st order 2pass
Normal Signal
Ghost 2nd order 2pass
Leak 2nd order
18
Leakage and Ghosts (3)
CQM ghosts
clean FM
  • Successful baffling
  • implemented

19
Leakage and Ghosts (4)
  • Leakage effects are within expectations from
    order
  • sorting filter performances
  • ECR-011, baffle modifications were successful in
    removing
  • the sharp spectral ghosts seen during CQM
  • Tests with the strongest laser line at 118.834
    µm did not
  • show leaking features in the blue bands
  • - No ghosts seen during all laser tests

20
Photoconductor Arrays (1)
  • PACS-ME-NCR-236 2 pixels low response
  • PACS-ME-NCR-237 crosstalk in supply group 2

21
Photoconductor Array (2)
  • PACS-ME-NCR-237
  • crosstalk in supply
  • group 2
  • (few x 100mV/s up
  • to several V/s)
  • Crosstalk is also
  • present in supply
  • group 1, however
  • much less
  • (few x 10mV/s)

Dummy resistor !
Measured Model
