IP Addressing and Introduction to IP routing

1

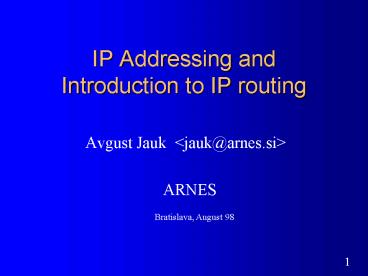

IP Addressing and Introduction to IP routing

• Avgust Jauk ltjauk_at_arnes.sigt
• ARNES

Bratislava, August 98
2
Agenda

• Internet topology
• Introduction to addressing
• Idea of routing
• Special address conventions
• Classfull addressing
• Classless addressing
• Routing protocols IGPs and EGPs

3
Internet topology

• Internet - Network of Networks
• Networks
• Based on different technology
• Large or small
• Fast or slow
• Variety of connected nodes
• Routers (Gateways)
• Protocols

4
Internet topology
5
Routers

• Packet handling
• Packet forwarding
• Routing information processing
• Management
• Miscellaneous functions

6
Internet protocol stack
7
Internet protocol dependencies

Users
Hardware
8
Internet protocol dependencies

9
Layering in the Internet
Host A
Host B
Identical message
Application
Application
Identical packet
Transport
Transport
Gateway G
Internet
Internet
Internet
Identical datagram
Identical datagram
Network interface
Identical frame
Identical frame
Network interface
Network interface
Physical Net 1
Physical Net 2
10
Internet datagram format
11
ICMP datagram format
12
ICMP Message types
Type Field ICMP Message Type
0 Echo
Reply 3
Destination Unreachable 4
Source Quench 5
Redirect (change a route)
8 Echo Request
11 Time Exceeded
for Datagram 12
Parametere Problem on a Datagram 13
Timestamp Request
14 Timestamp
Reply 15
Information Request (obsolete) 16
Information Reply
(obsolete) 17
Address Mask Request 18
Address Mask Reply
13
Introduction to addressing

• Do I need an address?
• What types of addresses are there?
• Postal address
• Telephone number
• In Computer Networks
• Physical Addresses (Ethernet, FDDI, ...)
• Textual Addresses - Names
• Network level addresses (IP, X.25,...)

14
Addressing in the Internet

• Address specifies hosts interface
• 32 bit addresses
• Network part Host part
• Dotted decimal notation 192.164.2.4

15
Idea of routing

• Routers forward datagrams between connected
  networks
• They need to know via which interface to send a
  datagram
• Routing decisions are based on the information
  stored in the routing table

16
Routing table

• Tells where to send datagram for a particular
  network

Network Next-Hop
Port Metric
194.181.200.0 194.181.208.1 Eth0
1 193.2.1.0 194.181.208.320
Eth1 14 153.5.0.0
194.181.214.25 Fddi0 8 0.0.0.0
194.181.210.1 S0
5

• Next-Hop routers must be directly reachable

17
Routing table (cont.)

• Default Route - a special entry in the routing
  table
• Pass all datagrams for unknown networks to this
  router
• Represented by the entry for network 0.0.0.0
• Routing uses network part of the address!

18
Routing Algorithm

• Extract destination IP address from datagram
• Extract network address from the IP address
• If destination network equals my network
• Send directly to destination using physical
  network
• Else If destination address matches a
  host-specific route in the routing table
• Send to the router specified in the routing table

19
Routing Algorithm (cont.)

• Else if destionation network matches a network in
  the routing table
• Send to the router specified in the routing entry
• Else If there is a default route in the routing
  table
• Send to the router specified in the default route
  entry
• Else
• Send a No route to host message to the source

20
Populating the Routing Table

• Manually by network administrator Static Routes
• No dynamic changes to these routes will accur
• Dynamically by routing protocol
• Routing info is exchanged between routers
• The routing metric is used to find the best
  path

21
Static Routes
A
B
Manually configured by network administrator
22
Static Routes
A
B
Router cannot automatically reroute if path fails
23
Routing protocols

• Routers use a common protocol to exchange routing
  information
• Best path between networks or subnets is
  determined by Routing Metric
• Automatic adaption to topology changes

24
Routing protocols
64 kbps
64 kbps
2 Mbps
2 Mbps
25
Special address conventions

• Broadcast Addresses
• Directed broadcast host part all 1s -
  194.181.200.255
• Limited broadcast all 1s - 255.255.255.255
• 0 means This
• host part 0 - this host
• network part 0 - this network
• miss used as a broadcast address

26
Special address conventions (cont.)

• Loopback Address 127.0.0.1
• for testing and inter-process communication on
  the local machine
• should never appear on any network

27
Summary of special address conventions
This host
Host on this net
Limited broadcast (local net)
Directed broadcast for net
Loopback
28
Classess and address formats
0 1 2 3 4
8
16
24
31
netid
hostid
Class A
0
netid
hostid
Class B
0
1
netid
hostid
Class C
0
1
1
multicast address
Class D
0
1
1
1
reserved for future use
Class E
0
1
1
1
1
29
Classes How to recognize them

• Class A first byte in range 1-126
• Class B first byte in range 128-191
• Class C first byte in range 192-223
• Class D first byte in range 224-239
• Class E first byte in range 240-255

30
Classes Size and Number

• Class A 16.777.214 hosts, 128 networks
• Class B 65.534 hosts, 16.324 networks
• Class C 254 hosts, 2.097.152 networks

31
Problems with Classes

• Class A usually to big
• Class C often to small
• Not enough Class Bs
• Inefficient utilisation of address space
• Solution extending the network part of the
  address Subnetting

32
Subnetting
Class B Address Before Subnetting
Class B
0
1
Class B Address After Subnetting
Class B
0
1
33
Subnet mask

• Subnet mask defines the network part
• binary 1 in network bits
• binary 0 in hosts bits
• Subnet mask must be contiguous!

34
Subnetting (cont.)

• Not limited to byte border
• Subnets 0 and -1 used to be reserved
• Subnet 0 this subnet
• Subnet -1 broadcast
• Network administrator decides on the subnet size
• Network and subnet numbers used for routing
  decisions

35
Subnetting and routing

• one subnet mask per particular class
• routing considerations
• all subnets of the same class must be contiguous
• or static routes must be used
• or routing protocol must carry also subnet masks

36
Subnetting and routing

• all subnets of the same class must be contiguous!

C1
C1
C12
C11
B
C13
C14
37
Subnet mask bits
128 64 32 16 8 4 2 1
38
Binary Numbers
128 64 32 16 8 4 2 1
6
2
Represent 226 decimal in binary
1 1 1 0 0 0 1 0

2
6
128 64 32
2
226

39
Subnetting a Class C
split
subnet mask
subnets
hosts/subnet
total hosts
utilis.
40
Variable Length Subnet Masks (VLSM)

• Subnets are of different size
• A means for conserving address space
• How to do it
• how big is the biggest subnet?
• split the class into such pieces
• split (sub-subnet ) those peieces further

41
VLSM (cont.)

• How to do VLSM

0

255
42
VLSM and routing

• Prerequisites
• routing protocol must carry subnet masks
• or static routes must be used

43
Classfull Addressing drawbacks

• Classfull Addressing Subnetting
• at least one route per class is advertised in
  routing updates
• Number of networks is doubling faster than once
  per year
• Memory is not growing that fast
• Only a few routers can keep the current number of
  routes
• Route flapping

44
Classless addressing

• Introduced by CIDR - Classless InterDomain
  Routing
• Networks are grouped (aggregated) into blocks
• Blocks of networks are advertised
• New way of thinking
• there are no networks numbers, but just address
  space prefixes
• there are no subnet masks, just prefix lenghts

45
Classless addresses notation

• 10.181.215.32 /27
• 10.181.215.32 with mask 255.255.255.224
• binary representation of mask
  11111111.11111111.11111111.11100000

46
Classless address notation
Hosts . . . 8 16 32 64 128 256 . .
. 4096 8192 16384 32768 65535 . . .
Prefix . . . /29 /28 /27 /26 /25 /24 . .
. /20 /19 /18 /17 /16 . . .
Classful . . . 1 C . . . 16 Cs 32 Cs 64
Cs 128 Cs 1 B . . .
Subnet Mask . . . 255.255.255.248 255.255.255.240
255.255.255.224 255.255.255.192 255.255.255.128 2
55.255.255.0 . . . 255.255.240.0 255.255.224.0 255
.255.192.0 255.255.128.0 255.255.0.0 . . .
47
Classless network aggregation - Supernetting

168
0
192
64
Class C 24-bit prefix
11000000
10101000
01000000
00000000
00000000
Common prefix 23 bits
11111111
11111111
1111111
0 00000000
168
/23
192
64
Classless 23-bit prefix
11000000
10101000
0100000
0 00000000
Prefix
Host part
48
Classless network aggregation (cont.)

• Before aggregation
• 201.222.191.0/24
• 201.222.192.0/24
• 201.222.193.0/24
• After aggregation
• 201.222.191.0/24
• 201.222.192.0/23

49
Classless addressing and routing

• Longest match routing
• Route distr. between two protocols, one is not
  supporting classless
• use a default route
• explode supernet info. into individual network
  numbers

50
Classes of routing protocols

• The early Arpanet was completelly flat - single
  network model
• one routing protocol, all routers had all the
  routing info
• with the growth it become hard to maintaine and
  computationally intensive
• Solution split the Internet into a set of
  Autonomous Systems (AS)
• Each Autonomous System is a set of routers and
  networks under the same administration

51
Classes of routing protocols (cont.)

• Special routers, called Exterior gateways used
  to connect ASes
• Two classes of routing protocols
• Interior routing protocols (IGP - Interior
  Gateway protocols)
• Exterior routing protocols (EGP - Exterior
  Gateway protocols)

52
Interior Routing Protocols (IGPs)

• Used inside an Autonomous System
• Designed to handle more redundant links
• Links are cheaper in a local environment gt one
  can afford more redundant links
• Designed with a higher bandwidth in mind
• Cheaper bandwidth gt one can use more bandwidth
  for the exchange of routing information

53
Interior Routing Protocols (cont.)

• They generally contaion less ingformation than
  EGPs
• IGPs in general (with exeptions) do not have to
  know about any other network outside the AS
• No policy support
• Inside AS, one generally does not want to aplly
  policy
• everyone can use every available link
• policies are generally only set on what links
  should be preffered

54
Interior Routing Protocols (cont.)

• Fairly extensive metric support
• Redudancy gt one has to distinguish between
  redundant links
• metrics or costs help in the decision proccess
• Designed for fast convergence
• Because of the redudancy, IGPs are designed to
  make quick changes if the network topology changes

55
Exterior Routing Protocols (EGPs)

• Used to exchange routing information between ASes
• Designed with lower bandwidth in mind
• long distance links are more expensive gt routing
  protocol should use less bandwidth for the
  exchange of routing information
• They generally contain a lot of information
• EGPs have to know about all external networks
• In the Internet that might be 40.000 networks

56
Exterior Routing Protocols (cont.)

• They assume a less reliable network
• most of them are connection oriented for reliable
  delivery
• They are designed to provide policy control
• generally you set routing policy at the border
  of your routing domain
• They do not run in every single router
• Only at the border of your AS you have to run an
  EGP
• Internal routers can be less powerfull

57
Summary

• We have covered
• Internet topology
• Routing
• static, dynamic
• classes of routing protocols
• Addressing
• classfull
• subnetting
• VLSM
• classless

58
Where to get more information

• RFCs (RFC-1880 Internet Official Protocol
  Standards)
• Books
• D.C.Lynch, M.T.Rose Internet System Handbook
• D.E.Comer Internetworking with TCP/IP
• Mailing lists
• Usenet News

59
Network troubleshooting

• Ping ICMP echo-request
• Traceroute
• UDP to an non-existing port
• start with TTL1
• increase by 1
• can get back
• ICMP time exceeded
• ICMP port unreachable
• TCPdump, trace utilities in routers, ...

60
Track 1 Initial configuration

• Domain name ceews.ceu.hu
• PC names tr1pcxy
• x row number (1 to 7)
• y a number of a PC inside a row (1 to 3)
• IP address 193.225.220.(x8y)
• Network mask 255.255.255.0
• Default Gateway 193.225.220.1
• DNS 193.225.218.100

61
Domain Name System

• Domain Names vislava.ceenet.waw.pl
• IP addresses 194.181.200.2
• Need for automatic conversion
• Conversion table (/etc/hosts)
• Distributed Hierarhical Database
• Client-Server model
• Server Name Server
• Client Name Resolver
