UI Components

1
UI Components

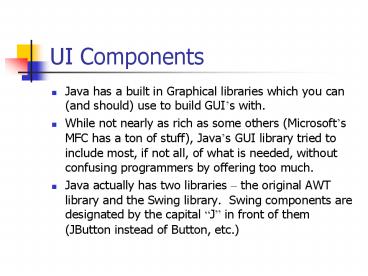

• Java has a built in Graphical libraries which you
  can (and should) use to build GUIs with.
• While not nearly as rich as some others
  (Microsofts MFC has a ton of stuff), Javas GUI
  library tried to include most, if not all, of
  what is needed, without confusing programmers by
  offering too much.
• Java actually has two libraries the original
  AWT library and the Swing library. Swing
  components are designated by the capital J in
  front of them (JButton instead of Button, etc.)

2
UI Components

• Use the Swing components using the AWT
  components isnt necessary. Many Swing
  components are subclasses of the AWT equivalents.

3
Model-View-Controller

• Before I go on and show you everything Java can
  do, Ill go and explain how Java Library
  programmers built a lot of these components.
• The nice part about pre-made libraries is that
  you dont have to worry about how something
  works, (you dont care how a JTextField stores
  its data, as long as you can access it), but it
  is useful to understand how things were done,
  especially when something goes wrong.

4
Model-View-Controller

• A Design Pattern is a re-usable pattern which can
  model different behavior in a system.
• Just like architects dont draw up (rarely,
  anyways) new blueprints for every house they
  build, neither do Software Engineers.
• We can use a pre-designed way of solving a common
  problem, and these are called Design Patterns.
  These are very big in professional Software
  Engineering. (youre going to see these again in
  CISC475).

5
Model-View-Controller

• Most Swing components are build using the
  Model-Controller-Viewer design Pattern.
• This Design Pattern follows the general principal
  of Dont make one object responsible for too
  much. - Dont make one class implement
  everything and the kitchen sink.

6
Model-View-Controller

• The Model-View-Controller Pattern splits the
  implementation up into 3 different classes to
  accomplish its goal
• The model, which stores the contents
• The view, which displays the contents
• The controller, which handles the user input and
  controls what goes on

7
Model-View-Controller

• The model is what stores the information about
  the class. For a button or a checkbox, it would
  store the text that is on the button/next to the
  checkbox, as well as some flags about whether the
  button/box was pressed or checked, etc. For a
  TextField, it would stores the current writing,
  where the cursor is, etc.
• The view is how the information in the model is
  shown to the user. For a button, you could
  potentially have two different views using the
  same model. One view might show the standard
  button, another may make the button appear as a
  circle.

8
Model-View-Controller

• The controller reacts to various events and
  decides what to do with them. If a user presses
  a key in a JTextField, the controller stores the
  character and then has the model update itself.
• Java GUI elements all come with wrapper classes
  that abstract us from these 3 different
  components. When you want to know if a JCheckBox
  is selected, you call the wrapper classes
  isSelected() method, which asks the model and
  returns you the answer.

9
GUI components

• Im going to go over a number of different GUI
  elements that are commonly used and how to use
  them.
• This list is not going to be an exhaustive list
  nor should it be, for three reasons
• Im going to make the naïve assumption that
  youve used a computer a few times in your life
  and can figure out what you need, then look up
  the API on how to use
• There are entire books devoted to Swing and GUI
  development, so we dont have time to cover
  everything
• Youll probably fall asleep.

10
Text Input

• Java provides two Swing components for inputting
  Text input,
• JTextField single row text input
• JTextArea multiple row text input
• Both of these derive from the same base class of
  JTextComponent
• Both share a lot of common methods

11
JTextFields

• Allow a single line of text input
• JTextField tf new JTextField(20) // of
  columns
• JTextField tf2 new JTextField(A
  textfield,20) // initial text, columns
• To set the text in the field, call
  .setText(String)
• To get text in the field, call .getText().trim()
  (the trim removes the whitespace from the field)
• There are also is also a setColumns method, which
  can resize it. Note After doing this, you must
  call .validate() on whatever container it is in
  the recompute the size.
• JPanel somePanelnew JPanel()
• JTextField tfnew JTextField(Some input,20)
• somePanel.add(tf)
• tf.setColumns(50)
• somePanel.validate() //This will make the
  panel notice the change and redraw

12
Password Fields

• Java also provides a class called JPasswordField,
  which echos an echo character, usually a ,
  instead of the actually character being typed.
• Uses a method called getPassword(), which returns
  a char array. This is done for security
  reasons.
• Example of the Model-View-Controller at work!
  Same model as regular text input, different view.

13
Formatted Input

• Again, be happy we now have Java 1.4
• There used to be no good way to do on-the-fly
  input validation (only type numbers, etc.)
• Now there is a class, JFormattedTextField, that
  will do this, and it comes with some predefined
  formatting tools ones for Numbers, Currency,
  Date/Time, IP Addresses, etc.
• Pages 364-370 of your book has an excellent
  example of all of these at work.

14
Formatted Input

• JFormattedTextField intField
• new JFormattedTextField(NumberFormat.getIn
  tegerInstance())
• To supply a default value, it takes an Object
  variable, so use a wrapper class to send it an
  numeric value
• intField.setValue(new Integer(100))
• This class returns the original integer back if
  the user did not change the input, or a long back
  if it did. So you need to cast it to use it.
• Number value(Number)intField.getValue()
• int myInt value.intValue()

15
Formatted Input

• When an formatted text field loses focus, it can
  have different behaviors. The default is called
  commit or revert. If the input is valid, it is
  commited, or else it was changed back to what it
  was before the user entered input.
• You can also attach a Verifier to a field, which
  will give focus back to that field if the input
  was invalid (note these dont work perfectly. )
• You can also make your own Custom Formatters, by
  extending the DefaultFormatted class.

16
JTextArea

• Just like JTextFields, except they are
  multi-row.
• JTextArea theAreanew JTextArea(4,50)
  //rows,columns
• Has methods for line wrapping
• setLineWrap(boolean) wrap lines or not
• setWrapStyleWord(boolean) wrap at word
  boundries or not.

17
JLabels

• Probably the most simple GUI components, they
  just provide an unclickable text label.
• As of Java 1.3, You can use HTML in all
  JComponents. These arent recommended for
  buttons, but they can be used effectively in
  labels. Just start the label with and end
  it with
• JLabel htmlDemo
• new JLabel(HI
  THERE)

18
JCheckBoxs

• Used for when you want to collect a yes or no
  input for a user.
• Often used with ActionListeners to change
  something when something is changed
• JCheckBox italicBoxnew JCheckBox(Italic)
• italicBox.addActionListener(new ActionListener()
• public void actionPerformed(ActionEvent e)
• if (italicBox.isSelected())
• someLabel.setFont(new
  Font(Serif, Font.ITALIC, 14)
• )

19
RadioButtons

• Sometimes we want to present a bunch of choice to
  a user for this, we can use Radio Buttons.
• Just adding RadioButtons to a panel will give a
  behavior other then what you may expect. They
  will behave very similarly to checkboxes. This
  is usally not what we want.

20
RadioButtons

• We usually want the standard behavior, which is
  that a selection is always forced, and when a
  different one is selected, the previous selection
  is automatically deselected.
• Such a grouping is called a radio button group.
• You create a ButtonGroup object, and then add the
  Radio Button to both the ButtonGroup AND to the
  GUI then the ButtonGroup object will take care
  of deselecting a previous button when another
  inside the group is selected.

21
RadioButtons

• ButtonGroup group1 new ButtonGroup()
• JPanel buttonPanel new JPanel()
• JRadioButton noneButton new JRadioButton(Norma
  l, true) //selected
• JRadioButton boldButton new JRadioButton(Bold
  , false)
• group1.add(noneButton)
• group1.add(boldButton)
• buttonPanel.add(noneButton)
• buttonPanel.add(boldButton)
• Then we can add actionListener to the buttons if
  we want, or wait until some other event to happen
  (a user hitting another button maybe) and query
  all the buttons to see which one is selected

22
RadioButtons

• By default, one Radio Button in a group is
  selected by default. If you dont selected one,
  or select more than 1, ButtonGroup will pick for
  you.
• A trick to force the user to select one is to
  make another RadioButton, and only add it to the
  group but NOT to the GUI. Then choose this one
  as the default selection. It will force the user
  to choose.

23
Making a border

• If you have more than one group of radio buttons
  near each other, things can get confusing.
• A common solution is to place all the radio
  buttons in one group on a panel. Then, add a
  border to that panel.
• You can apply a border to any component that
  extends JComponent.
• To do so, use static methods of a class called
  BorderFactory.

24
Making a border

• Creating a border is easy
• Call a static method of the BorderFactory class.
  You can choose among lowered level, raised
  level, etched, line, matte, or empty.
• You can add a title to your border by passing
  your border to BorderFactory.createTitleBorder().
• You can combine several borders using
  BorderFactory.createCompoundBorder().
• Add the resulting border to your component by
  calling the setBorder() method of the JComponent
  class.

25
Making a border

• To create a compound etched and matte border with
  a title and place that border around a panel
• Border etched BorderFactory.createEtchedBorder(
  )
• Border matte BorderFactory.createMatteBorder()

• Border combo BorderFactory.createCompoundBorde
  r(
• etched, matte)
• Border titled BorderFactoy.createTitledBorder(
• combo, The Panels Title)
• panel1.setBorder(titled)

26
Combo Boxes

• When there are a lot of different choices (Fonts,
  for example) using Radio Buttons is clunky, so
  wed like to use a Combo Box. This is the
  drop-down list that most of you are familiar with
  in Word Processors with selected Font names and
  Font sizes.
• These are, by default, editable. You can type in
  the box itself (you can disable this by calling
  setEditable(false)) Note, this only changes the
  selection, it doesnt modify the list.

27
Combo Box

• To make a combo box, construct an object of class
  JComboBox, make it editable or not, and then add
  choices/items to it, using the addItem() method.
• You can add items at specific places in the list
  by using the insertItemAt() method.
• You can remove items using the removeItem()
  method (removes the last item) or the
  removeItemAt() method.

28
Combo Box

• There is also a removeAllItems() method.
• The combo box generates an action event whenever
  the user selects an item.
• The listener can call the combo boxs
  getSelectedItem() retrieve the currently selected
  item. Note you need to cast this object to its
  correct type (normally a String).

29
Menus

• One of the most common things to do with a GUI is
  have a menu bar.
• A Menu is placed on top of a window, and contains
  the names of the different pull down menus.
• Each pull down can have either menu items, or
  submenus.
• When the user clicks on a menu item, all menus
  are closed and a message/event is sent to the
  program.

30
Menus

• Building menus is relatively simple. First,
  construct a menu bar and then add it as the menu
  bar of a frame
• JMenuBar menuBar new JMenuBar()
• frame1.setJMenuBar(menuBar)
• For each menu on the menu bar, create a JMenu
  class object. For all top-level menus, add them
  to the menu bar
• JMenu editMenu new JMenu(Edit)
• menuBar.addMenu(editMenu)

31
Menus

• You can then add the menu items, sub menus, or
  seperators
• // create two menu item objects
• JMenuItem cutItem new JMenuItem(Cut)
• JMenuItem pasteItem new JMenuItem(Paste)
• // add them a separator to the edit menu
• editMenu.add(cutItem)
• editMenu.add(pasteItem)
• editMenu.addSeparator()
• // make an options submenu and add to the edit
  menu
• JMenu optionsMenu new JMenu(Options)
• editMenu.add(optionsMenu)
• Then we can add Action Listeners to each
  JMenuItem to do what we want when that selection
  is chosen.

32
Key Mnemonics

• Menu can have key Mnemonics, where typing
  alt- will active them. For a menu item,
  use
• JMenu helpMenu new JMenu(Help)
• helpMenu.setMnemonic(H)
• For menu items, we just add it to the JMenuItem
  constructor.
• JMenuItem cutItem new JMenuItem(Cut,C)

33
Tool Tips

• Any component can have a ToolTip
• These are those little pop up messages that
  appear if you hold the mouse cursor over a
  component for some predefined amount of time
• Just use the .setToolTipText method
• JButton someButton new JButton(Do
  something)
• someButton.setToolTipText(This will be the
  tooltip)

34
Dialog Boxes

• Sometimes we want to stop the user immediately
  and request input.
• Generally, this is done with a Dialog Box.
• In Java, there are two flavors of Dialog Boxes.
• Modal- Will not let user deselected it forces
  input
• Modeless- this type of dialog box can coexist
  with other windows. An example is a toolbar,
  detached from its frame. The user can freely
  interact with this dialog box and the other boxes
  in the application.

35
Dialog Boxes

• Simple Dialog boxes can be show with the
  JOptionPane class. There are several you can
  choose from
• showMessageDialog() show a message and wait for
  the user to click OK
• showConfirmDialog() show a message a get
  confirmation (OK or Cancel)
• showOptionDialog() show a message and get a
  user option from a set of options
• showInputDialog() show a message and get one
  line of user input.

36
Dialog Boxes

• Dialog Boxes should have parent frames (the frame
  to layer it on top of)
• The contents of a JOptionPane dialog box include
  an icon, a message, and one or more option
  buttons.
• The InputDialog accepts user input. This can be
  from a text field or a combo box.
• The exact layout of the dialogs and the icons
  displayed for the message types is dependent of
  the underlying windowing system (the
  look-and-feel of the application/system).

37
Dialog Boxes

• Depending on what you want to do, you have a
  choice of which Dialog to show
• When calling showMessageDialog() and
  showInputDialog(), you get only a standard set of
  buttons (OK and OK/Cancel), respectively.
• When calling showConfirmDialog(), you choose from
  four types DEFAULT_OPTION, YES_NO_OPTION,
  YES_NO_CANCEL_OPTION, and OK_CANCEL_OPTION.

38
Dialog Boxes

• Dialog Boxes return a value after they are used.
• Once you call one of these show methods, your
  program waits until the user deals with the
  dialog box. Then
• showMessageDialog() returns nothing.
• showConfirmDialog() returns an integer
  representing the chosen option.
• showOptionDialog() returns an integer
  representing the chosen option.
• showInputDialog() returns a string that the user
  supplier or chose.

39
Other Components

• Javas component library doesnt end here. It
  also contains JSliders (sliding value bars),
  JSpinners (Input boxes with arrows to choose
  value), etc.
• The purpose of this lecture was to cover the most
  commonly used ones.
• In practice, if you want to use one of these,
  look up the API page. Most of these expose a
  large amount of methods.
