1

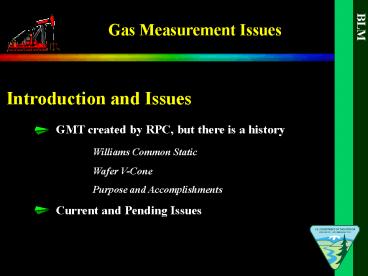

Gas Measurement Issues
BLM
Introduction and Issues
GMT created by RPC, but there is a
history Williams Common Static Wafer
V-Cone Purpose and Accomplishments Current and
Pending Issues
2
Gas Measurement Issues
BLM
Current Team Members
Steve Klimetz, PE, Milwaukee FO John
Shufflebarger, IE Coordinator, Wyoming SO Gary
Roth, PET, Buffalo FO Rich Estabrook, PE,
California SO (Ukiah) Others
3
Gas Measurement Issues
BLM
The beginning1999
4
Common Static/Common Temperature
5
Standard AGA Orifice Measurement
DP
Tf
SP
6
DP1
Q1(DP1, SPc, FTc)
SPc
DP2
Q2(DP2, SPc, FTc)
FTc
DP3
Q3(DP3, SPc, FTc)
Butterfly Valves
7
Gas Measurement Team
BLM
  • Variance request denied
  • State Director Review
  • 3 years later

8
(No Transcript)
9
?
Documentation
10
Gas Measurement Team
BLM
The team
  • PETs
  • PEs
  • Gas measurement expertise
  • Regulatory expertise

11
Gas Measurement Team
BLM
Criteria for approval
  • Overall measurement uncertainty lt 3
  • No significant bias
  • Objective inspection procedures
  • Document uncertainty and lack of bias

12
Gas Measurement Team
BLM
Analysis approach
  • Require 3rd party testing to establish and
    document uncertainty and bias
  • Cooperation and communication a key

13
Gas Measurement Team
BLM
Result
  • Variance was approved
  • COAs included operating limits established by
    lab testing

14
Gas Measurement Team
BLM
Result
  • Establish standard criteria and method for
    reviewing variances
  • Use this standard Bureau-wide for consistency

15
Gas Measurement Team
BLM
GMT Analysis of the Wafer V-Cone
  • Variance requests for Wafer V-Cones in several
    Field Offices
  • Use criteria developed for Williams Common
    Static to review Wafer V-Cones
  • API standard for testing (5.7) had major
    loopholes
  • GMT helped get API 5.7 changed (22.2) to close
    loopholes

16
Gas Measurement Team
BLM
GMT Analysis of the Wafer V-Cone
  • Additional testing required
  • IM 2007-022 developed to offer guidance on
    approval

17
(No Transcript)
18
GMT Purpose Accomplishments
  • Why was the GMT Created?
  • Recently
  • Recommendation of the Royalty Policy Committee
  • Recommendation adopted by the WO
  • To assess new gas measurement technology

19
GMT Purpose Accomplishments
  • Historically To address issues like
  • Offices were struggling with new measurement
    methods
  • Approval of EFCs Wafer V-cones varied by Office
  • Case by case approvals created large workloads.
  • Approvals did not consider impacts to IE.
  • Need for guidance on new issues like Btu or F.C.

20
GMT Purpose Accomplishments
  • What is the Purpose of the GMT?
  • Official Purpose (RPC) Assess new technology
  • Flow Conditioners
  • Btu Standards
  • Alternate Primary Elements (4 hole orifice, etc.)

21
GMT Purpose Accomplishments
  • What is the Purpose of the GMT?
  • Other Purposes
  • To be a resource to FO, SO, WO
  • Help interpret and use meas. data, specs,
    protocols, etc
  • To help develop/clarify policy and regulatory
    issues
  • Consult/assist w/ insp., audit, enfor., actions

22
GMT Purpose Accomplishments
  • What is the Purpose of the GMT?
  • Other Purposes
  • Act as BLM liaison with industry organizations
    manufacturers.
  • Help establish BLM gas measurement standards
  • Assist w/ civil and criminal cases upon request

23
GMT Purpose Accomplishments
  • What has the GMT Accomplished?
  • Developed WO IM 2006-233 Issuing NTL for EFCs
  • Assisted issuance of State NTLs for EFCs
  • Developed WO IM 2007-022 Wafer cone approval
  • Participating on various API Committees

24
GMT Purpose Accomplishments
  • What has the GMT Accomplished?
  • Developed criteria for analyzing new measurement
    device
  • Conducted training sessions throughout BLM
    Offices
  • Developed Uncertainty Calculator
  • Laid ground work for revision to OO5

25
Gas Measurement Team
BLM
Current/pending issues
  • BTU sampling, analysis, reporting
  • Allocation/Commingling/Beneficial Use
  • Need for Low flow policy
  • Volume statement verification
  • New measurement devices

26
Gas Measurement Team
BLM
Current/pending issues, cont
  • Flow Conditioners
  • EFC NTL status
  • API update

27
Gas Measurement Team
BLM
BTU/Gas Gravity
28
20
15
Royatly Error,
10
5
Gravity
0
0
5
10
15
20
Gas Sampling/Analysis Error,
29
Gas Measurement Team
BLM
BTU/Gas Gravity Sampling
  • 1 sample per year for BTU required by OO5
  • No sampling standards
  • No analysis standards
  • No requirement of where sample is taken
  • Potential for bias is significant

30
Gas Measurement Team
BLM
BTU reporting
  • 3 methods of reporting
  • Dry
  • Wet (saturated)
  • Real

31
BTU Dry basis
Sales Volume 100 Mcf x 1000 MBTU/Mcf 100
MMBTU
100 Mcf natural gas 1000 MBTU/Mcf
Total Volume 100 Mcf
32
BTU Wet basis
Sales Volume 98.26 Mcf x 1000 MBTU/Mcf
98.261 MMBTU
1.74 Mcf water vapor
98.26 Mcf natural gas 1000 MBTU/Mcf
Total Volume 100 Mcf
at 14.73 psi 60ºF
33
BTU Real basis
Sales Volume 99.5 Mcf x 1000 MBTU/Mcf 99.5
MMBTU
0.5 Mcf water vapor based on analysis
99.5 Mcf natural gas 1000 MBTU/Mcf
Total Volume 100 Mcf
34
Gas Measurement Team
BLM
BTU reporting
  • 3 methods of reporting
  • Wet (saturated)
  • Dry
  • Real
  • BLM policy is wet, which results in up to a
    -1.74 in royalty

35
Gas Measurement Team
BLM
Allocation Commingling
36
  • Lease measurement
  • POM for each lease/CA/PA
  • POM OGOR royalty point
  • BLM stops at POM

WYW XXX
STATE
CA FEE
CA FED
STATE
FEE
Fuel
WYW XXX
MASTER METERS
GAS HANDLING COMPRESSION
GAS HANDLING COMPRESSION
Fuel
37
  • Allocation measurement
  • BLM must inspect every meter
  • Ensure beneficial use is proper and allocated
    correctly
  • Account for complex allocation schemes
  • Back-allocation of liquids
  • Jurisdictional issues

WYW XXX
STATE
CA FEE
CA FED
STATE
FEE
Fuel
WYW XXX
MASTER METERS
GAS HANDLING COMPRESSION
GAS HANDLING COMPRESSION
Fuel
38
Gas Measurement Team
BLM
Approval of Allocation Commingling
  • Must ensure its in the publics interest and not
    just for operators convenience
  • Production Accounting/verifiability
  • Must identify all POMs involved!
  • Ensure BLM authority and access
  • Ensure Beneficial Use is allocated
    appropriately

39
Gas Measurement Team
BLM
Low Flow Policy
  • Many wells flowing at very low rates
  • CBM
  • Casing head gas
  • Depleted producers

40
Gas Measurement Team
BLM
Low Flow Policy, cont
What measurement standards should apply? What
should the threshold be? Leniency since risk of
significant mis-measurement is low Include in OO5
41
Gas Measurement Team
BLM
Volume Statement Verification
  • Goal Recalculate volumes for accuracy
  • Rely on verifiable data and calculations
  • Raw data DP, SP, Tf, flow time, IV
  • Independent calculation of IMV
  • V IMV x IV
  • Red flag threshold gt 0.3

42
Gas Measurement Team
BLM
Volume Statement Verification
  • Must require IV in audit request
  • Must issue written order if operator unable to
    provide IV
  • Beware of 3rd party data services

43
Issues New Meters
BLM
  • Wafer V-Cone
  • Rosemount 4-hole orifice
  • Precision V-Cone
  • Verabar (Accelabar)
  • E-tube
  • Ultrasonic

44
(No Transcript)
45
Approved with conditions
46
Rosemount 1595 Conditioning Orifice Plate The
Rosemount 1595 Conditioning Orifice Plate
simplifies installation by eliminating the need
for long straight-run required for accurate flow
measurement.
Withdrawn by manufacturer
47
Precision V-Cone
Testing nearly complete
48
Inquiries from manufacturer
49
e-tube
Inquiries by manufacturer
50
Ultrasonic
Case by case approval
51
BLM
Issues Flow Conditioners
  • Flow Conditioner Types
  • Tube bundles/straightening vanes
  • Isolating flow conditioners (flow
    conditioners)

52
  • Requirements for Upstream Piping
  • Onshore Order 5 Requires compliance with AGA 3
    (1985)

53
BLM
Issues Flow Conditioners
Isolating Flow Conditioners
54
CPA 50E (flange) CPA TBR (tube bundle
replacement) (set screw) (CPA Canada Pipeline
Accessories)
55
Daniel Profiler
56
Savant pFC
57
Set screw
Straightening Vanes Tube bundle
Orifice
58
Set screw
Orifice
Flow Conditioner
59
Orifice
Flow Conditioner
60
BLM
Issues Flow Conditioners
  • General Information
  • Flow conditioners are not approved by AGA 3
    (1985) ?
  • Require variance from Onshore Order 5
  • They behave differently than straightening vanes
    ?
  • AGA 3 installation diagrams do not apply
  • Also not approved by AGA 3 (2000) (testing
    protocol only)
  • BLM reviewing test data and will develop IM
    similar to wafer V-Cone IM (6 months)
  • Interim guidance (1 month)

61
BLM
Issues Flow Conditioners
  • Enforcement Action
  • If there is no variance on file
  • Write INC using Onshore Order 5, III.C.3 as a
    reference
  • Corrective action submit variance request

62
BLM
Issues Flow Conditioners
  • Approval
  • Interim recommendation
  • give provisional approval using manufacturer
    specs as a condition
  • warn operators that this may change pending
    final review and guidance
  • operator must identify make and model of flow
    conditioner on-site

63
Issues NTL Status
BLM
64
Issues API Update
BLM
  • API 21.1 Electronic Gas Measurement
  • Status Under revision
  • Better define Integral Value
  • New calibration requirements
  • Better defined reporting requirements
  • API 14.3.1 Concentric Square-edged Orifice
    Meters
  • Status Revision balloted and approved new Y
    factor

65
Issues API Update
BLM
  • API 22.2 Testing Protocol for Differential
    Meters
  • Status Under revision
  • Better define testing requirements
  • API 22.4 Testing Protocol for Transmitters
  • Status Under development
  • API 22.5 Testing Protocol for Flow Computers
  • Status Under development

66
Issues API Update
BLM
  • API 20.1 20.6 Allocation Measurement
  • Status Under revision
