Short Messaging Systems

1

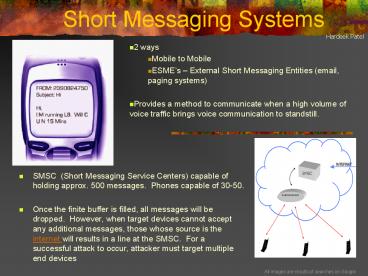

Short Messaging Systems
Hardeek Patel

• 2 ways
• Mobile to Mobile
• ESMEs External Short Messaging Entities
  (email, paging systems)
• Provides a method to communicate when a high
  volume of voice traffic brings voice
  communication to standstill.

• SMSC (Short Messaging Service Centers) capable
  of holding approx. 500 messages. Phones capable
  of 30-50.
• Once the finite buffer is filled, all messages
  will be dropped. However, when target devices
  cannot accept any additional messages, those
  whose source is the internet will results in a
  line at the SMSC. For a successful attack to
  occur, attacker must target multiple end devices

All images are results of searches on Google
Images.
2
Attacks via the Internet
Example Verizon Wireless Website
3
NPA/NXX Database
Attackers can search online for NPA / NXX. NPA
Numbering Plan Area (Area Code) NXX Numbering
Plan Exchange (First 3 Digits) Can also search
for other information such as email with mobile
phone. Does not generate 100 accurate results
4
Hit-List
Sending messages to random numbers and wait for a
response. Can design worms to collect stored
information from device address books, as well as
collect information from Bluetooth devices.
5
Outcomes of Attack

• Similar to Internet driven attacks
• Flooding the user.
• Outcomes
• Buffer overflow and message is lost
• Message delayed longer than the value of the
  contents of the message
• User ignores or discards the important message
  due to a large amount meaningless messages.
• Can yield a battery depletion attack large
  amounts of data which consumes a significant
  amount of battery power.

6
Threats / Solutions

• Due to the popularity and increased functionality
  that competes with email. Threats such as SPAM,
  Viruses and Phishing can be expected.
• Current solutions are ineffective. Suggestions
• Separation of voice and data can help reduce
  attackers ability to take down voice
  communications.
• Like 9/11 where voice is overloaded, SMS
  originating from the Internet can be used to fill
  data channels and limit legit messages.
• Deploy addl base stations and resources to
  critical areas reducing Internet based SMS
  attacks.
• Cost of purchasing and placing equipment too
  high.
• For all Internet messages, only acknowledge
  submission is being processed whether it is
  successful or not.
• Limits the creation of accurate generated hit
  lists.
