MRI Physics 1: Image Acquisition

1

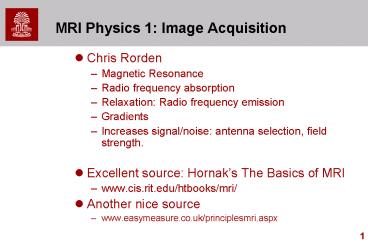

MRI Physics 1 Image Acquisition

• Chris Rorden
• Magnetic Resonance
• Radio frequency absorption
• Relaxation Radio frequency emission
• Gradients
• Increases signal/noise antenna selection, field
  strength.
• Excellent source Hornaks The Basics of MRI
• www.cis.rit.edu/htbooks/mri/
• Another nice source
• www.easymeasure.co.uk/principlesmri.aspx

2
Units of magnetic strength

• Tesla and Gauss are measures of magnetic field
  strength
• Earths magnetic field 0.5 Gauss.
• 1Tesla 10,000 Gauss.
• Our fMRI system is 3T.
• x60,000 earths field strength

3
Anatomy of an atom

• Atoms are the building blocks of our world.
• Composed of 3 components
• Electrons tiny negatively charged particles.
• Protons heavy positively charged particles.
• Neutrons heavy particles without charge.
• Electrons are often thought of like planets tiny
  objects distantly orbiting a massive core.
• Neutrons and protons form the dense nucleus of an
  atom.

4
Atomic Nuclei

• Atomic nuclei are composed of protons and
  neutrons.
• The number of protons determines the element,
  e.g. hydrogen has one proton, helium has two.
• The number of neutrons determines the isotope.
• Most helium has two neutrons 4He.
• Some helium atoms only have one neutron 3He.
• Most hydrogen has no neutrons 1H.
• Deuterium (2H) is found in heavy water, Tritium
  (3H) is radioactive (spontaneous decay) and is
  used to enhance nuclear bombs.

4He
3He
1H
2H
5
Nuclear Magnetic Resonance

• Felix Block and Edward Purcell
• 1946 the nuclei of some elements absorb and
  re-emit radio frequency energy when in magnetic
  field
• 1952 Nobel prize in physics
• Atoms with odd number of protons/neutrons spin in
  a magnetic field
• Nuclear properties of nuclei of atoms
• Magnetic magnetic field required
• Resonance interaction between magnetic field and
  radio frequency

Bloch
Purcell
6
How fast do hydrogen atoms spin?
180
The rate of rotation is determined by the
strength of the magnetic field. Larmor
equation f ?B0 For Hydrogen, ? 42.58
MHz/T At 1.5T, f 63.76 MHz At 3T, f 127.7
MHz
Resonance Frequency (MHz)
40
1.0
4.0
Field Strength (Tesla)
7
Radiofrequency Pulses

• A radiofrequency (RF) pulse at the Larmor
  frequency will be absorbed.
• This higher energy state tips the spin, so it is
  no longer aligned to the field.
• An RF pulse at any other frequency will not
  influence the nuclei.
• This is resonance.

8
Source of MR signal

• At rest, atoms align parallel to magnetic field.
• Lowest energy state.
• After RF transmission, magnetization is
  orthogonal to magnetic field
• Generates RF emission at larmor frequency
• RF emission decays with time

9
Absorption and Relaxation

• Our RF transmission is absorbed by atoms at
  Larmor frequency.
• After the RF pulse, atoms will begin to realign
  with the magnetic field relaxation
• During this period, an RF signal is emitted.
• This signal will be at the Larmor frequency.
• An antenna can measure this signal.

10
MRI compass analogy
N

• Compass needle points North
• Briefly tap magnet needle no longer points North
• Wait, needle returns to North (lower energy
  state)

N
N
11
Hydrogen is the mainstay for MRI

• We will focus on Hydrogen
• Hydrogen abundant in body (63 of atoms).
• Elements with even numbers of neutrons and
  protons have no spin, so we can not image them
  (4He, 12C).
• 23Na and 31P are relatively abundant, so can be
  imaged.
• Larmor frequency varies for elements
• 13C 10.7 Mhz/T
• 19F 40.1 Mhz/T
• 31P 17.7 Mhz/T
• Therefore, by sending in a RF pulse at a specific
  frequency we can selectively energize hydrogen.

12
Electromagnetic Spectrum

• MRI signal s are in the same range as FM radio
  and TV (30-300MHz).
• MRI frequency is non-ionizing radiation, unlike
  X-rays.
• Absorbed RF signal will cause heating.
• Specific absorption rate (SAR) measure of the
  energy absorbed by tissue.
• Increases with square of field strength.
• Higher SAR more energy more signal more
  heating
• FDA limits SAR, and is a limiting factor for some
  protocols (3 W/kg averaged over 10 minutes).

Ionizing Radiation Breaks Bonds
Non-Ionizing Radiation Heating
Excites Electrons
Excites Nuclei
13
Making a spatial image

• To create spatial images, we need a way to cause
  different locations in the scanner to generate
  different signals.
• To do this, we apply gradients.
• Gradients make the magnetic field slightly
  stronger at one location compared to another.
• Lauterbur first MRI 2003 Nobel Prize.

Lauterbur
14
Slice Selection Gradient
128 Mhz 127 Mhz 126 Mhz

• Gradients make field stronger at one location
  compared to another.
• Larmor frequency different along this dimension.
• RF pulse only energizes slice where field
  strength matches Larmor frequency.

Field Strength
Z Position
15
Slice Selection Gradient

• Gradual slice selection gradients will select
  thick slices, while steep gradients select
  thinner slices.
• The strength of your scanners gradients can
  limit minimum slice thickness.
• FDA limits speed of gradient shift (dB/dt) and
  some of our protocols can elicit slight tingling
  sensation or a brief muscle twitches.
• Position of gradient determines which 2D slice is
  selected.

Field Strength
Field Strength
Field Strength
Field Strength
Z Position
Z Position
Z Position
Z Position
16
Phase encoding gradient

• Between RF pulse and readout, we apply an
  orthogonal gradient.
• This adjusts the phase along this dimension.
• Analogy Phase encoding is like making timezones.
  Clocks in different zones will have different
  phases.

Y Position
Field Strength
17
Frequency encoding gradient

• Apply final orthogonal gradient when we wish to
  acquire image.
• Slice will emit signal at Lamour frequency, e.g.
  lines at higher fields will have higher frequency
  signals.
• Aka Readout gradient.

X Position
Field Strength
18
Raw MRI image K-Space
Raw image is 2D Frequency Map. Apply Fourier
Transform to reconstruct image.
Source Travelers Guide to K-space (C.A.
Mistretta)
19
Reconstruction

• Medical scanners automatically reconstruct your
  data.
• You can manually reconstruct data using
  Tokarczuks free Intel Reconstruction Tool
  www.mricro.com/import.html
• Fourier Transforms are slow 1021-sample data
  requires gt2 million multiplications (2N2)
• Fast Fourier Transform 1024-sample data requires
  20,000 multiplications. (2(N log N))
• Optimal when data is power of two (64,128,256,
  512), reverts to traditional Fourier for prime
  numbers
• This is why most image matrices are a power of 2.

20
MRI scanner anatomy

• A helium-cooled superconducting magnet generates
  the static field.
• Always on only quench field in emergency.
• niobium titanium wire.
• Coils allow us to
• Make static field homogenous (shims solenoid
  coils)
• Briefly adjust magnetic field (gradients
  solenoid coils)
• Transmit, record RF signal (RF coils antennas)

21
MRI scanner anatomy
Antennas
Magnet
Gradient
RF Transmit
RF Receive
22
EPI

• In conventional MRI, we collect one line of our
  matrix with each RF pulse.
• So a 64x64 matrix with a TR of 2sec will be
  generated in 128 seconds.
• Problem this is unacceptable if the object
  changes rapidly
• Images of the heart shape changes quickly,
  conventional image would be blurred.
• Imaging brain activity could not see changes
  that occur within a few seconds.
• Echo Planar Imaging By rapidly applying the
  frequency gradient, we can collect a 2D slab with
  a single RF pulse.

23
Echo Planar Imaging

• EPI was devised in 1977 by Sir Mansfield.
• 2003 Nobel Prize.
• EPI remains the principle technique for fMRI
  acquisition.
• Alternative is spiral imaging.
• EPI does have a cost
• Image warping due to slow encoding.

Mansfield
Multi-shot
EPI
www.fmrib.ox.ac.uk/karla/
24
MRI terminology

• Orientation typically coronal, sagittal or
  axial, can be in-between these (oblique)
• Matrix Size
• Voxels in each dimension
• Field of view
• Spatial extent of each dimension.
• Resolution
• FOV/Matrix size.

Axial Orientation 64x64 Matrix 192x192mm
FOV 3x3mm Resolution
Sagittal Orientation 256x256 Matrix 256x256mm
FOV 1x1mm Resolution
25
Volumes

• 3D volumes are composed of stacks of 2D slices,
  like a loaf of bread.
• Each slice has a thickness.
• Thicker slices have more hydrogen, so more signal
• Volume of 1x1x1mm voxel is 1mm3
• Volume of 1x1x2mm voxel is 2mm3
• Thinner slices provide higher resolution.
• Optional gap between slices.
• Reduces RF interference
• Allows fewer slices to cover whole brain.

1mm Gap 2mm Thick
3mm
26
Creating 3D volumes from 2D EPI

• Slices can be either collected sequentially (e.g.
  ascending axial slices) or in interleaved order
  (e.g. collect all odd slices, then all even
  slices).

Sequential
Interleaved


TR
TR
27
Sequential vs Interleaved Volumes

• Interleaving reduces interference between slices.
  Useful if thin gap between slices.
• Unfortunately, any head movements will cause
  worse spin history effects for interleaved
  slices than sequential. (TR will be shorter for
  regions that were previously in another slice).
• You must know slice order if you want to slice
  time correct data (temporal processing lecture).

Slice 4
Slice 4
Slice 3
Slice 3
Slice 2
Slice 2
Slice 1
Slice 1
28
Signal to Noise

• Signal To noise is given by the formula
• V?N
• Where V is the volume and N is the number of
  samples averaged (referred to as Nex, as in
  number of excitations).
• For example, to get the same SNR as a single
  3x3x3mm scan (27mm3) we would need to collect 12
  2x2x2mm (8mm3) scans or 768 1x1x1mm (1mm3) scans.

29
Signal to Noise Antennas
www.fmrib.ox.ac.uk/karla/

• The MRI antenna is called a coil.
• We use different coils for different body parts.
• For brains, the most common antenna is the head
  coil, which is a volume coil it shows the whole
  brain.
• We can also use a surface coil it gives great
  signal for a small field of view.

Volume coil
Surface coil
Head coil
Surface coil
30
Parallel Imaging (SENSE, iPat)

• Parallel imaging uses multiple surface coils to
  generate a volume image.
• Dramatically reduces spatial distortion and
  increases signal.
• Optionally, you can acquire images more rapidly
  by only collecting a portion of k-space.
• SENSE R2 collects half of the lines.
• SENSE R3 collects one third
• Reduces spatial distortion and increases speed of
  acquisition. Some loss in signal.

8-channel array
31
Parallel Imaging (SENSE, iPat)

• Increasing SENSE reduction factor decreases
  acquisition time and spatial distortion, but high
  values lead to reduced signal.

Effects of SENSE factor (R) on EPI
R1
R2
R3
32
Signal and Field Strength

• Outside magnetic field
• Spins randomly oriented

• In magnetic field
• Spins tend to align parallel or anti-parallel to
  magnetic field.
• At room temperature, 4 parts per million more
  protons per Tesla align with versus against
  field.
• As field strength increases, there is a bigger
  energy difference between parallel and
  anti-parallel alignment (faster rotation more
  energy).
• A larger proportion will align parallel to field.
• More energy will be released as nuclei align.
• Therefore, MR signal increases with square of
  field strength.

33
Signal and Field Strength

• Most clinical MRI 1.5T
• Our fMRI systems 3.0T
• Our small bore animal system 7.0T
• Field strength influences
• Faster Larmor frequency
• Bigger energy difference between parallel and
  anti-parallel alignment
• Larger ratio of nuclei aligned more signal
• More signal as nuclei realign.
• Reduced TR and TE less time to take images (next
  week).

34
Signal and Field Strength

• In theory
• Signal increases with square of field strength
• Noise increases linearly with field strength
• A 3T scanner should have twice SNR of 1.5T
  scanner 7T should have 4.7 times SNR of 1.5T.
• Unfortunately, physiological artifacts also
  increase, so advantage is less in practice.
• Benefits speed, resolution
• Costs Artifacts, RF heating, wavelength effects,
  auditory noise,

35
Magnetic attraction

• Force in magnetic field (1.8T, unit dynes)
• Water -22
• Copper -2.6
• Copper Chloride 280
• Iron 400,000
• Diamagnetic material repelled (e.g. H2O).
• Paramagnetic material attracted (e.g. CuCl, Gd).
• Ferromagnetic material strongly attracted (Fe).
• Even without magnetic field, magnetic moments
  aligned
• Dangerous near MRI scanner
