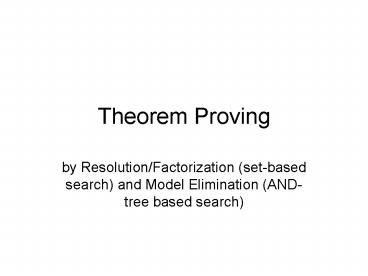

Theorem Proving

1
Theorem Proving

• by Resolution/Factorization (set-based search)
  and Model Elimination (AND-tree based search)

2
Idea

• given a set of clauses, we want to verify whether
  they are consistent (i.e. there are no
  contradictions of facts)
• imagine you are searching whether a fact Q can be
  inferred from the facts in a database
• you would ask Q? of the database
• if we represent a database as a set of clauses,
  then we would add a clause Q into the database
  and look for contradictions

3
Idea 2

• If we find a contradiction
• means that Q contradicts with something
• i.e. the database infers Q
• i.e. Q? is true
• If we get stuck without getting a contradiction
• means that we could not infer Q from the database
• i.e. Q? is false

4
How to?

• We looked at two methods to do theorem proving
• by Resolution/Factorization
• set-based search method
• by Model Elimination
• AND-tree-based search method

5
Inference Rules

• Resolution
• CvP, DvR ? s(CvD) where
• s mgu(P,R)
• Factorization
• CvPvR ? s(CvP) where
• s mgu(P,R)

6
TP by Res/Fact Idea

• We start with a set of clauses
• need to look in those clauses for a contradiction
  (i.e. P and P)
• to do this, we may need to use resolution and
  factorization inference rules in order to process
  clauses to produce new inferred clauses

7
Important things to know

• use proper unification technique for unifying
  terms in clauses
• do not keep the mgus between resolution/factorizat
  ion steps of the algorithm (you can use different
  substitutions for same variables at each step)
• remember that variables in different clauses are
  disjunct (i.e. variable in one clause can be
  renamed to another variable as long as this is
  consistent in the entire clause)
• you should keep all the clauses in the system and
  add to it (i.e. do not delete clauses since you
  might have to use them more than once)
• one contradiction of facts is enough to prove the
  consequence (i.e. concluding the empty clause (?))

8
which clause to choose?

• The way our control was defined, we would get an
  fwert value for each pair of clauses as follows
• if ACvPvR (i.e. can use factorization)
• fwert 0
• if ACvP,DvR (i.e. can use resolution)
• fwert CDPR
• C and P as defined in the notes
• if there are ties for several pairs, we would
  select between them using the ordering on the
  literals as defined in the notes

9
Example 1

• 1. P(x,y) v P(y,x)
• 2. P(f(x),g(y)) v R(y)
• 3. P(g(x),f(x))
• 4. R(x) v Q(x,b)
• 5. Q(a,x)
• Suppose s0 1,2,3,4,5 (set of clauses)

10
Example 1 (cont)

• first thing we choose the clauses to use
• factorization does not apply, so we order the
  pairs of clauses in terms of fwert value
• this gives us the pair (4,5)
• we unify the Q terms with x1\a, x2\b where x1
  are the xs from (4) and x2 are the xs from (5)
• thus, we produce the clause (6) by resolution
• 6. R(a) note that this is R(x1) from (4) with
  the mgu applied
• s1 s0 U R(a)

11
Example 1 (cont)

• next step, we will choose clauses (2,6) and unify
  the P terms them with ya
• we produce (7) by resolution
• 7. P(f(x),g(a))
• s2 s1 U P(f(x),g(a))

12
Example 1 (cont)

• Next we will choose the pair (1,7) since (3,7)
  will not unify
• we unify the P terms with x1\f(x2), y\g(a)
  where x1 are the xs from (1) and x2 are the xs
  from (7) we get (8)
• 8. P(g(a),f(x))
• s3s2 U P(g(a),f(x))

13
Example 1 (cont)

• Now, the next pair we will choose is (3,8) with P
  terms unified with x1\a with x1 the xs from (3)
• now, we have P(g(a),f(a)) and P(g(a),f(a))
  (after application of mgu) thus, a contradiction
• s4 s3 U ?
• and we are done!

14
Example 2

• 1. P(x) v R(y)
• 2. R(f(a,b))
• 3. P(g(a,b))
• Using model elimination

15
Example 2 (cont)

• we start with a node with an empty terms list and
  choose what to add to it
• first we choose to use clause 1 and end up with a
  tree
• (1)
• / P(x)vR(y) \
• P(x) R(y)

16
Example 2 (cont)

• we choose to left on the leftmost leaf first
• next we have to choose something that will
  contradict the last term in our list in at least
  one of the children
• then we can process the deepest child to yes
• (1)
• / P(x)vR(y) \
• (2)P(x) R(y)
• P(g(a,b))
• (3)P(g(a,b)), P(g(a,b))
• Yes x\g(a,b)

17
Example 2 (cont)

• now we choose the only leaf (4) to process
• then its child (5) to yes
• (1)
• / P(x)vR(y) \
• (2)P(x) (4)R(y)
• P(g(a,b)) R(f(a,b))
• (3)P(g(a,b)), (5) R(f(a,b),
  P(g(a,b)) R(f(a,b)
• Yes x\g(a,b) Yes y\f(a,b)
• so, we have processed all the leaves

18
Example 2 (cont)

• Question is, are we done?
• We have to verify that our substitutions for all
  leaves are compatible, which is true for our
  example
• Otherwise, we would need to backtrack
• We could also backtrack if there are no possible
  ways of processing a leaf to yes
• Eventually if backtracking doesnt help or we run
  into infinite loops, the instance fails
