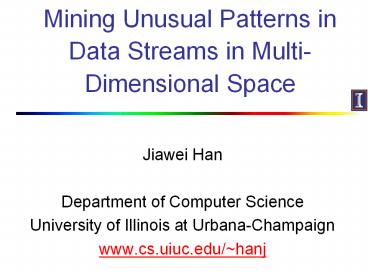

Mining Unusual Patterns in Data Streams in Multi-Dimensional Space

1
Mining Unusual Patterns in Data Streams in
Multi-Dimensional Space

• Jiawei Han
• Department of Computer Science
• University of Illinois at Urbana-Champaign
• www.cs.uiuc.edu/hanj

2
Outline

• Characteristics of data streams
• Mining unusual patterns in data streams
• Multi-dimensional regression analysis of data
  streams
• Stream cubing and stream OLAP methods
• Mining other kinds of patterns in data streams
• Research problems

3
Data Streams

• Data Streams
• Data streamscontinuous, ordered, changing, fast,
  huge amount
• Traditional DBMSdata stored in finite,
  persistent data sets
• Characteristics
• Huge volumes of continuous data, possibly
  infinite
• Fast changing and requires fast, real-time
  response
• Data stream captures nicely our data processing
  needs of today
• Random access is expensivesingle linear scan
  algorithm (can only have one look)
• Store only the summary of the data seen thus far
• Most stream data are at pretty low-level or
  multi-dimensional in nature, needs multi-level
  and multi-dimensional processing

4
Stream Data Applications

• Telecommunication calling records
• Business credit card transaction flows
• Network monitoring and traffic engineering
• Financial market stock exchange
• Engineering industrial processes power supply
  manufacturing
• Sensor, monitoring surveillance video streams
• Security monitoring
• Web logs and Web page click streams
• Massive data sets (even saved but random access
  is too expensive)

5
Challenges of Stream Data Mining

• Multiple, continuous, rapid, time-varying,
  ordered streams
• Main memory computation
• Mining queries are either continuous or ad-hoc
• Mining queries are often complex
• Involving multiple streams, large amount of data,
  and history
• Finding patterns, models, anomaly, differences,
• Mining dynamics (changes, trends and evolutions)
  of data streams
• Multi-level/multi-dimensional processing and data
  mining
• Most stream data are at pretty low-level or
  multi-dimensional in nature

6
Stream Data Mining Tasks

• Multi-dimensional (on-line) analysis of streams
• Clustering data streams
• Classification of data streams
• Mining frequent patterns in data streams
• Mining sequential patterns in data streams
• Mining partial periodicity in data streams
• Mining notable gradients in data streams
• Mining outliers and unusual patterns in data
  streams

7
Multi-Dimensional Stream Analysis Examples

• Analysis of Web click streams
• Raw data at low levels seconds, web page
  addresses, user IP addresses,
• Analysts want changes, trends, unusual patterns,
  at reasonable levels of details
• E.g., Average clicking traffic in North America
  on sports in the last 15 minutes is 40 higher
  than that in the last 24 hours.
• Analysis of power consumption streams
• Raw data power consumption flow for every
  household, every minute
• Patterns one may find average hourly power
  consumption surges up 30 for manufacturing
  companies in Chicago in the last 2 hours today
  than that of the same day a week ago

8
A Key StepStream Data Reduction

• Challenges of OLAPing stream data
• Raw data cannot be stored
• Simple aggregates are not powerful enough
• History shape and patterns at different levels
  are desirable multi-dimensional regression
  analysis
• Proposal
• A scalable multi-dimensional stream data cube
  that can aggregate regression model of stream
  data efficiently without accessing the raw data
• Stream data compression
• Compress the stream data to support memory- and
  time-efficient multi-dimensional regression
  analysis

9
Regression Cube for Time-Series

• Initially, one time-series per base cell
• Too costly to store all these time-series
• Too costly to compute regression at
  multi-dimensional space
• Regression cube
• Base cube only store regression parameters of
  base cells (e.g., 2 points vs. 1000 points)
• All the upper level cuboids can be computed
  precisely for linear regression on both standard
  dimensions and time dimensions
• For quadratic regression, we need 5 points
• In general, we need
• where k 2 for quadratic.

10
Basics of General Linear Regression

• n tuples in one cell (xi , yi), i 1..n, where
  yi is the measure attribute to be analyzed
• For sample i , a vector of k user-defined
  predictors ui
• The linear regression model
• where ? is a k 1 vector of regression
  parameters

11
Theory of General Linear Regression

• Collect into the model matrix U
• The ordinary least square (OLS) estimate of
  is the argument that minimizes the residue sum of
  squares function
• Main theorem to determine the OLS regression
  parameters

12
Linearly Compressed Representation (LCR)

• Stream data compression for multi-dimensional
  regression analysis
• Define, for i, j 0,,k-1
• The linearly compressed representation (LCR) of
  one cell
• Size of LCR of one cell
• quadratic in k, independent of the number of
  tuples n in one cell

13
Matrix Form of LCR

• LCR consists of and , where
• and
• where
• provides OLS regression parameters essential for
  regression analysis
• is an auxiliary matrix that facilitates
  aggregations of LCR in standard and regression
  dimensions in a data cube environment
• LCR only stores
  the upper triangle of

14
Aggregation in Standard Dimensions

• Given LCR of m cells that differ in one standard
  dimension, what is the LCR of the cell aggregated
  in that dimension?
• for m base cells
• for an aggregated cell
• The lossless aggregation formula

15
Stock Price ExampleAggregation in Standard
Dimensions

• Simple linear regression on time series data
• Cells of two companies
• After aggregation

16
Aggregation in Regression Dimensions

• Given LCR of m cells that differ in one
  regression dimension, what is the LCR of the cell
  aggregated in that dimension
•
  for m base cells
• for the
  aggregated cell
• The lossless aggregation formula

17
Stock Price ExampleAggregation in Time Dimension

• Cells of two adjacent
• time intervals
• After aggregation

18
Feasibility of Stream Regression Analysis

• Efficient storage and scalable (independent of
  the number of tuples in data cells)
• Lossless aggregation without accessing the raw
  data
• Fast aggregation computationally efficient
• Regression models of data cells at all levels
• General results covered a large and the most
  popular class of regression
• Including quadratic, polynomial, and nonlinear
  models

19
A Stream Cube Architecture

• A tilted time frame
• Different time granularities
• second, minute, quarter, hour, day, week,
• Critical layers
• Minimum interest layer (m-layer)
• Observation layer (o-layer)
• User watches at o-layer and occasionally needs
  to drill-down down to m-layer
• Partial materialization of stream cubes
• Full materialization too space and time
  consuming
• No materialization slow response at query time
• Partial materialization what do we mean
  partial?

20
A Tilted Time-Frame Model
Up to 7 days
Up to a year
Logarithmic (exponential) scale
4t
2t
1t
4t
8t
16t
Time
Now
21
Benefits of Tilted Time-Frame Model

• Each cell stores the measures according to
  tilt-time-frame
• Limited memory space Impossible to store the
  history in full scale
• Emphasis more on recent data
• Most applications emphasize on recent data (slide
  window)
• Natural partition on different time granularities
• Putting different weights on remote data
• Useful even for uniform weight
• Tilted time-frame forms a new time dimension
• for mining changes and evolutions
• Essential for mining unusual patterns or outliers
• Finding those with dramatic changes
• E.g., exceptional stocksnot following the trends

22
Two Critical Layers in the Stream Cube
(, theme, quarter)
o-layer (observation)
(user-group, URL-group, minute)
m-layer (minimal interest)
(individual-user, URL, second)
(primitive) stream data layer
23
On-Line Materialization vs. On-Line Computation

• On-line materialization
• Materialization takes precious resources and time
• Only incremental materialization (with slide
  window)
• Only materialize cuboids of the critical
  layers?
• Some intermediate cells that should be
  materialized
• Popular path approach vs. exception cell approach
• Materialize intermediate cells along the popular
  paths
• Exception cells how to set up exception
  thresholds?
• Notice exceptions do not have monotonic behaviour
• Computation problem
• How to compute and store stream cubes
  efficiently?
• How to discover unusual cells between the
  critical layer?

24
Stream Cube Structure from m-layer to o-layer
(A1, , C1)
(A1, , C2)
(A1, , C2)
(A1, , C2)
(A2, B1, C1)
(A1, B1, C2)
(A1, B2, C1)
(A2, , C2)
(A2, B1, C2)
A2, B2, C1)
(A1, B2, C2)
(A2, B2, C2)
25
Stream Cube Computation

• Cube structure from m-layer to o-layer
• Three approaches
• All cuboids approach
• Materializing all cells (too much in both space
  and time)
• Exceptional cells approach
• Materializing only exceptional cells (saves space
  but not time to compute and definition of
  exception is not flexible)
• Popular path approach
• Computing and materializing cells only along a
  popular path
• Using H-tree structure to store computed cells
  (which form the stream cubea selectively
  materialized cube)

26
An H-Tree Cubing Structure
root
Observation layer
sports
politics
entertainment
uiuc
uic
uic
uiuc
Minimal int. layer
jeff
Jim
jeff
mary
Q.I.
Q.I.
Q.I.
27
Partial Materialization Using H-Tree

• H-tree
• Introduced for computing data cubes and iceberg
  cubes
• J. Han, J. Pei, G. Dong, and K. Wang, Efficient
  Computation of Iceberg Cubes with Complex
  Measures, SIGMOD'01
• Compressed database, fast cubing, and space
  preserving in cube computation
• Using H-tree for partial stream cubing
• Space preserving
• Intermediate aggregates can be computed
  incrementally and saved in tree nodes
• Facilitate computing other cells and
  multi-dimensional analysis
• H-tree with computed cells can be viewed as
  stream cube

28
Time and Space vs. Number of Tuples at the
m-Layer (Dataset D3L3C10T400K)
a) Time vs. m-layer size
b) Space vs. m-layer size
29
Time and Space vs. the Number of Levels
a) Time vs. levels
b) Space vs. levels
30
Mining Other Unusual Patterns in Stream Data

• Clustering and outlier analysis for stream mining
• Clustering data streams (Guha, Motwani et al.
  2000-2002)
• History-sensitive, high-quality incremental
  clustering
• Classification of stream data
• Evolution of decision trees Domingos et al.
  (2000, 2001)
• Incremental integration of new streams in
  decision-tree induction
• Frequent pattern analysis
• Approximate frequent patterns (Manku Motwani
  VLDB02)
• Evolution and dramatic changes of frequent
  patterns

31
Conclusions

• Stream data mining A rich and largely unexplored
  field
• Current research focus in database community
• DSMS system architecture, continuous query
  processing, supporting mechanisms
• Stream data mining and stream OLAP analysis
• Powerful tools for finding general and unusual
  patterns
• Effectiveness, efficiency and scalability lots
  of open problems
• Our philosophy
• A multi-dimensional stream analysis framework
• Time is a special dimension tilted time frame
• What to compute and what to save?Critical layers
• Very partial materialization/precomputation
  popular path approach
• Mining dynamics of stream data

32
References

• B. Babcock, S. Babu, M. Datar, R. Motawani, and
  J. Widom, Models and issues in data stream
  systems, PODS'02 (tutorial).
• S. Babu and J. Widom, Continuous queries over
  data streams, SIGMOD Record, 30109--120, 2001.
• Y. Chen, G. Dong, J. Han, J. Pei, B. W. Wah, and
  J. Wang. Online analytical processing stream
  data Is it feasible?, DMKD'02.
• Y. Chen, G. Dong, J. Han, B. W. Wah, and J. Wang,
  Multi-dimensional regression analysis of
  time-series data streams, VLDB'02.
• P. Domingos and G. Hulten, Mining high-speed
  data streams, KDD'00.
• M. Garofalakis, J. Gehrke, and R. Rastogi,
  Querying and mining data streams You only get
  one look, SIGMOD'02 (tutorial).
• J. Gehrke, F. Korn, and D. Srivastava, On
  computing correlated aggregates over continuous
  data streams, SIGMOD'01.
• S. Guha, N. Mishra, R. Motwani, and L.
  O'Callaghan, Clustering data streams, FOCS'00.
• G. Hulten, L. Spencer, and P. Domingos, Mining
  time-changing data streams, KDD'01.

33
www.cs.uiuc.edu/hanj

• Thank you !!!
