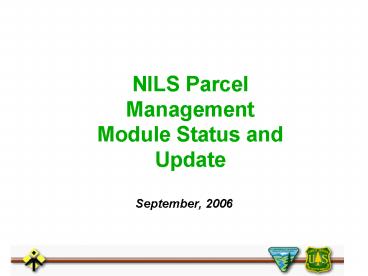

NILS Parcel Management Module Status and Update

1
NILS Parcel Management Module Status and Update

• September, 2006

2
Agenda

• Energy Act implementation and USFS use of AFMSS,
  LR2000 and NILS.
• How is LR2000 information extracted and processed
  for NILS PM_LD, internal GeoCommunicator, and the
  external GeoCommunicator?
• Quick review of what is in NILS PM
• What is coming in NILS PM_LD Version 4.0?
• USFS Data Integration (R4 Pilot)
• What parcel management -land description (PM_LD)
  data are in NILS and who is using it?
• How does the National Lease Sale System use NILS
  PM_LD?
• Expanding the LR2000 Project Change Management
  Board (PCMB) to encompass NILS Parcel Management

3
Energy Bill

• SEC. 363 CONSULTATION REGARDING OIL AND GAS
  LEASING ON PUBLIC LAND.
• (a) In General--Not later than 180 days after
  the date of enactment of this Act, the Secretary
  of the Interior and the Secretary of Agriculture
  shall enter in to a memorandum of understanding
  regarding oil and gas leasing on Public and
  National Forest System lands

4
Energy Bill

• (b) Contents.- The memorandum of understanding
  shall include provisions that-
• (5) establish a joint geographic information
  system mapping system for use in-
• (A) tracking surface resources values to aid
  in resource management and
• (B) processing surface use plans of operation
  and application for permits to drill

5
USFS Users to use

• AFMSS
• LR 2000
• NILS

6
BLM USFSIntegrating Data Assets Business
Processes
USFS
USDA Enterprise
Parcel Cases
Legal Desc.
PLSS
USGS
GeoCom
Control Points
PRIS
BLM Enterprise
LeaseSS
AFMSS
RAS
LR2000
NILS
FAMS
7
NILS/LR2000 Web Services

• Developing web services interfaces between NILS
  and LR2000 to streamline updates and facilitate
  data synchronization

8
How is LR 2000 information extracted and
processed by the NILS PM_LD application, and
published to both internal GeoCommunicator, and
the external GeoCommunicator?
9
PM Data

• Cases That Affect Land Status
• Mining Claim
• Oil Gas Agreements
• Oil Gas Leases
• Coal Leases
• Solid Mineral Leases
• Right of Ways
• Geothermal Leases
• Geothermal Agreements
• Use Leases and Permits
• Mineral Materials Disposal
• Surface Management Agency
• Parcel Fabric Alternate Source
• Stipulations
• Range Allotment

Case Parcel Features Derived from LR2000
Databases
Collected from other agencies, states

• Legal Description (LD) Fabric

GCDB into NILS LD and SMMM module
10
Creating Case Parcel Features from LR2000
EXTRACT
CREATE
11
LR2000/NILS/Geocomm Data Update Process
12
Import Status

• Parcel Fabric 4 million cases (72)
• Missing Parcel Fabric may be due to
• Unsupported Survey Types Will
  provide support for remainder in FY07
• Missing LD Fabric
  Will add alternate source data to LD fabric
• Poorly formed legal descriptions
•

• Will provide tools for manual
  reconciliation
• Complex legal descriptions

13
Next Steps for completing electronic parcel
creation

• Obtain additional alternate source data
• Provide data creation tools for metes and bounds
• Pilot in Idaho using COTS

14
Parcel Fabric Alternate Source (PFAS) Overview

• LD Fabric is from GCDB or NILS SMMM module
• Holes in the LD Fabric are being filled in by
  Parcel Fabric Alternate Source
• To be used by Create process as alternate
  building blocks
• Case data will store if created from LD Fabric,
  PFAS, or combination

15
PFAS Replacement by SM/MM

• SM/MM uses PFAS data as a reference in the
  creation of Legal Description Fabric when not all
  information is available in the Survey Fabric
• The SM/MM recreates the PFAS data from survey
  grade data
• Once the Survey Fabric has been reproduced, the
  PFAS data is flagged as duplicated by the SM/MM
  Process

16
Quick Review of What is in the NILS PMModule
17
PM Tools

• Zoom to Township
• Dialog to change map interest area to extent of
  township(s)
• Township can be in current job, admin state, or
  user specified in the admin state
• Choose Map Theme
• Primary means of bringing in business data
• Map Theme and base map themes content can be
  updated independently
• Browse Maps
• Choose a predefined map theme or Custom
• Launch LR2000
• Opens website to access LR2000 reporting database
• Identify PM Data

• Derive Legal Description
• Find Legal Description
• Use to find Townships, Sections, Aliquots, Lots
  or combinations of
• Create a new PM feature based on legal
  description being queried
• Select by Location PM and/or LD Data
• LR2000 Reporting Capabilities
• Serial Register Pages (SRP) for Status, CaseRec,
  Mining Claim databases
• GeoReport and LLD for Townships and Sections
• Find by Attribute
• Simplifies Select by Attribute dialog
• Assists with complex queries dates, special
  characters
• Search on NLSS Features

UPDATED!
UPDATED!
18
NILS PM Jobs

• 5 Permissions Based Jobs
• Parcel MapsFocus on one township and one map
  theme for quick data review or map output
• PM Browse DataQuery, Display, and Analysis of
  Case Parcel Data. No editing
• PM Review DataEditing of case parcel data
• SMA Review DataEditing of Surface Management
  Agency data
• RA Review DataEditing of RA data
• All NILS PM Jobs have
• Default map theme
• Default base map
• Township AOI
• Task to Start ArcMap

19
USFS Region 4 Pilot

• Extend LR2000 and NILS transactional data models
  to support USFS requirements
• Load ALP data into LR2000 Derive Legal
  Descriptions for ALP Parcels Create PM data for
  Region 4
• Develop tools for creation of parcels which
  cannot be electronically created from ALP/LR2000
• Develop web services to synchronize updates
  between LR2000 and NILS
• Pilot to be completed in December 2006

20
What is coming in NILS PM_LD Version 4.0?
21
NILS Release 4.x PM_LD Capabilities

• Create/Maintain updated to support survey types
  Z, O, G, H, M and X
• PM Identify tool updated to support survey types
  Z, O, G, H, M and X
• Find LD and Derive LD tools updated to support
  survey types Z, O, G, H, M and X
• Derive LD tool now supports exporting LD to a
  text file
• Choose Map theme now supports the following map
  services NGS_TOPO, BLM_BASEMAPS, USGS_The
  _National_Map and USGS_EDC_Ortho_DOQQ

Z Unsurveyed / Protracted - 465 O - Fractional
Part of Section 10,356 G - Land Grant 1,771 H
- Homestead Entry Survey 5,830 M - Mineral
Survey 62,143 X - Exchange Survey - 299
22
Demos

• Find LD Derive LD Support for Special Survey
• Exporting LD to Text File (Derive LD)
• Map Theme (USGS_The_National_Map)

23
Release 4.x Other Capabilities

• Workflow
• Users can save changes to a jobs MXD.
• NLSS
• Find LD tool updated to support the Creation of
  new features based on the LD being searched
  this is available to all PM users
• Find PM tool updated to support new NLSS feature
  classes
• Create/Maintain updated to support Stipulations

24
Workflow Save Changes on a Job MXD
Changes made can now be saved in the job MXD
25
Save Changes on a Job MXD
When re-opening the Job with the saved MXD, the
system will provide the option to open the saved
Map Document by clicking Yes All changes to
the map display will be lost if the No option
is selected Note that this does not affect edits
to the data.
26
Demos

• Create new NLSS features using Find LD
• Find PM support for NLSS

27
Release Timelines

• NILS Release 4.0 scheduled for release October 16
• Focus is on SM-MM
• PM functions to be included
• Find LD and Derive LD tools updated to support
  survey types Z, O, G, H, M and X
• Derive LD tool now supports exporting LD to a
  text file
• Choose Map theme now supports the following map
  services NGS_TOPO, BLM_BASEMAPS, USGS_The
  _National_Map and USGS_EDC_Ortho_DOQQ
• NILS Release 4.1 scheduled for November
• Focus is on PM
• Functions to be included
• Create/Maintain updated to support survey types
  Z, O, G, H, M and X and stipulations
• PM Identify tool updated to support survey types
  Z, O, G, H, M and X

28
Future Releases

• Additional Cases survey types ( mid FY 2007)
• P Parcel 249 records
• Q - Donation Land Claim 4,913 records
• T Tract 19,855 - records
• F - Farm Unit 43 records
• J - Small Holding Claim 7,611 records
• Additional alternate source LD fabric to match
  additional LR2000 cases
• USGS
• NRCS
• State of Louisiana
• Additional Reference Themes BLM Planning Area
  boundaries, subsurface status

29
Future PM Releases (Contd)

• Metes and Bounds Edit Tools in ArcMap
• Additional Platting Capabilities and Symbology
• Business Process Workflows
• LR2000 HI Reporting Integration
• LD Fabric Updates Trigger Create/Maintain
• Get LR2000 Attribute Utility

30
Geocommunicator Update Schedule

• Geocommunicator data will be updated every 2nd
  and 4th Friday of the Month e.g. Sept 29, Oct 13,
  Oct 27, etc.
• Data that is ready for deployment on the Monday
  before the go-live date will be pushed, otherwise
  it will have to wait for the subsequent update
  cycle. E.g. Sept 25, Oct 9, Oct 23, etc

31
Geocommunicator Statistics

• Public uses of www.geocommunicator.gov
• Average of 7,000 users/27,000 visits/1.3 Million
  hits per Month Interactive mapping for Land
  Mineral Use Records (oil and gas leases, ROWs,
  geothermal leasing, coal leasing, Solid Minerals,
  conveyances, and Cases that affect land status
• Over 3.8 million records available
• Interactive mapping for the Public Land Survey
  System
• gt30,000 townships of survey data available
• Interactive mapping for the seamless federal
  Surface Management Agency (SMA) layer
• Internal BLM use of web.geocommunicator.gov
  intranet site
• Over 38,000 visits in FY05
• Over 14,000 maps/month

32
What Parcel Management Land Description Data
are in NILS and Who is Using it ?
33
NILS Provides Improved Accessibility to Federal
Land Information
34
GeoCommunicator

• Internet Site
• Land Survey Information System
• Federal Land Stewardship
• Land Mineral Use Records
• Reference Data

35
Data Available Through Geocommunicator
36
NILS Data Themes
37
NILS Data Themes (contd)
38
NILS Data Themes (contd)
39
NILS Data Themes (contd)
40
Reference Themes
41
NILS GeoCommunicator Internal Data sets - Only
Available Thru web.geocommunicator.gov or NILS
SM/MM/PM
42
How does the National Lease Sale System use NILS
PM_LD?
43
NLSS Overview

• NLSS Data available in the upcoming NILS release
• New/Updated Stipulations data for CA, CO, MT, NM,
  OR, and WY
• Latest Sale Parcel data for NM and WY for the
  fall auctions
• Ability to create Stipulations in NILS from
  LR2000
• Tools/functionality available to manage NLSS
  data
• New NLSS Task Assistant to manage Stipulations,
  EOI, Sale Parcel and Parcels Offered data
• Ability to create PM Features from the Find LD
  Tool
• Ability to search for Stipulations, EOI, Sale
  Parcel and Parcels Offered features using the PM
  Find tool

44
NLSS Task Assistant

• Task assistant guides GIS users through steps in
  ArcMap for querying and maintaining data.
• Provides consistency in the completion of data
  management tasks.
• Shortens the ArcMap learning curve.
• Combination of ArcMap COTS and NILS PM
  functionality.
• NILS PM functionality also available on NILS PM
  Display Commands toolbar.

45
Map Theme Oil Gas Leases/Agreements

• Group layers
• Oil and Gas Agreements
• Oil and Gas Leases
• Oil and Gas Closed Leases
• Stipulations
• EOI
• Parcels_Offered
• Sale_Parcels
• Stipulations symbolized by category
• EOI
• Symbolized with colored crosshatching
• Parcels_Offered
• Symbolized with colored crosshatching
• Sale_Parcel
• Symbolized with colored crosshatching

NLSS data is stored in EOI, Sale_ Parcels and
PreSale_Offer feature classes.
46
Stipulations ltState_Abbrgt_Stipulations

• Single Simple Renderer
• Displays Stipulations by Category
• Label by Category

Stipulation data will be available for CA, CO,
MT, NM, OR and WY. For other states, Stipulation
data can be created in a NILS PMReviewData job
47
NLSS Workflow in NILS
Open NILS Workflow
Add external data
Create PM Review Job
Create new geometries
Reshape/ Modify geometries
Open Job/ ArcMap
Update/ create Map Display
Close ArcMap
Modify attributes
Print Map
Close Job
48
Managing NLSS Data

• Create a New Feature by
• Sketching
• Tracing
• Copying features
• PM Create/Maintain will create GIS stipulation
  features from LR 2000
• Add local data to copy/paste into NILS
• Attribute a created feature
• Modify a selected features attributes

49
NLSS Summary

• NLSS Data data is accessed via the Oil Gas map
  theme or Oil Gas Base Map layer for all PM jobs
  within the NILS Workflow
• NLSS data is managed (created and/or modified)
  through NILS Transaction PM_ReviewData Job
• NLSS data is posted to GeoCommunicator bi-weekly

50
LR 2000 and NILS PM PCMB Discussion
51
Next Steps

• R4 Pilot
• Training
• Additional USFS Data Integration

52
Questions?
