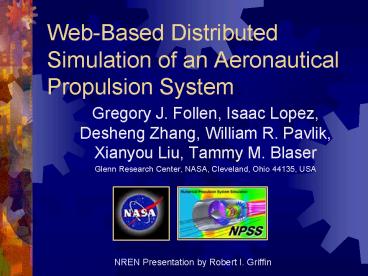

Title: WebBased Distributed Simulation of an Aeronautical Propulsion System


1
Web-Based Distributed Simulation of an
Aeronautical Propulsion System
  • Gregory J. Follen, Isaac Lopez, Desheng Zhang,
    William R. Pavlik, Xianyou Liu, Tammy M. Blaser
  • Glenn Research Center, NASA, Cleveland, Ohio
    44135, USA

NREN Presentation by Robert I. Griffin
2
Overview
  • This presentation describes an application that
    was developed to allow users on remote systems to
    simulate flight models and view engine data
    provided by NASA's Numerical Propulsion System
    Simulation (NPSS)
  • Work presented within this presentation is part
    of the Aviation Safety Project and represents a
    collaborative effort between NASA Glenn and NASA
    Ames Research Centers
  • Contributors from NASA Ames include Bill
    McDermott and Jorge Bardina
  • This activity is supported by both the AvSP and
    BASE IT RT programs

3
Use Case Scenarios
  • How Is This Presentation Relevant to the NREN
    Satellite-enabled Network Connections?
  • On-Site Research for New and Proprietary
    Aerospace Technologies. Engine Performance
    Analyses
  • Field Investigations of recent Aviation
    Accidents. Provide On-Site Collaboration with
    Forensic Data

4
N-Tier Architecture of the Application
5
Simplified Architecture and Core Technologies
  • Core Technologies include
  • Java Server Page (JSP) / Java Beans
  • Common Object Request Broker Architecture (CORBA)
  • Information Power Grid (IPG/Globus)
  • Numerical Propulsion System Simulation (NPSS)
    with 1-D Zooming

6
System Elements User Interface
  • Web Browser
  • Web Browser Interface Allows System Architecture
    Independence and Remote Access
  • Web Server
  • Tomcat (JSP/Servlet Engine) Open-source,
    reliable. Easy DB Access
  • Server Scripting
  • Java Server Page Provides Dynamic Web Page
    Content. Connectable to Java Beans

7
System Elements Data Files
  • Cloudscape DBMS
  • Used for storing users simulation configuration
    data
  • 100 Java, DB File access via RMIJDBC, High
    Performance
  • Flat Files
  • Used for flight input and engine simulation
    results
  • Easily Exported to Other Applications

8
System Elements CORBA
  • MICO ORB
  • Implementation is CORBA 2.3 Spec. Compliant.
    SSL-Enabled. Open-Source SGI / Linux Versions
    available
  • Communication via Internet Interorb Operability
    Protocol (IIOP). No Firewall configuration needed
  • Monitors Concurrent Jobs on Multiple IPG Test
    Beds. Efficient Allocation of Jobs to
    Distributed Machines

9
System Elements IPG/Globus
  • NASA IPG
  • Fundamental technologies for Computational Grids
  • Secure, (nearly) Seamless Access to Distributed
    Processing Resources
  • Managed Resource Allocation
  • Allow Remote Access to Secondary Storage

10
System Elements NPSS
  • Numerical Propulsion System Simulation (NPSS)
  • Component-Based Engine Simulation
    (Object-Oriented Architecture)
  • Uses Real Radar Telemetry Data to model engine
    performance using a Turbofan Engine Simulation
  • Capable of increasing output resolution (zooming)
    from Zero- to One-Dimensional Data

11
Data Processing Capacity
  • Sample Data from Atlanta (5/20/2000) contains
    1500 flights (arrivals and departures). Single
    engine simulations for this data set were
    processed in 8 hours.

12
Demonstration
  • Aviation Safety Project Demonstration

13
Future Directions
  • Enable Simulation for use with Dynamic, Streamed
    Telemetry Data
  • Seamless integration of CORBA and Globus Services
    with CORBA-enabled NPSS
  • XML Use for Uniform Data Flow and Arbitrary
    Processing
  • Increase the Resolution of Engine Prototype with
    Higher Order Zooming
  • Perform Full Aircraft Simulations with NASA Ames

14
References
  • G. Follen, C. Naiman. Numerical Propulsion
    Simulation System (NPSS)/National Cycle
  • Program (NCP). HPCC Computational Aerosciences
    Conference, 8/98
  • G. Follen, A. Evans, C. Naiman, I. Lopez.
    Numerical Propulsion Simulation System. AIAA
    98-3113, 7/98
  • NASA's Numeric Propulsion System Simulation
    (NPSS)
  • IPG project
  • The Globus project
  • I. Foster, C. Kesselman. Globus A metacomputing
    infrastructure toolkit. International Journal of
    Supercomputer Applications, 11115-128, 1997
  • The Jakarta Project
  • JavaServer Pages specification
  • CloudscapeTM - Informix Software
  • The MICO CORBA project
