VirtuLab: Web Based Flow Visualization Facility

1

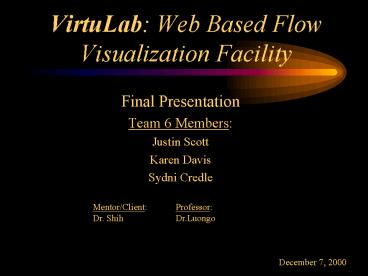

VirtuLab Web Based Flow Visualization Facility

• Final Presentation
• Team 6 Members
• Justin Scott
• Karen Davis
• Sydni Credle

Mentor/Client Professor Dr. Shih
Dr.Luongo
December 7, 2000
2
Overview

• Client Statement
• Background Information
• Specifications
• Camera Mount Design
• Work Breakdown Structure (WBS)
• Scheduling
• Complications and Solutions
• Goals for the Spring Semester
• Conclusion

3
Conclusion

• WBS and Schedule promoted team efficiency towards
  completion of project goals.
• Camera mount design and fabrication were priority
  this semester. Upon completion, testing and
  calibration can be performed.
• Team members now have an extensive working
  knowledge of the LabVIEW software.

4
Conclusion (contd)

• In developing the user interface, the major
  concern for team has been the "how" of the
  matter.

5
Web-Based Flow Visualization Facility (WBFVF)
Work Breakdown Structure (WBS)
6
Project Schedule
Spring Semester Goals
7
Goals for the Spring Semester

• Web Page Design
• Incorporate LabVIEW programming into design
• Embed live video streaming
• Background and procedure for experiment
• Upload class deliverables for public use

8
Spring Semester Goals (continued)

• LabVIEW
• Acquire LabVIEW version 6.i
• Train team members to use 6.i
• Final experiment interface design (educational
  module)
• Consolidate motor controller functions into one
  program
• Control via the Internet

9
Spring Semester Goals (continued)

• VC-C4 Web Cam
• Order and acquire the VC-C4 camera from Canon,
  Inc.
• Train team members to use VC-C4 web cam software
• Create LabVIEW program to automate the control of
  the web cam
• Research WebVIEW software

10
Spring Semester Goals (continued)

• Existing Experiment Set-up
• Preliminary test of system
• Performance Analysis
• Design Modifications
• Calibration
• Final Testing

11
Complications and Solutions

• LabVIEW
• Received older version, 5.1, when we were
  supposed to receive 6.i.
• Contacted manufacturer, National Instruments, to
  rectify the situation (coming soon).
• Unfamiliar with the LabVIEW programming language.
• Group members trained by attending instructional
  seminars, using tutorial CDs and utilizing local
  COE users.

12
Complications and Solutions (contd)

• VC-C3 Camera
• Through research, we found it was too expensive.
• Ordered interim software and components
• (Intel Camera and Microsoft NetMeeting
  Software).
• Recently received client approval to order the
  VC-C4 version of the camera.

13
Complications and Solutions (contd)

• Web Page (live video streaming)
• Underestimation of the task at hand.
• Actively sought out professionals
• Dr. Van Dommelen
• Third floor Webmasters
• NetMeeting representatives

14
Objectives/Client Statement

• Design and build a towing tank facility and the
  associated imaging process.
• Provide visualization enhanced information to
  supplement the teaching of fluid mechanics.
• Create computer interfaced instrument control for
  remote operation via the Internet.

15
Introduction

• Learning/teaching Thermal Fluids is complex.
• Distance learning purposes
• Pre-lab student aid
• Master each component separately
• Move at own pace
• Real world applications

16
Background Information

• A fluid is a substance that readily flows under
  applied shear (gases, liquids i.e. water,
  alcohol, gasoline).
• Fluids cant be detected by the human eye,
  therefore, the concepts behind fluid mechanics
  prove to be very difficult to learn.
• Use of flow visualization to take out the guess
  work from the phenomena.

17
Physical Laboratory
System Set-up
(motor controller)
LabVIEW Interface
18
What is LabVIEW?

• Laboratory Virtual Instrument Engineering
  Workbench
• Automation and Control of Equipment
• G-programming
• Creation of programs using graphics
• Pictorial Block Diagrams instead of long lines of
  syntax
• Straightforward data flow methodology

19

• LabVIEW User Interface
• Front Panel
• Knobs, Buttons, graphs, etc.
• User Input using mouse and keyboard

• Graphical Code
• Block Diagram
• Constants, built-in functions, program execution
  control structures
• Wires denote data flow

20
Simple example Ideal cylinder Vs. Real world
cylinder

• Ideal circular cylinder experiencing 2-D flow of
  a uniform stream
• Figure (left) shows symmetrical stream lines and
  no drag force.

• Real circular cylinder experiencing a non-uniform
  flow
• Figure (right) depicts the flow separation,
  creating a wake

21
Schematic diagram illustrating basic setup of
web-based flow visualization system.
22
Mechanical Design Aspects

• Design of mobile camera mounts
• Design of synchronous linkage for laser/optical
  platform
• Motor Selection
• Linear bearing system

23
Mechanical Design Aspects (continued)

• Gear Analysis
• Loading Calculations
• Material Selection and Design
• Plumbing Design
• Setup and design of video recording equipment

24
Computer Related Aspects

• Remote instrument control via the Internet using
  LabVIEW programming
• Video studio design for the lab imaging
• Real time video and data streaming via the
  Internet

25
(No Transcript)
26
System Configuration
Motor
Camera mount location
Towing Tank
Web Cam Location
Motor Controller
27
Camera Mount Design Needs

• Easily manufactured
• Cost efficient
• Lightweight
• Easily used

28
Camera Mount Design Needs (Continued)

• Capable of supporting camera
• Appearance uniform with existing equipment
• Locking mechanism
• Long lasting

29
Camera Mount Design Morphological Chart
30
Specifications for the Camera Mount
31
Detailed Concept Design

• Dimensions
• Locking mechanism design
• Materials used
• Specific cost

32
Preliminary Design Exploded View
33
Existing Camera Mount
Camera Mount Location
Adjustable Pole
34
Work Breakdown Structure

• Project Management Activities
• Refinement of Client Statement
• Web Camera
• Imaging Camera Mount
• LabVIEW - Motor Controller
• Simulation/Testing
• Web Page Publishing

35
Project Management

• Development of project plans
• Weekly Design Team Meetings (2)
• Bi-weekly client meetings
• Progress Reports for client
• Refinement of project plans

36
Refinement of Client Statement

• Clarify customer statement completed
• Research prior designs ongoing
• Review with client completed

37
Web Camera

• Research software and equipment completed
  (VC-C3 camera and WebVIEW software )
• Order interim software and components completed
• (Intel Camera and Microsoft Netmeeting
  Software)
• Performance tests (Teleconference) completed
• Design of system setup
• Intranet/Internet capability testing

38
Imaging Camera Mount

• Concept Generation completed
• Design Selection completed
• Final Design Review completed
• Fabrication ongoing
• Ordering materials and components
• Assembly

39
Detailed Designs 1st Plate and Slider
40
Detailed Designs 2nd Plate and Slider
41
LabVIEW - Motor Controller

• LabVIEW
• Software Acquisition completed
• Introduction to software ongoing
• Tutorials
• Attend educational seminars (Nov. 9-Orlando, Fl)
• Design of the User Interface ongoing
• Motor Controller
• Introduction to motor controller ongoing
• Velocity Profile Manipulation ongoing
• Programming using LabVIEW ongoing

42
Simulation/Testing of Towing Tank

• Preliminary test of existing system pending
• Performance Analysis pending
• Design Modifications pending
• Final Testing pending
• Calibration pending

43
Web Page Publishing

• Concept Generation ongoing
• Design Selection ongoing
• Final Web Design ongoing

44
Work Breakdown Structure

• Project Management Activities
• Refinement of Client Statement
• Web Camera
• Imaging Camera Mount
• LabVIEW - Motor Controller
• Simulation/Testing
• Web Page Publishing

45
Project Update

• National Instruments NI Days Convention
• (Orlando, FL - 11/9/00)
• Product Overview
• LabVIEW 6.i
• Software/Hardware Capabilities
• Monitoring and Control Over the Web
• Contacts
• Received New LabVIEW Software

46
Project Update (continued)

• Consultation with Dr. Van Dommelen
• Web Page
• Basic Design Layout
• Media Data Streaming (Audio/Video)
• Project Deliverables
• Exchange a left-hand threaded component with a
  right-hand threaded component.

47
Tentative Final Design Contents

• Background Theory/Introduction
• Project Scope
• Specifications
• Design Review
• WBS/Scheduling
• WBFVF Web Page
• Meeting Log
• Correspondence
• Spring Project Plans

48
Acknowledgements/Bibliography

• Davis, K., Scott J., and S. Credle, Senior Design
  Proposal Web Based Flow Visualization Facility,
  FAMU-FSU College of Engineering, Tallahassee,
  2000.
• FloWorks, Engineering Fluid Dynamics for
  SolidWorks, www.floworks.com, 2000.
• White, F. M., Viscous Fluid Flow, McGraw-Hill,
  New York, 1974.

49
Conclusion

• Completed flow visualization system is a critical
  tool in the analysis of fluid mechanics.
• Integration of the physical laboratory with the
  Internet, in turn creates a virtual laboratory.
• The final deliverable will benefit educators,
  students, and industry.

50
Conclusions

• Comprehension of problem statement has been
  achieved
• Upon of completion of camera mount fabrication,
  can proceed with simulation/testing of the towing
  tank
• Next Modifying and calibrating the existing
  system

51
Conclusions

• More complete comprehension of problem statement
  has been achieved
• Can proceed with fabrication of camera mount
  design
• Testing and calibration of existing system,
  leading to system modifications

52
Conclusions

• Current Status is Favorable (Were On Point!!!!)
• Primary Concern Involves Logistics
• Implementation

53
Conclusion

• Completed flow visualization system is a critical
  tool in the analysis of fluid mechanics.
• Integration of the physical laboratory with the
  Internet, in turn creates a virtual laboratory.
• The final deliverable will benefit educators,
  students, and industry.

54
