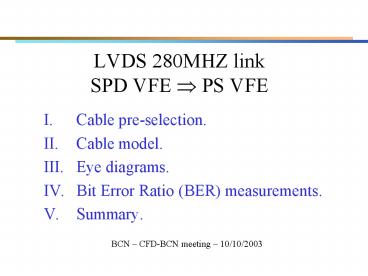

LVDS 280MHZ link SPD VFE ? PS VFE

1
LVDS 280MHZ link SPD VFE ? PS VFE

• Cable pre-selection.
• Cable model.
• Eye diagrams.
• Bit Error Ratio (BER) measurements.
• Summary.

BCN CFD-BCN meeting 10/10/2003
2
I. Cable pre-selection.

• Several cat7 and cat6 SSTP cables will be tested
• Infra cat7 patch cable (flexible) (datasheet)
• Infra cat7 vertical cable (rigid) (datasheet)
• Infra cat6 vertical cable (rigid)?
• Nexans (Alcatel) cat7 patch cable () (datasheet)
• Cat5e? Xtalk? Skew?
• Cat7 rigid cable seems to have the better specs
  on skew and bandwidth.
• Problems with rigid cables
• Section too big?
• Cost?
• Perhaps it is not possible to mount RJ45
  connectors on cat7 rigid cable. Solution MiniC
  connector, solder to boards ... (Infra
  connectors).

3
II. Cable model.

• RLGC model of cable (Theory of twisted pair
  cables).
• Skin effect and dielectric looses limit the
  bandwidth.
• How to simulate the cable response? Hspice
  W-model how to calculate the cable parameters?
• How to tune the compensation network? First order
  model for cable like in (High Speed Links for
  ATLAS).

4
III. Eye diagrams.

• Needed to validate the link within std LVDS
  levels.
• Test equipment requirements
• BW ? 3 0.35/trise (? 1 GHz) for trise of 1ns.
• Sampling rate ? 4 BW (? 4 GS/s) (for proper
  reconstruction a a DSO)
• Differential probe

LAL measurement for DS90CR483/484 chipset
5
III. Bit Error Ratio (BER) measurements.

• Several test patterns will be used (miming IEEE
  802.3 std)
• High Frequency.
• Low Frequency.
• Deterministic jitter.
• Random test pattern.
• Test pattern (8K per bit) will be generated on a
  PC and transmitted to Cyclone or Stratix (Altera)
  Dev. Board operated at 40MHz to continuously
  check for errors.
• Automatic synchronization for different cable
  lengths (cycle and phase)
• 10 bit error counter bit will be enough?
• Needed to identify the word of the frame when
  when error happens?
• It is possible to generate pseudo-random test
  pattern with a LFSR register.
• References ATLAS-LEB2000 and VELO-LHCb.

6
IV. Summary.

• Several cable will types and lengths (from 10m to
  30m) will be tested.
• The first step is to characterize the cable and
  tune the compensation network for each type of
  cable and length.
• After reducing the candidates extensive BER
  measurements will be performed.
• Sensitivity to the jitter of 40 clock of the
  serializer needs to be tested, since is supplied
  through a 25 m cable from Control Board.
• Performance of PIN diode level shifter (before
  serializer) will also be tested.
• Possible level shifter in LVDS link will be
  tested (at 280MHz!)
