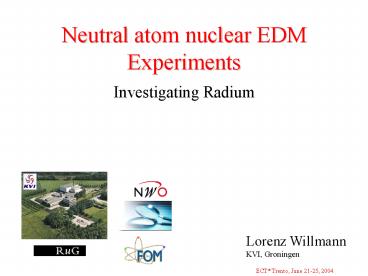

Neutral atom nuclear EDM Experiments

1
Neutral atom nuclear EDM Experiments

• Investigating Radium

Lorenz Willmann KVI, Groningen
ECT Trento, June 21-25, 2004
2
Outline

• Nuclear edm searches in neutral atoms (199Hg)
• Are there other systems Schiff Moment in
  Hg, Xe, Rn, Ra, Pu, TlF Dzuba, et al., PRA 66,
  012111 (2002).
• Enhancements favours Ra Nuclear
  Structure Atomic Structure
• Can we exploit natures offer? Road to edm with
  Radium

3
Violation of T-Symmetry

• H -(d Eµ B) I/I
• d - electric dipole moment
• µ - magnetic dipole moment
• I - Spin
• Limit for nuclear EDM Hg
• dlt 2.1 x 1028 e cm
• M. V. Romalis et al. Phys.Rev.Lett. 86, 2505
  (2001)
• Radium Excellent candidate
• V. A. Dzuba et al. Phys. Rev.A61 062509(2000)

EDMs violate - Parity - Time Reversal
4
EDM Searches
Any object will do ? need guidance by theory

• point particles e,?,?
• nucleons n
• atoms Tl, Cs, Hg, Ra
• Molecules PbO, YbF, TlF

What is the source for an EDM?
5
EDM Now and in the Future
1.6?10-27


199Hg
Radium potential
Start TRI?P
de (SM) lt 10-37
6
199Hg Experiment, M. Romalis
Fortson Group Seattle, Washington
d lt 2.1 10-28 e cm
7
Fortson Group Seattle, Washington
From M. Romalis
8
Measure EDM
Prepare Ensemble in Spin State J
Apply Electric Field E
Determination of Ensemble Spin Average
Precession Frequency
? d x E
9
Sensitivity
Paramenters
P Polarization e Efficiency N Number of
particles per second T Measurements Time t
Spin Coherence Time

10
TRImP
Radium Permanent Electric Dipole Moment

• Benefits of Radium
• near degeneracy of 3P1 and 3D2
• ? 40 000 enhancement
• some nuclei strongly deformed spin gt 1/2
• ? nuclear enhancement
• 50500

6
Ra also interesting for weak interaction
effects Anapole moment, weak charge (Dzuba el
al., PRA 6, 062509)
11
Enhancement of EDM

• Heavy Atoms
• Z2 (RN/RA)
• Induced Dipol Moment
• ? Polarizability
• in nucleus as well as atomic shell

• Example Tl -585, Fr 1150, Ra 40.000

12
Experimental Aspects

• Cells ? high density motional fields average
  to zero long coherence times
• Beams ? ultra high vacuum leakage current
  suppression higher electric fields coherence
  time limited by length of beam
• Traps ? no motional electric field, higher
  density long storage time ? long
  observation times ultra high vacuum ? high
  electric fields possible small sample region ?
  homogeneity
• New Systems
• New production facilities for short lived
  isotopes

13
TRI?P - Trapped Radioactive Isotopes?-laboratori
es for fundamental Physics
Ion Catcher
RFQ Cooler
Atom Trap
Production Target
Magnetic Separator
Particle Physics
Beyond the Standard Model TeV Physics EDM/?-decay
AGOR cyclotron
MeV
meV
keV
eV
neV
http//www.kvi.nl/trimp/web/html/trimp.html
14
Cold Radionuclides Work

• Ion traps have been successful Physics Program
  mass measurementsnuclear spectroscopycorrelation
  s in ?-decay
• Now to neutral atoms
• Short lived isotopes become available for
  atomic physics experiments. Na, Ne, Rb, Fr,
  Cs-isotopes, Ra,
• Worldwide efforts like in Argonne National Lab,
  GANIL, GSI, Jyvaskylae, KEK, KVI, Stony Brook,
  TRIUMF

15
Isotope production _at_ TRI?P KVI
QD
QD
DD
DD
Target
QD
QD
Gas filled Separator
T1

208 Pb beam
Trap Experiments

• Separator commissioned with Na production
• Ra at TRImP Facility in couple of month

16
AGOR
AGOR Cyclotron

• Adaptating to New Challenges
• Heavy Ion Beams
• ? e.g. 208Pb
• new sources
• new injection channel
• vacuum improvement
• High Power (TRImP would appreciate 1 kW)
• improved extraction
• beam stops
• beam monitoring
• radiation safety
• Expect 107 213Ra/kW beam

17
Production Test 213Ra
TRImP
fitted x-ray spectra
x-ray counts arb.
extracted Fr x-rays
raw data
Expected Production Rates 107/s with 1kW
primary beam
x-ray energy channels
A. Rogachevsky, H. Wilschut, S. Kopecky, V.
Kravchuk, K. Jungmann AGOR team
18
Radium Spectroscopy
What do we know?
19
Radium Spectroscopy Data
Radium Discharge analyzed with grating
spectrometer Ebbe Rasmussen, Z. Phys, 87, 607 ,
1934 Z. Phys, 86, 24, 1933. Resolution 0.05
A, 99 lines, absolute accuracy
1S0-1P1
1S0-3P1
Corrections in deduces energy levels
H.N. Russel, Phys. Rev. 46, 989 (1934)
20
Transitions in Radium
According to NIST Database

Collinear laser spectroscopy 1S0 1P1
transition S.A. Ahmad, W. Klempt, R. Neugart,
E.W. Otten, P.-G. Reinhard, G. Ulm K. Wendt and
ISOLDE collaboration, Nuclear Physics A483, 244
(1988)
21
Laser Cooling Chart
Efficient production of cold atoms Magneto
Optical Trap Other Possibilities Buffer Gas
loading into magnetic trap J. Doyle, Harvard A.
Richter, Konstanz
22
Cooling and Trapping
Trap losses background gas 1 s _at_ 10-9
mbar optical traps ? not closed cycling scheme
23
Trappists View
Preliminary Transition Rates as calculated by K.
Pachucky (also by V. Dzuba et al.)
24
Trappists View
Preliminary Transition Rates as calculated by K.
Pachucky (also by V. Dzuba et al.)
25
Trappists View
Consequences for Laser Cooling with
1S0-3P1 Smaller Enhancement of EDM Longer
Lifetime of 3D2 in E-Field
26
Radium Spectroscopy
Barium

• Laser Cooling
• Metastable Beam

27
Heavy Alkaline Earth Element Barium
Ideal testing ground
? 8.4nsec Is14mW/cm2

• Life time measurement
• Hyperfine structure
• Laser cooling of barium
• Develop trapping strategy

3
2
1
No report yet on laser cooling and trapping!
28
First Steps
Verdi pump at 532 nm
29
Fluorescence at 553.7 nm from different Barium
isotopes
138Ba
? Polarization plane
Counts kHz
PMT
137Ba F5/2
136Ba
Frequency MHz
137Ba F5/2
in Polarization plane
138Ba
Counts kHz
135Ba
PMT
Frequency MHz
30
Lifetime Measurement Hanle effect
136Ba
138Ba
Counts kHz
Counts kHz

• Life time of 1P1 state
• Laser B field
• eff h/(2? gJ ? ?B1/2)
• eff 8 nsec ? 0.5sec

Magnetic Field G
Magnetic Field G
Counts kHz
Counts kHz
136Ba
138Ba
Magnetic Field G
Magnetic Field G
31
Intercombination line 1S03P1
3 2 1
Creation of intense beam of meta-stable D-state
atoms
32
FM Saturated absorption spectroscopy of I2
(almost one line/5GHz from 500-900nm)
w90.5kHz
ff0f1 Sin(wt)
Reference Line P(52)(0-15) transition
To Beat note
599 MHz away from 1S03P1 in 138Ba
Lock point
33
1S03P1 transition in an External Magnetic field
?? gJ µ mJ B ??IS 138Ba136Ba 108.5 (3) MHz
2.3 MHz (FWHM)

• Decay rate
• Branching into 3D States

34
Competitors
35
Radium

• Promising candidate for experimental EDM searches
• Production of 213Ra at KVI this year at new TRI?P
  Facility
• Spectroscopy is indispensable
• Lifetimes and Hyperfine Structure
• Development toward trapping with Barium
• EDM and Parity violating effects are strong

Next year more about it
36
Producing light for Ra 1S0-1P1 transiton

• Second harmonic generation in linear cavity
  using KNbO3 (b-cut, 19) 3 or 5mm
• temperature tunable and high efficiency
• Wavelength tunable from 480 nm (10C) to 490 nm
  (40C)

Blue output
37
Outlook
Laser Cooling of Barium

• Diode Laser for 1P11D2 transition _at_1500nm and
  for 1P13D2 and 1P13D1 transitions
  _at_11301108nm)
• Towards Radium
• Laser _at_482.5nm for 1S01P1 transition by
  frequency doubling
• TiSapp Laser
• Production of Radium at TRIµP by end of 2004
• Spectroscopy in a Radium beam

38
What are we looking for

• Dont get me wrong
• We have already great understanding (as a
  community)
• Too many free parameters
• Explain structure of physical world
• Phenomenology
• Are there basic building blocks of nature (most
  of us believe so)

39
EDM? Why? What?

• MDM sure, and Maxwell unified electricity and
  magnetism a long time ago.
• So, why should EDM be zero?
• What is this great cancellation mechanism
• Electric monopole is OK, so where is the magnetic
  monopole? Can we search for it as well?

40
Interpretation of EDM

• What happens when one of us observe it? Well,
  assuming that the rest believes it.
• Different length/energy scale on which we observe
  substructure -gt same theory, but more parameters
• What is an effective theory? Acknowledges already
  that is is not fundamental
• Can we get to the fundaments of Physics?

41
Fundamental Symmetry Test

• C Charge Conjugation
• P Parity
• T Time Reversal
• New facilities for radioactive beams
  worldwide.Uncharted territory of on the nuclear
  chart
• is there something new? Parity nonconservation
  in atoms ?-decays

42
How

• Atomic physics methods for control of
• Deviation from expectations can indicate new
  physics
• Examples Precision measurements and fundamental
  constantParity violation
• Long series of measurements
