IBM OSJCL:

1
12

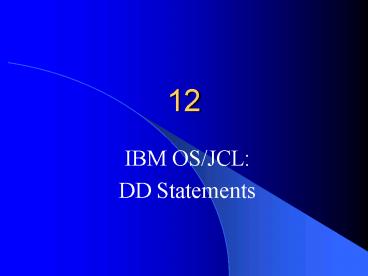

• IBM OS/JCL
• DD Statements

2

• //TPEIN DD UNITTAPE,DSNPR.FLE,
  // DISP(OLD,KEEP,KEEP)

• The DD Statement
• Defines a data set to the operating system.
• Notifies the operating system that a data set is
  to be either accessed or created.
• Identifies the device requirements of the data
  set
• Type of I/O unit required.
• Specific volumes to be mounted on the unit.



3

• //TPEIN DD UNITTAPE,DSNPR.FLE,
  // DISP(OLD,KEEP,KEEP)

• The DD Statement
• Further defines characteristics of the data set
• The length of each record
• The format of the record
• Whether the data set already exists or is to be
  created during the job step.
• Specifies what is to be done with the data set
  when the job completes.


4

• Tape DD Statement


5

• //TPEIN DD UNITTAPE,DSNPR.FLE, //
  DISP(OLD,KEEP,KEEP)
• DDNAME - one to eight alphanumeric
  characters. The first character must be
  alphabetic.
• The DDNAME comes from the External
  Reference name in the SELECT Clause of the
  ENVIRONMENT DIVISION of a COBOL program.

6
INPUT-OUTPUT SECTION. FILE-CONTROL.
SELECT CARD-FILE ASSIGN UR-2540R-S-CARDIN.
SELECT PRINT-FILE ASSIGN
UR-3203-S-PRTFLE. SELECT TAPE-IN ASSIGN
UT-3420-S-TPEIN. SELECT TAPE-OUT ASSIGN
UT-3420-S-TPEOUT. SELECT DISK-IN ASSIGN
DA-3375-S-DSKIN. SELECT DISK-OUT ASSIGN
DA-3375-S-DSKOUT. DATA DIVISION. 01
CARD-FILE. 05 EMP-NO PIC X(5)
05 EMP-NAME. 10
EMP-LAST PIC X(25). 10
EMP-FIRST PIC X(25). 10
EMP-MIDDLE PIC X.


7

• //TPEIN DD UNITTAPE,DSNPR.FLE,
  // DISP(OLD,KEEP,KEEP)

• DD Operation - Data Definition






8

• //TPEIN DD UNITTAPE,DSNPR.FLE,
  // DISP(OLD,KEEP,KEEP)

• UNIT - Identifies the data set as a tape file






9

• //TPEIN DD UNITTAPE,DSNPR.FLE,
  // DISP(OLD,KEEP,KEEP)

• DSN (DSNAME)
• Data Set Name
• Identifies the name of the file as recorded in
  the header label when the file was created.






10
Fig. 12.4 The UNIT parameter specifies a
physical device.
11

• //TPEIN DD UNITTAPE,DSNPR.FLE,
  // DISP(OLD,KEEP,KEEP),
  // VOLSER2992
• DISP - Identifies the status of the data set
• Subparameter 1 - at the beginning of the job
  step
• Subparameter 2 - If the job step terminates
  normally
• Subparameter 3 - If the job step terminates
  abnormally.




12
Fig. 12.6 The disposition (DISP) parameter
specifies the files status.
13

• //TPEIN DD UNITTAPE,DSNPR.FLE,
  // DISP(OLD,KEEP,KEEP),
  // VOLSER2992
• DISP - Identifies the status of the data set
• Subparameter 1 - at the beginning of the job
  step




14

• //TPEIN DD UNITTAPE,DSNPR.FLE,
  // DISP(OLD,KEEP,KEEP)

  NEW,DELETE,DELETE
  SHR , PASS,CATLG
  ,CATLG,UNCATLG

  ,UNCATLG,
• OLD - The data set was created in an
  earlier job or job step.
• NEW - The data set is being created in
  the current job step.
•


15

• //TPEIN DD UNITTAPE,DSNPR.FLE,
  // DISP(OLD,KEEP,KEEP),
  // VOLSER2992
• DISP - Identifies the status of the data set
• Subparameter 2 - If the job step terminates
  normally




16

• //TPEIN DD UNITTAPE,DSNPR.FLE,
  // DISP(OLD,KEEP,KEEP)

  NEW,DELETE,DELETE
  SHR , PASS,CATLG
  ,CATLG,UNCATLG

  ,UNCATLG,
• KEEP - The data set is to be saved for
  future use.
• DELETE - The data set is scratched.
• PASS - The data set will remain
  mounted.
• CATLG - The data set cataloged to the Tape
  Library.
• UNCATLG - The data set is uncataloged from the
  Tape Library.



17

• //TPEIN DD UNITTAPE,DSNPR.FLE,
  // DISP(OLD,KEEP,KEEP),
  // VOLSER2992
• DISP - Identifies the status of the data set
• Subparameter 3 - If the job step terminates
  abnormally.




18

• //TPEIN DD UNITTAPE,DSNPR.FLE,
  // DISP(OLD,KEEP,KEEP)

  NEW,DELETE,DELETE
  SHR , PASS,CATLG
  ,CATLG,UNCATLG

  ,UNCATLG,
• KEEP - The data set is to be saved for
  future use.
• DELETE - The data set is scratched.
• CATLG - The data set cataloged to the Tape
  Library.
• UNCATLG - The data set is uncataloged from the
  Tape Library.



19

• Common sense dictates //TPEIN DD
  UNITTAPE,DSNPR.FLE,//
  DISP(OLD,KEEP,KEEP)

20

• Common sense dictates //TPEIN DD
  UNITTAPE,DSNPR.FLE,//
  DISP(NEW,CATLG,DELETE)

21

• //TPEIN DD UNITTAPE,DSNPR.FLE,
  // DISP(OLD,KEEP,KEEP
  ), //
  VOLSER2992


  21

22

• //TPEIN DD UNITTAPE,DSNPR.FLE,
• // DISP(OLD,KEEP,KEEP),
• // DCB(RECFMFB,LRECL300
  ,BLKSIZE600)
• DCB Parameter - supplies data set
  characteristics to be included
  in the data control block.
• RECFM Record Format
• LRECL Logical Record Length
• BLKSIZE Block Size


  22

23
Fig. 12.5 The DCB parameter. The DSORG, MACRF,
and DDNAME must be coded in the program DCB.
24
Disk DD Statement
25

• //DISKIN DD UNITDISK,DSNPR.FLE,
  SYSDA
•



26

• //DISKIN DD UNITDISK,DSNPR.FLE,
  SYSDA
• UNIT - Identifies the data set as a disk file
•



27

• //DISKIN DD UNITDISK,DSNPR.FLE,
  SYSDA PR.FLE
• DSN (DSNAME)
• Data Set Name
• Identifies the name of the file as recorded in
  the header label when the file was created.
• used to indicate a temporary data set
•



28
Fig. 12.7 The SPACE parameter.
29

• //DISKOUT DD UNITDISK,DSNPR.FLE,
  SYSDA
• // SPACE(TRK,(10,10),RLSE,CO
  NTIG), CYL,
  BLKSIZE,
• // DISP(NEW,CATLG,DELETE)
• Type of space allocation
• Primary Allocation
• Secondary Allocation
• Release Any Unused Space
• All Space Must Be Contiguous




30

• //DISKIN DD UNITDISK,DSNPR.FLE,
  // DISP(OLD,KEEP,KEEP)

  NEW,DELETE,DELETE
  SHR , PASS,CATLG
  ,CATLG,UNCATLG

  ,UNCATLG,
• OLD - The data set was created in an
  earlier job or job step.
• NEW - The data set is being created in
  the current job step.
• SHR - The input data set will be
  shared by another job.


31

• //SYSIN DD
• Allows a file to be inputted via the systems
  default input device.
• The asterisk indicates that the data follows
  this DD statement.


  31

32

• //SYSOUT DD SYSOUTA
• Allows a file to be outputted to the systems
  default output device.
• Normally implies printer output.
• The value of SYSOUT is dependent upon your
  installation.


  32

33

• //DISKIN DD DUMMY
• Allows a file to be ignored, or dummyed out.
  This process will be allowed as long as the
  logic of the program will allow the file to
  be dummyed out.


  33

34

• //DISKIN DD UNITDISK,DSNPR.FLE,
• //
  DISP(OLD,KEEP,KEEP),


  34

35

• CONCATENATING DATA SETS
• // INDATA DD DSNCURORDR,UNITTAPE, //
  VOLSERK90221, //
  DISP(OLD,KEEP,KEEP)
  // DD DSNPREVORDR,UNITAFFINDA
  TA, //
  VOLSER14552,DISP(OLD,KEEP,KEEP) //
  DD DSNINV,UNITAFFINDATA, //
  VOLSER866221,DISP(OLD,KEEP,KE
  EP)




36
Data Control Block Table

• As the Job Stream JCL is checked, the information
  in the DD statements is used to create an entry
  for the data sets in the DCB Table.
• Once the DCB Table is completed, the JCL is then
  checked for accuracy and validity.
• If any errors are discovered, they are documented
  on the JCL Listing (MSGLEVEL parameter) and the
  job is not run.

37
Backward References

• Using the DCB Table entries, Backward References
  (Refer Backs) can take place.

38
Backward References

• //OSJCL JOB (OSJCL,04/03/98),M. R.
  IZZO, // CLASS
  T,MSGLEVEL(1,1), //
  MSGCLASS A //STEP1 EXEC PGMCALC
  //DD1 DD UNITTAPE,DSNFILE1,
  //
  DISP(OLD,KEEP,KEEP) //DD2 DD
  UNITTAPE,DSNFILE2, //
  DISP(OLD,KEEP,KEEP) //DD3 DD
  UNITTAPE,DSNFILE3, //
  DISP(NEW,PASS,DELETE)


  38

39

• //REPORT DD SYSOUTA
• //SYSUDUMP DD SYSOUTJ //CRDIN
  DD Card Input
  / //STEP2 EXEC
  PGMCALC2 //DD4 DD
  UNITTAPE,DSN.STEP1.DD3, //
  DISP(OLD,KEEP,KEEP)
  //REPORT2 DD SYSOUTA //SYSUDUMP DD
  SYSOUTJ //




40
DCB Table

41
DCB Table

42
DCB Table

43
DCB Table

44
DCB Table

45
Compiler Return Codes

• Level W - Warning - Return Code 4
• Level C - Condition - Return Code 8
• Level E - Errors - Return Code 12
• Level F - Fatal - Return Code 16


  45

46
Compile, Link, Execute

• //OSJCL JOB (OSJCL,04/03/98),M.R.I
  ZZO,//
  CLASST,MSGLEVEL(1,1),//
  MSGCLASSA//COB EXEC
  PGMIKFCBL00,PARMLOAD//SYSPRINT DD
  SYSOUTA//SYSUT1 DD UNITSYSDA,//
  SPACE(460,(700,100))
  //SYSUT2 DD UNITSYSDA,//
  SPACE(460,(700,100))


  46

47

• //SYSUT3 DD UNITSYSDA,//
  SPACE(460,(700,100))//SYSUT4 DD
  UNITSYSDA,//
  SPACE(460,(700,100))//SYSLIN DD
  DSNAMELOADSET,//
  DISP(MOD,PASS,DELETE),//
  UNITSYSDA,SPACE(80,(500,100))//SYSIN
  DD Source Input/


  47

48

• //LKED EXEC PGMIEWL, //
  PARM(LIST,XREF,LET), //
  COND(5,LT,COB)
  //SYSLIN DD DSNLOADSET, //
  DISP(OLD,DELETE,KEEP)
  //SYSLMOD DD DSNGOSET(GO), //
  DISP(NEW,PASS,DELETE), //
  UNITSYSDA, //
  SPACE(1024,(50,20,1))
  //SYSUT1 DD UNITSYSDA, //
  SPACE(1028,(50,20))
  //SYSPRINT DD SYSOUTA


  48

49

• //GO EXEC PGM.LKED.SYSLMOD, //
  COND((5,LT,COB),(5,LT,LKED))
  //TPEIN DD UNITTAPE,DSNPR.FLE, //
  DISP(OLD,KEEP,KEEP), //
  DCB(RECFMFB,LRECL150), //
  DCB(BLKSIZE300), //
  VOLSER00978 //TPEOUT DD
  UNITTAPE,DSNPR.FLE, //
  DISP(NEW,CATLG,DELETE), //
  DCB(RECFMFB,LRECL150), //
  DCB(BLKSIZE300)


  49

50

• //DSKIN DD UNITDISK,DSNPR.TRANS,
  //
  DISP(OLD,KEEP,KEEP), //
  DCB(RECFMFB,LRECL200), //
  DCB(BLKSIZE400) //DSKOUT
  DD UNITDISK,DSNED.PR.TRANS, //
  DISP(NEW,CATLG,DELETE), //
  SPACE(TRK,(10,5),RLSE
  ) //PRT DD SYSOUTA
  //SYSUDUMP DD SYSOUTA //CRDIN DD
  Card Input / //


  50

51
Fig. 12.1 One data control block is coded for
each file accessed by a program.
52
Fig. 12.2 The linkage editor adds an access
method to the load module.
53
Fig. 12.3 The link to a specific physical device
is established at OPEN time.
54
Magnetic Disk Parameters

• UNIT
• DCB
• DISP
• DSNAME
• VOLUME
• SPACE

55
Fig. 12.8 Some examples.
56
Fig. 12.8 Some Examples
57
Magnetic Tape Parameters

• UNIT
• DCB
• DISP
• DSNAME
• VOLUME
• LABEL

58
System Input and Output

• Spooling -- slower devices
• System input device
• //SYSIN DD
• System output device
• //SYSOUT DD SYSOUTA

59
Fig. 12.9 The DDNAME can be qualified if it is
part of a catalogued procedure.
60
Fig. 12.10 Code the library member name as part
of the DDNAME.
61
Fig. 12.11 A complete set of JCL to support an
assemble, link edit, and go job.
62
Fig. 12.11 Continued
63
Fig. 12.11 Continued
