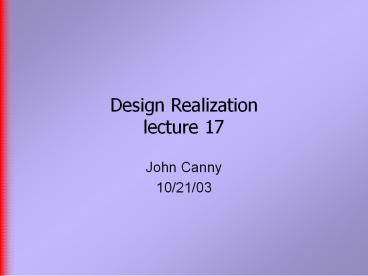

Title: Design Realization lecture 17


1
Design Realization lecture 17
  • John Canny
  • 10/21/03

2
Last Time
  • Electronics A/D boundary

3
This time
  • Processors and networks
  • Printed-circuit board design
  • Sensors

4
The art of electronics
  • Practical electronics departs in several ways
    from the ideal model
  • There is no perfect wire. Every connection has
    finite resistance and finite inductance. If
    either high current, or high frequency current
    passes through a connection, it will cause a
    voltage drop.
  • This is particularly acute for power supply wires.

5
Stray capacitance
  • There is no perfect connection point. Any two
    conductors near each other form a capacitor. Such
    stray capacitance can be strong between nearby
    conductors on either side of a PC board, or
    between pins on a chip.
  • These effects are worst at high frequencies, and
    with high voltages.

6
Feedback and isolation
  • For both these reasons its a good idea to
    physically separate large signals from small
    ones, especially if the system does large
    amplification (say 100-1000 times) because the
    large signals are controlled by the small ones,
    which can lead to feedback and uncontrolled
    oscillation.
  • Dont try for too much gain from a single stage
    amplifier.

7
Power supply bypass
  • Capacitors (and inductors or resistors) can be
    used to isolate component power supplies

8
Printed circuit boards
  • The most widely-used connection system for
    electronics.
  • Typically epoxy or other plastic board with
    copper conductors.
  • Usually two or more layers of conductor.
  • Holes are drilled and copper-plated to allow
    component insertion connects between layers.
  • There are other prototyping systems for circuits,
    but its often best to go straight to board
    design
  • Start dealing with layout issues immediately.
  • Avoids difficulties due to the prototyping
    hardware.

9
PCB tips
  • Main idea is to join the component pins that need
    to be joined, but there are some tips
  • Ground and power conductors should be large, as
    straight and direct as possible.
  • All conductors should be as short and direct as
    possible (avoid sharp turns which increase
    inductance).
  • For two-sided boards, it often helps to prefer
    horizontal runs on one side, vertical on the
    other.

10
PCB tips
  • Keep large signals away from small ones.
  • Place bypass capacitors physically close to the
    pins being bypassed.
  • Use sockets for expensive components, or
    components that may need to be replaced.

11
PCB systems
  • ExpressPCB is a software system for fabricating
    small boards, which can be sent directly to the
    vendor for fab.
  • Also draws schematics.
  • EX USB and serial sensor boards.

12
Processors and networks
  • For a device to be intelligent it needs some
    computation (a processor) and some communication
    (a network).
  • In the simplest case, the processor only
    provides communication between some sensors and a
    remote computer.
  • This is the idea behind the 1-wire system.

13
1-wire system
  • The wire carries both power and communication,
    hence 1-wire.
  • You still need a ground wire, so this is really a
    2-wire system.
  • You talk to 1-wire devices directly through an
    interface chip, either serial or USB.

14
1-wire system
  • DS2480B a serialto 1-wire interface.
  • TXD and RXD areserial data (POL setspolarity)
  • GND, VDD, VPP arepower lines.
  • 1-wire goes to the bus.

15
1-wire system
  • On a 1-wire bus, you can add A/D and D/A
    converters, thermometers, timers,
  • Each device has a unique address. The main
    processor can query the bus to find all the
    devices on it. Then it calls them individually.
  • Example

16
1-wire advantages
  • Simplest hardware, cheap, small devices. Two or
    3-wire bus possible.
  • High-level drivers already written (in C, Java
    and MS Com).
  • Interfaces for serial or USB.

17
1-wire disadvantages
  • Slow hard to achieve more than 30kb/s (although
    100k is theoretically possible). Only useful for
    slow sensors temp., light, etc.
  • Missing interfaces PWM, r/c servo control
  • Low quality software speed and reliability
    issues
  • Some software only available for PCs (no source
    code).

18
Single-chip microcontrollers
  • Microchips PIC chips (also Atmel)
  • Virtually everything is on one chip (PIC specs)
  • Processor (8/16-bit)
  • Program memory (512 32k words)
  • Data memory (80 3k bytes)
  • A/D converters (up to 16 x 10-bit channels)
  • PWM converters (up to 14 x 10-bit channels)
  • Standard serial bus up to 6Mb/s (RS232-RS485)
  • Two-wire industrial bus (CAN bus, up to 2Mb/s)
  • Hardware timers (real-time program threads)
  • PIC pin counts range from 8 to 80 pins.

19
PIC programming
  • Simple to program available C compilers
  • Some not reprogrammable, but many have either
    flash or UV-erasable program memory
  • Limited program/data memory but seems to match
    typical PIC applications well.
  • Arithmetic performance weak, most dont have
    hardware multiply but new generation of
    PIC/DSPs have much more arithmetic power.

20
PIC advantages
  • Very wide range of applications, low cost (10)
  • Often a one-chip solution (plus timing crystal).
  • Increasingly sophisticated network support
    (integrated CAN bus).
  • Programming is quite easy (C compilers or
    assembly code).

21
PIC disadvantages
  • Limited memory for program or data.
  • Slow arithmetic.
  • High-level network support missing (e.g. ethernet
    or USB).

22
SOC Systems on a Chip
  • More powerful processor ethernet controller,
    e.g. Gridconnect GC-LX-001 (25)
  • Communicate with other chips using SPI (Serial
    Peripheral Interface) a short-range serial
    protocol with a speed of 10 Mb/s.
  • Can be used with a PIC chip for other I/O.
  • Is it really a system-on-a-chip? (board costs
    300, chip has 180 pins!!). Complex supporting
    hardware.

23
SBC Single-Board Computers
  • Applications that are too large for one or more
    chips fall in the single-board computer realm
    (note a multi-PIC solution will often be cheaper
    than an SBC).
  • There are many options here. CPUs range from
    simple 8-bit (68HC11) to Pentium IV PCs.
  • Cheapest option (?) the Dallas TINI board
    ethernet, Java, 1-wire, CAN-bus, 100

24
SBCs
  • If you need an SBC beyond TINI you probably
    already know why ?.
  • Too many choices to summarize here, but be sure
    to consider using a PDA
  • Price/performance very good compared to OEM SBCs
  • You get a screen, pointer and some interface
    buttons
  • Performance primitives for Intel chipset
    hardware, useful for cryptography, signal and
    image processing.

25
Networking
  • Simplest way to communicate with a small CPU
    serial port or RS232.
  • One transmit wire, one receive wire, plus ground
    3 wires only are sufficient.
  • Flow control wires in both directions (4 total),
    need these if software expects them.
  • Traditional RS232 works up to 115kb/s

26
Serial Networking
  • Slight tweaks on RS232 RS422 and RS485.
  • RS422 is a faster version of RS232 individual
    signal wires are replaced by twisted pairs, which
    can be driven faster (10Mb/s, up to 40 ft).
  • RS485 is a multi-drop version of RS422 in half
    duplex mode, many nodes can send and receive on
    the same twisted pair (10 Mb/s). RS485 is a true
    network and a good choice for networks of
    simple devices.

27
Control Networking
  • For industrial control, several bus standards
    exist, including CAN (Controller Area Network)
    and LIN (Local Interconnect Network).
  • CAN has a full protocol stack like TCP/IP, for
    packet communication, routing, and error
    recovery. Hardware built into some PICs.
  • It is a true multi-drop 2-wire standard, like
    RS485, no hubs are needed.
  • CAN is designed to be reliable in very noisy
    environments (automobiles and industry), but is
    rather slow (1 Mb/s) and code is complex.

28
USB
  • USB or Universal Serial Bus is a popular option
    for external device communication. USB 2.0 is
    very fast (480 Mb/s), USB 1.1 is 12 Mb/s.
  • Its a 4-wire system, which is really
    point-to-point. A network is built using hubs.
  • Tricky to use for small networks, because of
    topology constraints (limited depth - limited
    nodes in a chain), and the need for many hubs.

29
Ethernet
  • Like USB, really a point-to-point topology, so
    hubs needed to build networks.
  • Ethernet driver chips relatively complex and
    expensive and the protocol (TCP/IP) is complex.
  • Still the best way to put a device on the
    network without a supporting computer.

30
Irda
  • Infrared protocol based on serial communication.
    Many serial modules (e.g. the ones in PICs)
    support Irda.
  • 2 Mb/s common.
  • Very limited range, high power required.

31
Bluetooth
  • Very popular wireless standard.
  • Class 2 Bluetooth (20m range) available via
    compact (1 x ½) modules for 60-70.
  • Communication via fast serial or USB. 768 kb/s
    typical.
  • Some support for analog data,including speech.
  • See http//www.btdesigner.com/

32
Summary
  • PC board design and layout issues.
  • Processor classes 1-wire, single-chip
    micro-controllers, systems-on-a-chip,
    single-board computers, and PDAs.
  • Networks RS232 and its variants, CAN-bus, USB,
    ethernet, Irda, Bluetooth.
