Resonance: Dynamic Access Control in Enterprise Networks

1

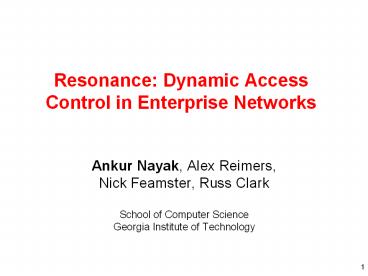

Resonance Dynamic Access Control in Enterprise
Networks

• Ankur Nayak, Alex Reimers,
• Nick Feamster, Russ Clark
• School of Computer Science
• Georgia Institute of Technology

2
Motivation

• Enterprise and campus networks are dynamic
• Hosts continually coming and leaving
• Hosts may become infected
• Today, access control is static, and poorly
  integrated with the network layer itself
• Resonance Dynamic access control
• Track state of each host on the network
• Update forwarding state of switches per host as
  these states change

3
State of the Art

• Todays networks have many components bolted on
  after the fact
• Firewalls, VLANs, Web authentication portal,
  vulnerability scanner
• Separate (and perhaps competing) devices for
  performing the following functions
• Registration (based on MAC addresses)
• Scanning
• Filtering and rate limiting traffic

4
Authentication at GT START
3. VLAN with Private IP
7. REBOOT
Switch
.1. New MAC Addr
2. VQP
6. VLAN with Public IP
VMPS
New Host
4. Web Authentication
5. Authentication and Scanning Result
ta
Web Portal, Scanner
5
Problems with Current Architecture

• Access Control is too coarse-grained
• Static, inflexible and prone to misconfigurations
• Need to rely on VLANs to isolate infected
  machines
• Cannot dynamically remap hosts to different
  portions of the network
• Needs a DHCP request which for a windows user
  would mean a reboot
• Monitoring is not continuous

Idea Express access control to incorporate
network dynamics.
6
Resonance Methodology

• Step 1 Associate each host with generic states
  and security classes
• Step 2 Specify a state machine for moving
  machines from one state to the other
• Step 3 Control forwarding state in switches
  based on the current state of each machine
• Actions from other network elements, and
  distributed inference, can affect network state

7
Applying resonance to START
Infection removed or manually fixed
Quarantined
Registration
Failed Authentication
Successful Authentication
Still Infected after an update
Operation
Clean after update
Authenticated
Vulnerability detected
8
Resonance Step by Step
DHCP Server
Web Portal
Openflow Switch
Controller
1. DHCP request
2. Web Authenticai- tion
Internet
4. To the Internet
3. Scanning
New Host
9
Preliminary Implementation OpenFlow

• OpenFlow Flow-based control over the forwarding
  behavior of switches and routers
• A switch, a centralized controller and end-hosts
• Switches communicate with the controller through
  an open protocol over a secure channel
• Why OpenFlow?
• Dynamically change security policies
• Central control enables
• Specifying a single, centralized security policy
• Coordinating the mechanisms for switches
• Granularity of control. VLANs dont provide that
  granularity

10
Resonance Controller NOX

• NOX Programmatic interface to the OpenFlow
  controller
• Ability to add, remove and reuse components
• We are building the Resonance controller using
  NOX

11
Research Testbed
12
Potential Challenges

• Scale
• How many forwarding entries per switch?
• OF switches support 130K flow entries and 100
  wildcard entries.
• How much traffic at the controller?
• Performance
• Responsiveness
• Security
• MAC address spoofing
• Securing the controller (and control framework)

13
Summary

• Resonance An architecture to secure and maintain
  enterprise networks.
• Preliminary design
• Application to Georgia Tech campus network
• Planned evaluation
• Many challenges remain
• Scaling
• Performance

Questions?
