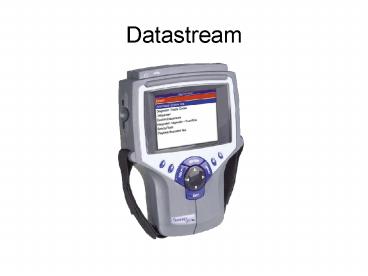

Datastream

1
Datastream
2
Scroll to Datastream and press Enter
Enter
Scroll to Datastream
3

4
Press the More soft key, scroll to Sort, and
press Enter
Press the More soft key
Scroll to Sort
Enter
5
Scroll to By Alphabet and press Enter
Enter
Scroll to By Alphabet
6
Scroll down to Eng Oil Pressure
Scroll down to Eng Oil Pressure
7
Press the Graph soft key
Press the Graph soft key
8
Scroll to the right and then scroll up to
highlight Eng Throttle Pos
Scroll right up to Eng Throttle Pos
9
Press the Graph soft key
Press the Graph soft key
10

11
Press the More soft key and scroll to Sort and
press Enter
Press the More soft key
Scroll to Sort
Enter
12
Scroll to By Graphed and press Enter
Enter
Scroll to By Graphed
13
Scroll to the right and highlight Eng Coolant
Level
Scroll to Eng Coolant Level
14
Press Enter to Lock
Enter
15
Scroll to the right and then up one to highlight
Eng Oil Level
Scroll to Eng Oil Level
16
Press Enter to Lock
Enter
17

18
Press the More soft key and scroll to Sort and
press Enter
Press the More soft key
Scroll to Sort
Enter
19
Scroll to By Locked and press Enter
Enter
Scroll to By Locked
20

21
Press the More soft key and scroll to English
Units and press Enter
Press the More soft key
Scroll to English Units
Enter
22
Press the More soft key, scroll to Zoom and press
Enter
Press the More soft key
Enter
Scroll to Zoom
23
Scroll to Engine Oil Pressure, press the Analog
soft key
Press the Analog soft key
Scroll to Eng Oil Pressure
24
To return a data item to digital, highlight the
item and press the 123 Digital soft key
Press the 123 Digital soft key
25

26
Press the Record soft key to record 1000 frames
of Datastream, the Event will be named Live Data
Press the Record soft key
27
Scroll to the left to review 184 frames of what
has happened that is temporarily recorded in
continuous loop while in Datastream
Scroll to left
28
To review temporary recorded Datastream later,
press the Record soft key to place the recording
in memory, the Event will be named Freeze Frame
Press the Record soft key
29
Exit
Exit
30
Exit
Exit
