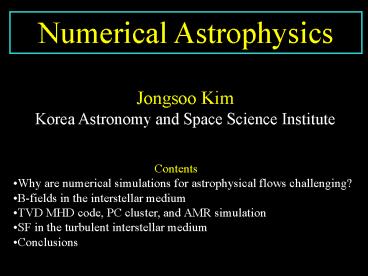

Numerical Astrophysics
Jongsoo Kim Korea Astronomy and Space Science
Institute

•
  Contents
• Why are numerical simulations for astrophysical
  flows challenging?
• B-fields in the interstellar medium
• TVD MHD code, PC cluster, and AMR simulation
• SF in the turbulent interstellar medium
• Conclusions

2

• Radiative Transfer and (M)HD

3

• N-body simulations

4
Why are numerical simulations for astrophysical
flows challenging?

• Interaction between matter and radiation
• - ultimate goal of numerical experiments is
  to provide information what can be compared with
  observations.
• - 6-D (3D in space, 2D in direction, 1D in
  frequency) problem
• Huge dynamic range
• - for example, need more than 20
  orders-of-magnitude density dynamic range from a
  MC to stars.
• Multi-physics
• - self-gravity, magnetic field, relativistic
  effect, etc

• Indeed, numerical simulations are challenging.
  However, they provide us with a unique laboratory
  for astrophysical experiments.
• ? Due to the rapid development of the computer
  technology and algorithm, numerical simulations
  are now quite successful.

5
Topics covered in this workshop

• B-Fields and Star Formation (Jongsoo Kim)
• MHD instabilities (Seung Soo Hong)
• MHD turbulence (Jungyeon Cho)
• Cosmology (Juhan Kim)

6
How do astronomers measure magnetic fields in the
interstellar medium?

• Starlight (due to dust absorption) and IR (dust
  emission) polarizations
• Faraday rotation
• Synchrotron radiation (for external gals.)
• Zeeman splitting

7
Dust Polarization
magnetic field line
dust grain
dust emission
dust absorption
8
Starlight polarization
Heiles Crutcher 2005

• The magnetic field is generally parallel to the
  plane of the Galaxy.
• Polarization directions point to l80 deg and
  l260 deg, which is the orientation of the local
  spiral arm.
• Bu/Br 0.7 1.0

9
IR polarization
Crutcher et al. 2004

• B80mG estimated based a C-F method

10
Are magnetic fields dynamically important? Yes.

• Sun Most active phenomena are due to a
• B-field in the Sun.
• Stars Magnetically controlled star formation
  compact objects (neutron stars and accretion
  disks ...)
• The ISM Energy density of the B-field is
  comparable to those in other energy forms.
  (large-scale structure, CR generation, etc)
• The Galaxy Dynamo vs. Primordial
• Cosmology Origin of the B-field

11

(Isothermal) MHD equations

• Slow time variation
• Small drift velocities between electrons and
• ions
• Ohms law
• Non-relativistic transform between the ion and
  the lab. rest frames

12
(Kim et al. 1999)
MHD Shock Tube Test
13
The MHD code was parallelized using basic eight
MPI routines.
Eight Basics
routines MPI_INIT
initialization MPI_FINALIZE termination
MPI_COMM_SIZE define number of
processors MPI_COMM_RANK give a rank on each
processor MPI_SEND send
messages MPI_RECV receive
messages MPI_BCAST send messages
to all processors MPI_REDUCE reduce
values on all the processors to
a single value
14
Domain decomposition
communication
PE0
PE1
PE2
PE3
15
KASI-ARCSEC CLUSTER

• The cluster was built by the fund from KASI and
  ARCSEC.
• A dedicate cluster for astronomers in Korea.
• 5 SCI papers / year

16
Test problem for a benchmark for the PC cluster
17
Speed-up of the IMHD code
18
Myers et al. 1986

• CO 2.6m, 150micron, 250micron,
• 6cm radio continuum,
• H 110alpha recombination
• inner Galaxy, -1 deg lt b lt1 deg,
• 12 deg lt l lt 60deg
• 54 molecular cloud complexes
• mean SFE mean Ms/(MsMc)2

19
Observed SFEs

• Observed SFE Ms/(MsMc) is
• - 2-3 for the molecular cloud complexes in
  the inner Galaxy (e.g., Myers et al. 1986)
• - 10-30 for cluster-forming cores (e.g., Lada
  Lada 2003)
• SF theories should explain the low SFEs
  (Zuckerman Evans 1974).

20

Two SF Theories
SF regulated by AD
SF regulated by turbulence
magnetically supercritical cloud. (B-field is not
important ingredient.)
magnetically subcritical cloud
21
Magnetically subcritical case, m0.9

• Most density peaks are transient with lifetimes
  at most 1.5Myr.
• The AD timescale is comparable to the lifetimes
  of longest-lived clumps. ? The cores may undergo
  AD-mediated evolution if AD is included even in a
  strongly turbulent, subcritical flow.

22
Magnetically supercritical case, m2.8

• A few collapsing cores are formed.
• First collapsing object goes from first
  appearance to a fully collapsed state in less
  than 1 Myr, twice of the local free-fall time.

23
Core Formation Efficiency (SFE)
0.12
0.04
M (ngt500n0)
0.05
2.8
8.8
0.025
lifetime of cloud 4Myr (e.g, Hartmann et al.
2001)

• CFE is dependent on the seed for random driving
• velocity fields (Heitsch et al 2001).
• CFEs are lower than 10 in most cases.

24
Conclusions

• Even though numerical simulations for
  astronomical flows are challenging, some of them
  are quite successful due to rapid development of
  the computer technology and algorithms.
• B-fields are important in almost everywhere in
  the Universe.
• A medium-size cluster based on the Gigabit
  interconnect is fairly good for MHD simulations.
• A SF theory based on turbulence is gaining its
  momentum.
