Jordan C. AlpertNCEPEMC jordan.alpertnoaa.gov

1
EMC

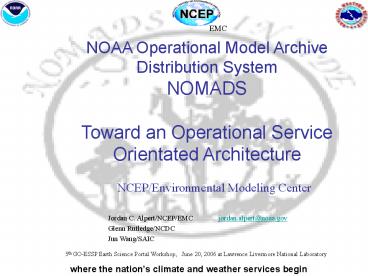

NOAA Operational Model Archive Distribution
SystemNOMADS Toward an Operational Service
Orientated Architecture

NCEP/Environmental Modeling Center
Jordan C. Alpert/NCEP/EMC jordan.alpert_at_noaa.gov
Glenn Rutledge/NCDC Jun Wang/SAIC
5th GO-ESSP Earth Science Portal Workshop, June
20, 2006 at Lawrence Livermore National
Laboratory
where the nations climate and weather services
begin
2
NOMADS Web Page

• Completely
• re-designed.
• Uses php
• Easier navigation
• Better
• Documentation
• NOMADS is
• renamed
• NOAA National

3
What is service oriented architecture?
Vision
NOMADS is a distributed service oriented
architecture, a system-of-systems integration
based on using loosely coupled connections among
independent systems to create a scalable,
extensible, interoperable, reliable, and secure
framework.
reliable?
4
What is NOMADS? (cont)

• A digital archive of NOAAs operational weather
  models, and an innovative data access philosophy
  to promote interoperable access across the
  geosciences (BAMS, Rutledge et. al., 2006).
• A Pilot project at NCEP that advances integration
  of real time model data.
• NOMADS An integrator of common web services
  infrastructure to support the discovery, access
  and transport of data (NOAA GEO-IDE Document).

5
The NOAA Operational Model Archive and
Distribution System
NOMADS Goals

• provide distributed access to models and
  associated data,

• promote model evaluation and product
  development,

• foster research within the geo-science
• communities (ocean, weather, and climate)
• to study multiple earth systems using
• collections of distributed data,

• develop institutional partnerships via
  distributed open technologies.

6
Service oriented Goals (DMIT)
Goals

• To take advantage of internet technology
  opportunities.
• Improve efficiency and reduce costs by bridging
  the barriers between existing, independent stove
  pipe systems.
• Integrate the data management activities of NOAA
  projects.
• Individual components retain responsibility and
  authority within the context of a systematic set
  of principles.
• To Develop and adopt standards for metadata, data
  discovery and data transports, formats and
  protocols.

7

The operational (reliability) problem
To provide Operational Services where security,
timeliness (time critical) and reliability are
paramount. Operational public access services
for public access to data, products and
information services. Scientific services where
efficient and flexible discovery and access to
data sets is required. Commercial value-added
services and user client applications.
8
NOAA/NCEP Operational ftp Services For Model Data

• Two centers (ftpprd and operational official
  tgftp)
• Standard ftp servers
• Load balance, Fail over, State of the art
  hardware and 24/7 support.
• A little difficult to navigate (e.g., file
  naming convention)
• Entire files (0.25GB) must be downloaded when
  only small portions may be necessary.
• Holdings not complete
• (0.5 degree GFS, NAM hourly, Ensembles)
• Complete and fast ftp (Partial ftp transfers),
  a NOMADS user client application, for official
  ftp data set holdings is under discussion.

The understatement of the year
9
(No Transcript)
10
What the user sees at the operational ftp site
Example of tgftp location for GFS model (first
entry) files from June 15
ftp//tgftp.nws.noaa.gov/SL.us008001/ST.opnl/MT.gf
s_CY.00/RD.20060615/PT.grid_DF.gr1
An Excerpt from the list of 500 files, note name
and size
File fh.0030_tl.press_gr.onedeg 26562 KB
06/15/2006 File fh.0030_tl.sflux
42981 KB 06/15/2006
Excerpt from the ftpprd inventory description
Inventory of File gfs.t00z.pgrbanl Model
GFS Cycle 00 UTC Forecast 0 HRS Number of
Records 267 Grid Identification 3 Number
Level/Layer Parameter Description 0001 1000
ISBL HGT 1000 hPa isobaric level Geopotential
height gpm 0002 975 ISBL HGT 975 hPa
isobaric level Geopotential height gpm 0003
950 ISBL HGT 950 hPa isobaric level
Geopotential height gpm
11
Toward Operational services

• We know how to do the hardware part.
• load balance, fail over, 24/7, redundancy
• What about users usage of the applications, e.g.,
  DAP and GDS and others
• Operationalise data flow to NCDC from NCEP.
• GRIB2 with jpeg packing increases CPU resources
  needed.
• Software to handle sub-seting and GRIB2
• GDS, OPeNDAP, and other applications need GRIB2
  software stratagy.
• Implement with partial http transfers and index
  files.

12
Highest month 4.3Tb w/3.8 million downloads
NCEP has 1-5Tb /month
User Statistics
NCDC Only
BAMS Paper
13
Real Time (NCEP) nomad3 server

• GDS/OPeN(DAP) DODS typically 250,000
  queries/day from the GDS log (already /2).
• pdisp (Great Displays) 2694/day.
• http access_log 200,000 hits/day
• ftp2u (fast ftp index download) over 5/11 6/15
• 8,623 repackaged GRIB downloads/day.
• Need better ways of evaluating use for good
  health and for comparison of servers.

14
Real Time (NCEP) NOMADS Server

• Users query files that are not present in tight
  loops.
• During the 12 hours 00Z-12Z on June 1, of the
  371 different users who queried the httpd server
  error_log, the top 7 users with the most queries
  are listed
• queries User
• 1579 hawaii.edu
• 1616 abo.wanadoo.fr
• 1870 natpool.mwn.de
• 3293 accuweather.com
• 4039 saildocs.com
• 7864 hmg.inpg.fr
• 100465 labsolar.ufsc.br

A solution Check log file (error_log) user
access rate. If the rate criteria (6/minute) is
exceeded then place users IP address in IP
tables to block access for that IP address for a
period of time (10 minutes). Placing users in
a penalty box when they are repeatedly
accessing the server in tight loops is the same
as users placing a sleep 600 command or wait 10
minutes in their unix script for loop. This
represents a throttle that can be applied to
other situations such as many GDS queries when
one is needed.
15
Multiple paths to format independent data access
The NOMADS System Design
16
Search, Discovery, Access, and Analysis

• A metadata server, DIMES (Distributed Metadata
  Server) integrated with GDS to form MIDAS
  (Kafatos, Yang, Zhao)
• Metadata Integrated Data Analysis Server
• Content consistency between data server and
  metadata server.
• Interactive metadata search and data access and
  analysis.
• Potential for more effective and efficient
  searching.
• Potential for better interfaces.
• More seamless transition from data search to data
  access.
• Uses XML to represent, store, retrieve and
  interoperate metadata with minimum semantic
  enforcement.
• Contains a metadata model, XML query engine,
  web-based prototype interface.
• Enables the application power of Grads and GDS
  server side data analysis.

17
One can search by Time resolution (forecast
time), Spatcial resolution, Search_Space
(region), Search_Time (Cycle), and Text (variable
and other Title text in the Metadata file.
18
(No Transcript)
19
After selection of the Time and Space Box, the
user can generate an sdfopen URL command
including functionality, e.g, time or space
averaging, for further processing or generate
the DODS URL and run GrADS client script and
interactive commands.
20
Future Plans

• Incorporate NOMADS functionality into CLASS
  (Comprehensive Large Array Stewardship system)
• Enhance the NCEP real time servers at NCDC and
  place in NCDC operations.
• Operationalise the data flow from NCEP to NCDC.
• Existing Operational NOAA servers can be enhanced
  with NOMADS service orientated architecture and
  administrators.
• Support working prototypes for proof of concept
  and continued development toward improved
  services.
