Spreadsheets

1
Spreadsheets
Spreadsheets

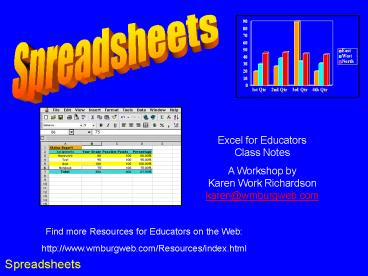

Excel for Educators Class Notes A Workshop
byKaren Work Richardsonkaren_at_wmburgweb.com
Find more Resources for Educators on the
Web http//www.wmburgweb.com/Resources/index.html
2
Spreadsheet Basics
Words to Know Spreadsheet Column Row
Cell Cell Address

• Used to organize and analyze information
• Made up of columns and rows
• Columns and rows intersect to form cells
• Column letter plus row number makes cell address

3
Spreadsheet Basics
Words to Know Spreadsheet Column Row
Cell Cell Address
Column A
Column B
Column C
Row 1
Row 2
Row 3
A7
B4
C10
D5
Cells with addresses
4
Spreadsheet Basics
Words to Know Entry Bar Active Cell
Format Alignment
Entry Bar Area where the text, number, or
formula in the active cell is displayed. Also
called the Formula Bar
Active Cell Cell in use, address shown beside
formula bar
Format A change in the appearance of a value or
label in a cell. In this example, cell A1 is
bold. Cell D7 is formatted to display as a
percentage.
Alignment The placement of information within a
cell at the left edge, right edge, or centered.
In this example, the cells in column A are
centered. The cells in column B are right
aligned.
5
Spreadsheet Basics
Words to Know Cell range Column width
Column Heading
Cell Range A continuous group of selected
cells. This range includes cells A1 through D10.
Row Heading
Column Width Column widths may be varied to
display data correctly.
Tip To select an entire column or row, click on
the column or row heading.
6
Spreadsheet Formulas

• A combination of values or cell references and
  mathematical operators
• Mathematical Operators - /
• Formulas begin with an equal sign
• The actual formula displays in the entry bar
• The results of the formula display in the cell

7
Spreadsheet Formulas
Words to Know Formula Mathematical
Operators
Formula Combination of values or cell
references and mathematical operators such as ,
-, /,
The formula displays in the entry bar. This
formula is used to add the values in the four
cells. The sum is displayed in cell B7.
The results of a formula display in the cell.
8
Spreadsheet Formulas

• Examples of formulas
• Add cells B4, C4, D4, and E4 B4C4D4E4
• Subtract cell F10 from cell F9 F9-F10
• Multiply cells A3 and A4 A3A4
• Divide cell D5 by cell D6 D5/D6

Always use cell references instead of values in
your formulas! That way, when the values change
the formulas gets updated.
9
Spreadsheet Functions

• Functions are built-in shortcuts for making
  calculations with a range of cells
• Most common is SUM (used to add cells)
• AUTOSUM button ? adds in one step
• AVERAGE function finds the average by adding the
  numbers and dividing by the number of items
• MIN function finds the minimum value in a range
• MAX function finds the maximum value in a range

10
Spreadsheet Functions

• Some Sample Functions
• Add together cells B3 through B7
• SUM(B3B7)
• Find the average of cells D4 through D8
• AVERAGE(D4D8)
• Find the minimum value in the cell range E43E52
• MIN(E43E52)
• Find the maximum value in the cell range E43E52
• MAX(E43E52)

11
AVERAGE Function
There are three ways to find the average of the
cell range A1A5 AVERAGE(A1A5) (A1A2A3A4A5
)/5 SUM(A1A5)/5
12
The MEDIAN Function
MEDIAN(A1A5)
The MEDIAN average is the number found in the
middle of a sorted list 40,00063,00074,000
85,00098,000
The median is 74,000 because it is in the middle
of the list.
100,000 110,000 120,000 160,000 220,000 240,
000
The median is 140,000 the mean average of the
two center numbers. (120,000160,000)/2140,000
13
Functions In Action
The SUM function is used to find the total of
cells C3, C4, C5 and C6. The same calculation
could be done using a mathematical operator
C3C4C5C6
14
Charts
Data Selected B5-C6
15
Charts

• Chart Wizard makes chart creation easy
• Select data to be displayed
• Use Ctrl key to select data that isnt adjacent
  (ex. A2-A4 AND C3-C5)
• Chart is linked to worksheet data so it gets
  updated as data changes

16
Chart Parts, Part One

• Axis Values created from the worksheet data
• Category Names column or row headings
• Series Names (legend) column or row headings
• Data Markers Each data series shares a pattern

17
Chart Parts, Part Two

• Each part can be formatted for font, style, or
  color
• Can choose to display or not display legend
• Chart Wizard previews your selections
• Can make a column chart in one step by using
  default chart option

18
Data Series

• A group of related data points that are plotted
  in a chart
• Originate from rows or columns on a datasheet
• Each data series in a chart has a unique color or
  pattern
• You can plot one or more data series in a chart

19
Data Series Examples
This spreadsheet has one data series in a column
Number of candies
This spreadsheet has three data series in
columns Bag 1, Bag 2, and Bag 3 OR This
spreadsheet has four data series in rows Blue,
Green, Red, Orange.
20
Data Series to Pie Chart
The title comes from this cell.
Each of the numbers become a slice of the pie.
The legend and labels come from the first column.
21
Data Series to Bar Chart 1
The same set of data can yield two different bar
charts if the data series are in rows or columns.
22
Data Series to Bar Chart 2

• Data Series in Rows
• Each group of columns represents one bag.
• Each column in the group is a color.
• The colors are the DATA SERIES. They appear in
  the legend.

23
Data Series to Bar Chart 3

• Data Series in Columns
• Each group of columns represents one color.
• Each column in the group is a bag.
• The bags are the DATA SERIES. They appear in the
  legend.

24
Pie Charts

• Shows the proportional size of items that make up
  a data series to the sum of the items
• Pie charts have only one data series

25
Title and Axes Names
Chart Wizard Dialog Box
As you enter information into the chart wizard,
you see a preview of your chart.
26
Axes Display
Chart Wizard Dialog Box
Besides naming the axes, you can decide if you
want categories and values to appear.
27
Gridlines
Chart Wizard Dialog Box
Your chart can have very simple or very
complicated gridlines. I prefer very simple.
28
Legend
Chart Wizard Dialog Box
You can choose to have a legend and decide where
it appears. For a chart like this one that only
has one data series, a legend isnt necessary.
29
Values and Labels
Chart Wizard Dialog Box
Labeling your data with the values can make your
chart easier to interpret. When you make a pie
chart, you can label the slices with both values
and percentages.
30
Data Table
Chart Wizard Dialog Box
A data table appears at the bottom of your chart
and shows the data in a table format.
31
Embedded vs. Sheet
Chart Wizard Dialog Box
You can have your chart appear on your sheet or
on a new page of its own within the same
spreadsheet.
32
Formatting Charts
In general, you format chart parts by right
clicking on them. In this slide, all four bars
in the chart are selected (a data series) and any
change made to one bar will be made to all bars.
33
Formatting Charts
To format individual bars (data points), first
select all bars, then click on one to select it.
By right clicking, you can format that particular
bar.
34
Formatting Charts
This chart shows a variety of formatting choices.
