FRECOEMC Cables

1

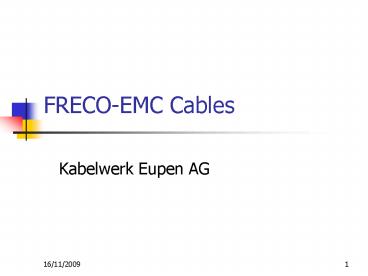

FRECO-EMC Cables

• Kabelwerk Eupen AG

2
Construction
Available cross sections from 4x1.5 to 4x240 mm²
3
Mechanical properties
4
Electrical properties
5
Freco-EMC Conductor

• Copper conductor class 5(bunched conductor)
• Flexibility
• Easy mounting and connection

6
Freco-EMC insulation

• XLPE insulation
• Increased service temperature up to 90C and
  therefor smaller sections
• Lower permittivity as PVC insulation, which leads
  to smaller capacitive load for the
  converter(ePVC 4 and ePE 2.3)

7
Cross sections 1.5 to 16 mm²XLPE vs PVC or PE
insulation
8
Cross sections 25 to 240 mm²XLPE vs PVC or PE
insulation
9
Freco-EMC inner sheath

• Filling and inner sheath under the screen
• Optimal connection of the screen through cable
  glands (see radiation diagrams later on)
• No risk of dammage while cutting off
• Reduced capacity to screen, due to increased
  distance

10
Freco-EMC screen

• Copper tape and copper braid
• Avoids perturbances of sensors and control
  circuits
• High current carrying screen which guarantees a
  low transfer impedance and an optimal screening

11
Transfer impedance the ideal screen the tube
12
TubeExplanation of the curve
Low frequencies
At low frequencies, the current circulates over
the whole cross section of the tube. An
interference current completely overlaps with the
signal current. Transfer impedance corresponds to
the RDC of the tube. At higher frequencies,
the signal current circulates on the outer side
of the inner conductor and on the inner side of
the tube. An interference current circulates
only on the outer side of the tube. The higher
the frequency, the lower is the interference with
the signal current The transfer impedance is
significantly reduced.
High frequencies
13
Transfer impedance of a braid
The transfer impedance starts at low frequencies
at RDC (braid). If the braid is optimized, the
transfer impedance of the braid shows first a
behaviour like a tube and drops. At high
frequencies, the magnetic field of the
interference current penetrates the braid and
induces a voltage drop on the screen. Therefor,
the transfer impedance rises with 20 dB equal to
a multiplicator of 10 for each frequency decade.
14
Transfer impedance optimized vs. normal braid
15
Transfer impedanceFreco-EMC vs. EVAVB vs. LiYCY
16
Optimized design for the screen of a Freco-EMC
cable
To determine the caracteristics of the screen,
different measurements were done. The radiation
of a LiYCY was measured in a RF-anechoïc
chamber. The braid is designed for optimized
screening.
17
Transfer impedanceFreco-EMC vs. EVAVB vs. LiYCY
vs. steel tube with braid
Optimized braid !
18
Connection of a cable with 4 conductors vs. cable
with 3 conductors
Safety ?Good ! EMC ?Bad ! This comon mode
current loop radiates !
Safety ?Good ! EMC ?Good ! The sum of the
currents in the cable is zero !
19
Freco-EMC NBN 30.004 F2

• Fire-retardent acc. to NBN 30.004 F2( IEC
  60332-3 Cat. C)
• safety

20
Freco-EMC IEC 60332-3

• Flame temperature
• Determined by the prescribed propane gas / air
  proportions
• Test duration
• CAT A (7 l combustible material) 40
• CAT B (3.5 l combustible material) 40
• CAT C (1.5 l combustible material) 20 NBN
  30.004 F2
• Conditions
• Burn damage must not extend further then 2.5 m
  from lower burner end

21
Features BenefitsSummary
22
Contact
Information about Freco-EMC Edgar
Heinrichs Tel. [phone] Fax. 32/87/59
70 67 E-mail edgar_heinrichs_at_eupencable.com

• Kabelwerk Eupen AG
• Malmedyer Strasse 9
• EUPEN
• Belgium
• Tel. [phone]
• Fax. [phone]
• http//www.eupencable.com
