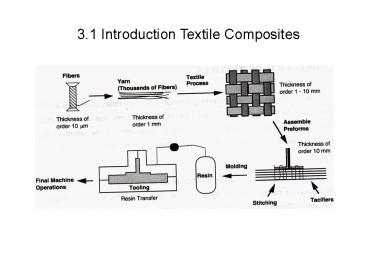

3.1 Introduction Textile Composites
2
Textile Forms For Composite Structures
3
Maypole Braider Production of 2-D Bias Briad
4
Braiding Process
Two-Step Braiding Process
Four-Step Braiding Process
5
Multi-axial Warp Knit
6
Through-the-Thickness Stitching
7
Resin Infusion Technique
8
Techniques of Using Thermoplastics in Textiles
9
Commonly Used 2-D Weave Patterns
10
Angles of Diagonal Patterns
11
Triaxial Weave
12
Common 2-D Braid Patterns
13
Three Dimensional Weave Patterns
14
3-D Orthogonal Composite
15
Analysis Steps

• Define the repeating unit cell (RUC)
• Describe the geometric structure of the yarns
  and matrix
• Write the 3-D constitutive equation of a segment
  of the yarn
• and interstitial matrix
• Integrate the above equation over the complete
  volume of the RUC
• The integrated constitutive equation represent
  the average
• equation and deduce all elastic constants

16
