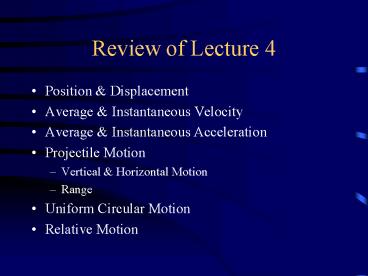

Review of Lecture 4

1
Review of Lecture 4

• Position Displacement
• Average Instantaneous Velocity
• Average Instantaneous Acceleration
• Projectile Motion
• Vertical Horizontal Motion
• Range
• Uniform Circular Motion
• Relative Motion

2
Acceleration

• What causes an acceleration?
• The short answer is a Force
• We will now look at forces from the standpoint of
  their effects on bodies
• When dealing with classical bodies at
  non-relativistic speeds, we are talking about
  Newtonian mechanics

3
Newtons First Law

• Prior to Newton, it was thought that the natural
  state of an object was to be at rest
• It was also thought that in order for something
  to move, it had to be propelled in some fashion
• While this may apply to my cats (and perhaps cats
  in general) it of course isnt an accurate
  description of what is happening

4
Newtons First Law

• Imagine giving a hockey puck a push so that it
  goes sliding across a wood floor
• It will go some distance before slowing down and
  coming to a stop
• Now substitute some ice and try the experiment
  again
• Clearly the puck will slide farther this time

5
Newtons First Law

• Now keep imagining a slipperier and slipperier
  surface
• In the limit, you can eventually imagine a
  surface that has no friction at all
• The puck in that case will keep sliding along
  forever unless something causes it to alter its
  course

6
Newtons First Law

• From these observations Newton developed his 1st
  lawIf no force acts on a body, then the bodys
  velocity cannot change that is, the body cannot
  accelerate

7
Newtons First Law

• If we were to push on a standard 1 kg mass so
  that we measured its acceleration as 1 m/s2,
  then by definition we are exerting a force on
  the object of 1 Newton
• If we were to push harder so that the
  acceleration was 2 m/s2, then the force would be
  2 Newtons, and so on

8
Newtons First Law

• So force is somehow closely related to
  acceleration
• Given that, it should not be a surprise that,
  like acceleration, force is a vector quantity
• That means if there were several forces pulling
  on our object, we should be able to add them up
  vectorially to produce a net force or resultant
  force

9
Newtons First Law

• Given that, we can now re-state Newtons 1st law
  asIf no net force acts on a body (e.g.,
  ifFnet 0), then the bodys velocity cannot
  change that is, the body cannot accelerate

10
Inertial Frames of Reference

• We have already talked about frames of reference
• A frame of reference where Newtons 1st Law holds
  is called an inertial reference frame or just an
  inertial frame
• The earth is usually a perfectly good inertial
  frame for most of what we do, but there are cases
  where it will not work

11
Mass

• What exactly is mass?
• We have some feel for this by the fact that
  different bodies react differently to the same
  force (if we have some way of consistently
  applying the same force)
• The more mass a body has, the less it will
  accelerate given the same applied force

12
Mass

• So there would seem to be some kind of an inverse
  relationship between force and mass that is also
  related to the acceleration
• Suppose we took a body of mass 2 kg and applied
  the same force to it that we used to define our
  1N force
• In this case we would notice that the object
  would accelerate to 0.5 m/s2

13
Mass

• And conversely, if we took a 0.5 kg mass and
  applied our standard force, we would notice that
  it would accelerate to 2 m/s2
• So we can see a ratio forming herewhere the
  force is held constant

14
Mass

• So back to the initial question What is mass?
• Mass is something intrinsic to an object we can
  only define it as a characteristic of an object
  that relates forces on the object to how the body
  reacts (accelerates) in response to those forces

15
Newtons Second Law

• Everything we have been discussing so far
  regarding forces, masses and acceleration can be
  neatly summed up using Newtons 2nd LawThe net
  force on a body is equal to the product of the
  bodys mass and the acceleration of the body

16
Newtons Second Law

• In equation form this is the famous
• While this is very simple equation, we must be
  careful in our use of it
• We must first note that force, like acceleration,
  is a vector (this must be true as mass is only a
  scalar)

17
Newtons Second Law

• We must also note that we must only concern
  ourselves with the (net) forces acting upon a
  body not any forces that the body may exert on
  another body, or other forces that may be present
  in the system (but dont act upon the body in
  question)

18
Newtons Second Law

• Because force is a vector quantity, the usual
  rules apply we can break forces down into
  components one for each axis of our coordinate
  system
• So we have

19
Newtons Second Law

• Because we can break down our forces into
  orthogonal components, we can see that (net)
  forces along one axis have no influence on what
  is happening along another axis
• In other wordsThe acceleration component along
  a given axis is caused only by the sum of the
  force components along that same axis, and not by
  force components along any other axis

20
Newtons Second Law

• Now lets look at our equation again
• From this we can see that if the (net) force is
  zero, then the acceleration must also be zero
• From this we can see that A body in motion
  continues in motion (at a constant velocity) and
  A body at rest stays at rest
• This condition is known as equilibrium the
  various forces have balanced themselves out so
  that the net force is zero

21
Particular Forces(Gravitation)

• We have already encountered a particular
  acceleration that associated with gravity
• So we can now compute the force that gravity
  exerts on an object
• Substituting g for a in our equation (and
  aligning our y axis to be vertically upward), we
  can see that

22
Particular Forces(Gravitation)

• We can clean this up to be
• This force is always present whether a body is in
  free fall or resting on a table
• The weight of a body is the magnitude of the
  force necessary to prevent the body from falling
  freely (as measured at the earths surface)

23
Particular Forces(Gravitation)

• So we can say that
• From this we can see that a bodys weight is
  directly proportional to its mass with the
  constant of proportionality being the
  acceleration of gravity (g for the earth)

24
Particular Forces(Gravitation)

• Bear in mind that weight and mass are not the
  same thing
• A body that weighs 71 N on earth (7.25 kg) would
  only weigh 12 N on the moon
• This is because while the mass of the body didnt
  change in going from the earth to the moon, the
  acceleration of gravity (g) on the moon is only
  1.7 m/s2

25
Particular Forces(Gravitation)

• Note also that if my weight was measured in an
  elevator (that was accelerating), it would not be
  constant
• This is because an accelerating elevator is not
  an inertial frame

26
Particular Forces(Normal Force)

• As I am standing here on the floor, my body mass
  is exerting a force against the floor
• The floor flexes (a little) due to my presence
  and in turn exerts a force upwards against me
  otherwise I would accelerate downwards
• The force exerted by the floor against me is
  called a normal force (normal because it is
  perpendicular to the surface of the floor)

27
Particular Forces(Normal Force)

• Going back to the elevator example, there is of
  course a normal force exerted by the floor of the
  elevator against someone standing in the elevator
• When the elevator is accelerating, the normal
  force will be

28
Particular Forces(Friction)

• When one object slides along the surface of
  another, the motion will be resisted by friction
• Friction generates a force in opposition to the
  direction of motion
• We often will assume frictionless surfaces to
  simplify things, but we will look at friction in
  more detail in Chapter 6

29
Particular Forces(Tension)

• When we pull an object with a rope (cable, cord,
  etc.), the rope exerts a force on the object that
  is directed away from the object and along the
  rope
• This is called a tension force because the rope
  is said to be in a state of tension (or under
  tension) because the rope is pulled taught

30
Particular Forces(Tension)

• We will often assume that the rope is massless
  and unstretchable to simplify things
• We will also sometimes employ frictionless,
  massless pulleys to change the direction of the
  force between two objects without introducing
  other effects

31
Newtons Third Law

• Two bodies interact when they exert forces on
  each other
• If I push against the wall I am clearly exerting
  a force on it the wall is also clearly exerting
  a force back against me
• These forces apparently are equal otherwise one
  of us (the wall or me) would be accelerated

32
Newtons Third Law

• Newtons 3rd Law states that When two bodies
  interact, the forces on the bodies from each
  other are always equal in magnitude and opposite
  in direction
• As hard as I push on the wall, the wall will push
  back just as hard (in the opposite direction)

33
Newtons Third Law

• In vector notation, we have
• This is called a third-law force pair
• We will always have a third-law force pair
  whenever two bodies interact

34
Next Class

• Homework Problems Chapter 54, 11, 19, 49, 51,
  74
• Read sections Chapter 6
