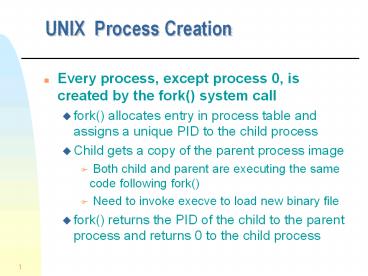

UNIX Process Creation

1
UNIX Process Creation

• Every process, except process 0, is created by
  the fork() system call
• fork() allocates entry in process table and
  assigns a unique PID to the child process
• Child gets a copy of the parent process image
• Both child and parent are executing the same
  code following fork()
• Need to invoke execve to load new binary file
• fork() returns the PID of the child to the parent
  process and returns 0 to the child process

2
UNIX System Processes

• Process 0 is created at boot time and becomes the
  swapper after forking process 1 (the INIT
  process)
• When a user logs in, process 1 creates a process
  for that user

3
UNIX Process Image

• User-level context
• Process Text (ie code read-only)
• Process Data
• User Stack (calls/returns in user mode)
• Shared memory (for IPC)
• only one physical copy exists but, with virtual
  memory, it appears as it is in the processs
  address space
• Register context

4
UNIX Process Image

• System-level context
• Process table entry
• the actual entry concerning this process in the
  Process Table maintained by OS
• Process state, UID, PID, priority, event
  awaiting, signals sent, pointers to memory
  holding text, data...
• U (user) area
• additional process info needed by the kernel when
  executing in the context of this process
• effective UID, timers, limit fields, files in use
  ...
• Kernel stack (calls/returns in kernel mode)
• Per Process Region Table (used by memory manager)

5
Process Characteristics

• The two characteristics are treated independently
  by some recent OS
• The unit of dispatching is usually referred to a
  thread or a lightweight process
• The unit of resource ownership is usually
  referred to as a process or task

6
Multithreading vs. Single threading

• Multithreading when the OS supports multiple
  threads of execution within a single process
• Single threading when the OS does not recognize
  the concept of thread
• MS-DOS support a single user process and a single
  thread
• UNIX supports multiple user processes but only
  supports one thread per process
• Solaris supports multiple threads

7
Threads

• Has an execution state (running, ready, etc.)
• Context is saved when not running
• Has an execution stack and some per-thread static
  storage for local variables
• Has access to the memory address space and
  resources of its process
• All threads of a process share this
• When one thread alters a (non-private) memory
  item, all other threads (of the process) sees
  that
• A file opened by one thread, is available to
  others

8
Single Threaded and Multithreaded Process Models
Thread Control Block contains a register image,
thread priority and thread state information
9
Benefits of Threads vs Processes

• Takes less time to create a new thread than a
  process
• Less time to terminate a thread than a process
• Less time to switch between two threads within
  the same process

10
Benefits of Threads

• Client/Server paradigm
• Server may need to handle several file requests
  over a short period of time
• More efficient to create (and destroy) a thread
  for each request
• Multiple threads can execute simultaneously on
  different processors

11
Application benefits of threads

• Consider an application that consists of several
  independent parts that do not need to run in
  sequence
• Each part can be implemented as a thread
• Whenever one thread is blocked waiting for an
  I/O, execution could possibly switch to another
  thread of the same application (instead of
  switching to another process)

12
Benefits of Threads

• Since threads within the same process share
  memory and files, they can communicate with each
  other without invoking the kernel
• Therefore, it becomes necessary to synchronize
  the activities of various threads so that they do
  not obtain inconsistent views of the data

13
Threads States

• Three key states running, ready, blocked
• They have no suspend state because all threads
  within the same process share the same address
  space
• Indeed suspending (ie swapping) a single thread
  involves suspending all threads of the same
  process
• Termination of a process, terminates all threads
  within the process

14
User-Level Threads (ULT)

• The kernel is not aware of the existence of
  threads
• All thread management is done by the application,
  using a thread library
• Thread switching does not require kernel mode
  privileges
• Scheduling is application specific

15
Threads library

• Contains code for
• Creating and destroying threads
• Passing messages and data between threads
• Scheduling thread executions
• Saving and restoring thread contexts

16
Kernel Activity for ULTs

• The kernel is not aware of thread activity but it
  is still managing process activity
• When a thread makes a system call, the whole
  process will be blocked
• For the thread library that thread is still in
  the running state
• So thread states are independent of process states

17
Advantages and inconveniences of ULT

• Inconveniences
• Most system calls are blocking and the kernel
  blocks processes. So all threads within the
  process will be blocked
• The kernel can only assign processes to
  processors. Two threads within the same process
  cannot run simultaneously on two processors

• Advantages
• Thread switching does not involve the kernel no
  mode switching
• Scheduling can be application specific choose
  the best algorithm.
• ULTs can run on any OS. Only needs a thread
  library

18
Kernel-Level Threads (KLT)

• All thread management is done by kernel
• No thread library but an API to the kernel thread
  facility
• Kernel maintains context information for the
  process and the threads
• Switching between threads requires the kernel
• Scheduling occurs on a thread basis, usually
• Ex Windows NT and OS/2

19
Advantages and inconveniences of KLT

• Advantages
• the kernel can simultaneously schedule many
  threads of the same process on many processors
• blocking is done on a thread level
• kernel routines can be multithreaded

• Inconveniences
• thread switching within the same process involves
  the kernel. We have 2 mode switches per thread
  switch
• this results in a significant slow down

20
Combined ULT/KLT Approaches

• Thread creation done in the user space
• Bulk of scheduling and synchronization of threads
  done in the user space
• The programmer may adjust the number of KLTs
• May combine the best of both approaches
• Example Solaris

21
Solaris

• Process includes the users address space, stack,
  and process control block
• User-level threads (threads library)
• Invisible to the OS
• Form the interface for application parallelism
• Kernel threads
• The unit that can be dispatched on a processor
  and its structures are maintain by the kernel
• Lightweight processes (LWP)
• Each LWP supports one or more ULTs and maps to
  exactly one KLT
• Each LWP is visible to the application

22
Process 2 is equivalent to a pure ULT
approach Process 4 is equivalent to a pure KLT
approach We can specify a different degree of
parallelism (process 3 and 5)
23
Solaris versatility

• We can use ULTs when logical parallelism does not
  need to be supported by hardware parallelism (we
  save mode switching)
• Ex Multiple windows but only one is active at
  any one time
• If threads may block then we can specify two or
  more LWPs to avoid blocking the whole application

24
Solaris user-level thread execution

• Transitions among these states is under the
  exclusive control of the application
• A transition can occur only when a call is made
  to a function of the thread library
• Its only when a ULT is in the active state that
  it is attached to a LWP (so that it will run when
  the kernel level thread runs)
• A thread may transfer to the sleeping state by
  invoking a synchronization primitive (chap 5) and
  later transfer to the runnable state when the
  event waited for occurs
• A thread may force another thread to go to the
  stop state...

25
Solaris user-level thread states
(attached to a LWP)
26
Decomposition of user-level Active state

• When a ULT is Active, it is associated to a LWP
  and, thus, to a KLT
• Transitions among the LWP states is under the
  exclusive control of the kernel
• A LWP can be in the following states
• running when the KLT is executing
• blocked because the KLT issued a blocking system
  call (but the ULT remains bound to that LWP and
  remains active)
• runnable waiting to be dispatched to CPU

27
Solaris Lightweight Process States
LWP states are independent of ULT states (except
for bound ULTs)
28
Operating System Control Structures

• The OS maintains the following tables for
  managing processes and resources
• Memory tables
• I/O tables
• File tables
• Process tables

29
Process images in virtual memory
30
Location of the Process Image

• Each process image is in virtual memory
• May not occupy a contiguous range of addresses
  (depending on the memory management scheme used)
• Both a private and shared memory address space is
  used
• Location if each process image is pointed to by
  an entry in the Primary Process Table
• For the OS to manage the process, at least part
  of its image must be brounght into main memory

31
Process Control Block
32
PCBProcess Identification

• A few numeric identifiers may be used
• Unique process identifier (always)
• Indexes, directly or indirectly, into the primary
  process table
• User identifier
• The user who is responsible for the job
• Identifier of the parent process that created
  this process

33
PCBProcessor State Information

• Contents of processor registers
• User-visible registers
• Control and status registers
• Stack pointers
• Program status word (PSW)
• Contains status information
• Example the EFLAGS register on Pentium machines

34
PCBProcess Control Information

• Scheduling and state information
• Process state ( i.e running, ready, blocked...)
• Priority of the process
• Event for which the process is waiting (if
  blocked)
• Data structuring information
• May hold pointers to other PCBs for process
  queues, parent-child relationships and other
  structures

35
Execution Modes

• To protect PCBs, and other OS data, most
  processors support at least 2 execution modes
• Privileged mode (a.k.a. system mode, kernel mode,
  supervisor mode, control mode )
• manipulating control registers, primitive I/O
  instructions, memory management...
• User mode
• Proper mode is set via a mode bit which can only
  be set by an interrupt, a trap or OS call

36
CPU Context Switch
operating system
process P0
process P1
interrupt or system call
executing
idle
executing
idle
interrupt or system call
idle
executing
37
Context SwitchingBasic Steps

• Save context of processor including program
  counter and other registers
• Update the PCB of the running process with its
  new state and other associate info
• Move PCB to appropriate queue - ready, blocked
• Select another process for execution
• Update PCB of the selected process
• Restore CPU context from that of the selected
  process

38
Process Scheduling

• Differential responsiveness
• Discriminate between different classes of jobs
• Fairness
• Give equal and fair access to all processes of
  the same class
• Efficiency
• Maximize throughput, minimize response time, and
  accommodate as many users as possible

39
Scheduling Queues

• OS maintains queues of processes waiting for
  resources
• Short term queue of processes in memory ready to
  execute
• The dispatcher decides who goes next
• Long term queue of new jobs waiting to use the
  system
• OS must not admit too many processes on
  short-term queue
• A queue for each I/O device consisting of
  processes that want to use that I/O device

40
Ready and I/O Device Queues
queue header
PCB2
PCB7
ready
queue
unit 0
PCB6
PCB14
PCB3
unit 1
disk
unit 0
PCB5
terminal
unit 0
41
Process SchedulingQueueing Diagram
42
Schedulers

• Short-term Scheduler
• Also, referred to as dispatcher
• Long-term Scheduler
• Mid-term Scheduler
• Also, referred to as the swapper

43
Short-term Scheduler Dispatcher

• Dispatcher selects from among ready processes and
  allocate the CPU to one of them
• It selects the next process according to a
  scheduling algorithm
• It prevents a single process from monopolizing
  CPU
• CPU always executes instructions from the
  dispatcher when switching from one process to
  another

44
Long-term Scheduler

• This scheduler controls the degree of
  multiprogramming
• The number of processes in memory
• It strives to select a good process mix of I/O
  bound and CPU-bound processes
• If the degree of multiprogramming is stable, the
  average process arrival rate must be equal to the
  average process departure rate
• Thus, long-term scheduler usually gets invoked
  when a process leaves the system

45
The need for swapping

• Even with virtual memory, keeping too many
  processes in main memory may deteriorate the
  systems performance
• The OS may need to suspend some processes, ie to
  swap them out to disk.
• Two new states are added states
• Blocked Suspended blocked processes which have
  been swapped out to disk
• Ready Suspended ready processes which have been
  swapped out to disk
