Cache Coherency on

1

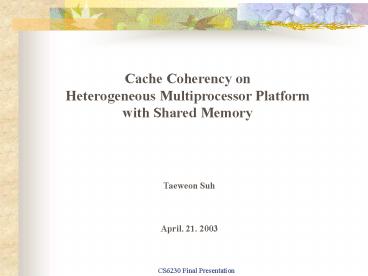

Cache Coherency on Heterogeneous Multiprocessor
Platform with Shared Memory
Taeweon Suh
April. 21. 2003
2
1. System Block Diagram

• ARM920T D
• 16KB
• 32 byte block
• 64-way set associative
• Replacement
• Round-Robin, Random
• - No cache coherency

• PowerPC D
• 32KB
• 32 byte block
• 8-way set associative
• MEI protocol

Shared page register Snoop hit address
register FIQ status register
3
2. Hardware Design Snoop logic
FIQ
To ARM
From ARM
31
5 4 3 2 1 0
address
BWAIT
BGNT
Valid
8
TAG CAM
Shared page register Snoop hit address
register FIQ status register
. .
64 way
Snoop hit
Pseudo Bus mastership logic - Initiates retry
transaction
BREQ
BGNT
ASB(Advanced System Bus)
4
2. Hardware Design(cont.) Wrapper
PowerPC755
Protocol Conversion - AMBA to PowerPC
GBL ADDR ARTRY
Protocol Conversion - PowerPC to AMBA
ASB(Advanced System Bus)
5
3. Simulation Results Worst Case Scenario

• Simulation environment
• Seamless CVE(Mentor Graphics)
• PowerPC 100MHz, ARM920T 50MHz
• Atalanta RTOS
• Bakery algorithm for lock implementation
• 1 task on each CPU
• I enabled, D selectively enabled
• Wait cycle 6 ( 120ns)

for (i0ilt100i) akc_entercritical()
// critical section c buffer
c buffer c // critical section
akc_exitcritical()
6
3. Simulation Results(cont.) Typical(?) Case
Scenario

• Simulation environment
• Seamless CVE(Mentor Graphics)
• PowerPC 100MHz, ARM920T 50MHz
• Atalanta RTOS
• Bakery algorithm for lock implementation
• 1 task on each CPU
• I enabled, D selectively enabled
• Wait cycle 6 ( 120ns)

for (i0ilt10i) akc_entercritical()
// critical section for (j1jlt100j)
c buffer c
buffer c // critical section
akc_exitcritical()
7
4. In the context of HPC with cache coherency

• The best way to run your applications as fast as
  possible

Split the applications with no dependency each
other

• However, it is not applicable in most cases,
  Then ?

Avoid the WCS like data manipulation

• Another tip for HPC

Arrange data in cache block boundary and try to
fully use a block(cache line).
8
5. Conclusion

• Successfully implement cache coherency on
  heterogeneous
• processor platform with shared memory
• Only invalidation scheme is possible
• Can be generalized on every processor platform
  no matter
• what cache coherency protocol it supports or
  not
• Could be used in SoC design, which could have
  multiple
• heterogeneous processors inside

9
Any Questions?
