MECH 460 DESIGN PROJECT

1

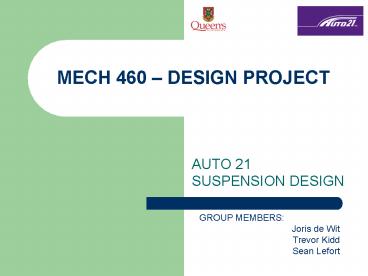

MECH 460 DESIGN PROJECT

• AUTO 21 SUSPENSION DESIGN

GROUP MEMBERS Joris de Wit Trevor Kidd Sean
Lefort
2
OUTLINE

• 1. AUTO21
• 2. OUR PROJECT
• 3. PROBLEM STATEMENT
• 4. IMPORTANCE OF SUSPENSION
• 5. PRELIMINARY RESEARCH
• 6. DESIGN COLLABORATION TOOLS
• 7. TIMELINE AND RESPONSIBILITIES
• 8. QUESTIONS

3
AUTO21

• National research initiative supported by the
  Government of Canada.
• Created to enhance the global competitiveness of
  the Canadian automotive industry.
• Over 230 top researchers at over 38 academic
  institutions are involved with AUTO21.

4
OUR PROJECT

• Sponsored by AUTO21, we are to design a
  two-passenger, drive-by-wire, electric car.
  The car is to be compact and similar to those
  already on the market.
• Seven universities (Queens, Waterloo, Ryerson,
  Western, Dalhousie, Sherbrooke, UOIT) and two
  major companies (General Motors, ABC Group) are
  involved.
• Main objective of the project is to evaluate
  collaboration as it occurs between the teams
  working on different car components. By doing
  so, collaboration tools can be developed and
  improved so future GM projects will run more
  smoothly.

Source http//deseng.ryerson.ca/twiki/bin/view/Ec
d/Body
5
PROBLEM STATEMENT
SUSPENSION DESIGN Our team has chosen to take
responsibility for the suspension system to be
implemented into the car design. The car will be
a compact drive-by-wire electric vehicle and
thus it will require a specialized suspension
design that is compatible with all other
components of the car. Therefore, it is
important that we develop a detailed suspension
design through collaboration with the other teams
working on the project.
6
EXPECTATIONS

• Determine optimal suspension design.
• Produce a CAD model of suspension mechanisms
  using Unigraphics NX.
• Provide a analysis
• using ANSYS and ADAMS.
• Document our collaboration during
• the design process.

Source http//www.algor.com/news_pub/cust_app/tri
pleeight/default.asp
7
IMPORTANCE OF SUSPENSION

• Improves passenger comfort by absorbing impact
  from bumps in the road.
• Maximizes friction between road
• and tires
• - Improves cornering and handling
  characteristics of the vehicle.
• - Minimizes roll and enhances safety.

Source http//www.monroe.com/tech_support/tec_wha
tisridecontrol.asp
8
PRELIMINARY RESEARCH
MACPHERSON STRUT

• Most common type of suspension in front wheel
  drive cars.
• Compact and light with good handling and ride
  characteristics.

Source http//auto.howstuffworks.com/car-suspensi
on1.htm
9
PRELIMINARY RESEARCH
DOUBLE WISHBONE

• Very common type of front
• independent suspension
• system.
• Minimizes roll or sway
• for better steering feel.
• Larger and heavier than the Macpherson strut.

Source http//www.ukcar.com/features/ tech/suspen
sion/wishbone.htm
10
DESIGN TOOLS

• Throughout the design process we will use the
  following tools
• Morphological Chart
• QFD
• FMEA

Source Microsoft clip art

• Will optimize design and also increase the
  design
• stage efficiency.

11
COLLABORATION TOOLS

• TWiki and TCC (Team Centre Community)
• Interactive websites that allow for organized
  discussions and uploading of ongoing work among
  all group members.
• Excellent way to communicate
• ideas and designs with group
• members from other universities.

Source Microsoft clip art
12
TIMELINE
13
RESPONSIBILITIES

• DIVISION OF RESPONSIBILITES
• Sean Lefort Secretary - Tracking paperwork,
  documentation, memos, making deadlines, head
  collaborator.
• Joris de Wit Software Expert Working with
  Unigraphics NX, ANSYS and other software analysis
  programs.
• Trevor Kidd Researcher Complete the bulk of
  the research, develop project design ideas, make
  necessary iterations.

14
QUESTIONS?
Source http//me.queensu.ca/courses/MECH460/proj
ects/2006/AUT1
