Title: Electricity


1

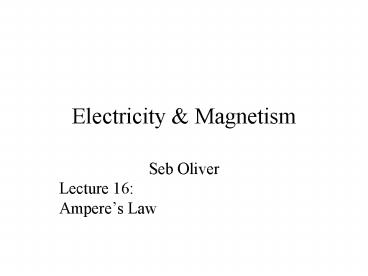

Electricity Magnetism
  • Seb Oliver
  • Lecture 16
  • Amperes Law

2
Summary Lectures 14 15
  • Biot-Savart Law
  • (Field produced by wires)
  • Centre of a wire loop radius R
  • Centre of a tight Wire Coil with N turns
  • Distance a from long straight wire
  • Force between two wires
  • Definition of Ampere

3
Other examples of Magnetic field
  • Centre of a wire loop radius R
  • Centre of a tight Wire Coil with N turns
  • Axis of solenoid n turns per unit length
  • Distance a from long straight wire

4
Another Right-Hand Rule
5
Amperes Law
6
Magnetic Field from a long wire
Using Biot-Savart Law
r
I
Take a short vector on a circle, ds
B
ds
Thus the dot product of B the short vector ds
is
7
Sum B.ds around a circular path
r
I
B
Sum this around the whole ring
ds
Circumference of circle
8
Sum B.ds around any path
N.B. this does not depend on r
In fact it does not depend on path
Amperes Law
on any closed loop
where I is the current flowing through the loop
9
Amperes Law
Sign comes from direction of loop, current
right hand rule
10
Amperes Law
11
Amperes Law
  • No Different Physics from Biot-Savart Law
  • Useful in cases where there is a high degree of
    symmetry
  • C.f. Coulombs Law and Gausss Law in
    electrostatics

12
Quiz
Currents of 1A, 5A, 2A, flowing in 3 wires as
shown
1A
What is ?B.ds through loops a, b, c, d?
5A
2A
13
Examples of using Amperes Law
14
Examples
  • Long-straight wire
  • Insider a long straight wire
  • Toroidal coil
  • Solenoid

15
Long Wire
16
Magnetic Field from a long wire
By symmetry
r
Amperes Law on Loop 2
I
B(r1)
Loop1
Br2
Br1
B(r1)
17
Magnetic Field from a long wire
r
I
For any closed Ampere Loop the radial components
will always cancel out
By symmetry
Br3
Br4
Loop 2
Loop 3
Br2
Br1
Br1
Thus there is no way to balance a current by a
radial component or produce a radial component
from a current
Br2
18
Magnetic Field from a long wire
Tangential component
Take a circle of radius r as the Ampere Loop
r
I
Tangential component
By symmetry at constant r
L.H.S.
or
L.H.S. R.H.S
Q.E.D.
19
Inside a Wire
20
Inside a wire current carrying I0
We Take our Ampere loop to be a circle of radius r
Assuming that the current density is uniform then
the current flowing through the loop is
Now same as before
A
r
21
Field from a long wire
22
Toroidal Coil
23
Toroidal Coil
I0
Toroid has N loops of wire, carrying a current I0
Ampere Loop, circle radius r
No current flowing through loop thus B 0 inside
the Toroid
24
Toroidal Coil
Ampere Loop, circle radius r
I0
For each wire going in there is another wire
comeing out Thus no nett current flowing through
loop thus B 0 outside the Toroid
25
Toroidal Coil
I0
Zoom
Toroid has N loops of wire
For each loop of the coil an extra I0 of current
passes through the Ampere Loop
Ampere Loop, circle radius r
26
Solenoid
27
Infinitely Long Solenoid
Wire carrying a current of I0 wrapped around with
n coils per unit length
Zoom looks very similar to the toroid with a very
large radius
28
Toroidal Coil Revisited
I0
Toroid has N loops of wire, carrying a current I0
Central radius R circumference is 2pR
Number of coils per unit length n is
From earlier
Independent of R
29
Infinitely Long Solenoid
Wire carrying a current of I0 wrapped around with
n coils per unit length
Field at centre is same as torus of infinite
radius
30
Summary Lecture 16
  • Amperes Law
  • Easier to use than Biot-Savart Law in many cases
  • Examples
  • Long-wire
  • Inside wire
  • Toroid
  • Solenoid
