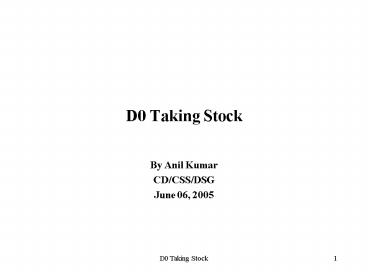

D0 Taking Stock

1
D0 Taking Stock

• By Anil Kumar
• CD/CSS/DSG
• June 06, 2005

2
Production/Integration Infrastructure

• 8 900MHz CPU 16Gb RAM
• The machine has a Clariion 4500 hardware raid
  array with 80 drives.
• Oracle Server 9.2.0.6 (64 bit) on Solaris 2.9 64
  bit.
• Load Avg 2 3 CPU usage 61
• Average Db Response time/execute 0.01-0.05 secs
• Uptime excluding schedule down times.
• 99.85269 Uptime (based on 420 min of total db
  unavailability) since
• Nov 15, 2004
• System Performance
• http//d0om.fnal.gov/d0admin/sysperf/
• Db Performance Charts
• https//mistest12.fnal.gov/cp/

3
D0 offline development Infrastructure

• 8 400 MHz, 4GB of RAM
• OS and Oracle Version same as of int/prd.
• 64bit OS and 64 bit Oracle 9.2.0.6
• Load Avg 1-2 , CPU usage 10-15, Mem Free 7.8
• System Performance URL
• http//d0om.fnal.gov/d0admin/sysperf/

4
D0 Calib Servers Deployment Infrastructure
Linux PC for Analysis Farm
Linux PC for Reconstructed Farm
Sun Solaris
Linux PC
Linux PC
Failover
Failover
Note There was 1 failure for User Servers and
Farm Servers since Nov 15, 2005
5
Space Usage
6
Space Usage Summary

• D0ofprd1 786 GB used.
• d0ofint1 77GB used.
• 800Gb is available for use for int and
  production.
• d0ofdev1 82 GB Used
• 190GB is available for use.

7
Capacity Planning

• Next three years expected Growth 825Gb.
• SAM growth 250Gb/year and other apps
• 25Gb/year. This exclude Luminosity DB
• We have around 800Gb available.
• Should start planning to upgrade Disk Capacity
  Next Year.
• Luminosity growth is 125Gb/year.
• Sun v40z machine with a Sun StorEdge 3310
  scsi disk array w/ 1.752 tb 2 Ultra160 raid
  controllers.
• URL for Capacity Planning
• http//www-css.fnal.gov/dsg/internal/d0_ofl_dbs/D0
  _database_servers(sun)/d0ora_index_page/d0ora2_d0o
  fprd/d0ora2_disk_planning.htm

8
Accomplishments

• Upgraded D0 offline databases to 9.2.0.6
• Quarterly Database Security Up-to-date
• Tested Complete Database Recovery of d0ofprd1
  database. It took 4 hours. This assumes hardware
  is already configured and Backup files are
  available on disk.
• Moving  d0 offline to a standardized backup
  recovery method using a san and enstore.
  Parallel testing of san as backup media for
  development and production instances going well.

• Luminosity db deployed 9i and 10g versions on
  loaner CDF machine

9
Monitoring And Data Modeling Tools

• Monitoring Tools
• dbatool/toolman
• To monitor the space usage, users, SQL,
  tempspace, sniping of inactive sessions, auto
  start of Listener, IA, estimate table/Index stats
• OEM (Oracle Enterprise Manager)
• - DB Monitoring tool/ Monthly charts posted on
  web
• Db Performance Charts
• http//www-cdserver.fnal.gov/cd_public/css/dsg/db_
  stats/data/db_stats.html
• The url for the ganglia charts (monitoring tools)
  ishttp//fcdfmon2.fnal.gov/
• Data Modeling Tool
• Oracle Designer is used for Data Modeling and
  space estimates.

10
Back-up/Recovery

• D0ofprd1
• - Daily, 7 days of archives, one always on DISK
• - Bi-weekly backup of READ ONLY tablespaces
• - Allocated 1179GB Used 755GB, Tape Daily, RMAN
  Back-up time - 5 Hrs 45Min ( 3 Hrs Excl READ
  ONLY 2 Hrs 45 Exclude READ ONLY )
• No Export
• Tape Rotation 1 Week for Daily backups and 2
  months for Read Only backups.
• D0ofint1 Once a week on SAN
• D0ofdev1
• - Daily 3 days of archives Sat on DISK
  otherwise on SAN
• -Allocated 100GB, used 58GB, Daily Tape Backup
• RMAN Backup time - 1.5 Hr.
• Tape Rotation 2 Months.
• - backup strategy for d0of lum boxes will be the
  SAN centralize strategy

11
RMAN Backup on SAN

• Inexpensive, large disk array can accommodate
  growing RMAN backups
• Fast reliable backup and recovery
• 24 x 7 and 8 x 5 support tiers available
• Can serve various O/S platforms
• Briefing on the database backup/recovery
  standardization on june 16, it will discuss the
  san testing in more detail
• Multiplexing of archives to local disk and SAN

12
RMAN to SAN test case on d0ofdev1

• d0ofdev1 RMANs to SAN since Nov. 04
• Two 1TB SAN mount points available
• Keep 2 alternating days of RMANs on SAN,
  once/week to local backup disk
• RMAN validation to determine backup file
  integrity
• One validation failure since Nov. 04
• Recoveries from SAN were all successful

13
Production backups to SAN

• Initial problems encountered due to incompatible
  PCI cards solved now
• Two 1TB SAN mount points in use
• 2 daily backups one to SAN, one to local backup
  disk
• Always 2 backups on disk, plus X200 tape library
  backup of RMAN from local disk
• Read-only portion of database backed up
  twice/month to local backup disk

14
SAN issues

• Current SAN is not 24 x 7 support
• IDE disks are not as reliable as other, more
  expensive disks are
• Purchasing 24 x 7 SAN requires licensing and
  changes to O/S to be able to use it
• Firewall issues (CDF D0 online)

15
SAM Schema

• Production Deployments
• - Autodestination Sub-System of SAM schema
• - Indexes on Param Values Deployed in
  production.
• - Data Types correction cut.
• - Indexes for Volumes to be
  deployed on 06/07/05
• - Partition Cut to be deployed on
  06/07/05
• Work-in-progress
• - Request Sub System of SAM Schema. Cut in
  Mini-sam.
• Upgrade to Mini SAM as SAM Schema Evolved. -
  This facilitate individual developers to have
  copy of SAM metadata and seed data available for
  server software rewrite if needed.
• Mini-SAM in Postgres. Initiative to move towards
  free ware Databases for SAM
• Proof of product not complete, requires
  testing with a dbserver  from the sam development
  team
• 1.61B events in 32 Partitions. Now Avg 1
  partition/ 3 running weeks
• Partitions Rollover dates URL
• http//www-css.fnal.gov/dsg/internal/databs_appl/s
  am_event_partitions.html

16
Whats Next ?

• Deploy san/enstore backup recovery plan.
• ( TESTING OF SAN on d0ofprd1 is work-in-progress)

• Deployment of Lum Db in production. 10g.
• Possible Upgrade to 10g to d0ofprd1 due to
  enhanced feature of incremental database backups.
• Upgrade OEM to 10g
• Rewrite of dbatools/toolman for enhanced features
  of monitoring and 10g support.
• SAM Schema Deployment for SAM Request System.
• Testing of postgres mini sam for proof of
  product.

17
Concerns

• Backups will get bigger . So backup of VLDB
• Speaker Bureau application to be moved to
  production ASAP. It is on dev being used in
  production mode.
• SAM Servers on Linux ?
• Not Enough Space for Integration db to do full
  refresh of SAM.
• Single point of failures with D0 offline
  database.
• future of the aging clarion array must be
  addressed in next budget.
