Title: Data rate improvements


1

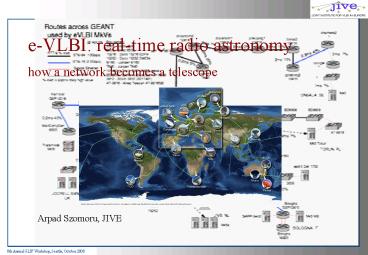

e-VLBI real-time radio astronomy how a network
becomes a telescope
Arpad Szomoru, JIVE
2
Outline
  • Radio Astronomy and VLBI
  • principles, techniques
  • e-VLBI and networks
  • a real-time telescope of intercontinental size
  • Motivation, results
  • the transient universe
  • Reaching beyond current technology
  • the future of VLBI, SKA pathfinders and the SKA

3
Acronyms / organisations involved
  • VLBI Very Long Baseline Interferometry
  • A radio-astronomical technique to obtain high
    resolution
  • EVN European VLBI Network
  • Consortium of (European) Telescopes
  • Arecibo (Puerto Rico), Cambridge (UK), Effelsberg
    (D), Hartebeesthoek (S-Africa), Jodrell Bank
    (UK), Medicina (I), Metsahovi (FI), Noto (I),
    Onsala (S), Robledo (ES), Shanghai (CN), Torun
    (PL), Urumqi (CN), Westerbork (NL), Wettzell (D),
    Yebes (ES)
  • Joint Institute for VLBI in Europe
  • Institute established in Dwingeloo, the
    Netherlands
  • Funded by NWO (NL), ASTRON (NL), STFC (UK), INAF
    (I), ICN-IG (ES), OSO (S), CAS (CN), CNRS (F),
    MPG (D)
  • EXPReS EXpress PRoduction e-VLBI Service
  • EC-funded project, started in 2006
  • Partners most radio-telescopes in Europe, some
    outside
  • DANTE and a number of NRENs, SURFNet, AARNET,
    PSNC

4
Todays demo
  • 6 European radio telescopes
  • Streaming data in real-time to correlator in the
    Netherlands
  • Westerbork (NL)
  • Torun (PL)
  • Onsala (SW)
  • Jodrell Bank (UK)
  • Medicina (IT)
  • 512 Mbps each, maybe more

5
Radio vs. Optical Astronomy
  • Radio waves with ? of 0.7mm to 90cm
  • Compared to optical light 400 700 nm
  • Can be detected and amplified with antenna

6
And more wavelengths
7
A bit of early history
  • Radiation from Galaxy discovered in 1931, by
    Jansky
  • result largely ignored
  • Grote Reber started pioneering radio-astronomy in
    1937

8
Radio Astronomy and VLBI
  • Radio emission from astrophysical sources can be
    detected against the sky with telescopes larger
    than a few meters
  • Resolution scales with size
  • Solution build larger telescopes!
  • Only goes so far....
  • Or combine series of telescopes into
    radio-interferometer
  • Even longer baselines are needed to see astronomy
    in motion

9
Principles of VLBI aperture synthesis
  • Correlator also registers signals with different
    phase information
  • Builds up Fourier components of sky image as the
    earth turns
  • Electronic equipment brings signal to focus in
    phase
  • Similar to properties of parabola
  • Usually only room for single pixel detector

10
Principles of VLBI
  • Record same frequency band simultaneously at N
    telescopes
  • Use best possible local clocks and frequency
    standard
  • Sample and digitize and record (on magnetic
    medium)
  • Find all ½N(N-1) correlation coefficients at
    correlator
  • Compute back image from thousands of these
    measurements

11
(No Transcript)
12
(No Transcript)
13
Nearby mass-loss around an old star
14
Further exploding stars in other galaxies
supernova in M81 (1993)
15
And quasars at the edge of the universe
  • A resolution which is high enough to see things
    move at cosmological distances

16
VLBI digital processing
  • To reach the faint end of the universe
  • Need many big telescopes
  • And as much frequency space as you can get
  • Bandwidth!
  • Typical VLBI uses 64 MHz bandwidth in 2 pols
  • Nyquist sampling
  • 2 x 2pol x 32 MHz 128 M samples/s
  • Noisy data 2 bits/sample recover 86 SNR
  • 256 Mb/s, more is preferred
  • Bits are not sacred
  • Some losses are tolerable

radio sources in the Hubble deep field require
several days of integration (Garrett et al., 2000)
17
  • Recording on Linux PC platform
  • Harddisk recorder based system
  • Parallel writing on 8 disk system
  • Sending hard-drives around the world
  • Typically have a few thousand going around

18
Now turn to e-VLBI!
  • PC based recording
  • Also allows Internet transmission
  • Upgrade EVN to e-EVN
  • Started with a pilot in 2003
  • And was boosted with EXPReS
  • Retrofit correlator to work real-time
  • Help solve last mile problem at telescopes
  • Work closely with NRENs on robust connectivity
  • Push to 1024 Mb/s limit
  • Bring in the big telescopes
  • And start the revolution in radio-astronomy
    culture

Express Production Real-time e-VLBI Service
19
  • Establish connectivity through Europe on GÉANT2
  • Greatly catalyzed by having EC funded project
  • All come together on the Dutch SURFnet6
  • Large bundle from Amsterdam to Dwingeloo

20
EXPReS network upgrade
21
Remarkable progress
  • 7-8 telescopes regularly on line, interesting for
    science
  • Correlator operations optimal for direct results
    and feedback
  • Connectivity reached impressive reliability
  • Started with TCP, but obviously not well-suited
    for e-VLBI
  • Now dedicated light-paths to many telescopes
  • UDP protocol implemented for optimal throughput

Size of balloon set by number of telescopes
participating, height by station sustained
bit-rate
22
Insert demo here....
  • 5 European radio telescopes
  • Streaming data in real-time to correlator in the
    Netherlands
  • Westerbork (NL)
  • Torun (PL)
  • Onsala (SW)
  • Jodrell Bank (UK)
  • Medicina (IT)
  • 512 Mbps each, maybe more

23
Lots of connectivity
24
  • Major changes to real-time and embedded
    correlator software
  • New tools for public status, rapid feedback,
    streamlined processing, adaptive observing

25
(No Transcript)
26
more telescopes
  • Effelsberg on-line since April 2008
  • Yebes first e-light later this year
  • Extremely important for science impact
  • Important boost to the sensitivity of the e-VLBI
    array

27
Miyun 50m
Irbene 32m
Sardinia 64m
Kunming 40m
28
EXPReS connectivity progress
  • Long-haul high-bandwidth data transport
  • TCP on old Linux kernels clearly inadequate
  • Circuit TCP performs well (TCP with UDP-like
    behaviour, without congestion control)
  • UDP better, but needs modification of Mark5A
    control code
  • And can be hostile to other users on open network
  • Stability of original code a serious issue
  • Has led to complete re-write of subset of Mark5
    control code

29
Connectivity progress towards 1Gbps
  • Gbps connectivity
  • All data transport via UDP
  • Using various techniques to optimize use of
    bandwidth
  • Channel dropping, packet dropping, mixed
    configurations
  • Improved robustness
  • 6 x 512 Mbps
  • gt 12h uninterrupted
  • One-person operation

30
EVN Reliability Index
31
Beyond 1 Gbps
32
(No Transcript)
33
Why e-VLBI is exciting for science
  • Rapid response for rapid variability
  • Fast response to requests
  • Immediate analysis of data, flexible observing
  • Coordination with current and future
    observatories
  • Immediate feedback
  • Increased robustness
  • Fewer consumables, logistics
  • Constantly available VLBI network
  • Monitoring for example astrometry
  • Spacecraft tracking (landing of the Huygens
    probe on Titan)
  • Growth path for more bandwidth
  • Increased sensitivity

34
Radical shortening of timeline
  • Test case black holes in outburst
  • Data processing took 1-2 weeks with first images
    within 48 hours
  • Publication took less than 2 months

35
Rapid response science
36
2007 connecting China and Australia
  • The APAN demo (XiAn)
  • Opened up Siberia connection
  • Excellent PR
  • Longest (e) baseline ever

37
First global high-bandwidth data transport
  • EXPRES-OZ demo
  • Three Australian telescopes (Mopra, ATCA, Parkes)
  • 12 hours at 512 Mbps without a hitch
  • Beautiful detection of SN1987a

38
2008 Africa and the Americas
39
  • Demo in 2008 at TERENA
  • Arecibo, Puerto Rico
  • TIGO Chile
  • Hartebeesthoek, South Africa
  • 4-continent e-VLBI
  • 4-continent fringes!

40
Many providers...
  • To connect telescopes in 4 continents
  • Europe Westerbork (NL), Effelsberg (DE), Onsala
    (SE), Medicina (IT)
  • MPG, DFN, SUNET, NORDUnet, GARR, GÉANT2, SURFNet
  • North America Arecibo, Puerto Rico
  • Centennial, AMPATH, AtlanticWave, NGIX,
    Internet2, StarLight, GÉANT2, SURFNet
  • Africa Hartebeesthoek, South Africa
  • Internet Solutions, TENET/SANReN, GÉANT2, SURFNet
  • South America TIGO, Chile
  • Transportable Integrated Geodetic Observatory
  • Reuna, RedCLARA, GÉANT2, SURFNet

41
The next challenge
  • Real-time demo during opening ceremony of IYA,
    15-16 January 2009 in Paris
  • 24 hours real-time tracking of one source
  • 6-continent e-VLBI
  • Although we may have to cheat a little
  • Will involve telescopes in Europe, China, Japan,
    Australia, USA, Puerto Rico, Chile and
    South-Africa
  • Will feature real-time build-up of image
  • And educational items like an interactive program
    to show different results with different
    telescope configurations
  • Remote control of Oz telescopes...

42
Further in the future more spacecraft tracking
  • LAPLACE and TANDEM
  • accepted by ESA for study for 2015-2025
  • Earlier projects may include Bepi-Colombo
  • LAPLACE a mission to Jupiter and Europa
  • VLBI on Europa landers/orbiter
  • Radio astronomy experiments Jovian orbiter
  • TANDEM Titan and Enceladus mission
  • VLBI on Titan probes/balloons
  • Radio astronomy exps Enceladus orbiter

43
Roadmap for future radio telescopes
Part of Future Infrastructure Roadmap of ESFRI
SKA and SKA pathfinders
44
The future of the e-EVN
  • Currently the EVN is at the forefront of
    technological developments
  • Distributed correlation, use of GRID
  • Long-haul, high-bandwidth data transport
  • Use of (dynamic) lightpaths
  • 4 Gbps systems currently under consideration
  • (barely) doable using magnetic media
  • But easily accommodated on 10 Gbps networking
    architecture
  • Upgrade of EVN correlator, receiver systems will
    lead to a massive increase of bandwidth and
    sensitivity
  • Will keep EVN competitive and complementary in
    the era of SKA
  • Providing global baselines
  • Located predominantly in Northern hemisphere
  • Upgrade will lead to 100 Gbps data streams from
    telescopes
  • Maps perfectly onto emerging networking
    technologies

45
(No Transcript)
