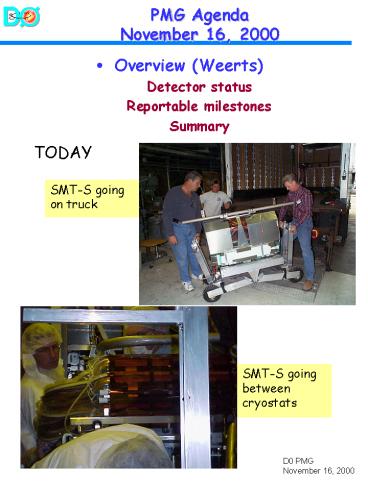

PMG Agenda November 16, 2000

1
PMG AgendaNovember 16, 2000

• Overview (Weerts)
• Detector status
• Reportable milestones
• Summary

TODAY
SMT-S going on truck
SMT-S going between cryostats
2
Status Overview SMT

• Silicon
• Production
• DONE
• South silicon detector (SMT-S)
• Move Installation today
• North silicon (SMT-N)
• All barrels and disks complete
• Assembly in support cylinder starting
• Start cabling before Thanksgiving
• Ready for DAB at beginning Dec 12
• H-disks ( need 4)
• 3 H disks ready
• 10 test
• Continuing to be useful/ learning
• Sparsification problems.
• Put H disk in

3
(No Transcript)
4
Fiber Tracker Status - Waveguides

• Waveguide Production and QC continue
• Installation
• South
• All installed
• Replacements done
• Different fixes tried
• QC Data on all available ( not perfect, but all
  light transmissions within 10)
• Lesson minimize handling of waveguides
• North Started
• Installed CPS North started on CFT
• First QC data look good
• QC in real-time with installation

5
Fiber Tracker Status

• VLPC Cassettes
• Continues
• Electronics availability a problem
• WG QC vs. Cassette Charact.

Goal (99) done by Feb 15, 2001
6
Status Overview

• Central Muons (94 PDTs)
• Commissioning continues
• Completing electronics installation
• Reading out part of each layer L1 trigger
• Gas Chromatograph being brought up
• Forward Muon detectors
• Installing reading out part of it

Installation status
Trusses (north south) moving into collision
hall this week.
7
Status Overview

• Trigger DAQ
• Commissioning is still okay, but..
• Final hardware arrival is a worry
• L2 VME-Alpha boards still a concern. NO working
  board yet. Now have 25. Not good
• Three approaches
• Fix existing boards _at_ FNAL, UIC UoM
• Another production run ( company visit two weeks
  ago). Have parts for 17 boards.
• New design completely..
• L3 board production concern vendor visit
• Technical manpower an issue Varelas, Johns _at_FNAL
  starting December
• Online
• In use at low rate, not on critical path
• Commissioning workshop going on today goal is
  to read out crate of every detector.

8
Status Overview Electronics

• Electronics
• Calorimeter
• Preamp installation/commissioning underway (10k
  installed, 12 PS ready, cooling installed)
• BLS has vendor delays
• Motherboard 1250/500/165
• need/bare/stuffed
• Daughter cards 5000/3750/950
• Daughter card 300/week vendor (end Jan. 01
  complete)
• CC is cold and filled with liquid
• Read out 4500 channels last night ( 2 of 4 CC
  quadrants) about 10 of all channels
• Muon
• Done

9
Status Overview Electronics

• Tracking Electronics
• Si Interface Card
• 160 pc production order released
• 15 boards in hand
• 2 tested so far no significant problems
• Testing _at_ KSU and FNAL
• Analog Front End boards
• Released production start for PCB
• Noise with MCM at 30fC, need 5fC
• Goal is to release production on Nov 29 and have
  boards in December
• MCM going
• Produced 100 projected rate 25/day Need
  1900.
• Company wants more money holding boards hostage
  with Business section price increase 70K
• Adapter card
• 34 with new design at FNAL
• Power supplies
• VICOR current schedule Dec-Jan
• Some power supplies coming in earlier ( still
  January)

Re-arrange this
10
Installation

• Progressing well.
• Shield wall is down
• Trusses (north south) are ready for move into
  collision hall (complete this week)
• B layer muons to be installed
• SMT-S going in as we speak
• Mechanical installation going well

11
Summary

• Concerns
• NOT Silicon anymore
• Installation lots of activity/m2 are careful
• Electronics delays are THE concern for realistic
  commissioning
• Vendor delays, parts availability
• Willing to spend to fix if possible
• Trigger falling clearly behind
