Scatter Control

1

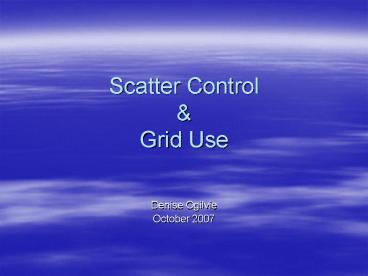

Scatter ControlGrid Use

• Denise Ogilvie
• October 2007

2
Objectives

• Identify factors that affect the amount of
  scatter radiation produced
• Describe methods used to control the amount of
  scatter radiation
• Describe the effect of beam restriction on image
  quality and patient dose
• Compare advantages and disadvantages of different
  beam restricting devises

3
Objectives

• Describe the purpose of a grid
• Explain the construction of a grid, including
  materials used, grid ratio and grid frequency
• Differentiate between parallel and focused grids,
  stationary and moving grids
• Calculate changes in technical factors to
  compensate for changes in grid selection
• Be able to identify common errors made when using
  a grid on an image
• Know when to use a grid and when not to use.

4
Scatter Radiation

• Scatter is radiation which is changed in
  direction as a result of interaction with some
  medium.
• Some of the photons energy is absorbed, leaving
  the resultant photon with a change in its
  direction and with less energy
• These scattered photons are detrimental to
  contrast of the image and also increase the
  patient dose

5
Scatter Radiation

• Other sources of scatter materials beyond the
  image receptor table top may cause scatter to
  go back to the image.
• Two primary factors affecting the amount of
  scatter produced kvp and the irradiated material

6
Scatter Radiation

• Kvp
• Affects the penetrability of the beam.
• Higher kVp, more photons go through patient to
  the IR, less absorbed by patient, higher scatter
  and less contrast on image
• Lower the kVp, increase in dose absorbed by
  patient, less fog on film, more contrasty image

7
Scatter Radiation

• Irradiated Material
• Amount of scatter affected by volume and atomic
  number of irradiated material
• Volume is controlled by field size and patient
  thickness
• Increase in volume if field size increases and
  patient thickness increases.

8
Scatter Radiation

• To reduce scatter smallest field size,
  compression of body part
• The higher the atomic number of the material the
  greater the absorption of photons and the less
  scatter eg bone compared to soft tissue

9
Scatter Radiation
10
Scatter Radiation

• Beam Restriction
• Aperture diaphragms, cones/cylinders, collimators
  3 types of beam restricting devices to control
  scatter and reduce patient dose

11
Scatter Radiation

• Aperture Diaphragm
• Simplest, low cost
• Flat piece of lead with hole (of different sizes)
• Slides into slot at bottom of collimator
• Some resultant penumbra

12
Scatter Radiation

• Cones and Cylinders
• Similar to diaphragm with extension cone or
  cylinder
• Slides into slot bottom of collimator
• Reduces penumbra

13
Scatter Radiation
14
Scatter Radiation

• Collimater
• More complex, most commonly used form of beam
  restriction
• Set of adjustable lead shutters
• Light mirror to show area of beam and
  collimation

15
Scatter Radiation

• The bevelled edges of lead diaphragm compared to
  vertical edge.

16
Radiographic Grids

• A device to absorb scatter radiation before it
  strikes the IR
• Made of thin Pb strips interspaced with
  radiolucent material usually aluminium
• Frequency number of lines per inch or cm eg 60
  lines per inch
• Grids with higher frequency have thinner Pb
  strips better for stationary grids so you dont
  see the lines
• The more Pb the better the scatter reduction

17
Radiographic Grids

• Types
• Parallel Pb interspace running parallel to
  one another
• Focused central strips parallel, then become
  more angled as you move away from the centre
  angle matching that of divergent rays allows
  more transmitted photons to reach the IR

18
Radiographic Grids

• Crossed grid 2 parallel grids on top of each
  other.
• May be parallel or focused

19
Radiographic Grids

• Focal range recommended SID for that particular
  grid.
• For parallel grid focal range is from certain SID
  to infinity function better at longer SID

20
Radiographic Grids

• Grid Ratio
• Ratio of height of Pb lines to distance between
  them
• Grid ratio increases, contrast increases

21
Radiographic Grids

• The higher the grid ratio the more exposure is
  required

22
Radiographic Grids

• Potter Bucky moving grid for better scatter
  clean up and improved image quality
• Grid is moved during the exposure to blur out
  grid lines.
• Movement must commence before exposure can be made

23
Radiographic Grids

• Air gap technique
• Between patient and film
• Eliminates need of grid
• Gap of at least 15cm increase SID to reduce
  magnification
• The scatter from the body does not hit the IR

24
Radiographic Grids

• Grid Errors
• Upside down grid peripheral grid cut off with a
  focus grid
• Check front of grid upper side has line down
  centre indicating direction of grid lines

25
Radiographic Grids

• Off centre tube not centred to middle of grid.
• Result in decrease in exposure across entire
  image and visible grid lines
• The greater the decentering the greater the grid
  cut off

26
Radiographic Grids

• Off level grid tube angled across long axis of
  Pb strips
• Show grid lines with decrease in exposure on image

27
References

• Burns, E, Radiographic imaging a guide for
  producing quality images, Saunders 1992 1st edn
• Carlton, R, Adler, A, Principles of radiographic
  imaging an art and a science, 4th edn
• Fauber, T, Radiographic imaging exposure, 2000
• Kodak, The fundementals of radiography,11th edn
• Stockley, S, A manual of radiographic
  equipment,1st edn, 1986
