Title: EGovernment Registry Repository for Data Dictionary


1

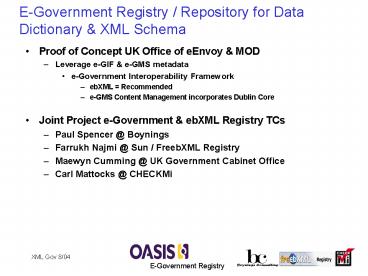

E-Government Registry / Repository for Data
Dictionary XML Schema
  • Proof of Concept UK Office of eEnvoy MOD
  • Leverage e-GIF e-GMS metadata
  • e-Government Interoperability Framework
  • ebXML Recommended
  • e-GMS Content Management incorporates Dublin Core
  • Joint Project e-Government ebXML Registry TCs
  • Paul Spencer _at_ Boynings
  • Farrukh Najmi _at_ Sun / FreebXML Registry
  • Maewyn Cumming _at_ UK Government Cabinet Office
  • Carl Mattocks _at_ CHECKMi

2
Carl Mattocks _at_ CHECKMi.com
  • Co-Chair (ISO/TS 15000) ebXMLRegistry Semantic
    Content SC
  • Co-Chair Business Centric Methodology TC
  • CEO CHECKMi
  • Multiple Agent Training Engine binding 1000
    databases
  • Federation of Vendor Repositories
  • CA AllFusion, Logidex, Unicorn, Tivoli (OPC,
    Maestro)
  • BCM Compendium (.Net open source code)
  • Crosswalk UDDI / ebXML Registry / Local DataStore
  • Multiple Taxonomies, Z39.50 SRW Gateway, XACML

3
e-Business Service Needs
  • Support communities of users locally,
    regionally, nationally, internationally.
  • Enable industries, services and government to
    create service processes that support
    internationally agreed business process
    definitions, trust mechanisms and process control
    methods
  • Neutral approach not tied to specific middleware
    or transport systems
  • Use natural knowledge models suitable for wide
    audience not just IT support specialists
  • Ability to mitigate business vocabularies and
    multi-lingual challenges
  • Provide the process details to direct
    implementation systems

4
ebXML Registry
  • One interface (HTTP, SwA, ebMS)
  • Electronic Forms
  • Web Services / WSRP
  • Collaboration Agreements
  • Business Process Requirements, Objects, Data
  • Domain specific Semantics and Relationships
    between Assets Artifacts
  • SQL queries and APIs

5
Business Centric Methodology
  • Enables precise communication between business
    users and technical experts enterprise
    applications and their respective business
    partner systems
  • Involves a layered approach for strategically
    managing artifacts and constraints while
    achieving semantic interoperability

6
Federated e-Business Registries
  • BCM exploits the discovery collaboration
    capabilities of Registries to ensure that assets
    are controlled, made visible, and shared with
    partners for integration.
  • BCM uses Registry / Repository to securely store
    XML artifacts (e.g. XSDs, data elements) and
    non-XML artifacts (e.g. Templates)

7
ebXML Registry Information Model (RIM) -
Classification
Classification trees constructed with
ClassificationNodes are used to define the
structure of Classification schemes or ontologies
RegistryObject
ClassificationNode
Classification
Association
RegistryEntry
A Classification instance identifies a
ClassificationScheme instance and taxonomy value
defined within the classification scheme
RegistryPackage
ExtrinsicObject
Service
ClassificationScheme
The structure of the classification scheme may be
defined internal or external to the registry
Person
8
Federated Content Management Needs
  • A Federated Registry not only acts as an
    interface to a Repository of stored content, it
    formalizes how information is to be registered
    and shared beyond a single enterprise or agency.
  • Specifically, a federated content management
    capability that is required when there is a need
    for managing and accessing metadata across
    physical boundaries in a secure manner. Those
    physical boundaries might be the result of
    community-of-interest, line of business, system,
    department, or enterprise separation.
  • Irrespective of the boundary type, a Federated
    Registry must enable information users to
    seamlessly access, share and perform analysis on
    information, including
  • map of the critical path of information flowing
    across a business value chain
  • quality indicators such as statements of
    information integrity, authentication and
    certification and
  • policies supporting security and privacy
    requirements.

9
Federated XML Schema Management Needs
  • Interacting organizations need re-usable data
    items with known semantics
  • These items are required as XML Schema components
  • The Schema (document) and the Components must be
    shared within and often outside the organization
  • Components may use external components such as
    code lists
  • Domain Components must be managed cooperatively
  • Core components must be common
  • Data definition arbitration agreements are
    essential
  • Data types must be standardized

10
Registry / Repository Assemble, Populate, Use,
Import / Export, Manage
11
Simplex XML Government Requirements
  • reconcile data elements that are common across
    lines of business ?
  • Enter XML Schema representations and their
    definitions
  • Manage multiple versions of schemas associated
    metadata into the registry / repository
  • multiple collaborators e.g. UK OeE MOD
  • collaborate to specify elements that are truly
    unique and, thus, distinguish a LOB from others ?
  • Perform a "what-if" analysis, impact of a planned
    change
  • suggest XML names that comport with guidance,
    such as that issued by DON?
  • Create schema documents from components

12
MOD Data Dictionary - ACCORD
13
Government Data Standards Catalogue
14
Not-So-Simple XML Government Requirements
  • given the "data object definitions" relate them
    to each other in terms of semantics, and
    facilitate the specification of XML tags for each
    element ?
  • Present Naming Convention rules that embed
    International / Regional / Local concepts in
    Component names
  • Core Components Naming Convention rules (mostly
    based on ISO/IEC 11179 Part 5) has 3 major parts
    . For example, Object Class(Abstract), Property
    Term (valid values), Representation Term (form)
  • UBL Naming and Design Rules Subcommittee have an
    XSD module demonstrating how to construct
    datatypes for code lists according
  • http//www.oasis-open.org/committees/ubl/ndrsc/cur
    rent/CodeListModuleTemplate.xsd
  • Note
  • Expect to discover common structures across
    e-Government Service Schemas

15
Core Components have NO Context independent of
Use Need Business Aggregation
16
Context Core Component Classification
17
Complex XML Government Requirement - Semantic
Analysis of Schema and / or Components
  • Isomorphic meaning comparison consider if all
    components are the same
  • Domain meaning the components have same class of
    relationship with other components, per namespace
  • Standard meaning in context, as in a data
    dictionary
  • Axiomatic meaning the precondition post
    condition of schema (as an abstract data type )
    after a component change (axioms insert, delete)
  • Denotational meaning the (valuation) function
    e.g. two provide same result
  • Operational meaning the rules e.g. requires
    certain input to provide specific output

18
Semantic Spectrum Layers of Wisdom
Business Usage Semantics
System Interoperability
OWL-S Ontology Business Agreement Templates
RDFS / UML / Topic Map / UNSPSC
DTD / XML Schema / Dublin Core
Object Oriented Model / Thesaurus
Info Engineering Model
Data Dictionary
Data Usage Semantics
Service Quality
19
Registry Metadata, Repository Artifacts - Phase 1
  • Enter schemas and the associated metadata
  • Enter schema components (global data types,
    elements and attributes) and associated metadata
  • Enter other document types with associated
    metadata
  • Hold schema definitions in a syntax-independent
    manner - sufficient information must be held in
    the registry to create the component from
    metadata
  • Metadata to be supported will vary according to
    the three document types (schema, schema
    component or other) and will be a subset of that
    defined in the UK e-GMS
  • Search on certain metadata information and
    extract all matching schemas, components or other
    documents
  • Construct schemas from components

20
Registry / Repository Artifacts- Later Phases
  • Phase 2
  • The ability to interoperate between Registries.
  • The ability to add MOD-specific metadata.
  • Mapping metadata via the CCRIM
  • Phase 3
  • Incorporate Digital Signature Services

21
With thankful links to
  • Members of ebXMLRegistry Semantic Content SC
  • http//www.oasis-open.org/committees/sc_home.php?w
    g_abbrevregrep-semantic
  • Members of Business Centric Methodology TC
  • http//www.oasis-open.org/committees/download.php/
    5931/BCM20Executive20Brochure.pdf
  • Contact CarlMattocks_at_CHECKMi.com
