Title: Silica Hazard Identification


1

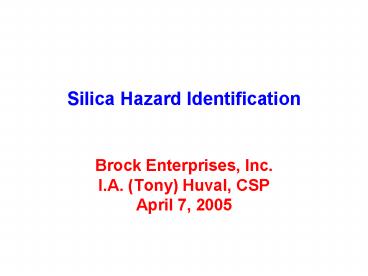

Silica Hazard Identification
  • Brock Enterprises, Inc.
  • I.A. (Tony) Huval, CSP
  • April 7, 2005

2
  • Each year, 300 people die from a disease called
    Silicosis.
  • Are you or any of your employees among the 2
    million people exposed to silica each year?

3
The Basics of Silica
  • Silica (Si02) is a mineral compound made up of
    one silicon atom and two oxygen atoms.
  • Oxygen is the most abundant element in the
    earth's crust.
  • Silicon is the second most abundant.
  • There are other compounds that contain silicon
    whose names are quite similar, such as silicate
    and silicone.  Do not mistake these for silica.
    They are not the same thing.
  • If the individual silica molecules are lined up
    in order and create a repeatable pattern then the
    silica is in crystal form.  We call it
    "crystalline" silica.
  • If there is no order and no repeatable pattern
    then it is called amorphous silica.

4
Silica Atomic Structure
5
Repeating Pattern of Crystalline Silica
6
Random Pattern of Amorphous Silica
7
Types of Silica
  • There can be more than one repeatable pattern in
    silica.  The various crystal patterns are given
    their own name.  There are
  • quartz,
  • cristobalite,
  • tridymite,
  • and other rare forms of crystalline silica.
  • Quartz is so common that the term quartz is often
    used to refer to crystalline silica.  And sand is
    often used to refer to quartz.

8
Determining Silica Exposure
Because Silica is so prevalent and abundant in
our natural resources, it is possible that you
are using it without even knowing!
9
Industries Using Silica
  • Abrasive blasting or Sandblasting (High Risk)
  • Asphalt pavement manufacturing
  • Blast furnaces
  • Cement manufacturing
  • Ceramics, clay, and pottery
  • Concrete mixing
  • Concrete tunneling
  • Construction (mainly cement, concrete work)
  • Demolition
  • Electronics industry
  • Foundry industry grinding, molding, shakeout,
    core room (High Risk)
  • Hand molding, casting, and forming
  • Jack hammer operations
  • Manufacturing abrasives, paints, soaps, and glass
  • Mining
  • Repair or replacement of linings of rotary kilns
    and cupola furnaces
  • Rolling and finishing mills
  • Setting, laying, and repairing railroad track
  • Steelwork

10
Occupations Using Silica
  • Brickmason/stonemason
  • Construction laborer
  • Crane and tower operator
  • Crushing and grinding machine operator
  • Furnace, kiln, non-food oven operator
  • Grinding, abrading, buffing, and polishing
    machine operator
  • Hand molder/shaper (not jeweler)
  • Heavy-equipment mechanic
  • Janitor or cleaner
  • Machinist
  • Metals/plastics machine operator
  • Molding and casting machine operator
  • Mining machine operator
  • Miscellaneous material moving equipment operator
  • Millwright
  • Operating engineer
  • Painter who sandblasts (High Risk)
  • Production supervisor
  • Rock driller (High Risk)

11
Materials Using Silica
  • Abrasives
  • Coal Dust
  • Concrete
  • Dirt
  • Filter Aids
  • Graphite, natural
  • Mica
  • Mineral Products
  • Paints
  • Pavement
  • Perlite
  • Plant Materials
  • Plastic Fillers
  • Polishing Compounds
  • Portland Cement
  • Sands
  • Silicates
  • Slag
  • Soapstone

12
Caution
  • RememberThere is potential for danger ONLY
    when crystalline silica particles are in the
    air.  There may be materials that contain silica
    but if the operations on those materials do not
    generate dust, there is little chance of inhaling
    the silica.
  • Likewise, there may be silica particles in the
    air even though you don't see any dust.

13
Airborne?
14
Airborne?
15
Airborne?
16
So How Small is Small?
17
Particulate Matter Sizes
2,000 particles, each 2.5 micrometers in
diameter, when laid end-to-end, will stretch
across the width of a small paper clip.
18
Where Else to Check?
  • Labels
  • A product that contains silica should have a
    label that says so.
  • The machines used in the operations may also be
    labeled with warning signs indicating that silica
    is being used.
  • Manufacturer's responsibility  attach a label to
    all products that contain more than 0.1 silica
    that may be hazardous when used.
  • Employer's responsibility  ensure that the label
    is not removed or defaced.

19
Is That All?
  • Material Safety Data Sheets (MSDS)
  • These sheets contain data for all materials or
    products containing hazardous substances that are
    used at a business in quantities greater than
    what a consumer would use.
  • If a material or product contains crystalline
    silica in quantities greater than 0.1, there
    must be a safety data sheet for it.
  • Manufacturer's responsibility  shall obtain or
    develop a safety data sheet for each hazardous
    chemical they produce or import.
  • Employer's responsibility  ensure access to
    safety data sheets for all hazardous materials at
    the workplace.

20
Measuring Airborne Silica
Now that you suspect Silica is being used and
that it may be in the air, you need to know just
how much of it there is.
21
Sampling
  • The sampling pump will be placed on an employee,
    who will wear the device throughout the work
    shift for up to 8 hours.
  • All employees may be fitted with the sampling
    device or just a select few who are closest to
    the silica source may be fitted.  An industrial
    hygienist can help you determine what will be
    most appropriate.

22
Laboratory Analysis
  • Your main task here is to select a competent
    laboratory that does quality work.  The work from
    the previous step will be wasted if the samples
    are mishandled or analyzed incorrectly. You
    should ask the following questions and get
    positive answers before deciding to go with a
    particular lab.
  • Can the laboratory describe the positives and
    negatives of the techniques they use to analyze
    samples?
  • Do they maintain accreditation with a recognized
    authority?
  • Does the laboratory report the results in a
    format that is understandable and provides all of
    the information required to perform the exposure
    calculations?
  • Does the laboratory have a quality assurance
    program?
  • Do they participate in a proficiency testing
    program for crystalline silica to assure
    consensus and adequate performance?
  • Do they analyze quality control samples to assure
    that their procedures are performing correctly?
  • Does the laboratory staff appear knowledgeable
    about your workplace operations, including the
    other substances you use that could interfere?

23
Exposure vs. Limits
Finding and comparing the actual exposure against
the permissible limit will let you know if you
need to take action or not
24
Comparing Samples to the PEL
  • There is not one crystalline silica exposure
    limit for all cases.  Rather, the limit is
    derived from a calculation that takes into
    account the percentage of quartz, cristobalite,
    tridymite, and respirable dust specific to your
    particular work-site.
  • OSHA regulates silica exposure using the
    permissible exposure limit (PEL), which is the
    maximum amount of airborne dust an employee may
    be exposed to during a full work shift.
  • The PEL is dependent on the amount of crystalline
    silica that is present in the dust. For the most
    part, OSHA is more concerned with the respirable
    fraction of the sample because it is more
    hazardous however, both respirable and total
    dust equations are shown.

25
Oh No, Math!
  • The following parameters are necessary to
    calculate the PEL and the exposure level.
  • crystalline silica in the air samples (if the
    lab reports the silica concentrations in units of
    mass convert the mass to percent e.g., sample
    weight (mg) dust weight (mg) 100 )
  • quartz
  • cristobalite
  • tridymite
  • Total weight of the dust collected in the air
    samples in milligrams
  • Total volume of air sampled for each sample in
    cubic meters (1000 liters 1 cubic meter)
  • Total sampling time for each air sample in
    minutes

26
More Math !
  • PEL Equations
  • PEL (respirable fraction) 10 quartz (
    cristobalite 2) ( tridymite 2) 2
  • PEL (total dust) 30 quartz (
    cristobalite 2) ( tridymite 2) 2
  • The total dust sample is normally taken using the
    same sampling technique described previously, but
    without a cyclone.

27
More Math ((!
  • Exposure Equation
  • Exposure (mg/m3(1) time(1)) (mg/m3(2)
    time(2)) ... (mg/m3(n) time(n)) 480
    minutes
  • This is the formula, now lets work thru an
    example (are we never going to finish with this
    math?)

28
Sample Lab Results
29
I Hate math
  • Step 1. Calculate the percentage of quartz,
    cristobalite, and tridymite in the particulate
    collected.
  • Quartz 5.2 (0.855/1.474) 4.8
    (0.619/1.474) 3.0 2.0 5.0
  • Cristobalite 2.3 (0.855/1.474) 1.7
    (0.619/1.474) 1.3 0.7 2.0
  • Tridymite none detected 0
  • Step 2. Calculate the PEL for the mixture.
  • PEL(mixture) 10 mg/m3 quartz (
    cristobalite 2) ( tridymite 2) 2   10
    5 (2.0 2) ( 0 2) 2 10 11.0
    0.91 mg/m3

30
It Just Keeps Following Me
  • Step 3. Calculate the employee's exposure (8
    hour TWA).
  • Exposure (mg/m3(1) time(1)) (mg/m3(2)
    time(2)) ... (mg/m3(n) time(n)) 480
    minutes (2.1 238) (1.9 192) 480 1.8
    mg/m3
  • Step 4. Calculate the severity of the exposure.
  • Severity 1.8 mg/m3 0.91 mg/m3 2.0
  • If the severity number is higher than 1.0 you are
    above the limit.  If the severity number is less
    than 1.0 you are below the limit.

31
General Industry vs. Other Standards
  • So you are covered by the Construction or
    Maritime Standards. So what? Here is what OSHA
    says about it.
  • OSHA regulation 1910.1000 Table Z-3 is used to
    determine the exposure limits for crystalline
    silica. Though this regulation is under the
    General Industry Standard, crystalline silica
    exposures in the Construction and Maritime
    Industries are subject to this same limit.
    Regulating these industries under the General
    Industry Standard is specifically addressed in
    Appendix F of the OSHA Special Emphasis Program
    (SEP) for Silicosis.

32
Take Action to Protect
Now that I know there is a silica hazard, what do
I do?
33
Hierarchy of Controls
  • Use a silica substitute
  • Use engineering controls
  • Improve work practices
  • Use PPE

34
Use a Substitute
  • The most sure way to eliminate the silica hazard
    is to eliminate the silica! This is especially
    important for sandblasters, where the abrasive
    blasting is often done outside and in different
    locations, making it impossible to install an
    engineering control.  The most severe silica
    exposures occur in abrasive blasting.
  • Advantages
  • Complete elimination of any health hazard related
    to silica
  • Eliminates the need to implement or maintain
    engineering controls
  • These substances are not as dense as silica
    products which makes them easier to transport
  • They can be moved from job site to job site
  • Disadvantages
  • May be slightly more expensive than silica
    products
  • These substances are generally not as hard as
    silica products which may mean more is needed to
    do the job

35
Engineering Controls
  • If silica products must be used, OSHA requires
    engineering controls to be used wherever
    possible.  This type of control involves a
    mechanical process to eliminate exposure to
    silica dust.  Some of these controls may be very
    simple, as can be seen in the examples below
  • Install a water hose to wet down the dust at the
    point of generation
  • Install local exhaust ventilation
  • During rock drilling, flow water through the
    drill stem
  • Install dust collection systems onto machines or
    equipment that generates dust
  • Use concrete/masonry saws that provide water to
    the blade

36
Improve Work Practices
  • If workers know about silica and understand the
    severity of its health hazard, they will be more
    likely to do the following
  • Know which work operations can lead to silica
    exposure
  • Participate in any air monitoring or training
    programs offered by the employer
  • If possible, change into disposable or washable
    work clothes at the worksite shower (where
    available) and change into clean clothing before
    leaving the worksite.
  • Do not eat, drink, use tobacco, products, or
    apply cosmetics in areas where there is dust
    containing crystalline silica.
  • Wash your hands and face before eating, drinking,
    smoking, or applying cosmetics outside of the
    exposure area.
  • If using respirators, do not alter the respirator
    in any way.
  • Use type CE positive pressure abrasive blasting
    respirators for sandblasting
  • For other operations where respirators may be
    required, use a respirator approved for
    protection against crystalline silica-containing
    dust.
  • If using tight-fitting respirators do not grow
    beards or mustaches

37
Personal Protective Equipment
  • Personal protective equipment against silica
    includes respirators and masks.  Respirators
    should be used only when the dust controls cannot
    keep dust levels below the NIOSH Recommended
    Exposure Level.
  • There are many types of respirators,  from
    air-purifying to air-supplying and from a nose
    and mouth covering to a full body respirator.
    You can receive guidance on selecting a
    respirator from OSHAs Respiratory Protection
    Safety and Health Topics page.
  • The OSHA ventilation standard (1910.94) contains
    specific respiratory protection requirements for
    abrasive blasting operations.

38
Choices
  • By evaluating your workplace for potential silica
    hazards and then taking appropriate actions,
    employers and employees will be able to avoid
  • Silicosis, a 100 preventable disease.
  • The often deadly consequences of silicosis.
  • Non-compliance with legal standards and possible
    citations.
  • OSHA is ready to help you protect your employees.

39
Ignore or Comply?
Write a Comment
User Comments (0)
About PowerShow.com
